Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

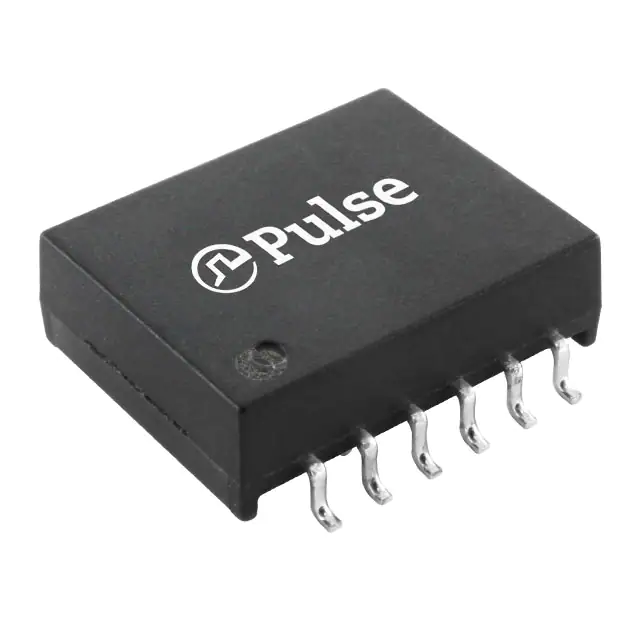

HMU2102NLXFMR CMC MODULE AECQ BATT MNGT |
4,201 | 7.74 |
|
Datasheet |
- | Tube | Obsolete | - | 150µH | - | - | Surface Mount | 0.583" L x 0.461" W (14.81mm x 11.70mm) | 0.192" (4.88mm) | - | - | - |
|
GU4229R LFMDL 1G DIP QUAD PORTS N/A |
3,249 | 7.69 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.098" (2.50mm) | 0°C ~ 70°C | - | - |
_iNRCORE_Product-Image.jpg)
|
R4009NLTXFRMR ETHERNET MOD IND 10/100B-T |
1,431 | 7.10 |
|
- |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 1.080" L x 0.480" W (27.43mm x 12.19mm) | 0.226" (5.74mm) | -40°C ~ 85°C | - | - |
|
|
HDX8006NLTMDL SIN HDBT 1:1 POEPP SMT TR |
4,408 | 7.71 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
H1062TPULSE XFMR 1CT: 1CT TX 1:1 RX |
4,749 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT: 1CT Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|

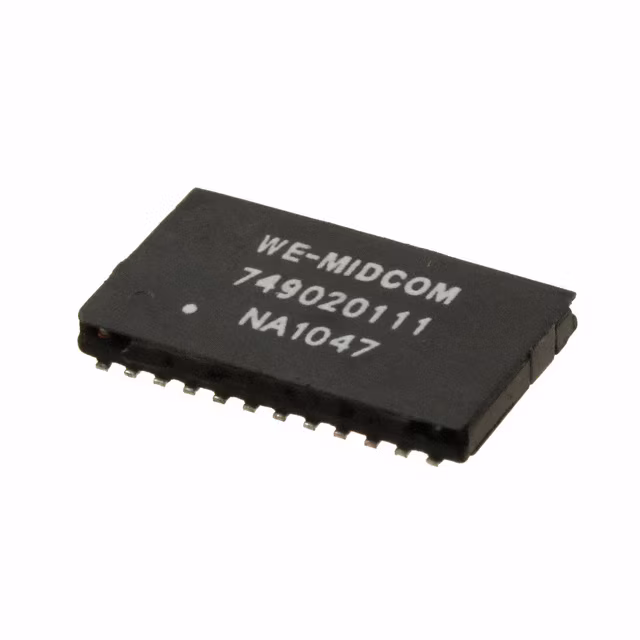

749020111TRANSFORMER LAN 10/100/1000 SMD |
2,059 | 17.27 |
|
- |
WE-LAN | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.655" L x 0.354" W (16.64mm x 8.99mm) | 0.090" (2.29mm) | - | - | - |
|
G502TRANSFORMER 0.50MH 1:1:1 PULSE |
1,523 | 6.60 |
|
Datasheet |
G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 500µH | 8.5VµS | 1:1:1 Ter | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
G516TRANSFORMER 0.50MH 1:1.3 PULSE |
4,367 | 7.91 |
|
Datasheet |
G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 500µH | 8.5VµS | 1:1.3 | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PL1241XFMR TOROID CS SLIC COM PBC |
4,268 | 8.42 |
|
Datasheet |
- | Tube | Active | - | 760µH | - | - | Surface Mount | 0.670" L x 0.770" W (17.02mm x 19.56mm) | 0.400" (10.16mm) | - | - | - |
|
|
ISRA-0239-D502ISRA PULSE TRANSFORMER SMD 0.5A |
3,240 | 3.81 |
|
Datasheet |
IS | Tape & Reel (TR) | Active | SCR and Triac Trigger (Encapsulated) | 2.2mH | 400VµS | 1:1 | Surface Mount | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.551" (14.00mm) | -25°C ~ 100°C | - | - |
|
B78476A8066A003PULSE XFMR 1CT:1CT 350UH |
2,397 | 5.28 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
|
T60403D4615X0534615X053 |
1,263 | 0.00 |
|
- |
- | Box | Active | General Purpose | 1µH | 250VµS | 1:1:1 | Through Hole | 0.886" L x 0.886" W (22.50mm x 22.50mm) | 0.650" (16.50mm) | -40°C ~ 85°C | - | - |
|
|
T60403D4615X0544615X054 |
2,126 | 0.00 |
|
- |
- | Box | Active | Gate Drive | 1.7mH | 250VµS | 1:1.2:1.2 | Through Hole | 0.886" L x 0.886" W (22.50mm x 22.50mm) | 0.650" (16.50mm) | -40°C ~ 85°C | - | - |
|
|
T60403D4215X0304215X030 |
1,843 | 0.00 |
|
- |
- | Box | Active | General Purpose | 6mH | 500VµS | 1:1:1 | Through Hole | 0.827" L x 0.803" W (21.00mm x 20.40mm) | 0.650" (16.50mm) | -40°C ~ 85°C | - | - |
|
|
ISRB-0239-D502ISRB PULSE TRANSFORMER SMD 0.5A |
1,835 | 3.92 |
|
Datasheet |
IS | Tape & Reel (TR) | Active | SCR and Triac Trigger (Encapsulated) | 1.8mH | 350VµS | 2:1 | Surface Mount | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.551" (14.00mm) | -25°C ~ 100°C | - | - |
|
|
T2SD02RMDL 10G DUAL PORT N/A |
2,647 | 8.09 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 90°C | - | - |
|
|
T2SD02RTMDL 10G DUAL PORT 4PAIR POE 60W |
2,732 | 8.09 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 90°C | - | - |
|
|
T2SD02RVMDL 10G DUAL PORT 4PAIR POE 90W |
4,721 | 8.09 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 120µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 105°C | - | - |
|
|
T60404E4629X5034629X503 |
2,406 | 0.00 |
|
- |
- | Box | Active | General Purpose | - | - | 1:1500 | Through Hole | 1.417" L x 1.102" W (36.00mm x 28.00mm) | 0.787" (20.00mm) | -40°C ~ 70°C | - | - |
|
|
T60404M4645X1004645X100 |
4,869 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
