Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QGS6015RSMDL 5G DUAL PORT 4PAIR POE 60W |
3,972 | 8.67 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | 0°C ~ 70°C | - | - |
|
|
QGS2015RSMDL 5G DUAL PORT N/A |
1,080 | 8.67 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | 0°C ~ 70°C | - | - |
|
|
T60404N4646X4604646X460 |
4,486 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
T60404N4646X4614646X461 |
2,188 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG1G-E233NVRLTRISO MOD 1G DUAL X-TEMP 48P SMD T |
4,483 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|

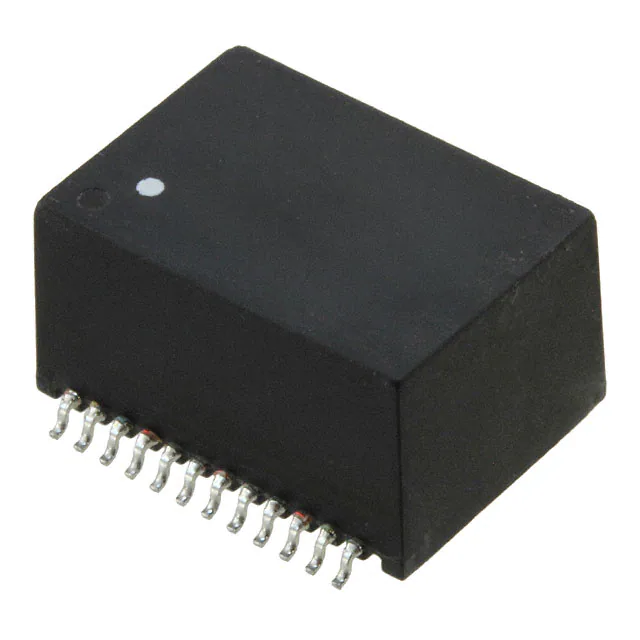

749022015TRANSFORMER LAN 10/100/1000 SMD |
2,851 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.720" L x 0.511" W (18.28mm x 12.98mm) | 0.404" (10.26mm) | - | - | - |
|
HX6096FNLTPULSE XFMR 1CT:1CT TX/RX |
3,807 | 8.84 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
PL1960NLTXFMR TOROID GATE-DR SMT CU PBC |
1,482 | 8.14 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.265" L x 0.340" W (6.73mm x 8.64mm) | 0.140" (3.56mm) | - | - | - |
|
H1062NLMODULE XFRMR QUAD ETHR LAN40SOIC |
2,991 | 14.35 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
AGS9015RMMDL 2.5G 2 PORT 4PAIR POE 90W |
1,510 | 9.08 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PL1863NLTPOWER |
1,578 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1.2mH | 27.2VµS | 2:1:1 | Surface Mount | - | - | - | - | - |
|
|
T60404N4644X4004644X400 |
2,358 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PL1960TXFMR TOR GATE-DR SMT CUPID PBC |
2,057 | 8.28 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.265" L x 0.340" W (6.73mm x 8.64mm) | 0.140" (3.56mm) | - | - | - |
|
|
PL3445NLPOWER |
2,210 | 0.00 |
|
Datasheet |
- | Tube | Active | Gate Drive | 5mH | 75VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|
HU4102NLTMDL,SIN, DUAL 2.5G,1:1,SMT |
3,883 | 9.22 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 180µH | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | - | - | - |
|
|
HX1222NLMDL SIN 100D 1:1 4KV SMT T |
3,784 | 9.25 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX1223NLMDL SIN 100D 1:1 4KV SMT TU |
2,270 | 9.25 |
|
- |
- | Tube | Active | - | 350µH | - | 1:1 | Surface Mount | 0.570" L x 0.537" W (14.48mm x 13.64mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

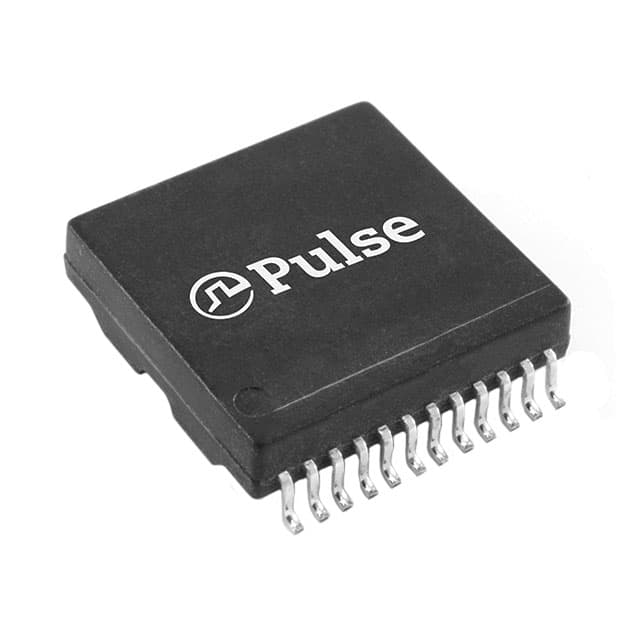

H1270NLTXFRMR MODULE 2PORT 1:1 10/100 |
3,000 | 9.19 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.500" W (13.08mm x 12.70mm) | 0.145" (3.69mm) | 0°C ~ 70°C | - | - |
|

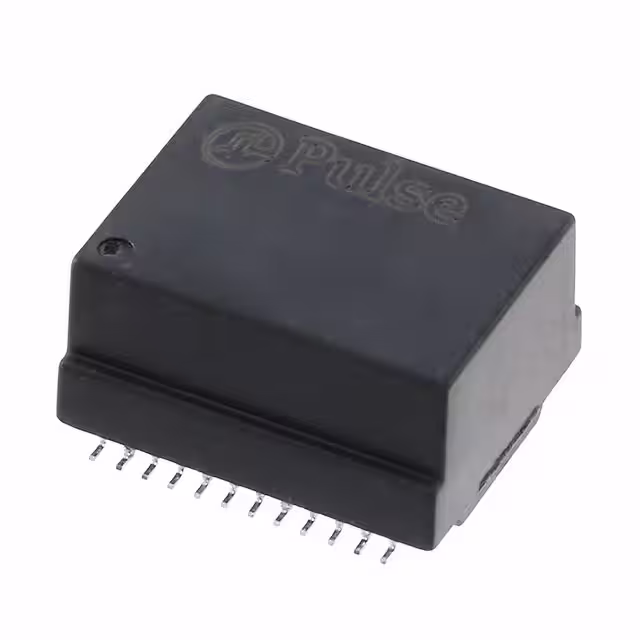

HX5224CNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,191 | 9.28 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.728" L x 0.604" W (18.50mm x 15.34mm) | 0.385" (9.77mm) | -40°C ~ 85°C | - | - |
|
|
HU4102NLMODULE MAGNETIC DUAL 2.5GB SMT |
1,954 | 11.16 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | 0°C ~ 70°C | - | - |
