Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1137TRANSFORMER TELECOM DUAL T1/E1 |
3,512 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
T1144TRANSFORMER TELECOM DUAL T1/E1 |
3,644 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1CT, 1CT:2.4CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | - | - | - |
|
T1093TRANSFORMER TELECOM DUAL T1/E1 |
2,684 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1.15CT, 1CT:1.15CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
T1091TRANSFORMER TELECOM DUAL T1/E1 |
1,491 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT, 1:1.36CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

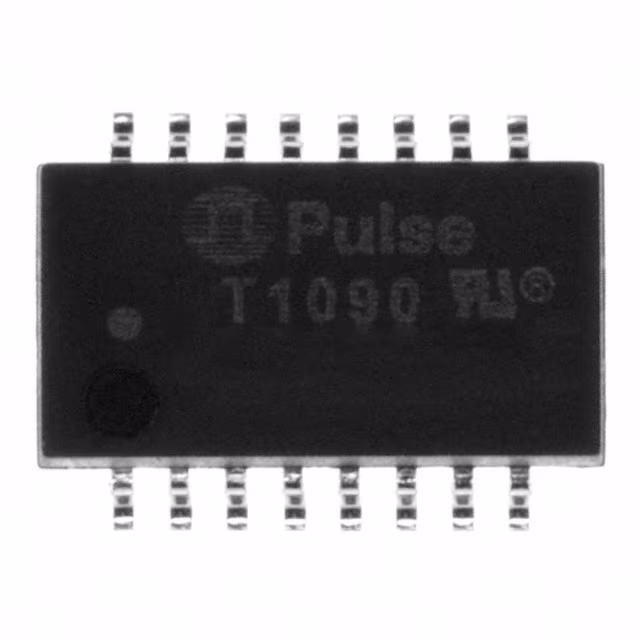

T1090TRANSFORMER TELECOM DUAL T1/E1 |
2,403 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

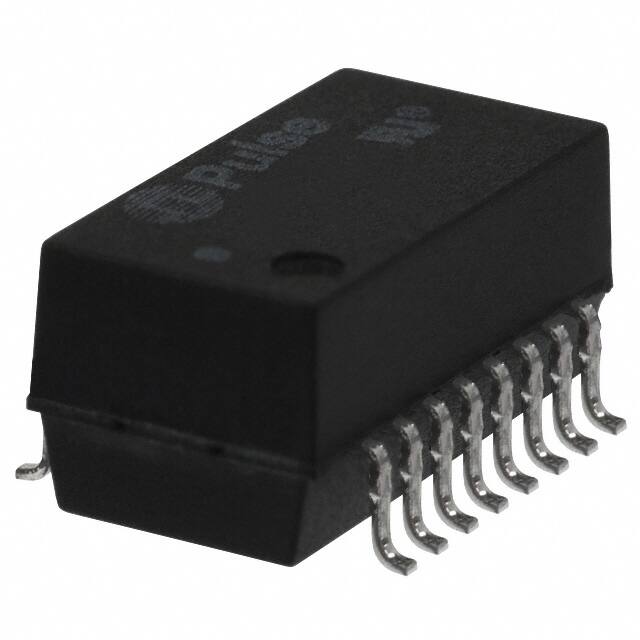

TX1287TRANSFORMER TELECOM DUAL T1/E1 |
2,541 | 0.00 |
|
Datasheet |
- | Bulk | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
PE-65967TRANSFORMER TELECOM SINGLE T3/E3 |
4,498 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
PE-65968TRANSFORMER TELECOM SINGLE T3/E3 |
1,865 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T3/E3 (Single) | 19µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
T3001TRANSFORMER TELECOM SINGLE T3/E3 |
2,832 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
T3002TRANSFORMER TELECOM SINGLE T3/E3 |
3,567 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
H5004MODULE SINGLE GIGABIT LAN 24SOIC |
4,339 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
H5007MODULE SINGLE GIGABIT LAN 24SOIC |
1,995 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
HX5020MODULE DL GIGABIT ETHER LAN 48P |
3,959 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | -40°C ~ 85°C | - | - |
|

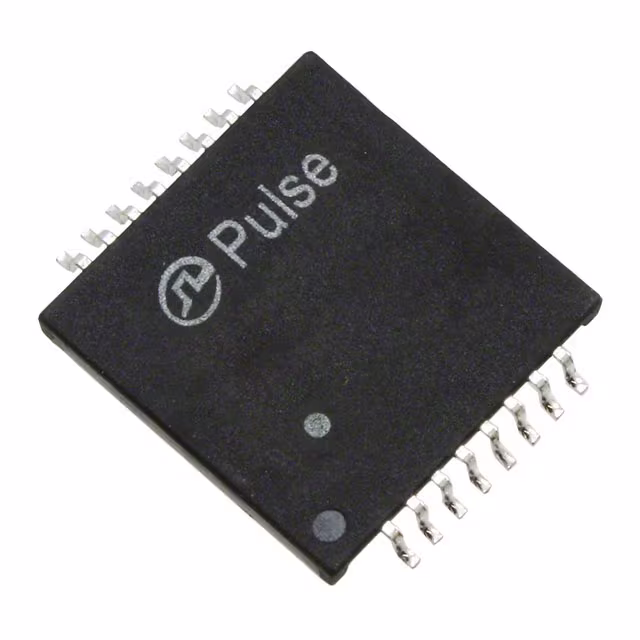

H0009MODULE PC CARD SNGL LAN 16PCMCIA |
4,808 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|

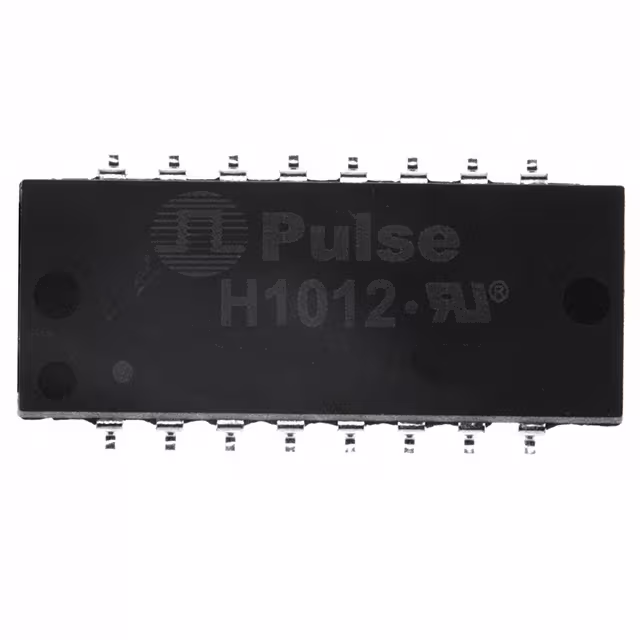

H1012MODULE TRANSFMR SNGL LAN 16P SMD |
3,166 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H1102MODULE XFRMR SGL ETHR LAN 16SOIC |
4,405 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H1112MODULE TRANSFMR SNGL LAN 12P SMD |
3,527 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
|
HX1148MODULE TRANSFMR SNGL LAN 16P SMD |
3,419 | 7.67 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX1188MODULE XFRMR SGL ETHR LAN 16SOIC |
1,517 | 0.00 |
|
Datasheet |
- | Bulk | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
H1036LMODULE XFRMR QUAD ETHR LAN40SOIC |
4,329 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
