Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMUG24C02QLAN XFMR 10G BASE-T POE++ |
400 | 0.00 |
|
- |
Exos | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.693" L x 0.480" W (17.60mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
HX2305NLTXFRMR MODUL 2PORT POE 1:1 10/100 |
700 | 6.11 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|
|
T5008NLTXFRMR ISDN-S 1:1/1:1 22MH SMD |
398 | 9.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:1, 1:1 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
T1108NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
375 | 6.38 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TX1344NLXFRMR OCTAL 1:1/1:2 1.2MH SMD |
122 | 6.38 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:1, 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
T1231NLXFRMR T1/E1/CEPT/ESDN-PRI 1:2.4 |
109 | 6.38 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|

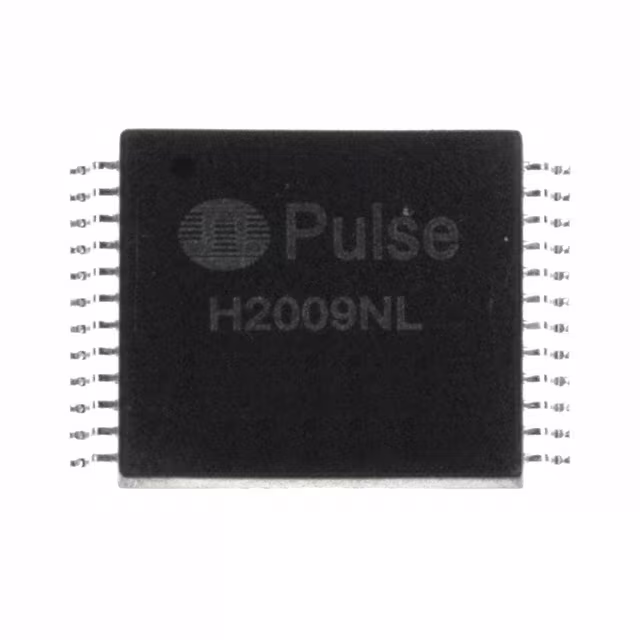

H2009NLTXFRMR MAGNT MOD 2PORT POE 10/100 |
356 | 9.83 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | 0°C ~ 70°C | - | - |
|

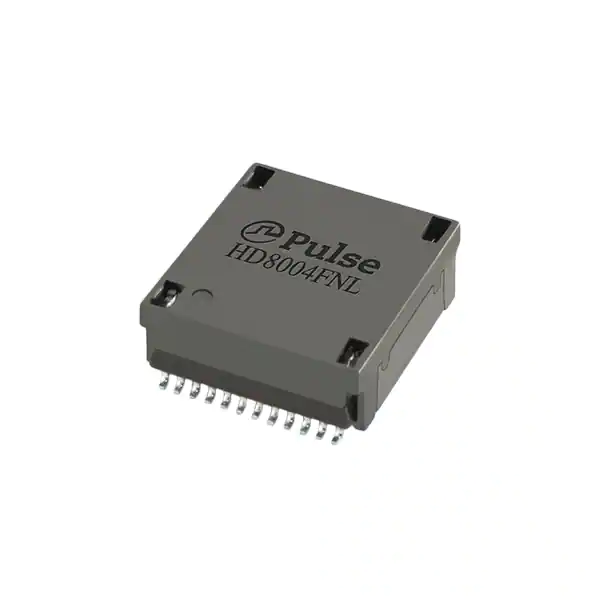

HD8004FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
313 | 9.99 |
|
Datasheet |
- | Tube | Active | HDBase-T | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
T5049NLTXFMR ISDN S 1CT:1CT SMD RPB |
240 | 6.54 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 30mH | - | 1:1CT | Surface Mount | 1.170" L x 0.500" W (29.72mm x 12.70mm) | 0.316" (8.03mm) | 0°C ~ 70°C | - | - |
|
|
PE-2228XNLXFMR STAT 1:1 1.30MH 84VUS |
1,350 | 6.05 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
7490240140WE-LAN 10/100/1000 BASE-T SMT TR |
173 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 350µH | - | - | Surface Mount | 1.115" L x 0.500" W (28.32mm x 12.70mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
|
750510505DIGITAL TRANSFORMER ; EE13/7/4 ( |
260 | 0.00 |
|
Datasheet |
MID-PLC | Tray | Active | General Purpose | 870µH | - | 1:1 | Through Hole | 0.805" L x 0.540" W (20.45mm x 13.72mm) | 0.400" (10.16mm) | - | - | - |
|
|
750510436DIGITAL TRANSFORMER ; EE13/7/4 ( |
260 | 0.00 |
|
Datasheet |
MID-PLC | Tray | Active | General Purpose | 1.1mH | - | 1.5:1 | Through Hole | - | 0.400" (10.16mm) | - | - | - |
|
|
749080010WE-LAN 2.5G/5G BASE-T SMT TRANSF |
389 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 200µH | - | 1:1 | Surface Mount | 0.550" L x 0.472" W (13.97mm x 12.00mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
H1174FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
425 | 10.69 |
|
Datasheet |
- | Tray | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.574" W (13.08mm x 14.57mm) | 0.145" (3.69mm) | 0°C ~ 70°C | - | - |
|
|
HB5612NLMOD QUAD 1GP 1:1 HF 96P |
204 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 1/5/10G Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | 0°C ~ 70°C | - | - |
|
|
T5037NLMODULE ISDN-S 1CT:2.5CT 30MH SMD |
275 | 7.50 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 30mH | - | 1CT:2.5CT, 1CT:2.5CT | Surface Mount | 1.170" L x 0.500" W (29.72mm x 12.70mm) | 0.326" (8.28mm) | 0°C ~ 70°C | - | - |
|
|
TMU50C53LAN TRANSFORMER, DUAL 1G BASE-T, |
450 | 0.00 |
|
Datasheet |
Exos1G | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.093" L x 0.287" W (27.75mm x 7.30mm) | 0.331" (8.40mm) | -40°C ~ 85°C | - | - |
|
|
H5201NLTXFRMR MODULE DUAL 1G 1:1 BGA SMD |
170 | 0.00 |
|
Datasheet |
H5201NLT | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|
|
H6200NLTXFRMR MODULE DUAL 1G 1:1 BGA SMD |
385 | 0.00 |
|
Datasheet |
H6200NLT | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 120µH, 350µH | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
