Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

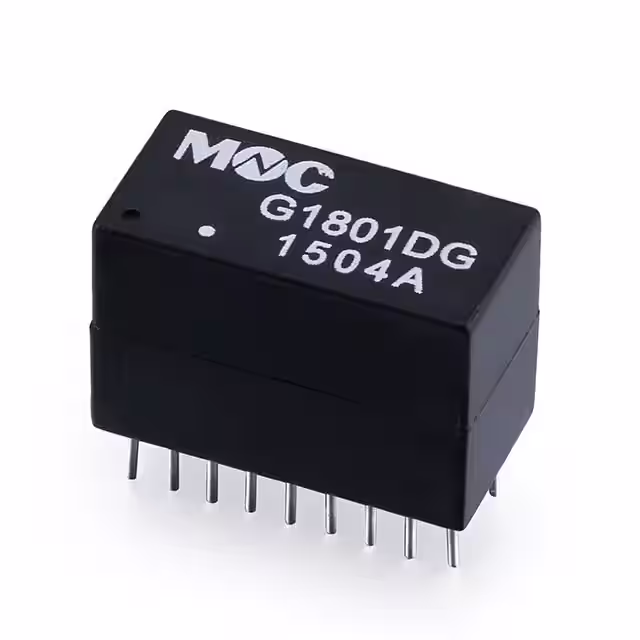

G1801DGSINGLE LAN XFMR 1000 BASE-T |
1,212 | 2.74 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.819" L x 0.402" W (17.30mm x 9.00mm) | 0.467" (11.85mm) | 0°C ~ 70°C | - | - |
|

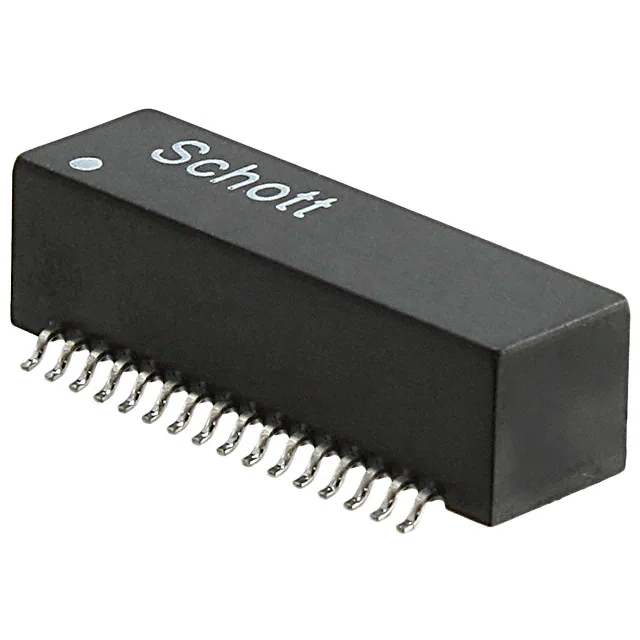

37533TRANSF QUAD T1/E1 1:1.36&1:2 SMD |
977 | 2.70 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | T1/E1 (Quad) | 1.2mH | - | 1:1.36, 1:2 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | - | - | - |
|

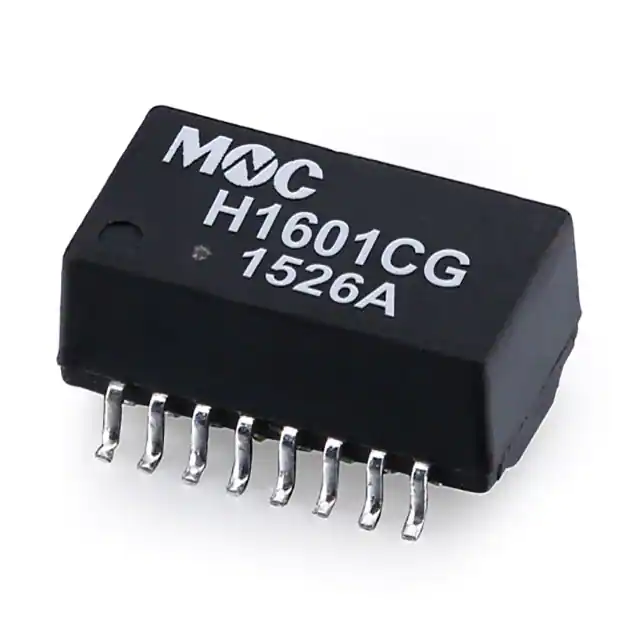

H1601CGSINGLE LAN XFMR 10/100 BASE-T |
550 | 2.80 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.10mm) | 0.244" (6.20mm) | 0°C ~ 70°C | - | - |
|
PH9572.322NLTGDT, FUNCTIONAL, EP7, SMT |
11,986 | 1.77 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | - | - | - | Surface Mount | - | - | - | - | - |
|
PE-64934NLXFRMR T1/CEPT/ISDN-PRI 1:1 |
3,054 | 5.28 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
WBC4-1TLCPULSE XFMR 1:4 9UH 36UH |
879 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:4 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|

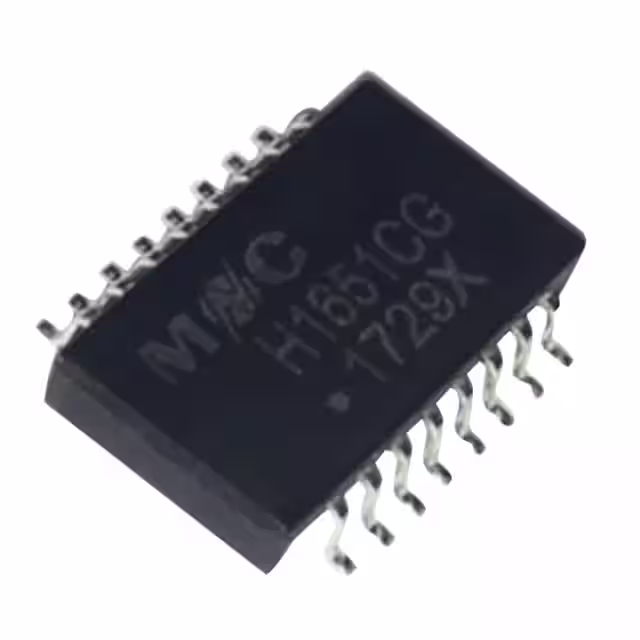

H1651CGSINGLE LAN XFMR 10/100 BASE-T |
1,400 | 3.28 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.520" L x 0.299" W (13.20mm x 7.60mm) | 0.098" (2.50mm) | 0°C ~ 70°C | - | - |
|
|
WBC4-1WLCPULSE XFMR 1:4 5UH 20UH |
751 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:4 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|

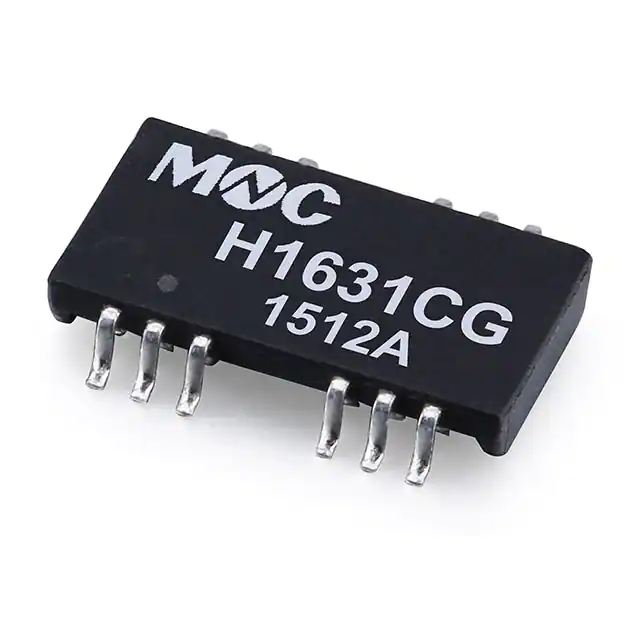

H1631CGSINGLE LAN XFMR 10/100 BASE-T |
1,355 | 3.44 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.520" L x 0.299" W (13.20mm x 7.60mm) | 0.098" (2.50mm) | 0°C ~ 70°C | - | - |
|
|
LAN-16J241P1D9LAN XFMR MODULE 10G BASE-T SMD |
799 | 0.00 |
|
Datasheet |
- | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
LAN-17J241P7D9LAN XFMR MODULE 10G BASE-T SMD |
399 | 0.00 |
|
Datasheet |
- | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - |
|

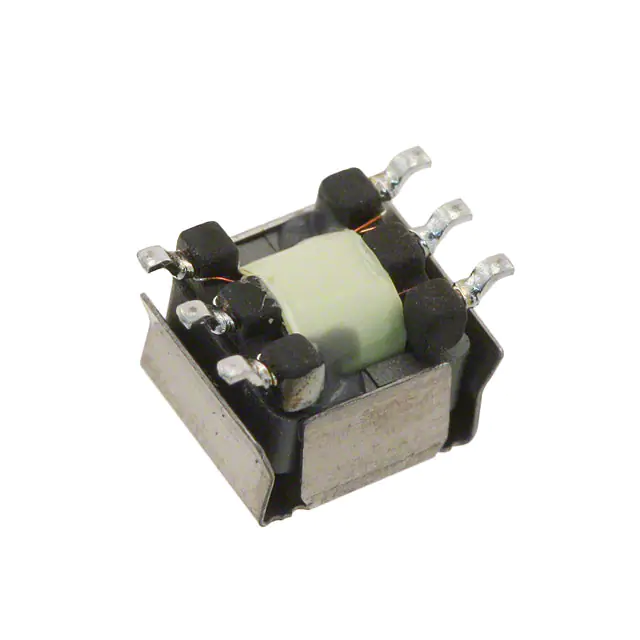

HM42-10002LFTRPULSE XFMR 2:1:1 300UH |
319 | 3.58 |
|
Datasheet |
HM42 | Cut Tape (CT) | Discontinued at Digi-Key | Gate Drive | 300µH | 40.4VµS | 2:1:1 | Surface Mount | 0.260" L x 0.319" W (6.60mm x 8.10mm) | 0.217" (5.50mm) | -40°C ~ 125°C | - | - |
|
|
WBC1-1LCPULSE XFMR 1:1 10UH 10UH |
1,533 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:1 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|
|
ALANS10001-4J41ETLAN SGL 1000B XFMR&CMC&AUTO 24PI |
1,160 | 2.10 |
|
Datasheet |
ALANS10001-4 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
ALANS10001-4J61ETLAN SGL 1000B XFMR&CMC 24PIN |
3,636 | 2.05 |
|
Datasheet |
ALANS10001-4 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
PM2155.034NLTXFMR PUSH-PULL SIDE CAR S NPB |
253 | 3.81 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 2.6mH | 98VµS | 3CT:4CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
PH9385.011NLTXFMR PUSH-PULL SIDE CAR S NPB |
1,355 | 3.75 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.305" (7.75mm) | - | - | - |
|
|
WBC4-6TLCPULSE XFMR 1:4 9UH 36UH |
4,726 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:4 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|
|
WBC1-1TLCPULSE XFMR 1:1 9.5UH 9.5UH |
5,879 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:1 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|
|
WBC4-4LCPULSE XFMR 1:4 9UH 36UH |
1,069 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:4 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
