RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

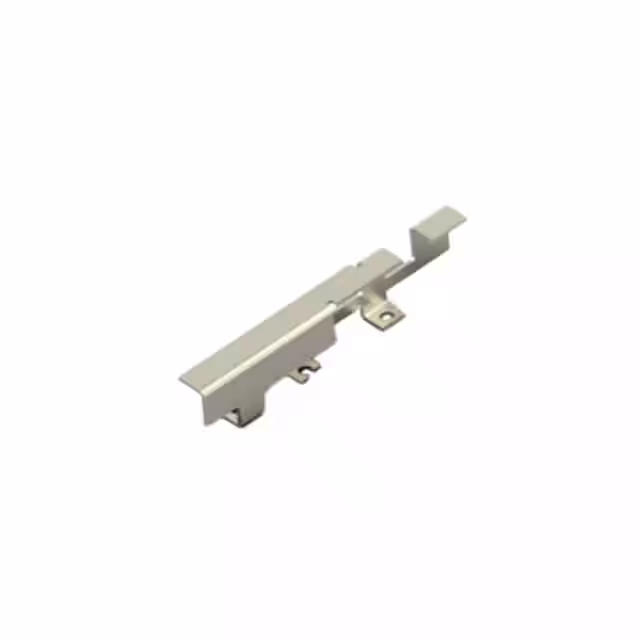

2108517-2RF ANT 2.4GHZ STAMPED MET SLD |
3,613 | 0.71 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | - | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.189" (4.80mm) | Wi-Fi |
|
ATPG1590R2540ACERAMIC GNSS/GPS PATCH ANTENNA |
134 | 1.40 |
|
Datasheet |
ATPG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6GHz | 1.575GHz ~ 1.608GHz | Ceramic Patch | 2 | 2 | 7dB | 4.45dBic, 4.2dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
ATPG1590R1840ACERAMIC GNSS/GPS PATCH ANTENNA |
212 | 1.44 |
|
Datasheet |
ATPG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.575GHz ~ 1.608GHz | Ceramic Patch | 1 | - | -10dB | - | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|

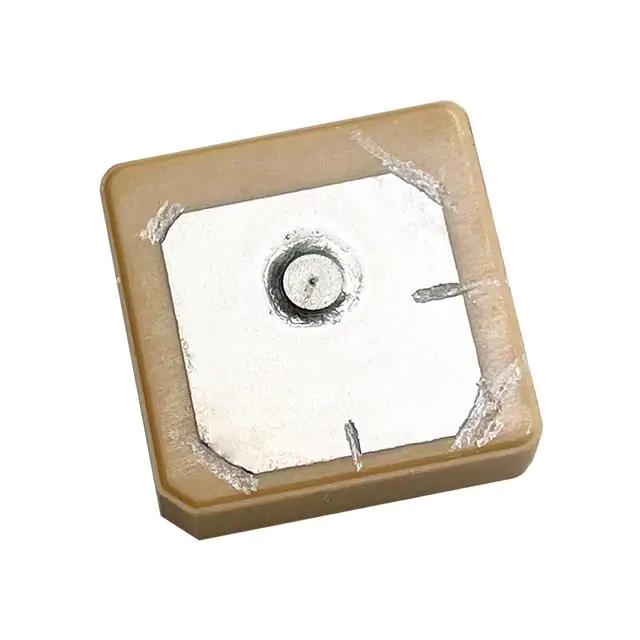

ATPG1590R1540ACERAMIC GNSS/GPS PATCH ANTENNA |
233 | 1.46 |
|
Datasheet |
ATPG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.575GHz ~ 1.608GHz | Ceramic Patch | 1 | - | -7dB | - | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
RAC00245-RT&R 2.4GHZ/5GHZ DUAL BAND ANTENN |
3,200 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Stamped Metal | 2 | - | - | - | - | - | - | - | - | - | - | - | - |
|

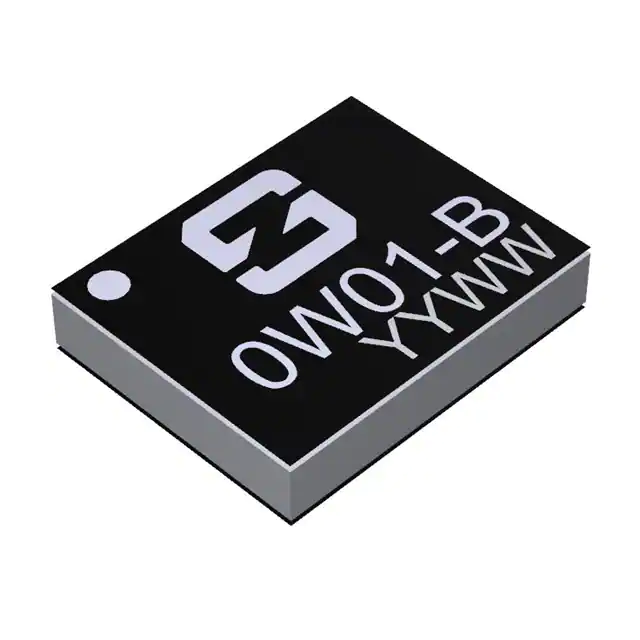

SZP-C-0W01WI-FI/BLE 2.4-2.5GHZ SMD CHIP |
5,000 | 1.50 |
|
Datasheet |
AULIN | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.1 | -8dB | 1.65dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Bluetooth, WLAN, Zigbee |
|

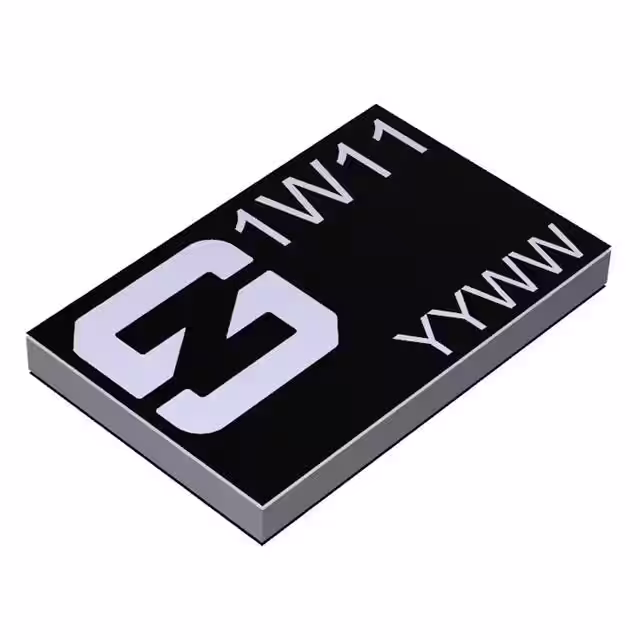

SZP-C-1W11Tri-Band WLAN/BLE SMD Antenna Le |
900 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Chip | 3 | - | - | 0.8dBi, 2.48dBi, 2.82dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Wi-Fi |
|
|
RAC00024-RT&R 2.4GHZ ANTENNA |
3,081 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ATPGGBR2540ARF ANT GPS/GLONASS/BEIDOU PATCH |
113 | 0.00 |
|
Datasheet |
ATPGGB | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | 1.5 | - | - | - | - | SMA | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GPS |
|
ATPG1590R1040ACERAMIC GNSS/GPS PATCH ANTENNA |
243 | 1.57 |
|
Datasheet |
ATPG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.592GHz, 1.609GHz | 1.574GHz ~ 1.576GHz, 1.562GHz ~ 1.622GHz, 1.63GHz ~ 1.612GHz | Ceramic Patch | 3 | 1.5 | - | - | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
ANT-916-USPRF ANT 916MHZ CHIP SOLDER SMD |
438 | 2.60 |
|
Datasheet |
microSplatch™ | Tube | Discontinued at Digi-Key | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 904MHz ~ 928MHz | Chip | 1 | 1.9 | - | 0.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.100" (2.54mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
RAC02456-RT&R 2.4GHZ/5GHZ/6GHZ TRI-BAND AN |
2,400 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | - | Stamped Metal | 3 | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H2UM6D1K2T0100UNICTRON CE807 - WI-FI 6E BAND , |
488 | 491.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 6.525GHz | 5.925GHz ~ 7.125GHz | Chip | 1 | 2 | - | 3.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | Wi-Fi |
|

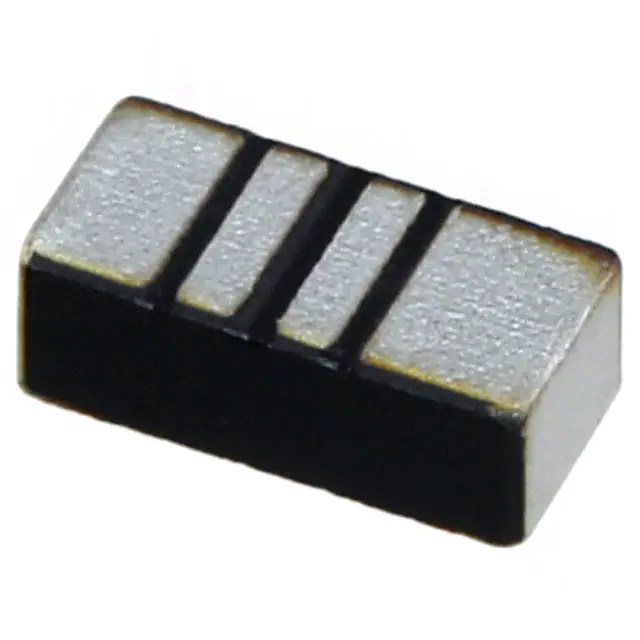

W3008GRF ANT 2.4GHZ CHIP SOLDER SMD |
2,675 | 1.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | 1.6 | - | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth |
|
|
AN100203-01SRF ANT 868/915MHZ SOLDER MOUNT |
223 | 0.00 |
|
Datasheet |
AN100203 | Bulk | Active | Cellular, Genral ISM | UHF (300MHz ~ 1GHz) | 893.5MHz | 863MHz ~ 924MHz | PCB Trace | 1 | 1.93 | -10dB | 1.6dBi | 10 W | - | Solder | - | - | - | Solder | 0.031" (0.80mm) | IoT, ISM, LP-WAN, RFID, Smart Meters |
|

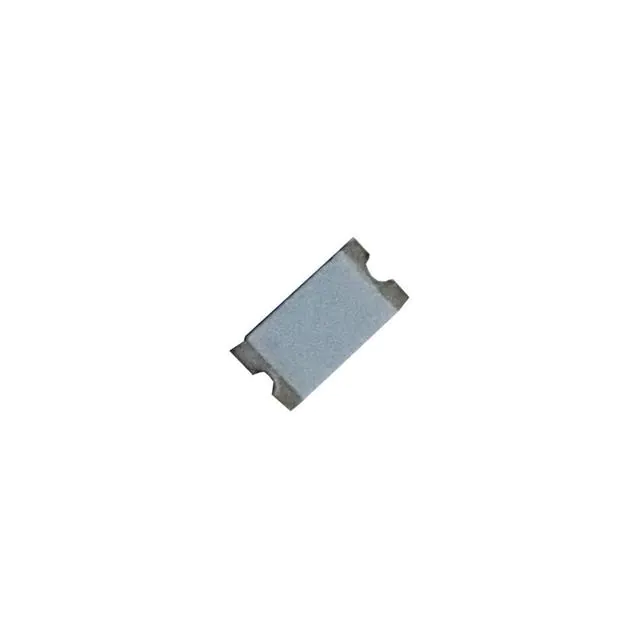

AN_W_CA_3216_P01WIFI/BLUETOOTH CHIP ANTENNA |
1,492 | 1.12 |
|
Datasheet |
- | Cut Tape (CT) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, Wi-Fi |
|

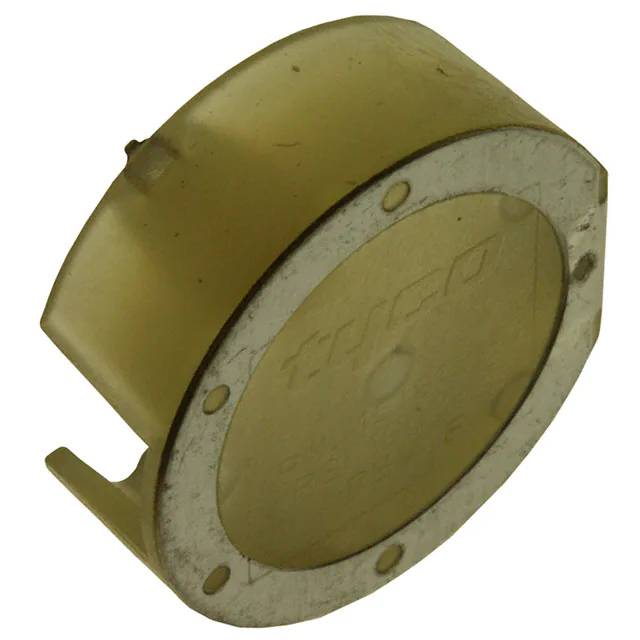

1513151-1RF ANT 2.4GHZ MOLDED SOLDER SMD |
4,298 | 1.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Molded | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | - |
|
|
ATIF2458G-30102.4/5.8GHZ WIFI FLEXIBLE ANT |
995 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | 2 | - | 3dBi | - | Cable - 60mm | I-PEX MHF1 (U.FL) | - | - | - | - | - | Bluetooth, Wi-Fi, Zigbee™ |
|

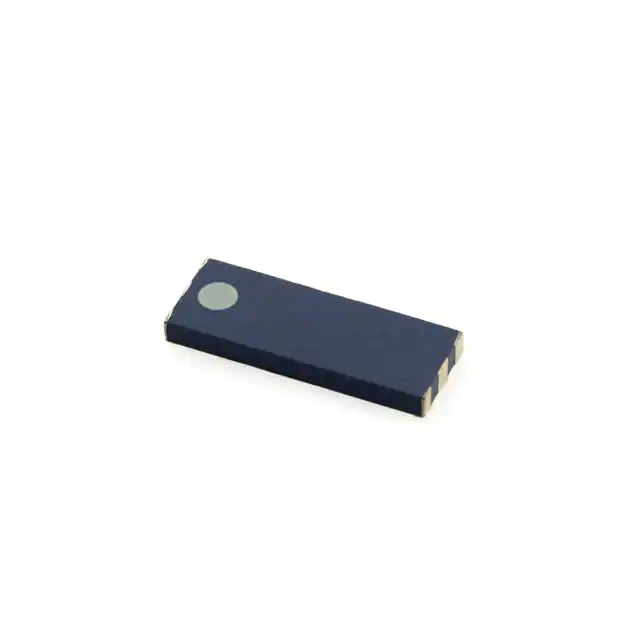

RCA-W1A9A10-1204-Z-001RF ANT 900MHZ CHIP SOLDER SMD |
7,963 | 1.78 |
|
Datasheet |
RCA | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | - | Chip | 2 | 3 | - | -1.6dBi, 1.08dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|

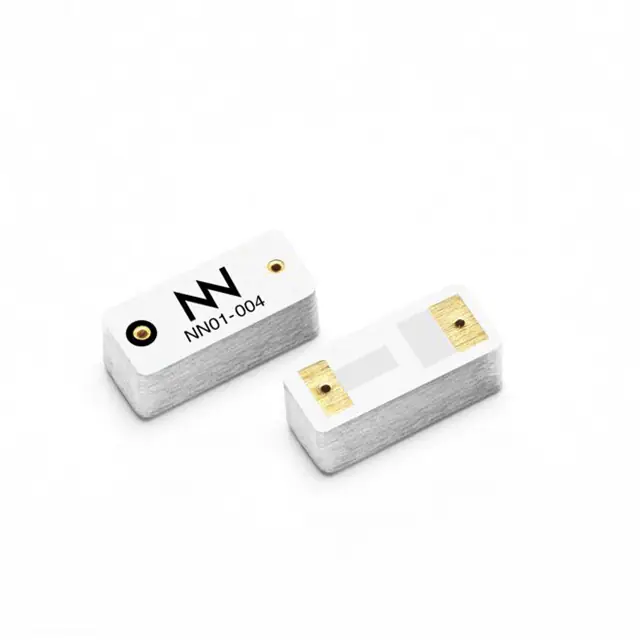

NN01-004COMPACT DUAL-BAND RX - 004 |
517 | 0.97 |
|
Datasheet |
Compact Dual-band Reach Xtend™ | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.3875GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | Chip | 2 | 2 | - | 1.5dBi, 4.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | 802.11a/b/g/n, WLAN |
