RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VJ5301M433MXBSRRF ANT 433MHZ CHIP SOLDER SMD |
125 | 2.38 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | 433MHz | 370MHz ~ 510MHz | Chip | 1 | - | -3dB | -5.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|

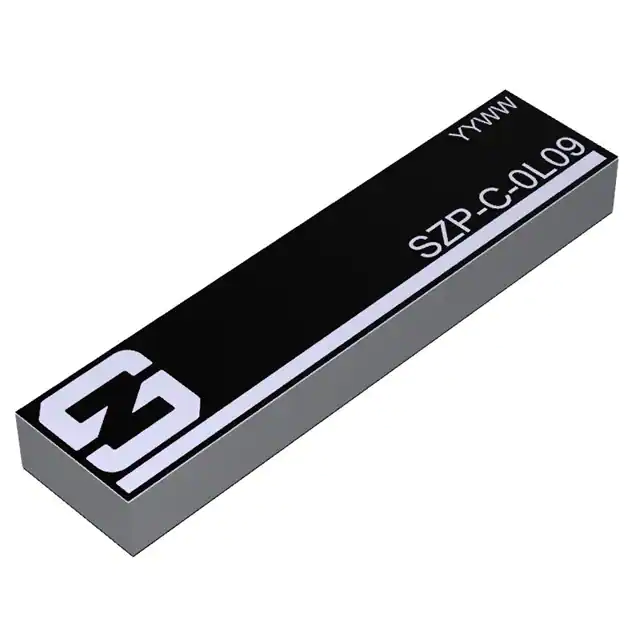

SZP-C-0L094GLTE ANT 698-2690MHZ SMD CHIP |
2,000 | 3.80 |
|
Datasheet |
PROCYON a | Tape & Reel (TR) | Active | Cellular | Wide Band | - | 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Chip | 5 | 3.1, 2.9, 2.8, 3.0 | - | 1.2dBi, 3.1dBi, 2.5dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | - |
|

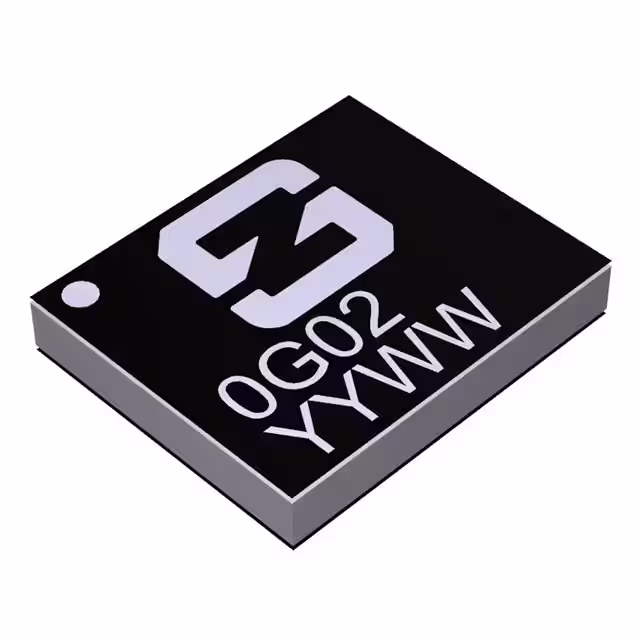

SZP-C-0G02GNSS ANT 1.559-1.61GHZ SMD CHIP |
2,000 | 2.40 |
|
Datasheet |
LODESTAR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Chip | 1 | 1.5 | -12dB | 0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Beidou, Galileo, GLONASS, GPS |
|
ZRD-C042XX3BANT 5G/LTE 617~7125MHZ SMD CHIP |
1,975 | 0.00 |
|
Datasheet |
C042 | Tape & Reel (TR) | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Chip | 8 | 2.8, 3.0, 2.4, 2.3, 2.8, 2.5 | -6.5dB, -6dB, -7.7dB, -8dB, -6.5dB, -7.4dB | 1.4dBi, 4.8dBi, 3.1dBi, 3.3dBi, 4.8dBi, 3.7dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | 2G, 3G, 4G, 5G, LTE |
|

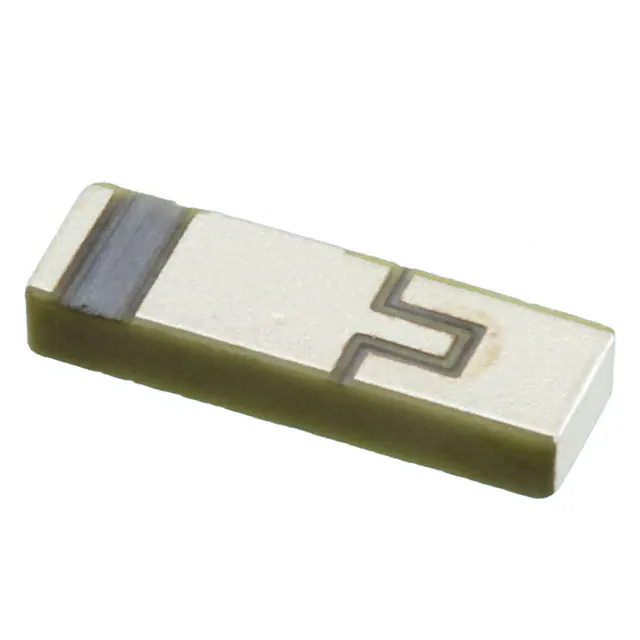

W3056RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
1,930 | 2.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.575GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | - | -20dB | - | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Bluetooth, GPS, WLAN |
|

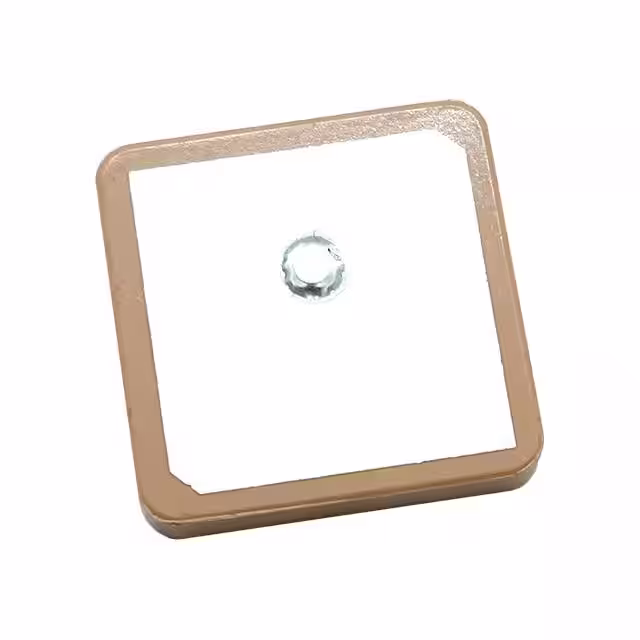

ATP868R2540ARF ANT 868MHZ PATCH ISM 25X25MM |
223 | 2.57 |
|
Datasheet |
ATP868 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Ceramic Patch | 1 | 1.5 | - | - | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
|
SR4G080GNSS SMD ANTENNA - AGOSTI |
1,970 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Chip | 1 | 2.8 | -6.3dB | 0.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
CAF93512RF ANT 2.4GHZ CHIP SOLDER SMD |
1,676 | 1.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, Wi-Fi |
|

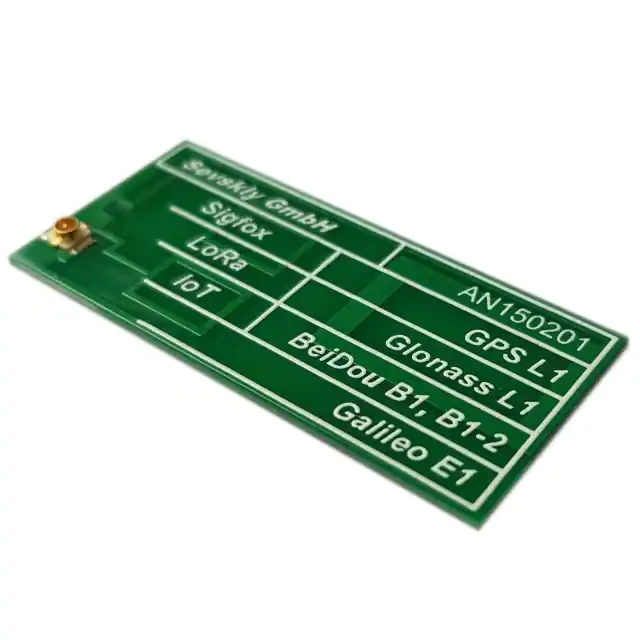

AN150201-01HRF ANT 915MHZ/1575MHZ/2GHZ PCB |
295 | 2.69 |
|
Datasheet |
AN150201 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 859.5MHz, 1.5845GHz, 2.24GHz | 791MHz ~ 928MHz, 1.559GHz ~ 1.61GHz, 1.85GHz ~ 2.62GHz | PCB Trace | 3 | 2.32, 3.57, 3.57 | -5dB, -8dB, -5dB | 1.2dBi, 1.4dBi, 1.1dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | 3G (UMTS), GNSS, IoT, ISM, LP-WAN, RFID |
|
AN080227-01HRF ANT 433/868/5800MHZ PCB U.FL. |
286 | 2.59 |
|
Datasheet |
AN080227 | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 833MHz, 4.7GHz, 5.86GHz | 738MHz ~ 928MHz, 4.4GHz ~ 5GHz, 5.725GHz ~ 6GHz | PCB Trace | 3 | 2.1, 3.57, 3.57 | -5dB, -5dB, -9dB | 0.2dBi, 1.35dBi, 2.3dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | 5G, IoT, ISM, LP-WAN, RFID, Smart Meters |
|
|
AN250202-02HRF ANT WLAN2.4/5/6GHZ PCB U.FL. |
246 | 0.00 |
|
Datasheet |
AN250202 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4475GHz, 6GHz | 2.41GHz ~ 2.485gHz, 4.5GHz ~ 7.5GHz | PCB Trace | 2 | 1.93, 2.32 | -8dB, -10dB | 1.7dBi, 2.2dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.031" (0.80mm) | Bluetooth, IoT, ISM, RFID, WiFi 6E, WLAN |
|

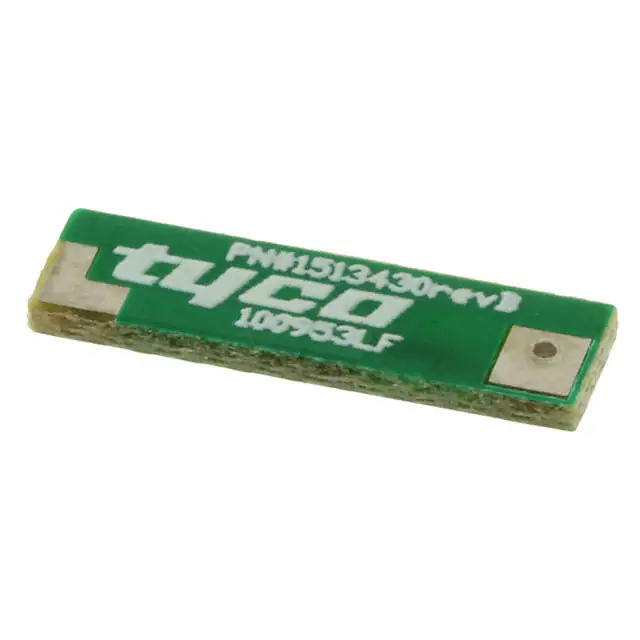

1513430-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
4,333 | 2.47 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, WLAN, Zigbee™ |
|
|
2084829100WIFI6E AUTO 2X2 MIMO FLEXIBLE AN |
797 | 0.00 |
|
Datasheet |
208482 | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -13dB, -10dB, -9dB, -8dB | - | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

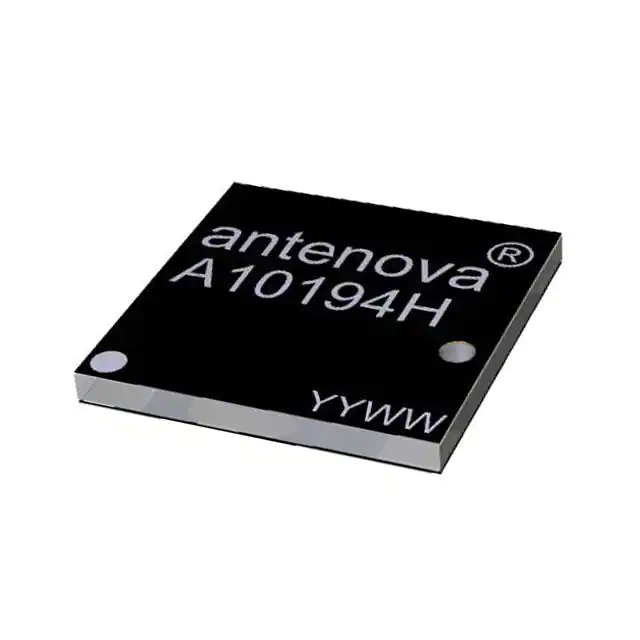

A10194HA10194H MIXTUS 2.4/5G DUAL BAND |
2,000 | 0.00 |
|
Datasheet |
Mixtus | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Chip | 2 | 1.4, 1.8 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | 802.11n, Wi-Fi |
|
|
AN250203-02HRF ANT ISM2400/5800 WLAN2.4/5/6 |
253 | 0.00 |
|
Datasheet |
AN250203 | Bulk | Active | WiFi, WLAN | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4475GHz, 6.25GHz | 2.41GHz ~ 2.485GHz, 5GHz ~ 7.5GHz | PCB Trace | 2 | 1.67, 1.93 | -12dB, -10dB | 1.8dBi, 2.4dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.031" (0.80mm) | Bluetooth, IoT, ISM, RFID, WiFi 6E, WLAN |
|

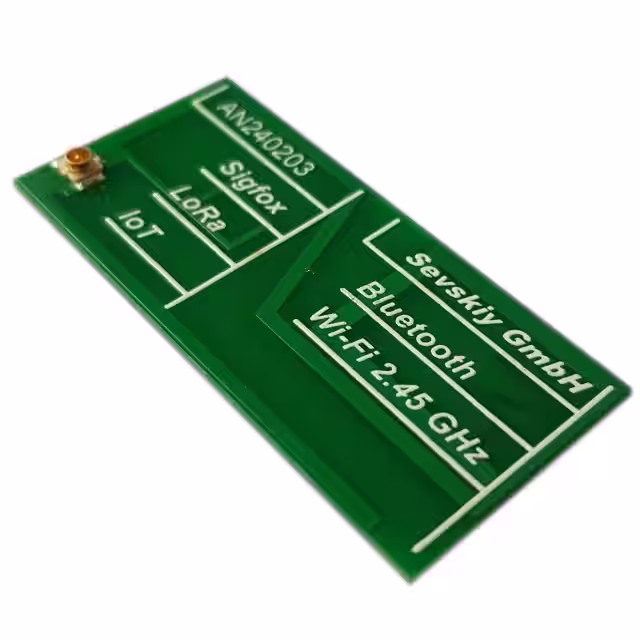

AN240203-01HRF ANT 0.915/2.45GHZ PCB U.FL. |
222 | 2.79 |
|
Datasheet |
AN240203 | Bulk | Active | 802.15.4, Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 892.5MHz, 1.905GHz, 2.4475GHz | 860MHz ~ 925MHz, 1.85GHz ~ 1.96GHz, 2.41GHz ~ 2.485GHz | PCB Trace | 3 | 2.10, 2.32, 3.57 | -5dB, -8dB, -9dB | 1.6dBi, 4.5dBi, 4.9dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | 3G (UMTS), Bluetooth, IoT, ISM, LP-WAN, RFID, WLAN |
|
|
2079019100600-6000MHZ AUTO FLEXIBLE ANTENN |
863 | 0.00 |
|
Datasheet |
207901 | Tray | Active | Cellular | Wide Band | 780MHz, 2.25GHz, 4.5GHz | 600MHz ~ 960MHz, 1.5GHz ~ 3GHz, 3GHz ~ 6GHz | Flat Patch | 3 | - | -5dB, -3dB | 2.6dBi, 4.9dBi, 5.4dBi | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | LTE |
|
|
1461539100WIFI 6E AUTOMOTIVE FLEXIBLE ANTE |
842 | 0.00 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 3dBi, 5.5dBi | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
1513472-8ANTENNA, BLUETOOTH / WI-FI / WLA |
1,284 | 2.61 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44175GHz, 5.5125GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Module | 2 | 3 | - | 3dBi | 10 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

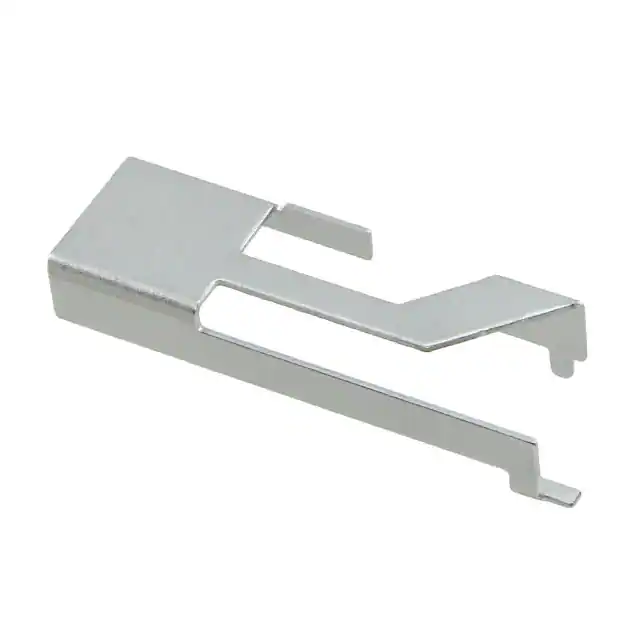

RFMTA250800NNLB001RF ANT 2.4GHZ/5.5GHZ STAMPED MET |
4,900 | 2.39 |
|
Datasheet |
- | Tray | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | -10dB | 4.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
