RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-8/9-PW-LPNANT 868/915MHZ HELIC SCRW MNT |
1,586 | 1.84 |
|
Datasheet |
ANT-8/9-PW-LPN | Tray | Obsolete | 802.15.4, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Helical | 2 | 1.7, 2.5 | - | 5.8dBi, 6.8dBi | 15 W | - | Solder | - | - | - | Screw Mount | 1.846" (46.90mm) | 802.11ah, ISM, LoRaWAN, SigFox, Wi-Fi, Zigbee™ |
|
1513259-9RF ANT 892MHZ/1.85GHZ PCB TRACE |
1,652 | 2.19 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 3 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | CDMA, GSM, LTE |
|
|
NGRM2050US0R433G3TRFRF ANT FR4 CHIP 2050 433Mhz SOL |
2,470 | 0.00 |
|
Datasheet |
NGRM | Tape & Reel (TR) | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 433MHz | 433.05MHz ~ 434.79MHz , 450MHz ~ 470MHz | Chip | 3 | 2.5 | - | -0.2dBi | - | - | Solder | - | - | - | Surface Mount | - | ISM, LoRa, LPWAN |
|

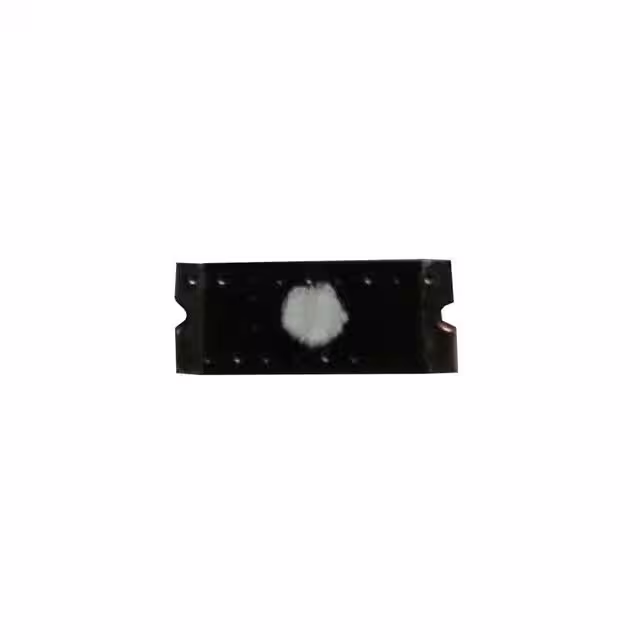

AN_W_CA_5020_M01WIFI/BLUETOOTH CHIP ANTENNA |
987 | 1.33 |
|
Datasheet |
- | Cut Tape (CT) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, Wi-Fi |
|

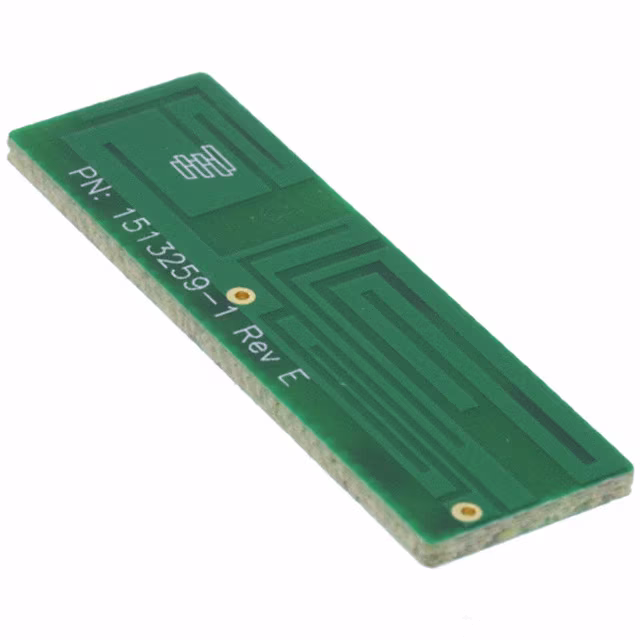

1513259-1RF ANT 850/900MHZ PCB TRACE SLD |
2,366 | 2.15 |
|
Datasheet |
- | Bulk | Obsolete | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 4 | 3 | - | 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | CDMA, GSM, LTE, ZigBee™ |
|
|
NGCM7020US0R915G1TRFRF ANT CER CHIP 7020 915Mhz SOL |
2,975 | 0.00 |
|
Datasheet |
NGCM | Tape & Reel (TR) | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | - | - | 0.2dBi | - | - | Solder | - | - | - | Surface Mount | - | ISM, LoRa, LPWAN |
|
|
ATIFGGBL5-4020RF ANT GPS L1+L5/GLONASS/BEIDOU |
180 | 0.00 |
|
Datasheet |
ATIF | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.6GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | PCB Trace | 4 | 2 | - | 2dBi, 2dBi, 2dBi, 2dBi | 50 W | Cable - 60mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
AN110204-01SRF ANT UMTS/LTE PCB SOLDER MOUNT |
239 | 0.00 |
|
Datasheet |
AN110204 | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | 1.93, 2.32 | -8dB, -10dB | 1.7dBi, 3.6dBi | 10 W | - | Solder | - | - | - | Solder | 0.063" (1.60mm) | 3G, 4G, 5G, Iot, ISM, LP-WAN, RFID, Smart Meters |
|

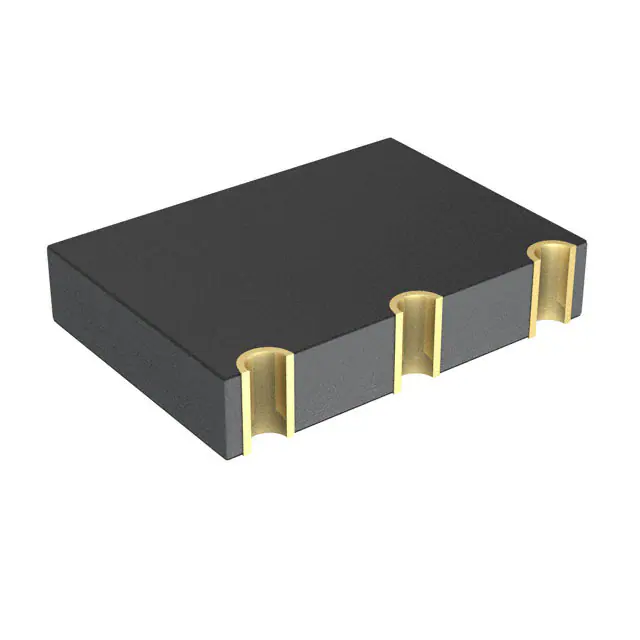

ANT-418-USP-TRF ANT 418MHZ CHIP SOLDER SMD |
2,000 | 2.73 |
|
Datasheet |
microSplatch™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Chip | 1 | 2 | - | -8.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
RAC00024-BBULK 2.4GHZ ANTENNA |
200 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|

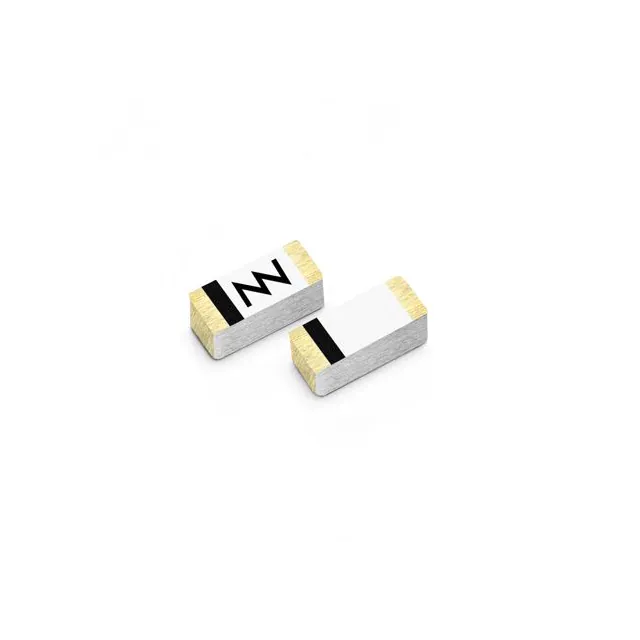

NN01-110MICRO REACH XTEND - 110 |
7,500 | 1.11 |
|
Datasheet |
Micro Reach Xtend™ | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | - | Bluetooth, Wi-Fi |
|
|
RAC00915-RT&R 900MHZ ANTENNA |
1,700 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Stamped Metal | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|

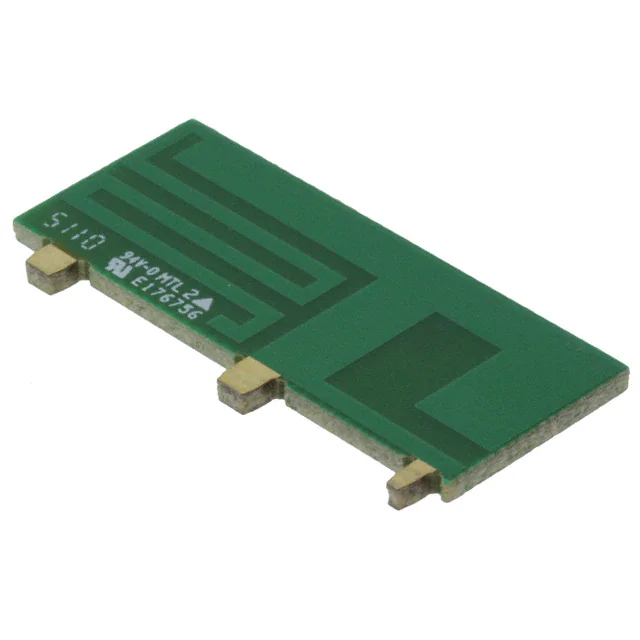

1513434-1RF ANT 920MHZ/1.8GHZ PCB TRACE |
1,877 | 1.31 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | 2.5 | - | 0dBi, 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | - |
|
|
AN110205-01SRF ANT UMTS/LTE/5G PCB SOLDER |
240 | 0.00 |
|
Datasheet |
AN110205 | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | PCB Trace | 2 | 1.93, 1.93 | -10dB, -10dB | 1.6dBi, 3.4dBi | 10 W | - | Solder | - | - | - | Solder | 0.063" (1.60mm) | 3G, 4G, 5G, Iot, ISM, LP-WAN, RFID, Smart Meters |
|
|
SR43W078BILLI SURFACE MOUNT WI-FI6E ANTE |
1,777 | 0.00 |
|
Datasheet |
lamiiANT® | Tape & Reel (TR) | Active | WiFi | Wide Band | 2.45GHz, 5.4GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz, 5.925GHz ~ 7.125GHz | Chip | 3 | 2.1, 2.45 | -10dB, -7.5dB | 2.9dBi, 4.7dBi, 4.9dBi | - | - | - | - | - | - | Surface Mount | 0.039" (1.00mm) | 802.11a/b/g/j/-c/ax, Wi-Fi |
|
|
RAC00245-BBULK 2.4GHZ/5GHZ DUAL BAND ANTEN |
200 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Stamped Metal | 2 | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AN100201-01HRF ANT 868MHZ/915MHZ PCB U.FL. |
294 | 0.00 |
|
Datasheet |
AN100201 | Bulk | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 875MHz | 800MHz ~ 950MHz | PCB Trace | 1 | 1.79 | -11dB | 1.1dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | IoT, ISM, LP-WAN, RFID, Smart Meters |
|
|
AN100202-01HRF ANT SRD860 ISM915 PCB U.FL. |
249 | 0.00 |
|
Datasheet |
AN100202 | Bulk | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 875MHz | 800MHz ~ 950MHz | PCB Trace | 1 | 1.79 | -11dB | 1.5dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | IoT, ISM, LP-WAN, RFID, Smart Meters |
|
|
AN110206-01SRF ANT 3G/4G/5G WLAN PCB SOLDER |
231 | 0.00 |
|
Datasheet |
AN110206 | Bulk | Active | Cellular/LTE | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 829MHz, 2.205GHz, 4.65GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 6GHz | PCB Trace | 3 | 1.93, 1.93, 2.62 | -10dB, -10dB, -7dB | -0.3dBi, 0.8dBi, 2.2dBi | 10 W | - | Solder | - | - | - | Solder | 0.063" (1.60mm) | 3G, 4G, 5G, Iot, ISM, LP-WAN, RFID, Smart Meters |
|

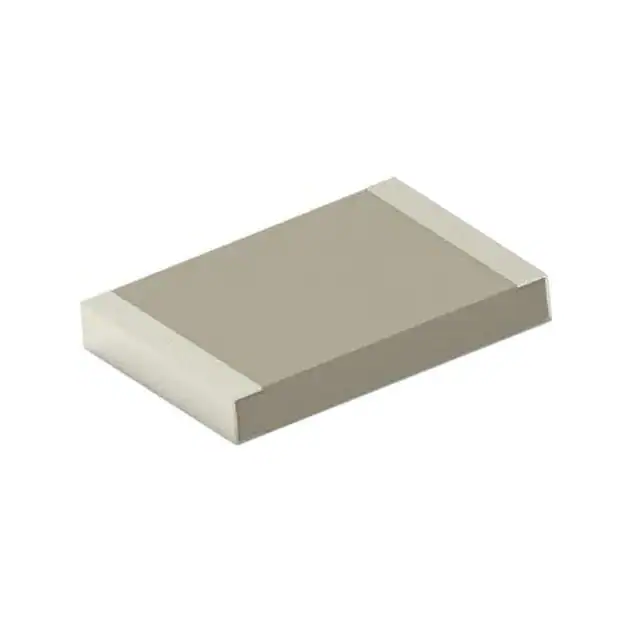

2195764-1GPS+ GLONASS / ACM4-5036-A1-CC-S |
589 | 2.90 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.5925GHz | 1.57GHz ~ 1.615GHz | Chip | 1 | 2 | - | 3.2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.028" (0.70mm) | GNSS |
