RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TWX-721XRS3BANT WIFI 6E BLADE RP-SMA FEMALE |
993 | 0.00 |
|
Datasheet |
721 | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.4, 1.9, 1.6 | -15.6dB, -10dB, -12.7dB | 2.4dBi, 3.8dBi, 5dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 5.906" (150.00mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
TWX-100BRS3BANT WIFI 6E WHIP RP-SMA FEMALE |
953 | 0.00 |
|
Datasheet |
100 | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 1.5, 1.6, 3 | -14dB, -12.7dB, -6dB | 2.6dBi, 4.3dBi, 4.4dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 4.870" (123.70mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
YWX-100BSA2BANT 4G WHIP SMA PLUG MALE |
601 | 0.00 |
|
Datasheet |
100 | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.94GHz, 2.5GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz | Whip, Tilt | 3 | 2.4, 2.2, 2.7 | -7.7dB, -8.5dB, -6.8dB | 0dBi, -0.1dBi, 0dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 4.870" (123.70mm) | 2G, 3G, 4G, LTE |
|
|
GWX-100BSA3BANT LPWA WHIP SMA PLUG MALE |
478 | 0.00 |
|
Datasheet |
100 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Tilt | 2 | 1.8, 1.9 | -10.9dB, -10.2dB | 2.3dBi, 2.2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 4.870" (123.70mm) | ISM, LoRaWAN, LPWA, SigFox |
|
|
TQ0137AA0000RF ANT 1571MHZ CERAMIC PATCH PIN |
200 | 0.00 |
|
- |
- | Box | Active | - | - | 1.571GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TQ0129AA0000RF ANT 1579MHZ CERAMIC PATCH PIN |
200 | 0.00 |
|
- |
- | Box | Active | - | - | 1.579GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

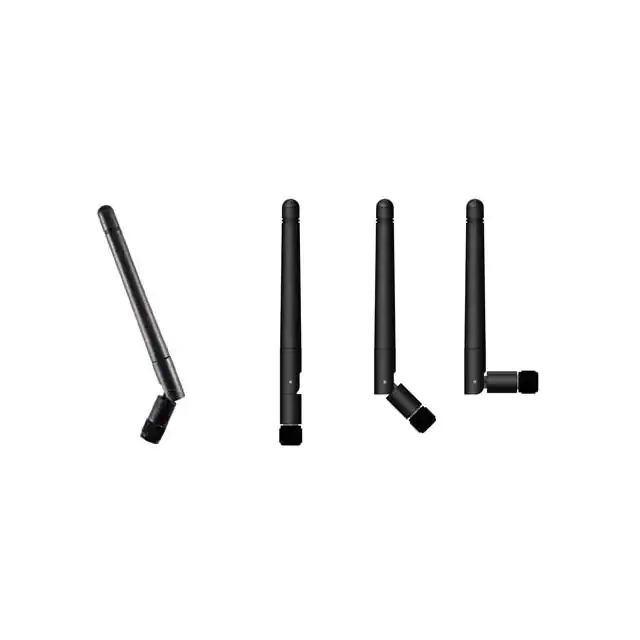

JCG402LR-1868MHZ WHIP ANTENNA WITH FLEXIBL |
412 | 5.06 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Whip, Tilt | 1 | 2 | - | 2dBic | - | - | SMA Male | - | - | - | Connector Mount | 4.331" (110.00mm) | - |
|
|
TQ0157AA0000RF ANT 1575MHZ CERAMIC PATCH SMD |
200 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | 1.575GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TWX-144XRS3BANT WIFI 7/6E WHIP RP-SMA FEMALE |
1,000 | 0.00 |
|
Datasheet |
144 | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 1.3, 1.6, 2.1 | -17.7dB, -12.7dB, -9dB | 2.5dBi, 4.5dBi, 4.4dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 5.433" (138.00mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
TWX-144XSA3BANT WIFI 7/6E WHIP SMA MALE |
976 | 0.00 |
|
Datasheet |
144 | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 1.3, 1.6, 2.1 | -17.7dB, -12.7dB, -9dB | 2.5dBi, 4.5dBi, 4.4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 5.433" (138.00mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
2118016-2PCB ANTENNAS, WLAN DUAL BAND T&R |
9,871 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | SHF (f > 4GHz) | 2.441GHz, 5.512GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3 | - | 3dBi | - | - | - | - | - | - | Surface Mount | 0.031" (0.79mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, ZigBee™ |
|
|
PE51RD10052.4-2.5 GHz and 5.1- 5.8 GHz Dua |
179 | 0.00 |
|
Datasheet |
- | Retail Package | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.483GHz, 5.1GHz ~ 5.9GHz | Whip, Tilt | 2 | 2 | - | 5dBi, 5dBi | - | - | RP-SMA | - | - | - | Connector Mount | 7.700" (195.58mm) | 802.11a/b/g/n/ac |
|

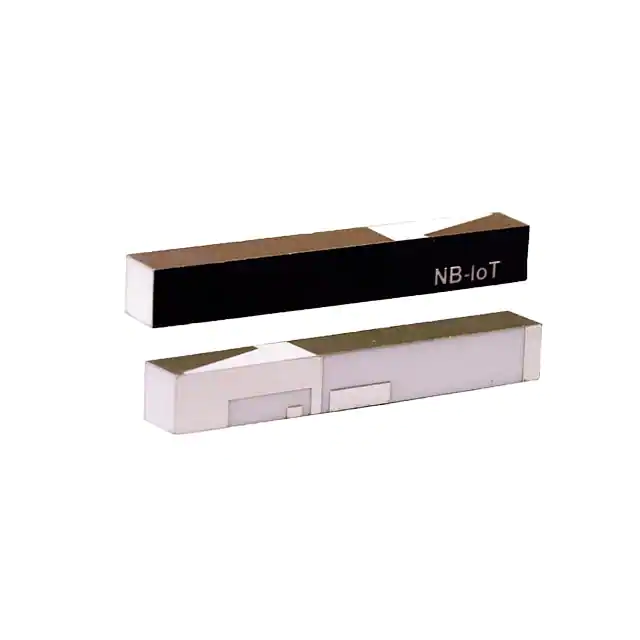

ACAR3705-SBRF ANT LPWA SUBGHZ CHIP SMD |
1,302 | 5.87 |
|
Datasheet |
ACAR | Tape & Reel (TR) | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 698MHz, 800MHz, 850MHz, 868MHz, 900MHz, 960MHz | 698MHz ~ 960MHz | Chip | 1 | 4.5 | - | 0.61dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | 2G, 3G, 4G, GSM, ISM, LoRa, LPWAN, LTE, Sigfox |
|
|
2JE71BRICK 5GNR/4GLTE/3G/2G HIGH-PERF |
685 | 0.00 |
|
Datasheet |
- | Cut Tape (CT) | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.538GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Chip | 4 | 2, 3.1, 3.5 | -10.3dB, -10.2dB, -6.7dB, -5.7dB | 0.5dBi, 2.7dBi, 3.1dBi, 2.2dBi | 25 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G, 5G, LTE |
|

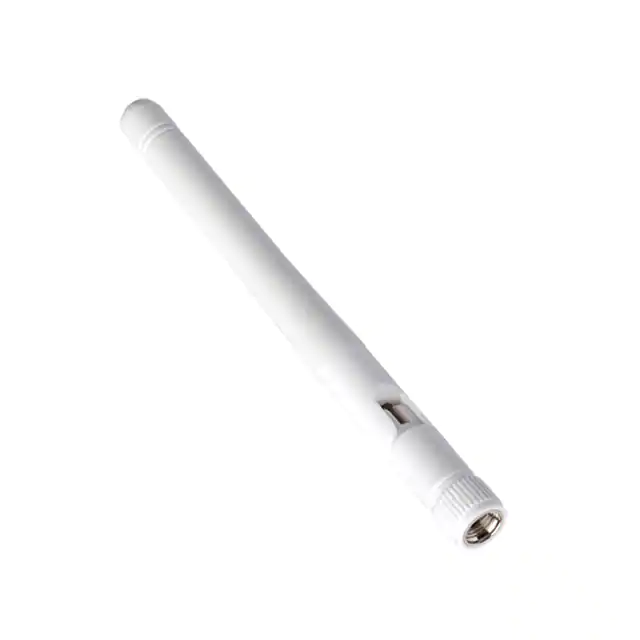

2128601011WI-FI/BLUETOOTH HINGED EXT ANTEN |
7,524 | 6.85 |
|
Datasheet |
212860 | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.3dBi, 4.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

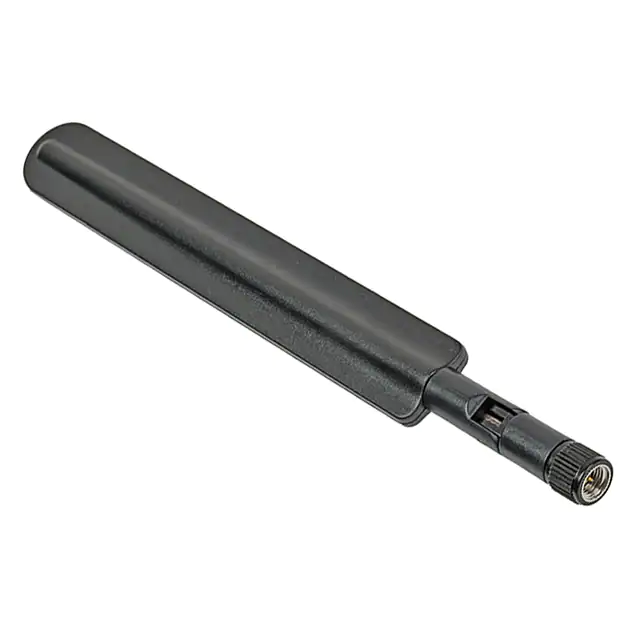

2135230001LTE ANTENNA_HINGED_B_M |
869 | 7.34 |
|
Datasheet |
213523 | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Blade, Tilt | 2 | - | -10dB, -5dB | 2.3dBi, 4.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.752" (171.50mm) | LTE |
|

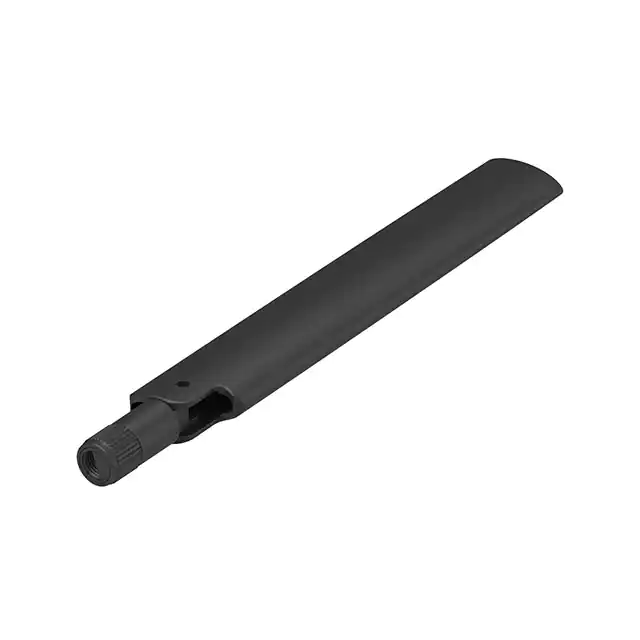

2195729-1EXTERNAL FULL BAND ANTENNA |
1,544 | 10.26 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation | Wide Band | 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz | 790MHz ~ 960MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 6 | 3 | - | 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.350" (135.89mm) | Galileo, GLONASS, GNSS, GPS, LTE, UMTS, WCDMA |
|
SGP.1575.18.4.C.02RF ANT 1.575GHZ CER PATCH SLD |
2,211 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | 1dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|

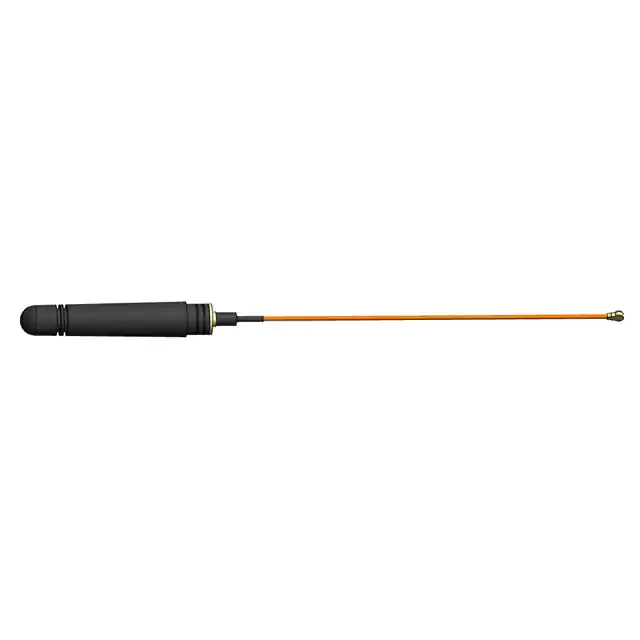

AEACAC049009-S2400ANTENNA LOW PROFILE 2.4GHZ WHIP |
964 | 6.12 |
|
Datasheet |
AEAC | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.4835GHz | Whip, Straight | 1 | 2 | - | 2dBi | - | Cable - 100mm | I-PEX | - | - | - | Connector Mount | 1.941" (49.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
2128601001WI-FI/BLUETOOTH HINGED EXT ANTEN |
4,663 | 6.85 |
|
Datasheet |
212860 | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.3dBi, 4.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
