RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZWX-6231SA4BANT 5G BLADE SMA PLUG MALE |
591 | 0.00 |
|
Datasheet |
6231 | Bag | Active | Cellular | Wide Band | 450MHz, 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 450MHz, 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 9 | 1.6, 2.6, 2.5, 1.7, 2, 1.8, 1.8 | -12.7dB, -7dB, -7.4dB, -11.7dB, -9.5dB, -10.9dB, -10.9dB | 1.2dBi, 2dBi, 3.5dBi, 4dBi, 3dBi, 4.7dBi, 3.8dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 8.071" (205.00mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ZWX-6231RS4BANT 5G BLADE RP-SMA PLUG FEMALE |
586 | 0.00 |
|
Datasheet |
6231 | Bag | Active | Cellular | Wide Band | 450MHz, 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 450MHz, 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 9 | 1.6, 2.6, 2.5, 1.7, 2, 1.8, 1.8 | -12.7dB, -7dB, -7.4dB, -11.7dB, -9.5dB, -10.9dB, -10.9dB | 1.2dBi, 2dBi, 3.5dBi, 4dBi, 3dBi, 4.7dBi, 3.8dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 8.071" (205.00mm) | 2G, 3G, 4G, 5G, LTE |
|

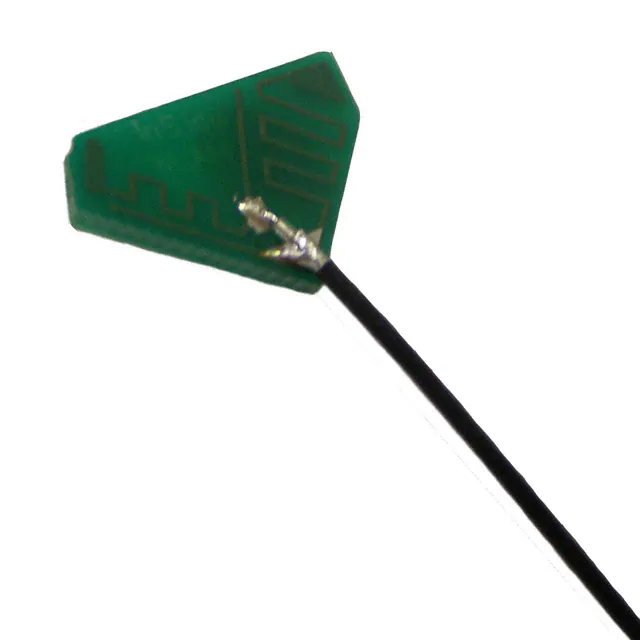

ANT-INSIDE-WLANRF ANT 2.4/5.5GHZ PCB TRACE U.FL |
143 | 9.90 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.486GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3, 4 | - | 3dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | WLAN |
|

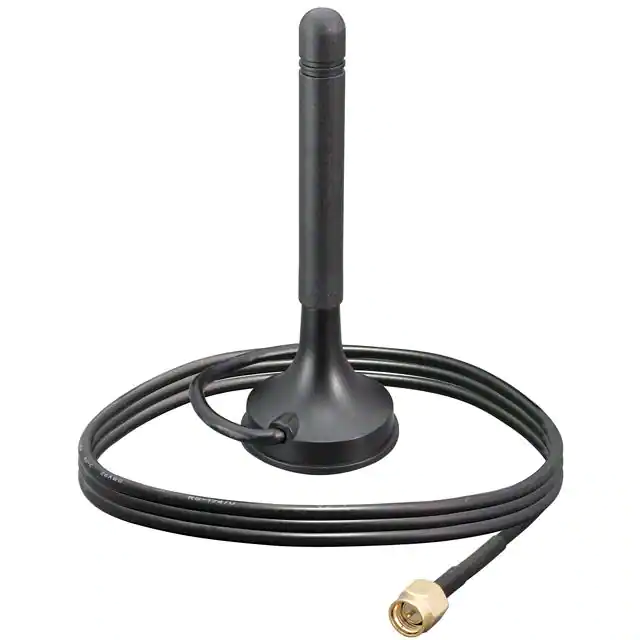

ANT-2.4-MMG1-SMA-1RF ANT 2.4GHZ MAGNETIC 1M SMA |
113 | 9.94 |
|
Datasheet |
- | Bag | Obsolete | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.8 | - | 0.7dBi | 10 W | Cable - 1m | SMA Male | - | - | - | Magnetic | 3.248" (82.50mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
PPF-GP07SAXB-P300ANT GNSS ACTIVE SMA 3M CABLE |
477 | 0.00 |
|
Datasheet |
GP07 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.577GHz, 1.597GHz ~ 1.607GHz | Module | 3 | 1.8, 2.0, 1.7 | -10.9dB, -9.5dB, -11.7dB | 29.6dBi, 29.3dBi, 29.2dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP65 | - | - | Magnetic | 0.646" (16.40mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS |
|

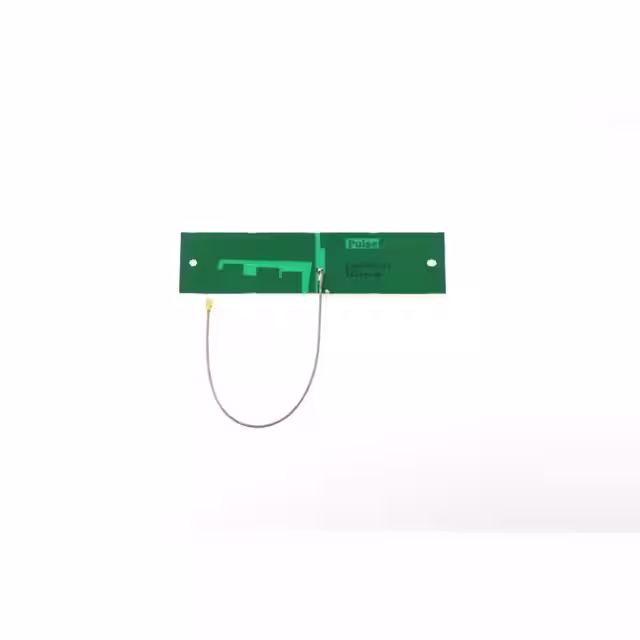

W3554E0193ANTENNA ASSEMBLY 6GHZ 193MM MMCX |
128 | 8.65 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 193mm | MMCX | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|
|
2108940-2TERMINAL ANT,RP-SMA,LTE,GNSS,698 |
2,323 | 5.36 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2108940-1TERMINAL ANT, SMA, LTE,GNSS,698- |
3,842 | 5.36 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

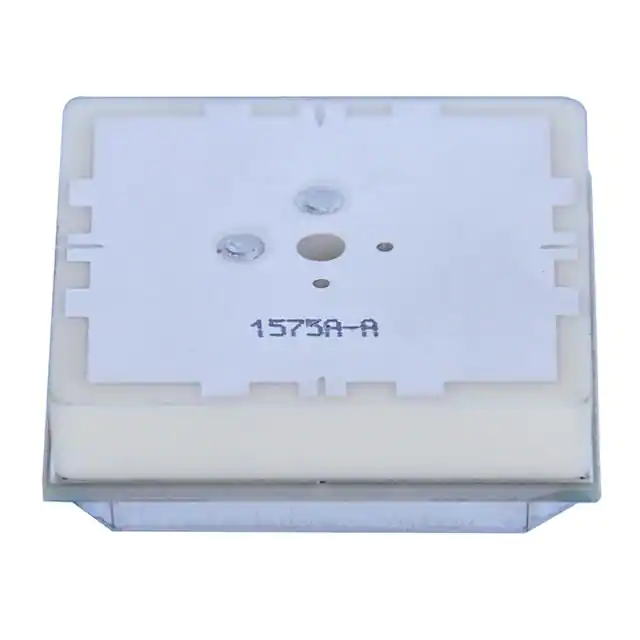

JCN539GNSS INTERNAL ACTIVE ANTENNA 156 |
127 | 11.13 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.561GHz ~ 1.602GHz | Ceramic Patch | 1 | 1.5, 2 | - | 5dBic | - | Cable - 100mm, LNA | I-PEX | - | - | - | Surface Mount | 0.236" (6.00mm) | GNSS |
|
|
ANTX100P120BUNVS3PCB TYPE ANTENNA/UNIVERSAL-M2M/L |
1,989 | 9.71 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (3GHz ~ 4GHz) | 3.35GHz | 700MHz ~ 6GHz | PCB Trace | 1 | 4 | - | 4.14dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
PEANRBD10112.15 dBi, UHF Rubber Duck Antenn |
147 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 446MHz | 412MHz ~ 480MHz | Whip, Straight | 1 | 3 | - | 2.15dBi | 10 W | - | SMA Female | - | - | - | Connector Mount | 6.500" (165.10mm) | General Purpose |
|

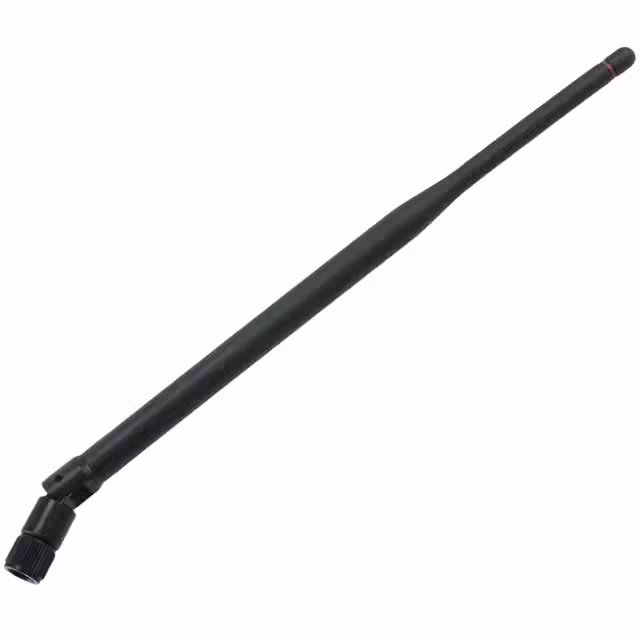

ANT-2.4-OC-LG-RPSRF ANT 2.4GHZ WHIP TILT RP-SMA |
107 | 10.97 |
|
Datasheet |
OC | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.55GHz | Whip, Tilt | 1 | 2 | - | 4.0dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.618" (193.50mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
PEANRBD10422.4 GHz to 5.85 GHz Dual Band An |
144 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular, General ISM, WiFi | Wide Band | 4.125GHz | 2.4GHz ~ 5.85GHz | Whip, Tilt | 1 | 2.5 | - | 5.74dBi | 10 W | - | SMA Male | IP66 | - | - | Connector Mount | 4.360" (110.74mm) | 4G, 5G, 802.11a/b/g/n/ax, ISM, LTE, Wi-Fi |
|
|
PEANRBD10061.8 dBi, VHF Rubber Duck Antenna |
142 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.8 | - | 1.8dBi | 10 W | - | BNC | - | - | - | Connector Mount | 6.700" (170.18mm) | General Purpose |
|
|
Q900ANT CHR Q BASE-WHP UTY 890-960 |
419 | 7.48 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | - | -10dB | 2dBi | 200 W | - | - | - | - | - | Magnetic | 3.500" (88.90mm) | - |
|
|
PEANRBD1059902 to 928 MHz Rubber Duck Anten |
140 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 2 | - | 2.5dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Male | - | - | - | Connector Mount | 7.730" (196.34mm) | ISM, LoRaWAN, LPWAN, Sigfox, Wi-Fi |
|
RA150-IPXWIDEBAND HIGH EFFICIENCY ANTENNA |
271 | 11.60 |
|
Datasheet |
MAX Wideband | Bag | Active | 802.15.4, Bluetooth, Cellular, Navigation, WiFi | Wide Band | 875.5MHz, 1.5845GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz | 791MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ , 2.5GHz ~ 2.69GHz | PCB Trace | 6 | 1.3, 1.4, 1.5 | 9.7dB, 10.6dB, 11.6dB, 21.2dB, 25.6dB, 26.1dB | 3dBi | - | - | IPX | - | - | - | Surface Mount | 0.031" (0.80mm) | 2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee |
|
|
PEANRBD1041900 MHz to 930 MHz Concave Shape |
139 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Straight | 1 | 2 | - | 1dBi | 10 W | - | SMA Male | IPX7 | - | - | Connector Mount | 3.820" (97.02mm) | General Purpose |
|
|
W1991AVW1991AV |
1,260 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RFDPA161500SMMB802RF ANT DIPOLE SMA MALE RG178 LTE |
270 | 13.49 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.75GHz, 6.15GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 7.15GHz | Whip, Tilt | 4 | 3 | -6dB | 0.93dBi, 2.71dBi, 3.66dBi, 4.37dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.722" (196.15mm) | LTE |
