RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCG016L3G/4G MAGNET ANTENNA |
347 | 7.06 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 783MHz, 2.48GHz | 698MHz ~ 868MHz, 1.85GHz ~ 2.69GHz | Whip, Straight | 2 | 2 | - | 2dBi | - | Cable - 3m | SMA | - | - | - | Magnetic | 4.764" (121.00mm) | LTE |
|
2144151001WI-FI/BLUETOOTH HINGED EXT ANTEN |
237 | 6.00 |
|
Datasheet |
214415 | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | -10dB | 5.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
2108921-1FPC ANT, MHF, 50MM, 617-7125MHZ |
2,738 | 0.00 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

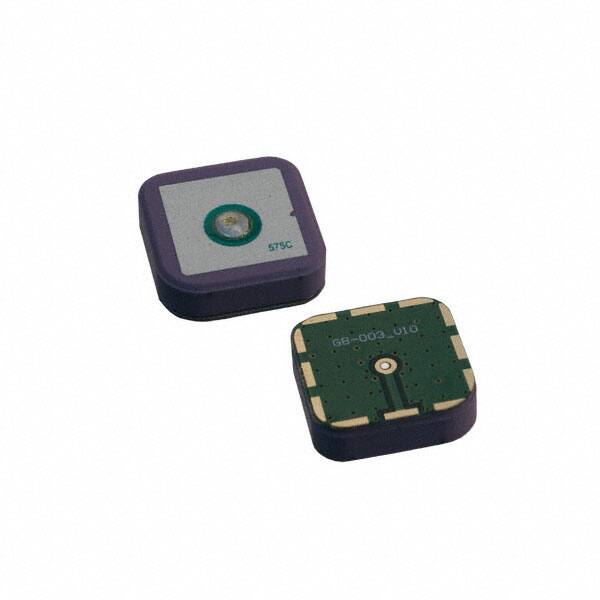

SGP.1575.15.4.A.02RF ANT 1.575GHZ CER PATCH SLD |
3,591 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | -1dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
|
GWX-180BSA1BANT 868 WHIP SMA PLUG MALE |
597 | 0.00 |
|
Datasheet |
180 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Whip, Tilt | 1 | 1.5 | -14dB | 2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.992" (203.00mm) | ISM, LoRaWAN, LPWA, SigFox |
|
|
GWX-180BSA2BANT 915 WHIP SMA PLUG MALE |
574 | 0.00 |
|
Datasheet |
180 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Tilt | 1 | 1.6 | -12.7dB | 2.8dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.992" (203.00mm) | ISM, LoRaWAN, LPWA, SigFox |
|
|
TWX-180BRS3BANT WIFI 6E WHIP RP-SMA FEMALE |
595 | 0.00 |
|
Datasheet |
180 | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 1.9, 1.6, 2 | -10.2dB, -12.7dB, -9.5dB | 3.7dBi, 5.5dBi, 4.9dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 7.992" (203.00mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
ZWX-180BSA3BANT 5G WHIP SMA PLUG MALE |
584 | 0.00 |
|
Datasheet |
180 | Bag | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 8 | 2.5, 3.2, 2.0, 1.7, 2.6, 2.8 | -7.4dB, -5.6dB, -9.5dB, -11.7dB, -7dB, -6.5dB | 1.5dBi, 2.8dBi, 2.8dBi, 2.4dBi, 2.6dBi, 3.1dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.992" (203.00mm) | 2G, 3G, 4G, 5G, LTE |
|

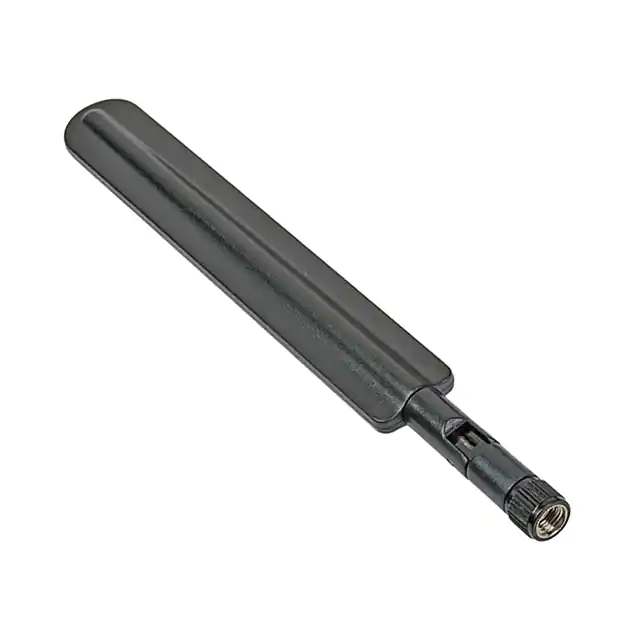

2135230011LTE ANTENNA_HINGED_B_F |
1,565 | 7.34 |
|
Datasheet |
213523 | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Blade, Tilt | 2 | - | -10dB, -5dB | 2.3dBi, 4.8dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 6.752" (171.50mm) | LTE |
|

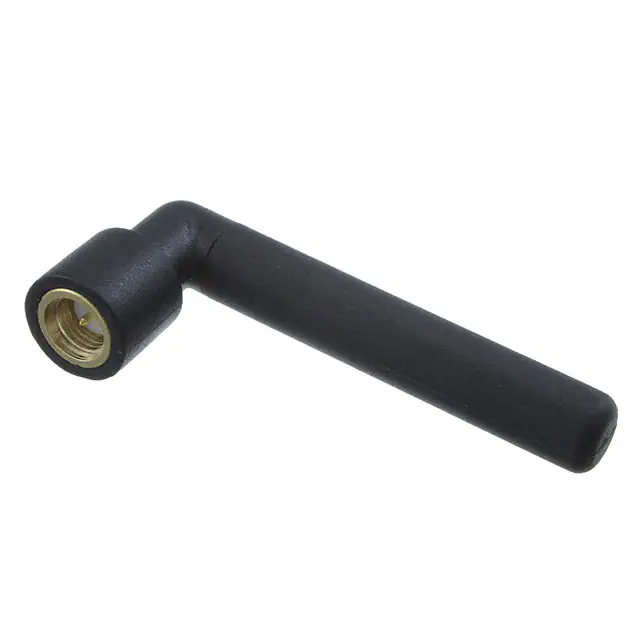

W1900-M3G PENTABAND 824-2170MHZ RIGHT A |
300 | 6.46 |
|
Datasheet |
Stubby Antenna | Bulk | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.988" (50.50mm) | GSM, WCDMA |
|
|
AN120202-01HRF ANT 5G/LTE 0.6-10GHZ U.FL. |
297 | 0.00 |
|
Datasheet |
AN120202 | Bulk | Active | Ultra Wide Band | Ultra Wide Band | 5.3GHz | 0.6MHz ~ 10GHz | UWB Dipole | 1 | 1.93 | -10dB | 2.4dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Bracket Mount | 0.031" (0.80mm) | 3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi |
|
|
GHX-463XSA3BANT LPWA WHIP SMA PLUG MALE |
478 | 0.00 |
|
Datasheet |
463 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Straight | 2 | 1.3, 1.7 | -17.7dB, -11.7dB | 1dBi, 2.4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.929" (176.00mm) | ISM, LoRaWAN, LPWA, SigFox |
|
|
TWX-614XRS3BANT WIFI 7 BLADE RP-SMA FEMALE |
774 | 0.00 |
|
Datasheet |
614 | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.8, 1.6, 3 | -10.8dB, -12.7dB, -6dB | 3.2dBi, 6.2dBi, 5.4dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 6.311" (160.30mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
21442900115G EXTERNAL ANTENNA_HINGED_B_F |
1,560 | 7.83 |
|
Datasheet |
214429 | Bag | Obsolete | Cellular | Wide Band | 829MHz, 2.2GHz, 3.75GHz, 4.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Blade, Tilt | 4 | - | -10dB, -5dB | 1.6dBi, 5.5dBi, 3.6dBi, 3.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.752" (171.50mm) | LTE |
|
|
ZWX-715BRS5BANT 5G BLADE RP-SMA PLUG FEMALE |
599 | 0.00 |
|
Datasheet |
715 | Bag | Active | Cellular | Wide Band | 450MHz, 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz | 450MHz, 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz | Blade, Tilt | 8 | 1.9, 2, 2.5, 1.4, 2, 1.9 | -10.2dB, -9.5dB, -7.4dB, -15.6dB, -9.5dB, -10.2dB | 0.9dBi, 1.9dBi, 4.3dBi, 3.1dBi, 2.2dBi, 4.4dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 7.205" (183.00mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ZWX-715BSA5BANT 5G BLADE SMA PLUG MALE |
514 | 0.00 |
|
Datasheet |
715 | Bag | Active | Cellular | Wide Band | 450MHz, 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz | 450MHz, 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz | Blade, Tilt | 8 | 1.9, 2, 2.5, 1.4, 2, 1.9 | -10.2dB, -9.5dB, -7.4dB, -15.6dB, -9.5dB, -10.2dB | 0.9dBi, 1.9dBi, 4.3dBi, 3.1dBi, 2.2dBi, 4.4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.205" (183.00mm) | 2G, 3G, 4G, 5G, LTE |
|
ANT-W63WS4-RPSRF ANT 2.4/5/6GHZ WIFI6 TILT RPS |
1,684 | 8.89 |
|
Datasheet |
W63WSx | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.2, 1.6, 1.8 | - | 2.6dBi, 5.5dBi, 5.5dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.071" (179.60mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

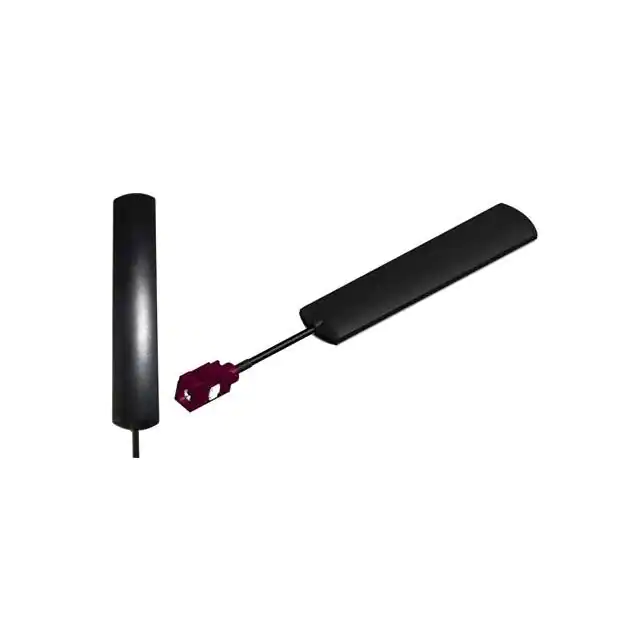

JCG017LLTE FLAT ANTENNA |
206 | 6.31 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Flat Bar | 2 | 2 | - | 2dBi | - | Cable - 3m | SMA Male | IP50 | - | - | Adhesive | 0.228" (5.80mm) | LTE |
|
|
CAF-350XSA1B-P200ANT LTE-M PUCK SMA PLUG 2M CABLE |
399 | 0.00 |
|
Datasheet |
350 | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.795GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Puck | 2 | 2.7, 2.6 | -6.8dB, -7dB | 1.6dBi, 1dBi | 1 W | Cable - 2m | SMA Male | - | - | - | Adhesive | 0.386" (9.80mm) | Cellular, LTE-M, NB-IoT, LoRa, Sigfox |
|

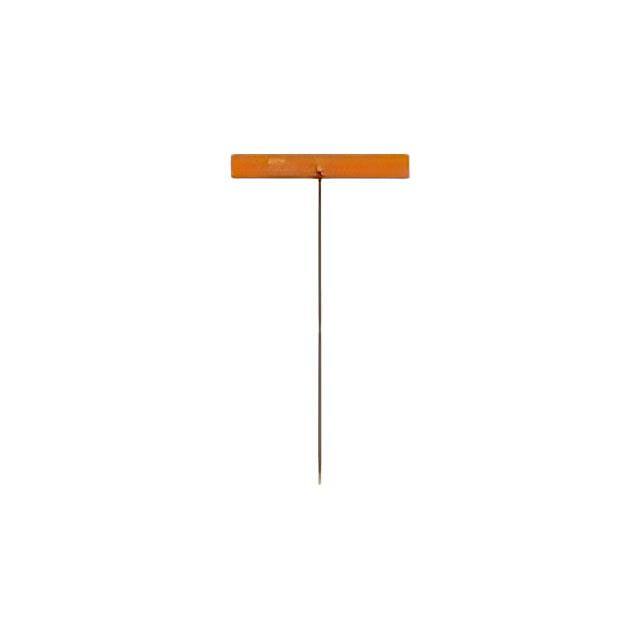

2108793-2902~928 & 2400~2483.5 DUAL BAND |
4,408 | 6.97 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 915MHz, 2.44GHz | 902MHz ~ 928MHz, 2.4GHz ~ 2.4835GHz | PCB Trace | 2 | 2 | - | 2dBi, 2.1dBi | - | Cable - 255mm | MMCX | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
