RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YF0029CAEMBEDDED, 24102490 MHZ, 49205925 |
1,524 | 0.00 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.53GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz | Flat Patch | 3 | - | - | - | - | Cable - 100mm | I-PEX4 | - | - | - | Adhesive | - | Bluetooth, Wi-Fi |
|

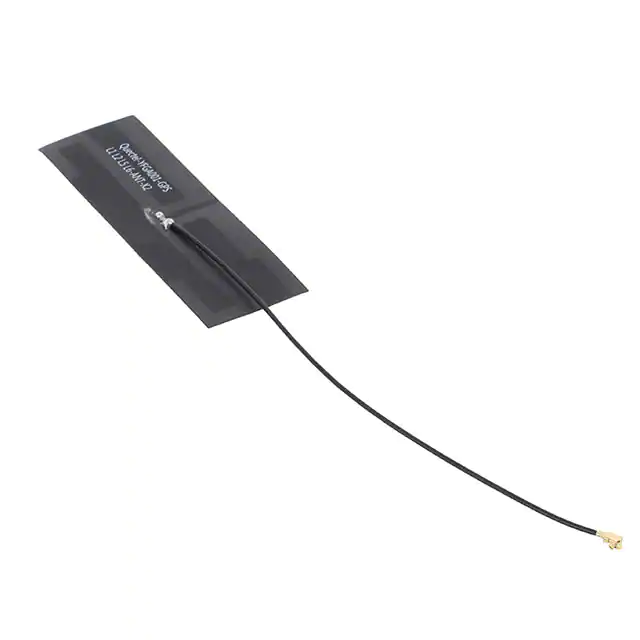

YFGA001AAGNSS RF ANTENNA |
1,316 | 1.95 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.215GHz, 1.5825GHz | 1.16GHz ~ 1.27GHz, 1.56GHz ~ 1.605GHz | Flat Patch | 2 | 2 | - | 3.6dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Surface Mount | - | GPS |
|
001-0023RF ANT 2.4GHZ FLEXNOTCH CAB ADH |
1,038 | 2.75 |
|
Datasheet |
FlexNotch™ | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flex Notch | 1 | 2.5 | - | 2dBi | - | Cable - 100mm | MHF4L | IP30 | - | - | Adhesive | - | - |
|

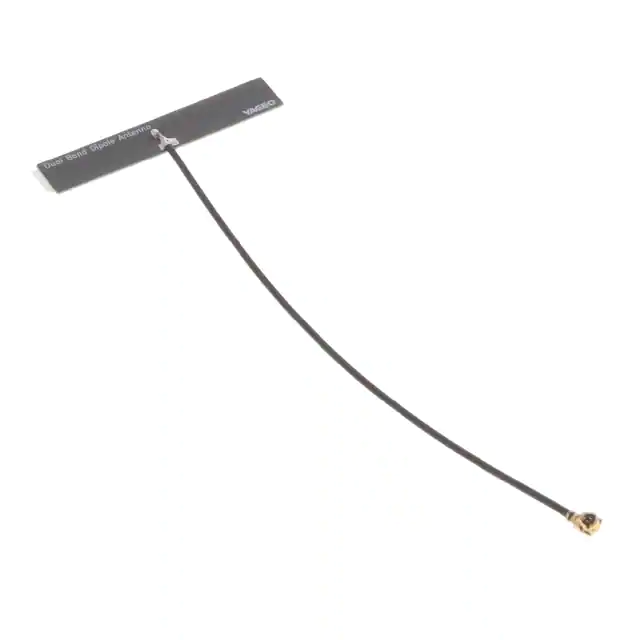

ANTX100P111B24553RF ANT 2.45/5.5125GHZ FLAT PATCH |
1,993 | 1.88 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 2.5 | - | 3.2dBi, 3.4dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

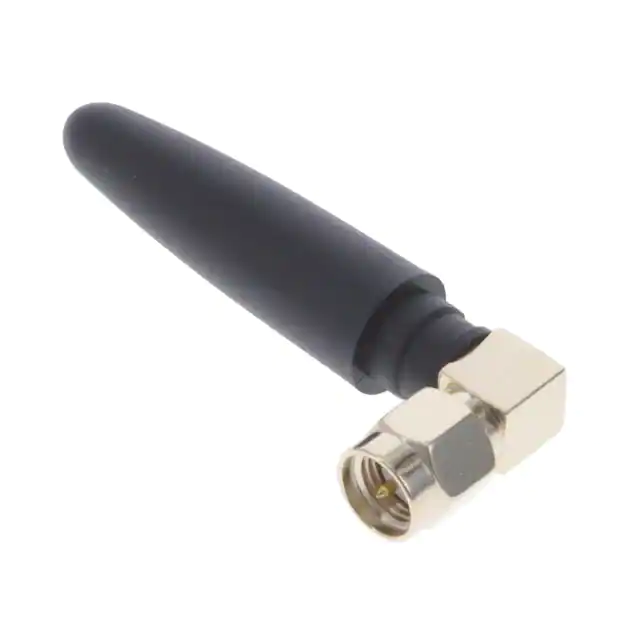

YE0011AAEXTERNAL CELLULAR ANTENNA |
1,765 | 3.86 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | 3.5 | - | 3dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | 3G |
|
|
YP0009AAPCB ANT, 15006000, 5G, 190MM |
1,596 | 0.00 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.65GHz, 3.75GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.5GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | PCB Trace | 9 | 3 | - | 2.3dBi, 1.8dBi, 3.2dBi, 4.42dBi, 2.8dBi, 4.2dBi, 3.6dBi | - | - | I-PEX MHF4 | - | - | - | Adhesive | 0.037" (0.95mm) | 2G, 3G, 4G, 5G |
|

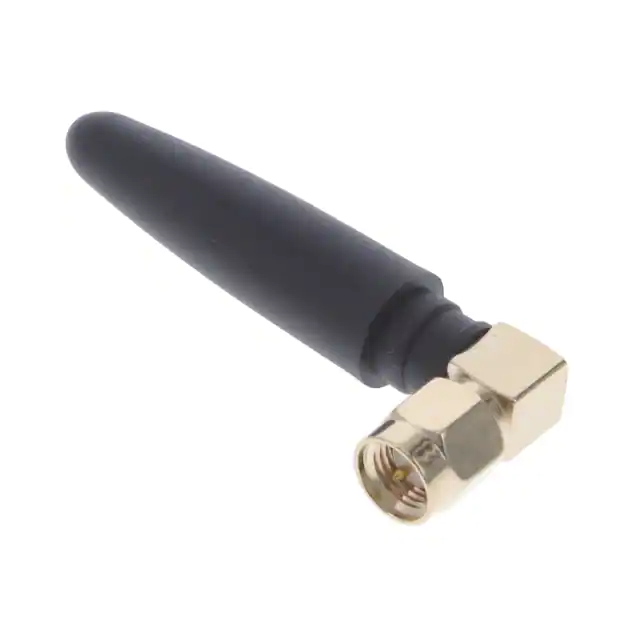

YE0032AAWIFI/BT ANTENNA |
1,496 | 2.81 |
|
Datasheet |
- | Bag | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | 2, 3 | - | 1.8dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | Wi-Fi |
|

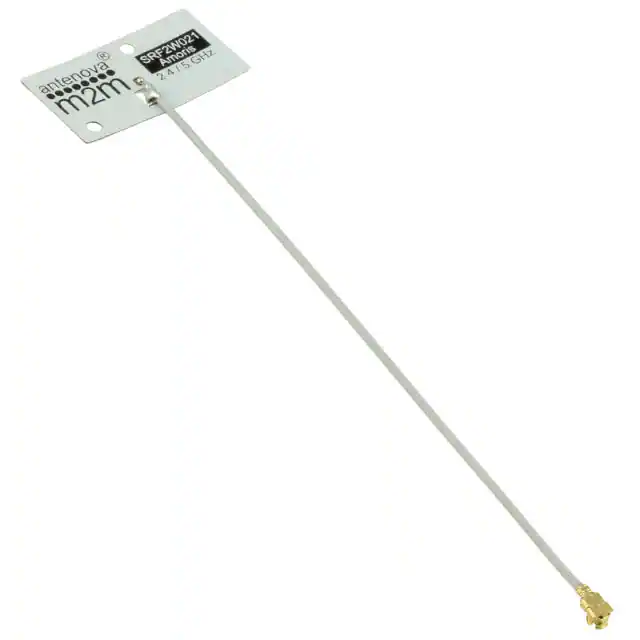

SRF2W021-100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,138 | 3.62 |
|
Datasheet |
Amoris | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 1.7 | -14dB, -10dB | 2.8dBi, 5.1dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|
|
YF0017AAFLEX ANTENNA 1.5-6GHZ 193MM MHF4 |
689 | 0.00 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.65GHz, 3.75GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.5GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | Flat Patch | 9 | 3 | - | 2.3dBi, 3.4dBi, 3.4dBi, 4.5dBi, 4.5dBi, 4.5dBi, 3.5dBi | - | - | I-PEX MHF4 | - | - | - | Adhesive | 0.005" (0.13mm) | 2G, 3G, 4G, 5G, LPWA |
|

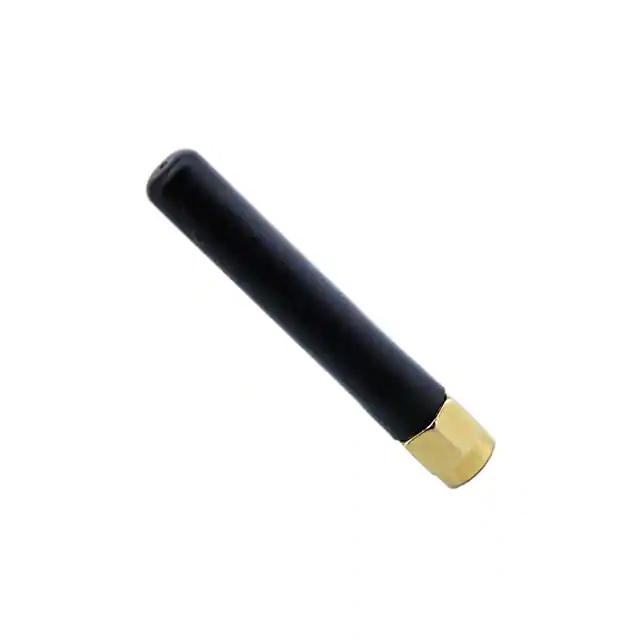

W1095ANT EXT 2.4-2.5GHZ SMA IP65 |
1,215 | 3.96 |
|
Datasheet |
External Stubby | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2.5 | - | 1dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 1.996" (50.69mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

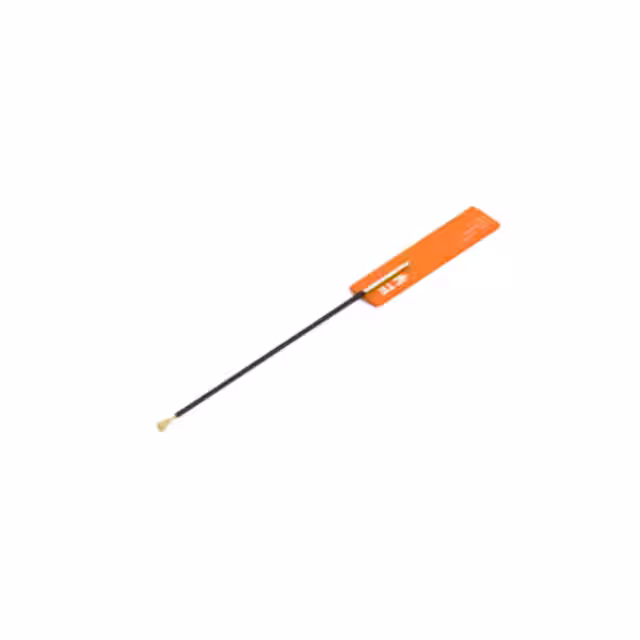

2344655-6WLAN DUAL BAND ANTENNA PCB H 100 |
13,423 | 2.74 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

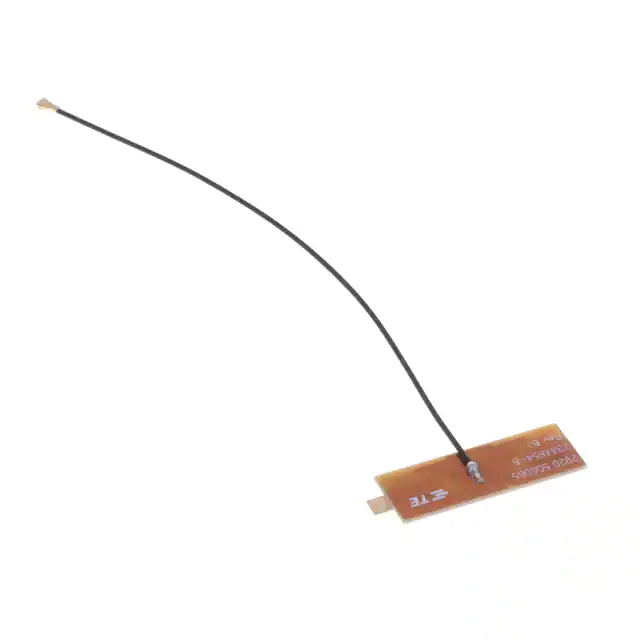

2344654-6WLAN DUAL BAND ANTENNA PCB V 100 |
5,305 | 2.74 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
APAE1575R1820ABDC1-TRF ANT 1.575GHZ CER PATCH PIN |
30,928 | 2.19 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | 3.3dBic | - | - | Pin | - | - | - | Adhesive | 0.102" (2.60mm) | GPS |
|

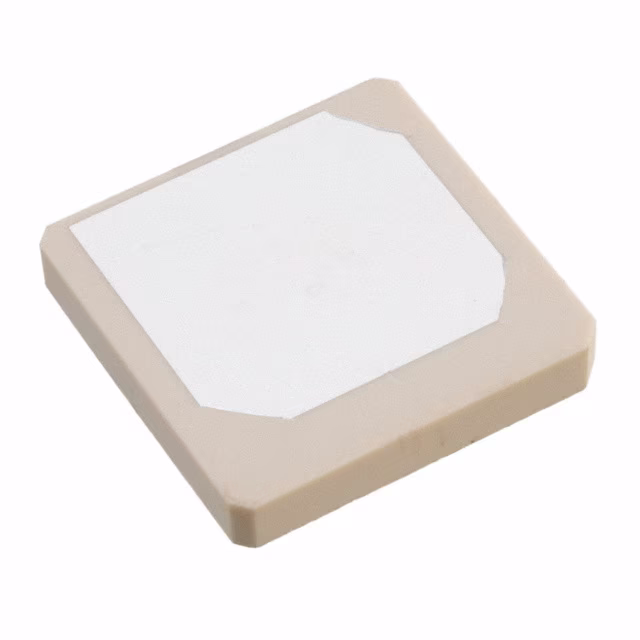

ANT2525B00BT1516SRF ANT 1.575/1.602GHZ CER PATCH |
530 | 3.48 |
|
Datasheet |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -32.828dB, -31.357dB | 4.72dBi, 4.51dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
W3100CANT HELICAL COIL 915MHZ |
9,689 | 2.81 |
|
Datasheet |
Helix Coil | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Helical | 1 | 2 | - | -0.5dBi | 2 W | - | Solder | - | - | - | Solder | 0.386" (9.80mm) | ISM |
|
|
FXP890.07.0100C860-928MHZ ISM/LORA COMPACT FLEX |
186 | 0.00 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | PCB Trace | 2 | - | - | -0.9dBi, -0.06dBi | 10 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa |
|

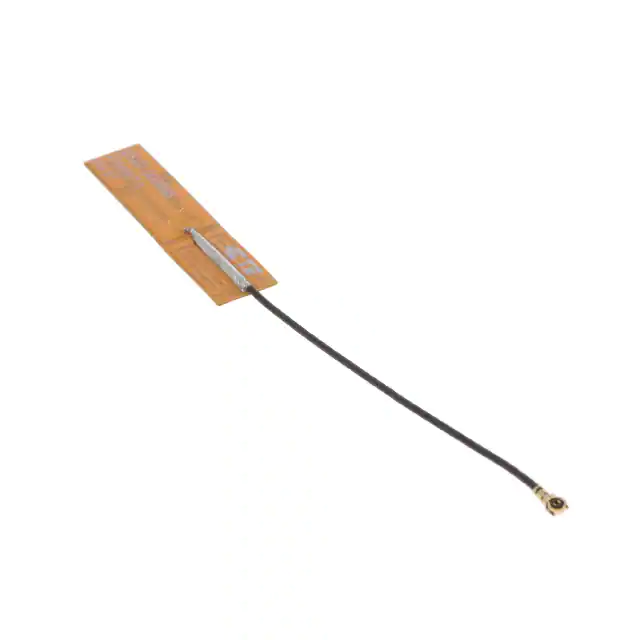

2344657-5WLAN DUAL BAND ANTENNA FPC H 50 |
2,921 | 2.11 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
2344656-5WLAN DUAL BAND ANTENNA FPC V 50 |
1,185 | 2.11 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|

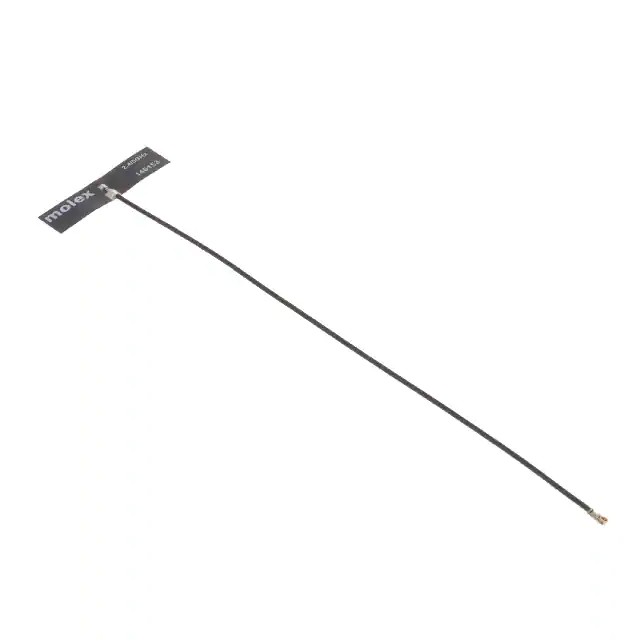

1461531150RF ANT 2.4417GHZ/5.415GHZ PCB |
7,314 | 3.43 |
|
Datasheet |
146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 2.8dBi, 3.7dBi | - | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|

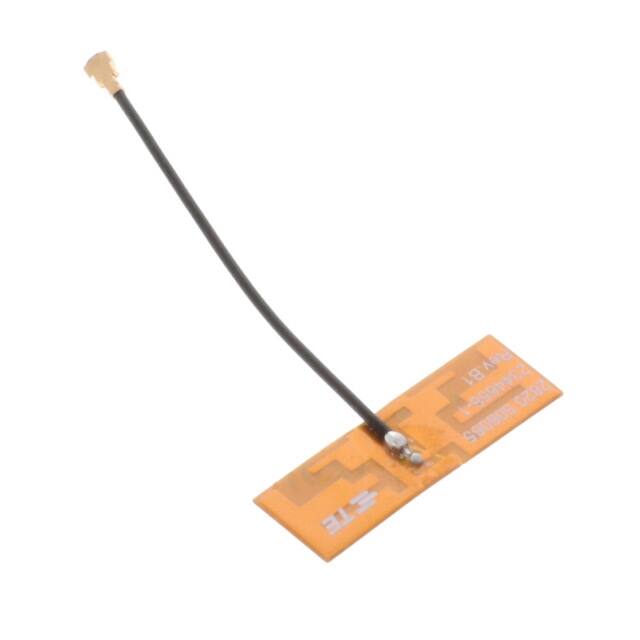

2344656-1WLAN DUAL BAND ANTENNA FPC V 50M |
4,865 | 2.13 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
