RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AANI-FB-0085-0100IFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
4,551 | 0.00 |
|
Datasheet |
AANI-FB | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Flat Patch | 2 | 2 | - | 0.4dBi, 1.5dBi | - | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | ISM, LoRa, Sigfox |
|
|
AANI-FB-0085-0100WFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
2,487 | 0.00 |
|
Datasheet |
AANI-FB | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Flat Patch | 2 | 2 | - | 0.4dBi, 1.5dBi | - | Cable - 100mm | I-PEX MHF4, W.FL | - | - | - | Adhesive | 0.008" (0.20mm) | ISM, LoRa, Sigfox |
|
|
AANI-FB-0085-0150IFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
1,783 | 0.00 |
|
Datasheet |
AANI-FB | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Flat Patch | 2 | 2 | - | 0.4dBi, 1.5dBi | - | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | ISM, LoRa, Sigfox |
|

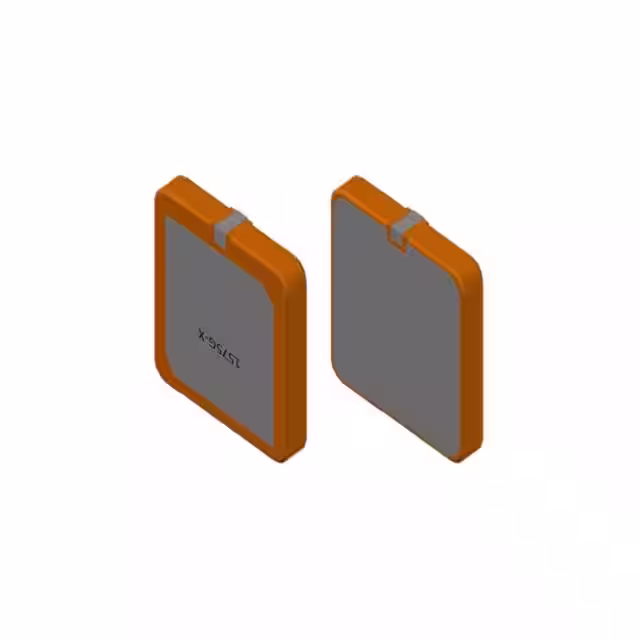

JLT1575S25N4XGPS PATCH ANTENNA,SMD,DIMENSION |
4,454 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.585GHz | 1.56GHz ~ 1.61GHz | Ceramic Patch | 1 | 3 | - | 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLT1575S18P2XGPS PATCH ANTENNA, DIMENSION 18* |
3,923 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | 15dB | -3.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.079" (2.00mm) | - | |
|

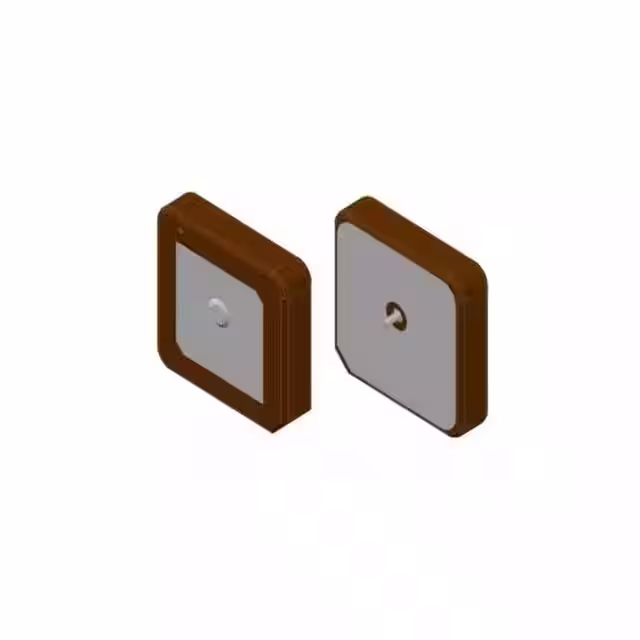

JTT1575S18P4XGPS PATCH ANTENNA, DIMENSION 18* |
1,253 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 3 | 15dB | 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|

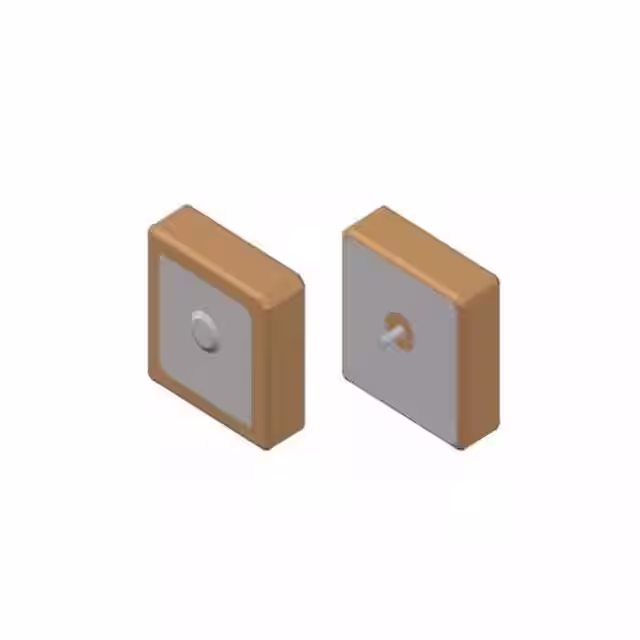

JLT1575S12P4XGPS PATCH ANTENNA, DIMENSION 12* |
1,497 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | 15dB | -2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|

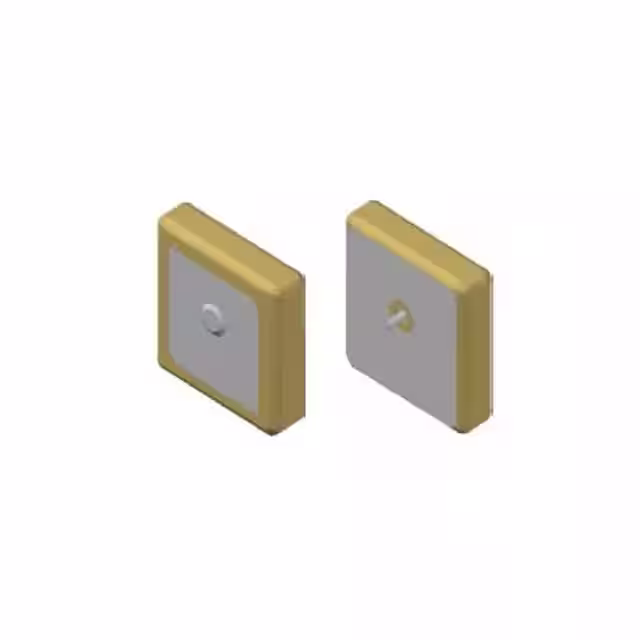

JTT1575S15P4XGPS PATCH ANTENNA, DIMENSION 15* |
2,726 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | 15dB | -2.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLT1600S18N4XGLONASS PATCH ANTENNA, SMD, DIME |
4,140 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.597GHz ~ 1.603GHz | Ceramic Patch | 1 | - | - | 1.5dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|

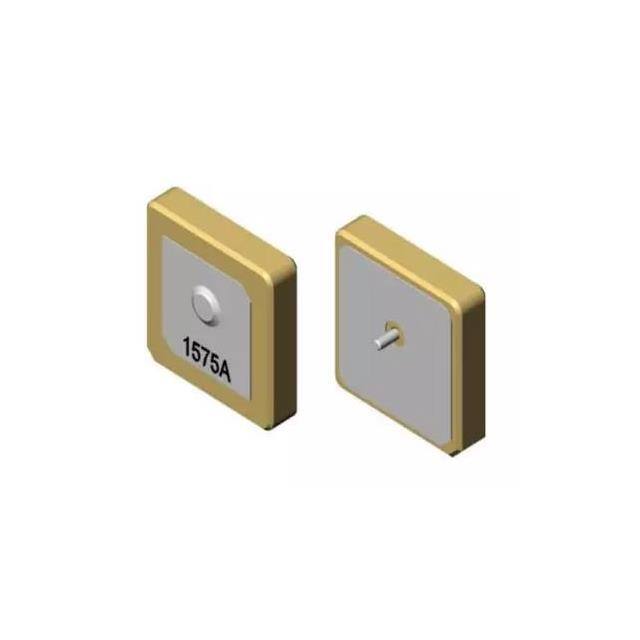

JLT1575S13P4XGPS PATCH ANTENNA, DIMENSION 13* |
3,522 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|

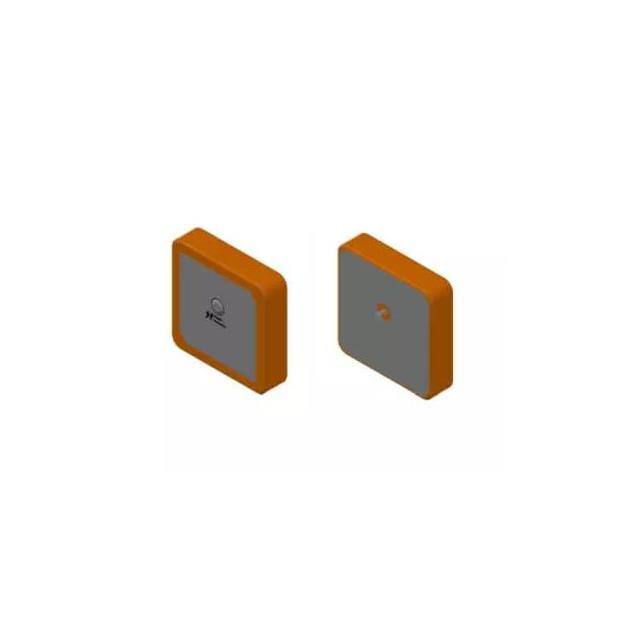

JLT1575S25P6XGPS PATCH ANTENNA, DIMENSION 25* |
4,190 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | 15dB | 3.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.236" (6.00mm) | - | |
|
JLT1575S2006P4XGPS PATCH ANTENNA, DIMENSION 20* |
1,384 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | 15dB | -0.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|

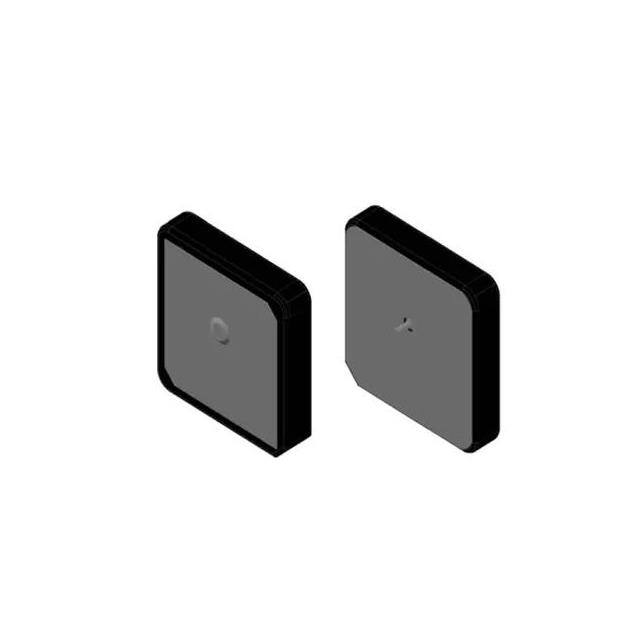

JTT1575S20P4XGPS PATCH ANTENNA, DIMENSION 20* |
1,350 | 1.48 |
|
Datasheet |
- | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 3 | 15dB | 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
|
SR4G080-LRF ANT 1.584GHZ CHIP |
1,599 | 0.00 |
|
- |
lamiiANT® | Tape & Reel (TR) | Active | Navigation | UHF (2GHz ~ 3GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Chip | 1 | 2.8 | -6.3dB | 0.7dBi | - | - | - | - | - | - | Surface Mount | 0.067" (1.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
W2P15X7F04-U050D3B0TANT ASSY, WLAN2 04 050 D0230 |
2,947 | 1.46 |
|
Datasheet |
- | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -7.3dB, -9dB | 4.3dBi, 3.9dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
|
W2P15X7W04-U150D3B0AANT ASSY, WLAN2 04 150 D0230 |
4,936 | 1.46 |
|
Datasheet |
- | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -7.3dB, -9dB | 4.3dBi, 3.9dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
|
2072350150824 2170MHZ CELLULAR FLEXIBLE AN |
2,841 | 1.49 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0900AD54B2450001EIC |
2,396 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 898MHz, 2.44GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.48GHz | Chip | 2 | - | 6.5dB | 1.1dBi, 1.7dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | General Purpose |
|
|
YEGT001BAGNSS TERMIANL MOUNT ANTENNA RA, |
2,460 | 0.00 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | 1.56GHz, 1.58GHz, 1.6GHz | 1.56GHz ~ 1.57GHz, 1.57GHz ~ 1.58GHz, 1.59GHz ~ 1.61GHz | Whip, Tilt | 3 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | 1.969" (50.00mm) | GNSS |
|
|
YFWO001AA2 IN 1 WIFI FPC ANTENNA, 2.4/5.8 |
4,113 | 0.00 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 6.15GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.15GHz | Flat Patch | 2 | - | - | - | - | Cable - 100mm | I-PEX-1 | - | - | - | Adhesive | - | Bluetooth, Wi-Fi |
