RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST0643-00-N01-ARF ANTENNA EMBEDDED LORA CHIP 43 |
4,183 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 433MHz | - | Chip | 1 | - | -10dB | 0.9dBi | 1 W | - | - | - | - | - | Surface Mount | 0.020" (0.50mm) | IoT, ISM, LoRa, LPWAN |
|

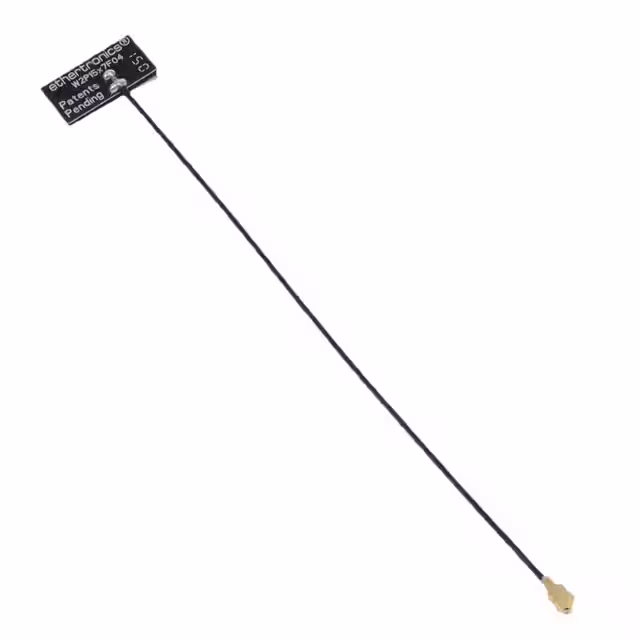

W2P15X7F04-U100D3B0TANT ASSY, WLAN2 04 100 D0230 |
3,579 | 2.81 |
|
Datasheet |
- | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|

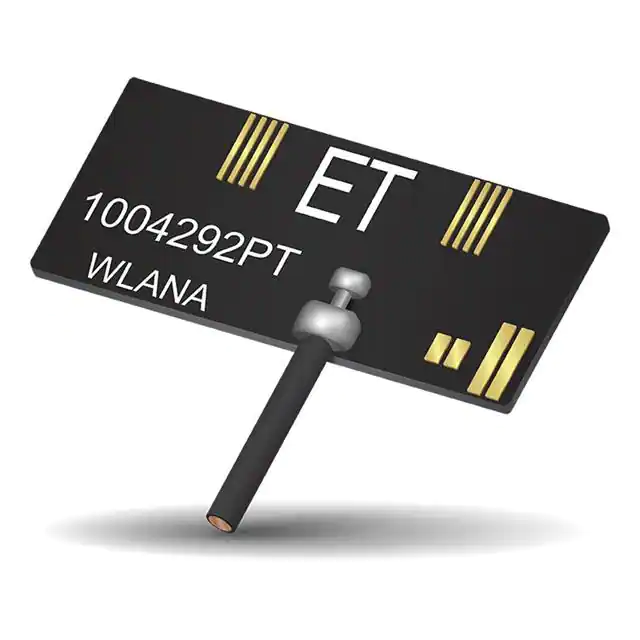

1004292PT-AA10L0100ANTENNA ASSY, WLANA PT 100 |
4,344 | 4.63 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.4875GHz | 5.15GHz ~ 5.825GHz | PCB Trace | 1 | 2 | - | 4.8dBi | 2 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1005190F0-AA70L0025ANTENNA ASSY, UWB68 F0 0025 MHF |
1,985 | 1.48 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 25mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
|
1005190F0-AA70L0050ANTENNA ASSY, UWB68 F0 0050 MHF |
3,893 | 2.95 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
AMCA92-2R660G-S1F-TRF ANT 2.7GHZ CHIP SOLDER SMD |
4,510 | 0.00 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Obsolete | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.7GHz | 2.56GHz ~ 2.76GHz | Chip | 1 | 2 | - | 3dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | LTE, WiMax™, WLAN |
|
|
SRFI068V-200FERA V ISM ANTENNA+200MM CABLE |
1,873 | 1.63 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SRFI068H-200FERA HORIZONTAL ISM ANTENNA+200M |
2,836 | 1.63 |
|
Datasheet |
FlexiiANT® | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 1.4 | -15dB | 0.7dBi | - | Cable - 200mm | I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | ISM, LoRa, Sigfox |
|
|
H2UC4W1H2D0300DUAL BAND WIFI+GNSS 1560-1610 24 |
3,561 | 0.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation, WiFi | Wide Band | 1.575GHz, 2.45GHz, 5.5GHz | 1.575GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | 2, 3 | - | 0.4dBi, 1.5dBi, 2.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11a/b/g/n/ac, GPS, Wi-Fi |
|

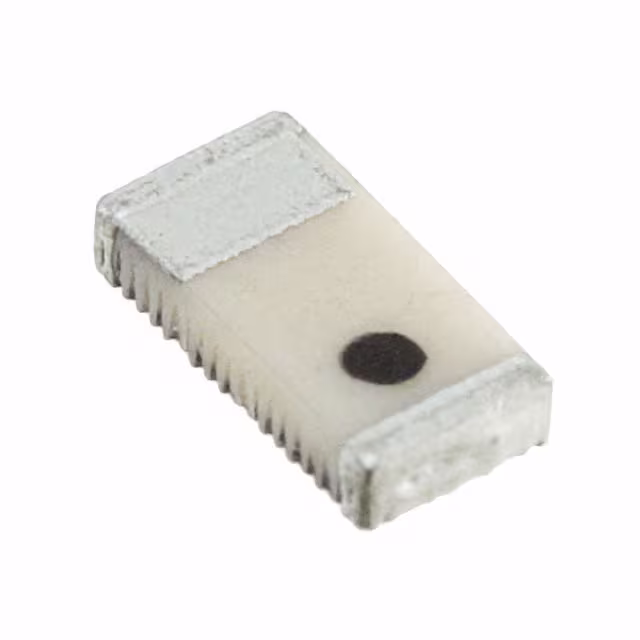

A10381RF ANT 2.4GHZ CHIP SOLDER SMD |
4,296 | 1.24 |
|
Datasheet |
Indica | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.6 | -10dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.026" (0.65mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

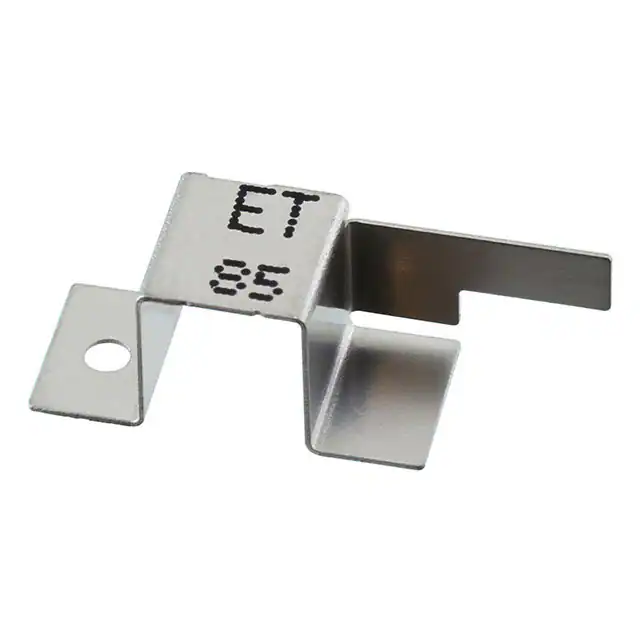

1002685RF ANT 5GHZ STAMPED MET SLDR SMD |
1,800 | 0.69 |
|
Datasheet |
Prestta™ | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Stamped Metal | 2 | 2 | - | 6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | Wi-Fi, WLAN |
|
|
H2B4KF1F1N0200GSM 3G 824-960 1710-2170 MHZ FPC |
3,110 | 1.56 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | 3 | - | 0.8dBi, 2.7dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.006" (0.15mm) | 3G, GSM |
|
|
2118309-3DUAL BAND WIFI, 2.4 & 5GHZ, PCB |
1,150 | 0.00 |
|
- |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.387GHz | 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 3.7dBi, 3.7dBi | 3 W | Cable - 48.77mm | MHF4L | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1461840150RF ANT 4.5GHZ PCB TRACE MMCX MAL |
3,419 | 0.00 |
|
Datasheet |
UWB | Bulk | Obsolete | - | Wide Band | 4.5GHz | 3GHz ~ 6GHz | PCB Trace | 1 | - | -6dB | 4.3dB | - | - | MMCX Male | - | - | - | Adhesive | 0.012" (0.30mm) | - |
|
|
1005190F0-AA70L0100ANTENNA ASSY, UWB68 F0 0100 MHF |
4,649 | 2.95 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
|
1005190F0-AA70L0075ANTENNA ASSY, UWB68 F0 0075 MHF |
3,987 | 1.56 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 75mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
W2P15X7F04-U150D3B0TANT ASSY, WLAN2 04 150 D0230 |
4,991 | 1.56 |
|
Datasheet |
- | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -7.3dB, -9dB | 4.3dBi, 3.9dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
1001435M0-AA10L0100NANTENNA ASSY, WLAN M0 100 |
3,991 | 1.56 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 100mm | Solder | - | - | - | Surface Mount | 0.374" (9.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
2072350200824 2170MHZ CELLULAR FLEXIBLE AN |
3,986 | 1.66 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

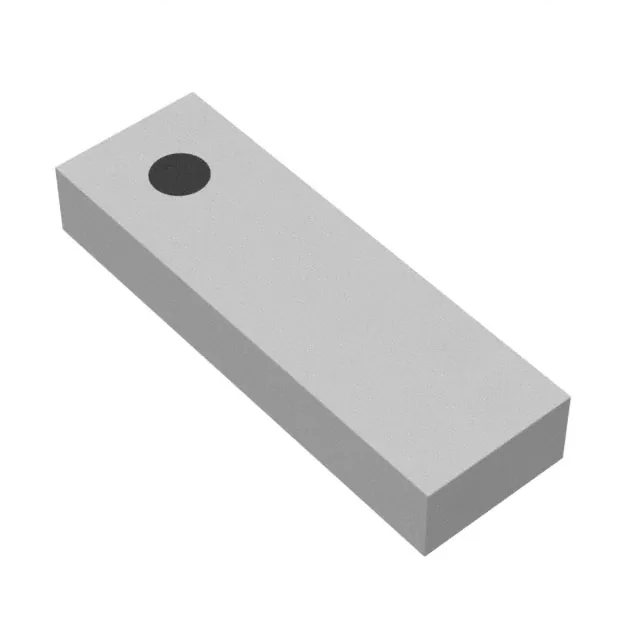

ANT1003LL15R2455ARF ANT 2.442GHZ/5.35GHZ CHIP SLD |
2,956 | 0.00 |
|
Datasheet |
1003 | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.35GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | 6.5dB | 1.55dBi, 2.45dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM |
