RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

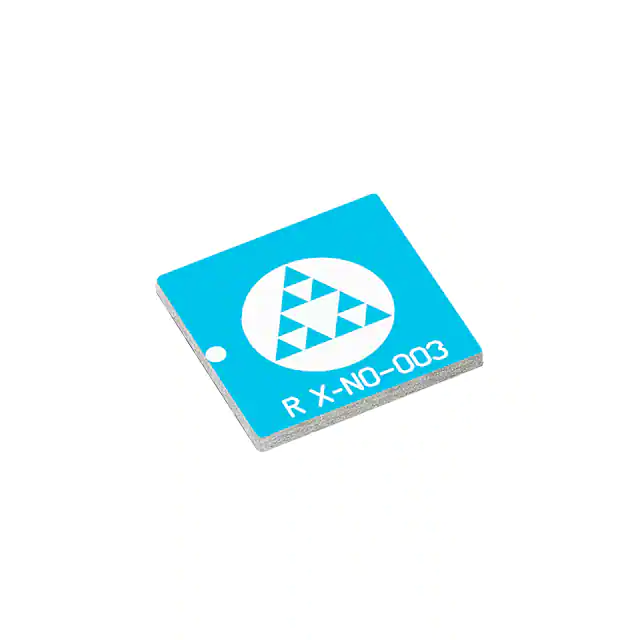

NN01-003DUAL-BAND REACH XTEND - 003 |
1,821 | 0.00 |
|
- |
Dual-band Reach Xtend™ | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.3875GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | Chip | 2 | 2 | - | 3.9dBi, 9dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | 802.11a/b/g/n, WLAN |
|
YFGC035WWBINT,GPS&GNSS,CERAMIC,-,NA,1559-1 |
3,237 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YFGC035WWCINT,GPS&GNSS,CERAMIC,-,NA,1559-1 |
1,723 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

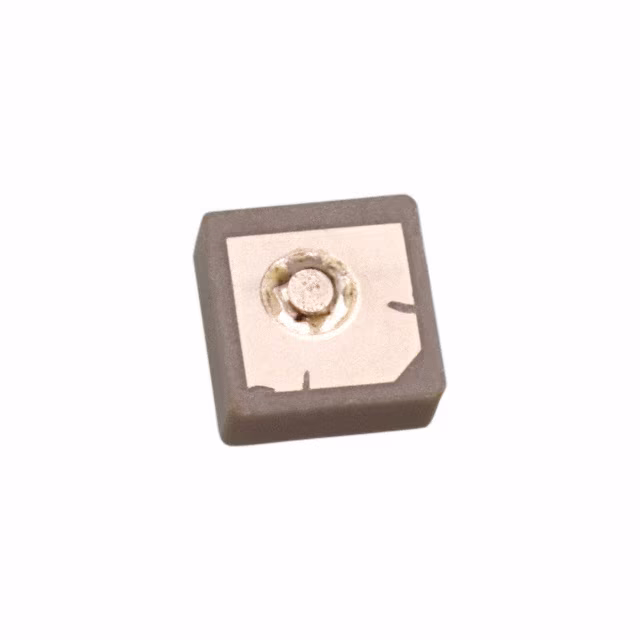

APAEA1575R0940K14-TRF ANT 1.575GHZ CER PATCH PIN |
1,904 | 1.66 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | -10dB | -1dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
W3613ANT SMD 2.4 |
3,352 | 1.54 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | FlexPIFA | 1 | 2 | - | 4dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | General Purpose |
|
|
2042810050RF ANT 2.442/5.5GHZ PCB ADH 50MM |
2,047 | 1.68 |
|
Datasheet |
204281 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 2.2dBi, 3.5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|
|
ANT3535B001TGNSSAANT 35354 GNSS PATCH TYPE01 |
3,181 | 5.24 |
|
Datasheet |
3535 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1461840050RF ANT 4.5GHZ PCB TRACE MMCX MAL |
4,766 | 1.75 |
|
Datasheet |
UWB | Bulk | Active | - | Wide Band | 4.5GHz | 3GHz ~ 6GHz | PCB Trace | 1 | - | -6dB | 4.7dB | - | - | MMCX Male | - | - | - | Adhesive | 0.012" (0.30mm) | - |
|
|
W3015LANTENNA EMBEDDED ISM433MHZ |
1,286 | 1.56 |
|
Datasheet |
Ceramic Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Chip | 1 | 2 | -10dB | 0dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | ISM |
|
|
0169AT62A0010001ERF ANT 169MHZ CHIP SOLDER SMD |
3,131 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | VHF (f < 300MHz) | 169MHz | 164MHz ~ 175MHz | Chip | 1 | - | -5.5dB | - | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
H2U36D2K1B0100PILLAR CHIP ANTENNA WIFI/BT 2400 |
2,798 | 1.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 3.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi |
|
|
YFCO002AA4G/5G 2 IN 1 COMBO FPC ANTENNA, |
3,600 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 3.3GHz | 600MHz ~ 6GHz | Flat Patch | 1 | - | - | - | - | Cable - 150mm | I-PEX-1 | - | - | - | Adhesive | - | 2G, 3G, 4G, 5G |
|
|
2118871-1ANTENNA, LTE EU, METASPAN, PCB, |
4,603 | 0.00 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1005190F0-AA70L0150ANTENNA ASSY, UWB68 F0 0150 MHF |
3,219 | 1.56 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 150mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
1004369PT-AA80L0140ANTENNA ASSY, WLANA PT 140 |
1,285 | 1.63 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.4875GHz | 5.15GHz ~ 5.825GHz | PCB Trace | 1 | 2 | - | 3.7dBi | 2 W | Cable - 140mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1001435M0-AA10L0025NANTENNA ASSY, WLAN M0 25 |
3,768 | 1.63 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 25mm | Solder | - | - | - | Surface Mount | 0.374" (9.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1001435M0-AA10L0150NANTENNA ASSY, WLAN M0 150 |
1,988 | 1.63 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 150mm | Solder | - | - | - | Surface Mount | 0.374" (9.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
SRF2W012-150RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,633 | 1.78 |
|
Datasheet |
Dromus | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 1.8 | -14dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
|
SRF2W021-50RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,204 | 1.78 |
|
Datasheet |
Amoris | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 1.7 | -14dB, -10dB | 2.8dBi, 5.1dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|
|
2042810150RF ANT 2.442/5.5GZ PCB ADH 150MM |
4,119 | 1.72 |
|
Datasheet |
204281 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 1.8dBi, 3.1dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
