RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

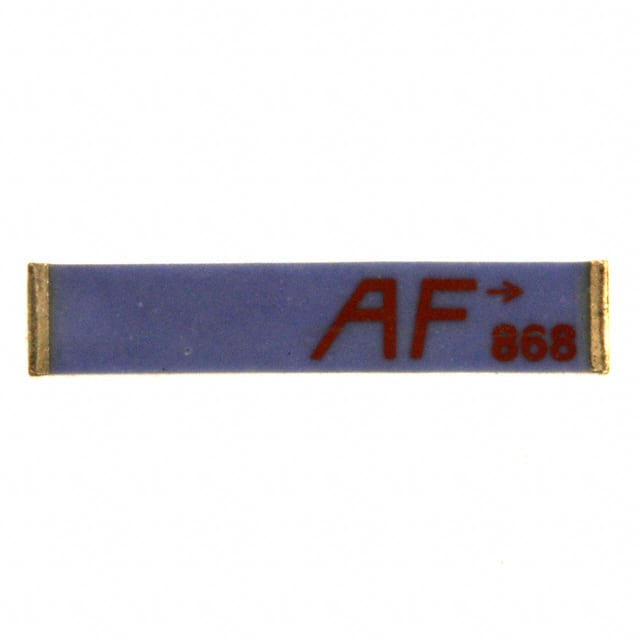

ANT-868-CHP-TRF ANT 868MHZ CHIP SOLDER SMD |
11,789 | 2.96 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | ISM, LoRa, Sensor Networks, SigFox |
|

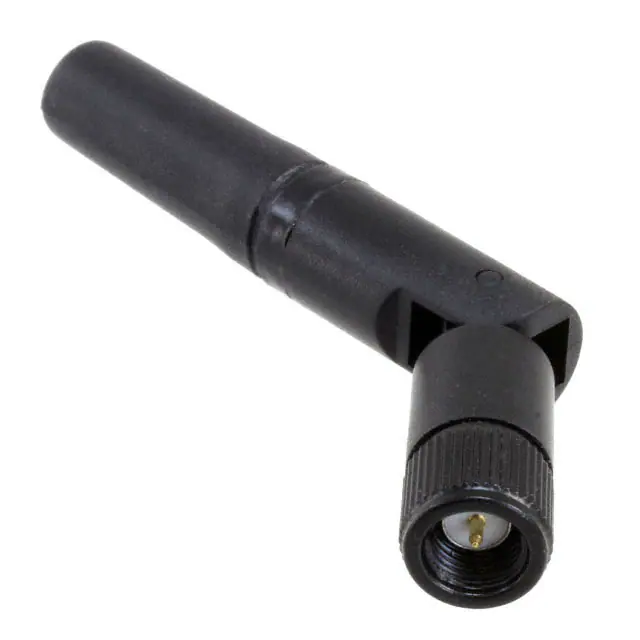

W24-ASMA-MRF ANT 2.4GHZ WHIP TILT SMA MALE |
1,306 | 2.99 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 2.598" (66.00mm) | WLAN |
|

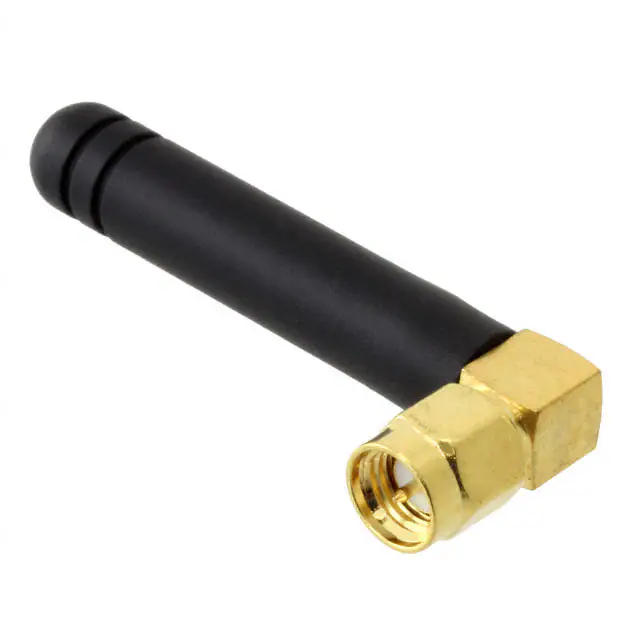

W24-RSMA-MRF ANT 2.4GHZ WHIP RA SMA MALE |
1,129 | 2.99 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 1.829" (46.46mm) | WLAN |
|

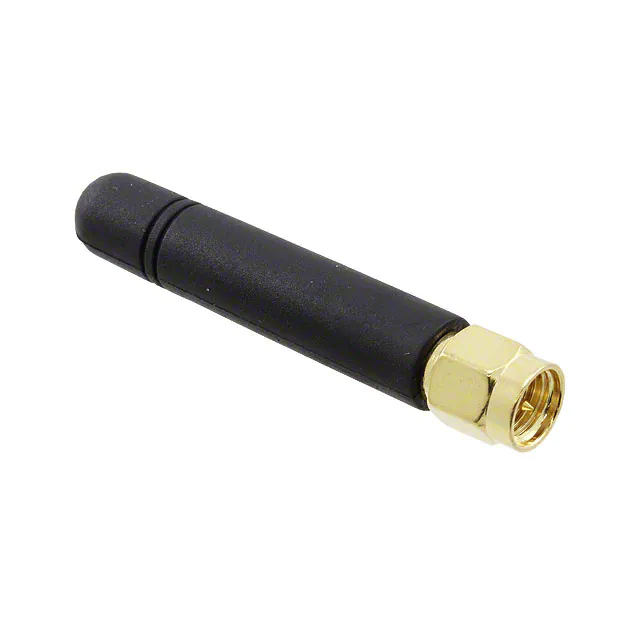

W24-SSMA-MRF ANT 2.4GHZ WHIP STR SMA MALE |
637 | 2.99 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 1.969" (50.00mm) | WLAN |
|

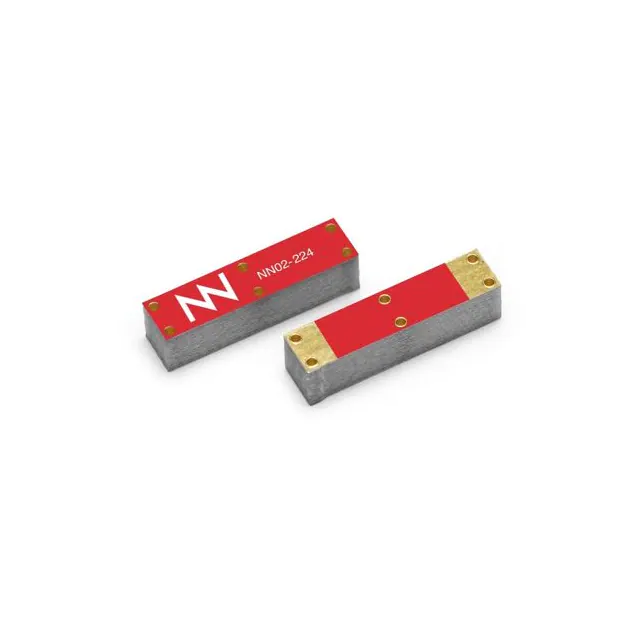

NN02-224RUN MXTEND MULTIBAND ANTENNA |
43,361 | 4.83 |
|
Datasheet |
RUN mXTEND™ | Tape & Reel (TR) | Active | Bluetooth, Cellular, Navigation, WiFi | Ultra Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz, 3.5GHz, 3.7GHz | 824MHz ~ 5.875GHz | Chip | 14 | 3 | - | 1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | BT, DCS, GNSS, GSM, LTE, PCS, UMTS, WiFi DB |
|
W3006RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
24,191 | 2.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -8dB, -10dB | 3.2dBi, 4.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | WLAN, Zigbee™ |
|

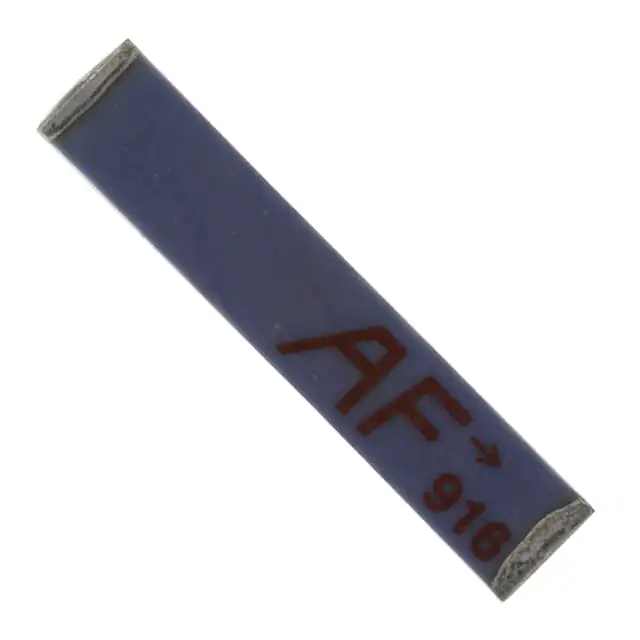

ANT-916-CHP-TRF ANT 916MHZ CHIP SOLDER SMD |
5,251 | 3.22 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 911MHz ~ 921MHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | ISM, LoRa, Sensor Networks, SigFox |
|

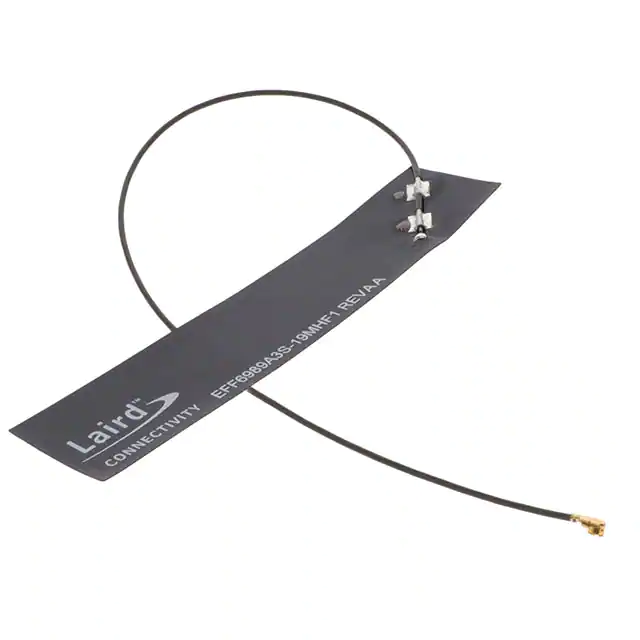

EFF6989A3S-19MHF1EMBED,REVIE700,MHF1 |
709 | 3.01 |
|
Datasheet |
Revie Flex 700 | Bulk | Active | Cellular | Wide Band | 761MHz, 859MHz, 920MHz, 1.45GHz, 1.62GHz, 1.89GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.75GHz, 5.45GHz | 698MHz ~ 6GHz | - | 12 | 2.1, 2.4, 2, 2.3, 1.9, 1.8, 1.7, 1.4, 1.7, 2.1, 1.7, 1.5 | - | 0.5dBi, 0.9dBi, 2dBi, 3.7dBi, 4.1dBi, 3.6dBi, 3.5dBi, 3.7dBi, 3.4dBi, 3dBi, 2.4dBi, 4dBi | 5 W | Cable - 190mm | U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | CAT-M1, Cellular, LTE, NB-IOT, 4G, 5G |
|

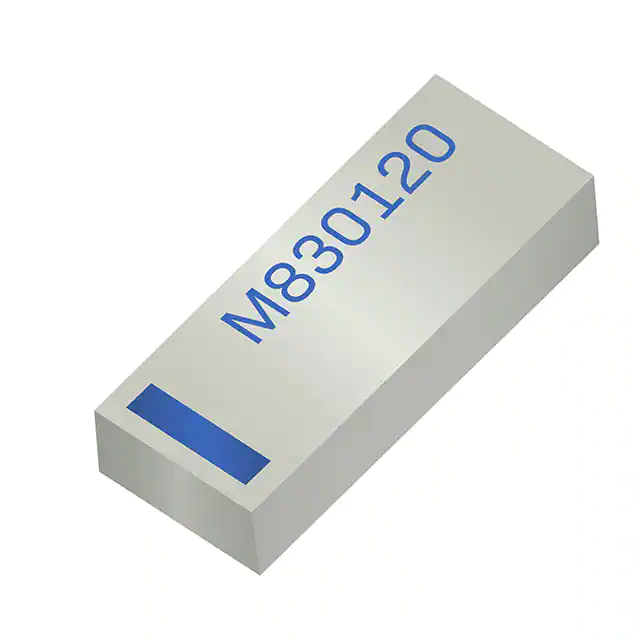

M830120RF ANT 1.561GHZ/1.575GHZ CHIP |
14,695 | 0.81 |
|
- |
Savvi™ | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 3 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
|

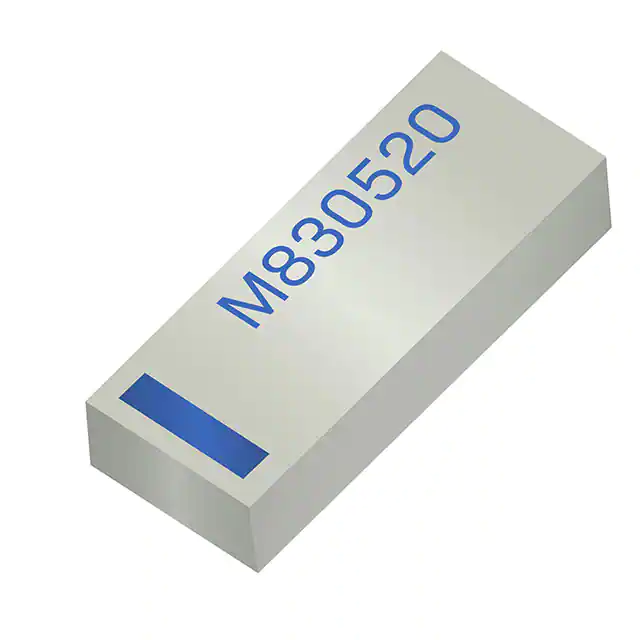

M830520RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
5,232 | 2.13 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

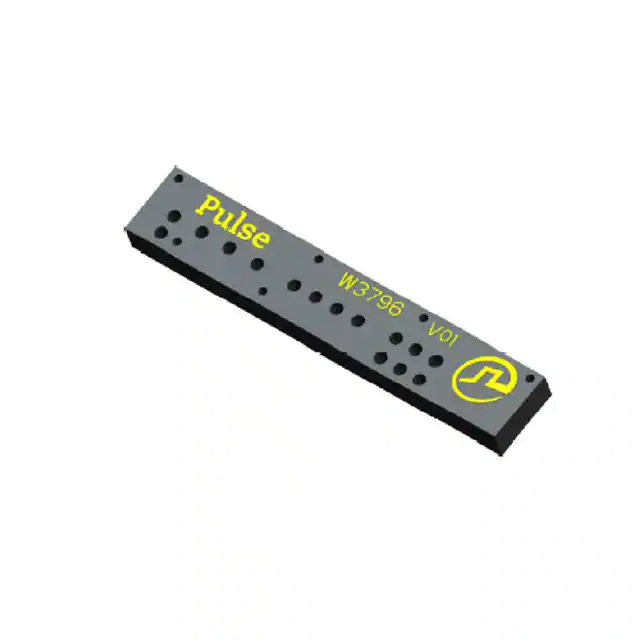

W3796RF ANT 829MHZ/1.575GHZ FLAT BAR |
10,216 | 4.35 |
|
Datasheet |
Domino | Tape & Reel (TR) | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz | 698MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.69GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 4 | 3 | -6dB | 1.5dBi, 2dBi, 5.5dBi, 5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GPS, LTE |
|

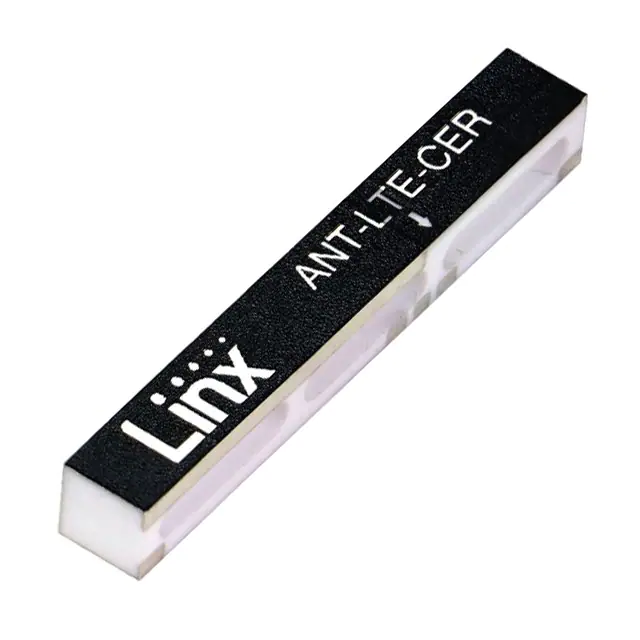

ANT-LTE-CER-TRF ANT 829MHZ/1.94GHZ CHIP SLD |
12,162 | 5.19 |
|
Datasheet |
CER | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz | Chip | 4 | 4, 3.2, 2.5, 2.5 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.203" (5.15mm) | CAT-M1, Cellular, LTE, NB-IOT, 3G, 4G |
|
1461530050RF ANT 2.4/5GHZ FLAT PATCH 50MM |
7,470 | 2.41 |
|
Datasheet |
146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 3.2dBi, 4.75dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|

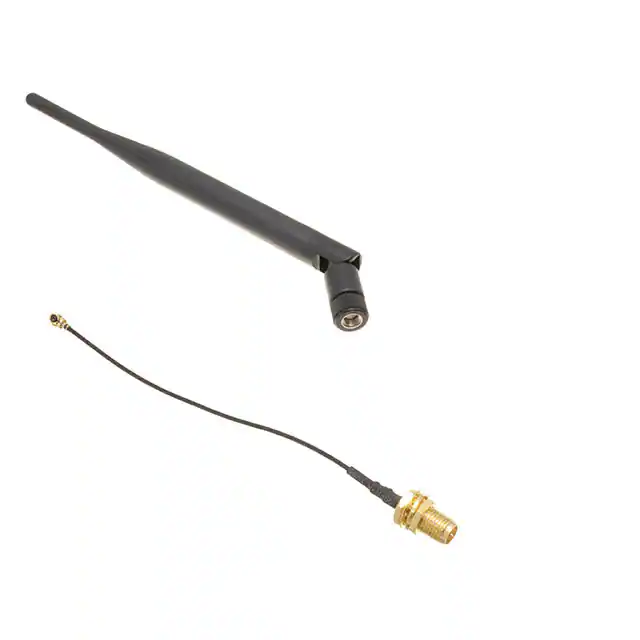

ANT060EXTERNAL ANTENNA WITH PANEL MOUN |
2,006 | 5.99 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 6dBi | 10 W | - | SMA | - | - | - | Panel Mount | 7.677" (195.00mm) | - |
|

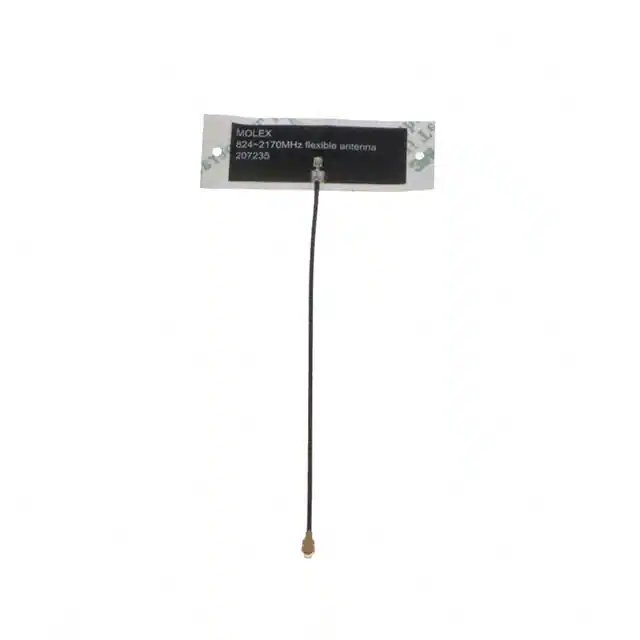

2072350100824 2170MHZ CELLULAR FLEXIBLE AN |
6,360 | 2.77 |
|
Datasheet |
207235 | Tray | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -4dB, -6dB | 0dBi, 4.3dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
H2B1PC1A1C095LDUAL BAND WIFI 2400-2500 4900-59 |
1,091 | 0.00 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 0.9dBi, 3.8dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11a/b/g/n/ac, Wi-Fi |
|
|
1461530100RF ANT 2.4/5GHZ FLAT PATCH 100MM |
549 | 2.80 |
|
Datasheet |
146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 3dBi, 4.5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
2111400100868/915MHZ FLEXIBLE ANTENNA100MM |
5,542 | 2.82 |
|
Datasheet |
211140 | Bulk | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 869MHz, 915MHz | 868MHz ~ 870MHz, 902MHz ~ 928MHz | PCB Trace | 2 | - | -5dB | 0.3dBi, 1dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | ISM, LoRa, LPWAN, Sigfox, Zigbee™ |
|
|
1575AT54A0010001ERF ANT 1.575GHZ/1.602GHZ CHIP |
2,394 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.605GHz | Chip | 2 | - | -9.5dB | 1.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GLONASS, GPS |
|

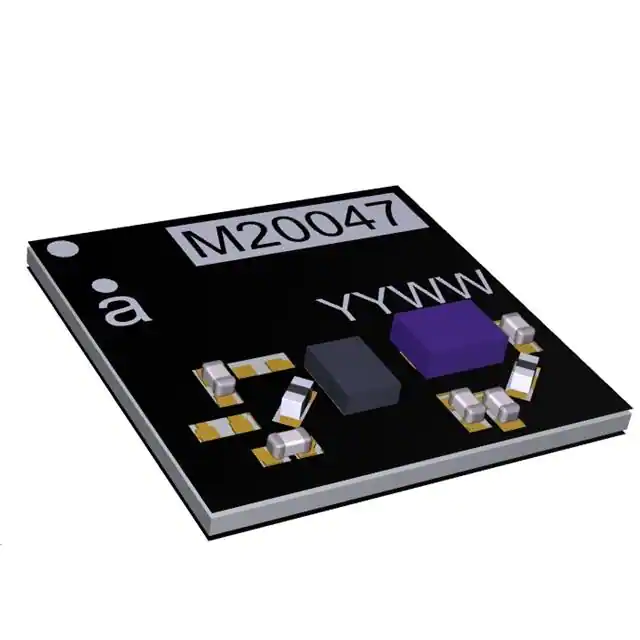

M20047-1RF ANT 1.559GHZ-1.606GHZ SMD |
15,997 | 5.56 |
|
Datasheet |
RADIONOVA® | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Integrated, Trace | 1 | 1.4 | -12dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | General Purpose |
