RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

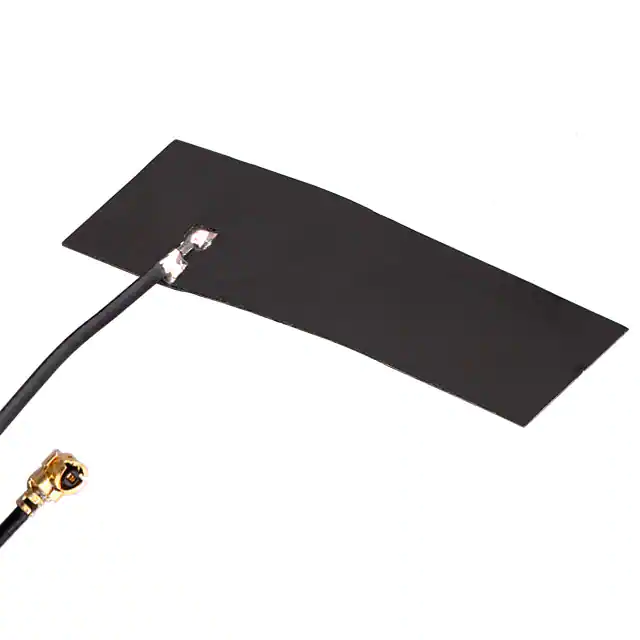

ANT-8/9-FPC-UFL-100RF ANT <960MHZ 5G FLEX ADHES UFL |
484 | 4.66 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Flat Patch | 2 | 2, 1.6 | -9.5dB, -12.7dB | -3.2dBi, -3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.010" (0.20mm) | ISM, LoRaWAN, LPWA |
|

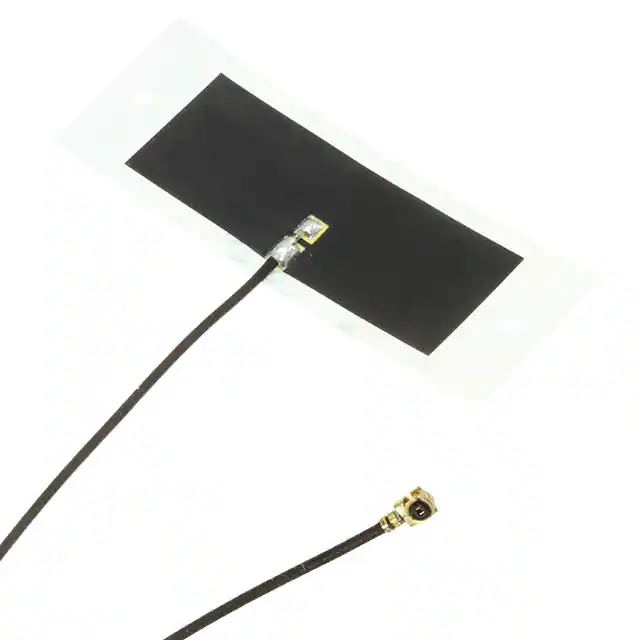

2065600300RF ANT 1.561/1.575GHZ FLAT 300MM |
3,065 | 4.29 |
|
Datasheet |
206560 | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 0.5dBi, 0.9dBi | - | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|

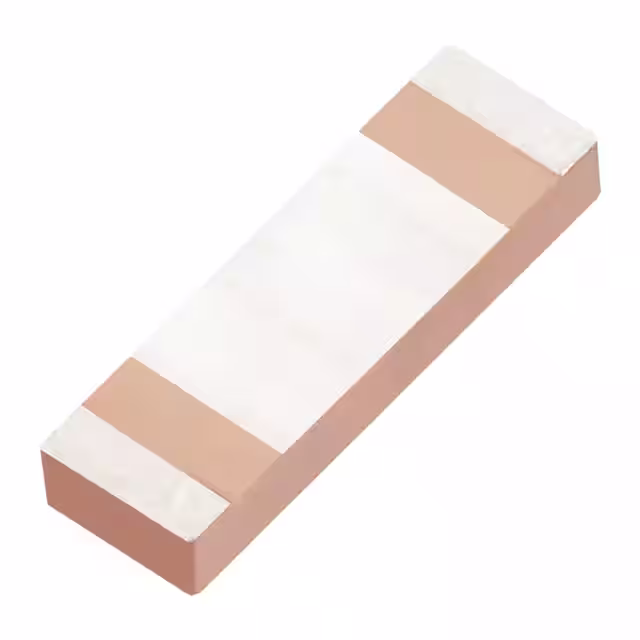

GGBLA.125.AGPS/GLONASS/GALILEO/BEIDOU CERAM |
8,468 | 7.58 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.1764GHz, 1.2276GHz, 1.2788GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Chip | 6 | - | -10dB, -10dB, -5dB, -10dB, -10dB, -10dB | 3.6dBi, 3.3dBi, 3.3dBi, 2.6dBi, 2.8dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

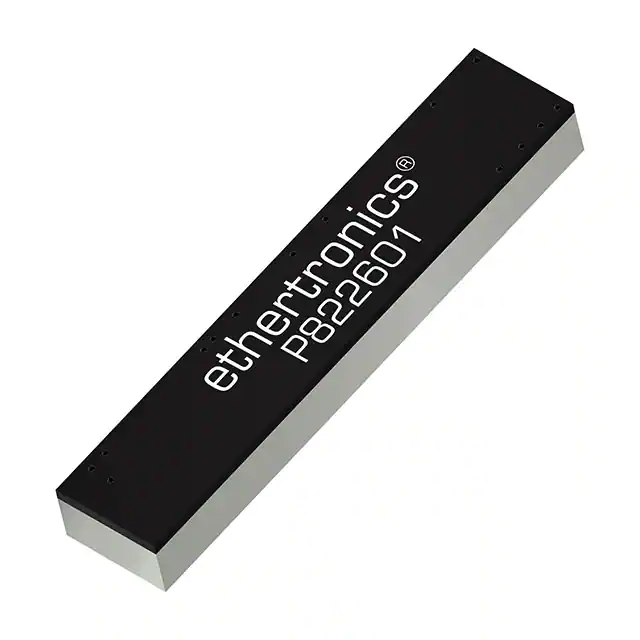

P822601RF ANT 700MHZ/750MHZ FLAT BAR |
5,975 | 3.65 |
|
Datasheet |
Prestta™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Flat Bar | 8 | 2.5 | - | 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
ANT-LTE-SP610-TRF ANT LTE 698MHZ-2.7GHZ CHIP SL |
7,797 | 3.84 |
|
Datasheet |
Splatch® | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 4 | 3.4, 3.1, 3.0, 5.0 | -5.3dB, -5.8dB, -6.0dB, -3.5dB | 5.1dBi, 5.3dBi, 4.9dBi, 2.7dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.110" (2.80mm) | CAT-M1, Cellular, GSM, LTE, LTE-M, LPWA, NB-IOT, UMTS, 4G |
|

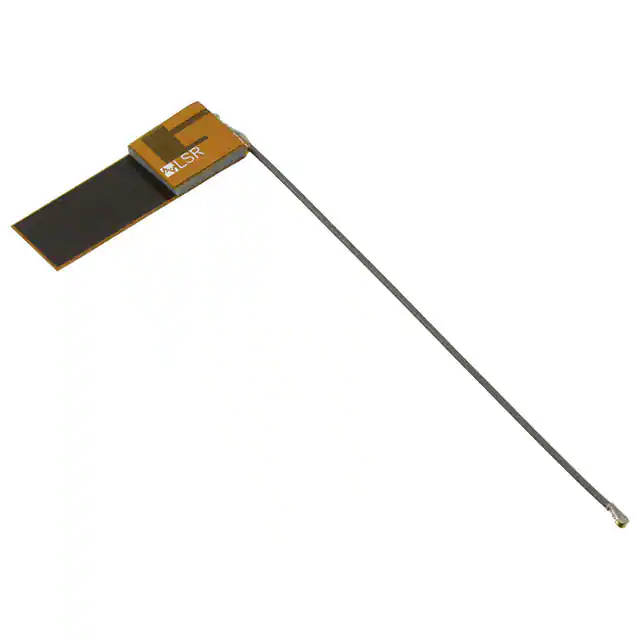

001-0021RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
4,652 | 4.84 |
|
Datasheet |
FlexPIFA™ | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.055" (1.40mm) | - |
|

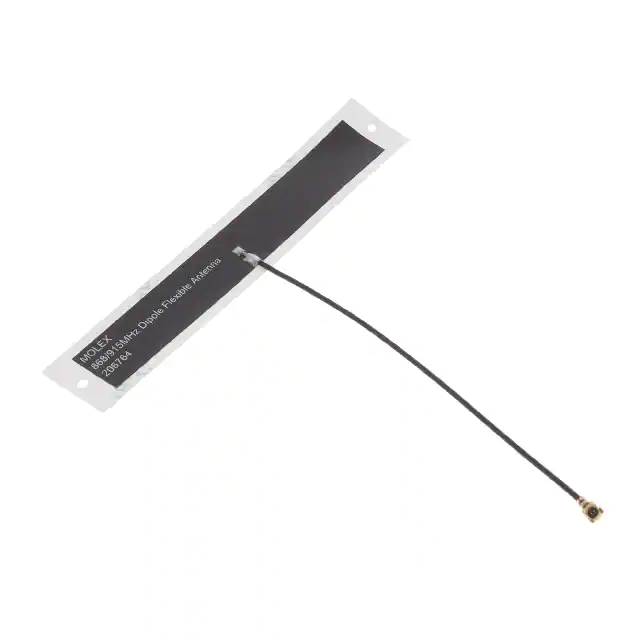

2067640100RF ANT 868MHZ/915MHZ FLAT PATCH |
4,789 | 4.58 |
|
Datasheet |
206764 | Tray | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -9dB | 1.2dBi | - | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|

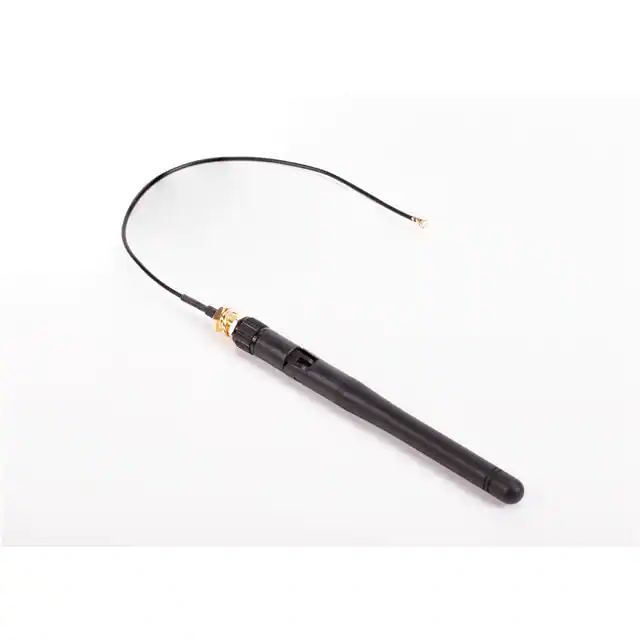

SC0480COMPUTE MODULE CM4 ANTENNA KIT |
2,863 | 5.00 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.8GHz | Whip, Tilt | 2 | 2 | - | 2dBi | 10 W | Cable - 205mm | SMA Female | - | - | - | Screw | 4.252" (108.00mm) | - |
|
F56NBAAA-G150ULTE FLEX ANTENNA |
988 | 5.00 |
|
Datasheet |
Profile Contour | Bag | Active | Cellular | Wide Band | - | 617MHz ~ 960MHz, 1.7GHz ~ 6GHz | FlexPIFA | 7 | 01:02.5 | - | 1.7dBi, 3.5dBi, 3dBi, 4.2dBi, 4dBi, 5.1dBi, 6.9dBi | - | - | U.FL | - | - | - | Adhesive | - | 2G, 3G, 4G, 5G, LTE |
|

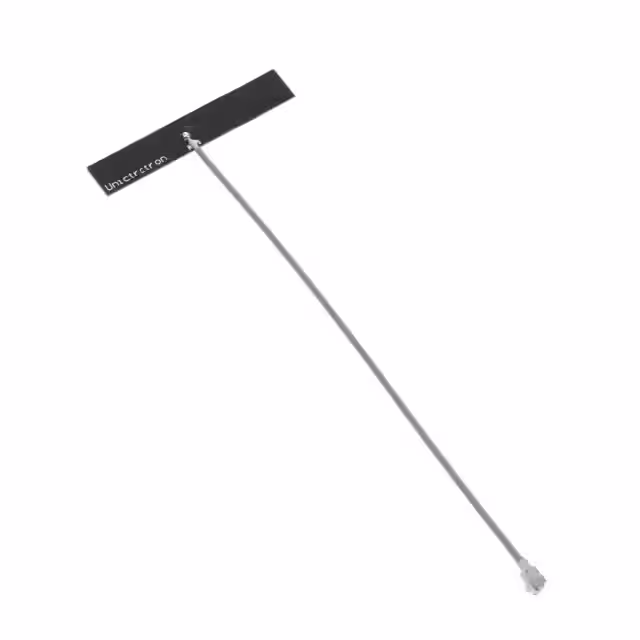

H2B1PD1A1C385LUNICTRON AA222 - DUAL BAND WIFI, |
880 | 0.00 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 3dBi, 4.4dBi | - | Cable - 100mm | I-PEX MHF | - | - | - | Adhesive | 0.020" (0.50mm) | 802.11b/g/n |
|

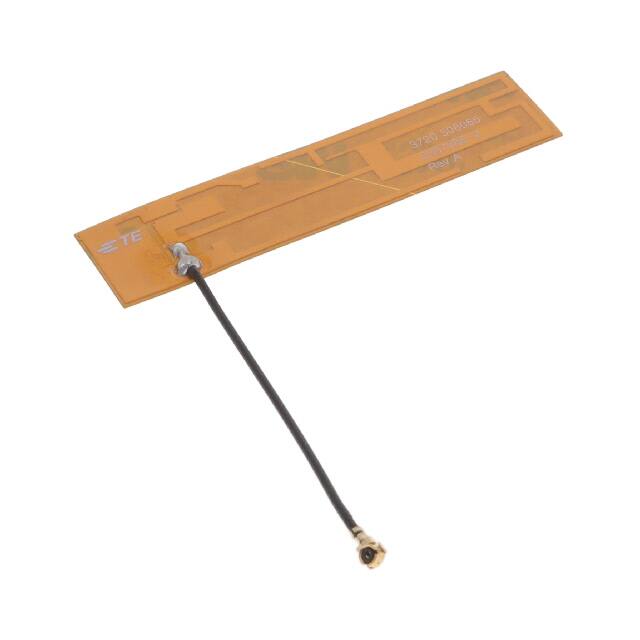

2367286-2LTE ANTENNA COTS FPC ASSEMBLY 50 |
2,224 | 4.10 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 4 | - | 4dBi, 4dBi, 4dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | LTE, UMTS, WCDMA |
|

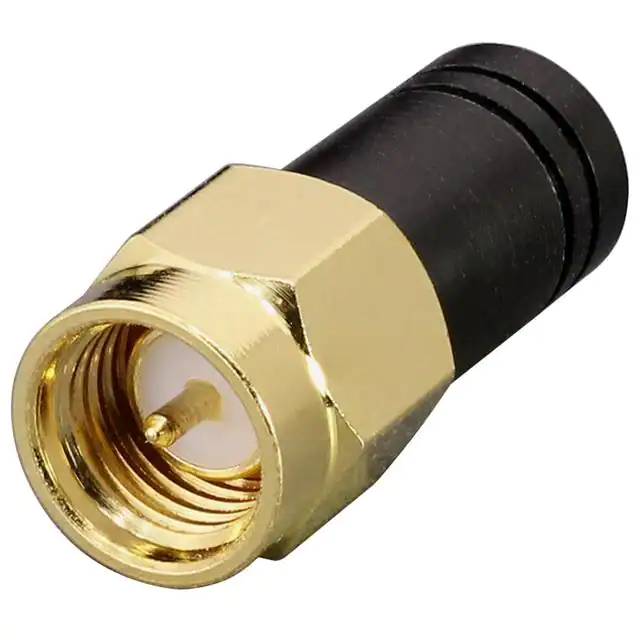

ANT-868-NUB-SMARF ANT 868MHZ SHORT WHIP SMA |
1,088 | 5.95 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Whip, Straight | 1 | 1.7 | - | 4.2dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 0.776" (19.70mm) | ISM, LoRaWAN, LPWA, Sigfox |
|

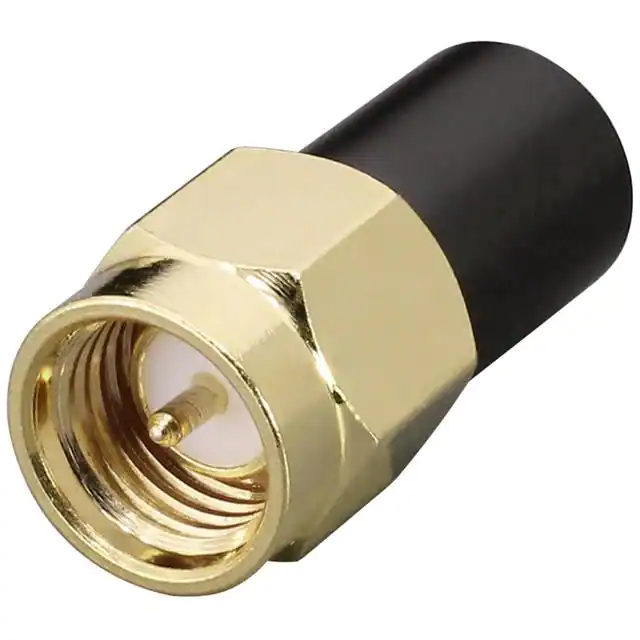

ANT-915-NUB-SMARF ANT 915MHZ SHORT WHIP SMA |
535 | 5.95 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Straight | 1 | 2.6 | - | 3.9dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 0.697" (17.70mm) | ISM, LoRaWAN, LPWA |
|

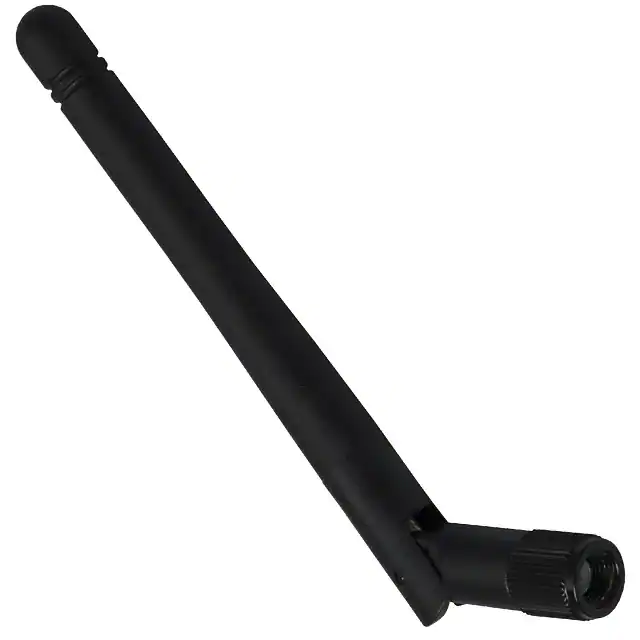

W1030RF ANT 2.4GHZ WHP TILT RP-SMA 3" |
4,067 | 3.96 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.264" (108.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3538B0045STAND ALONE PWB ANTENNA |
578 | 3.96 |
|
Datasheet |
Internal PCB Antenna | Box | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99MHz, 1.92GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -5dB | 0.78dBi, 1.73dBi, 1.84dBi | - | Cable - 45mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.028" (0.70mm) | GPS, WCDMA |
|

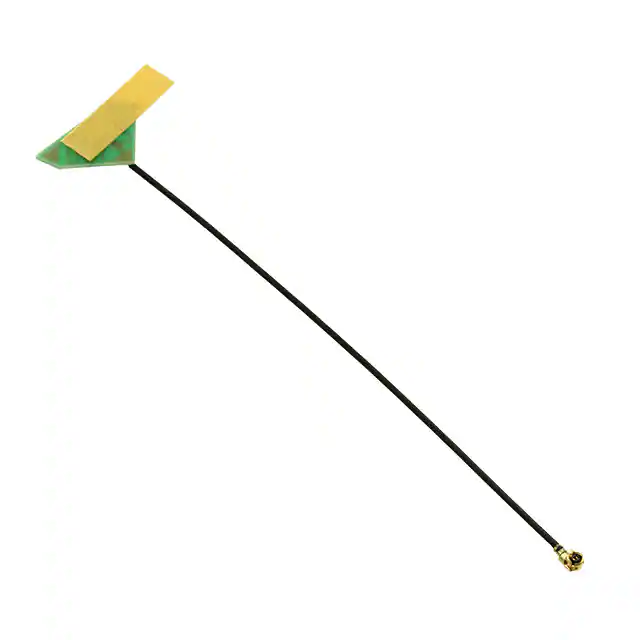

PRO-IS-237RF ANT 2.4GHZ PCB TRACE CAB ADH |
1,295 | 6.51 |
|
Datasheet |
Embedded Antenna | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 2 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | ISM |
|
|
YE0021AAMAG MNT LTE MONOPOL SMA M |
1,282 | 0.00 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 825MHz, 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 690MHz ~ 960MHz, 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 10 | 3 | - | 3.3dBi, 3.3dBi, 1.2dBi, 3.3dBi, -0.3dBi | - | Cable - 1.5m | SMA Male | IP65 | - | - | Magnetic | 1.173" (29.80mm) | LTE |
|
AH316M245001-TRF ANT 2.4GHZ CHIP SOLDER SMD |
23,486 | 4.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 3 | - | 1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, WLAN, Zigbee™ |
|

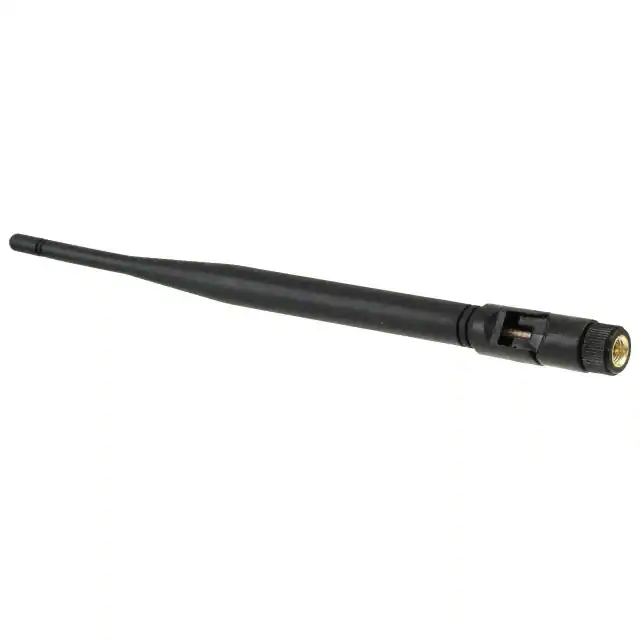

ANT-4WHIP3H-SMARF ANT 433MHZ WHIP TILT SMA MALE |
503 | 5.35 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 8.504" (216.00mm) | - |
|

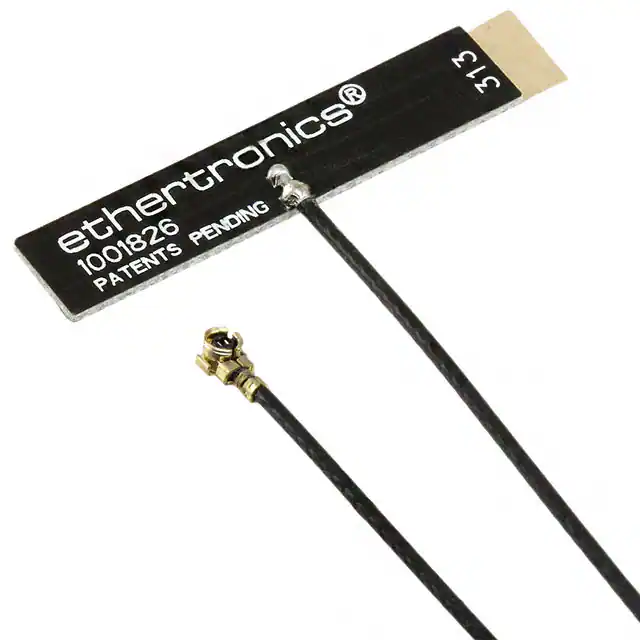

1001826RF ANT 868MHZ PCB CAB |
6,303 | 4.21 |
|
Datasheet |
Prestta™ | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz ~ 870MHz | PCB Trace | 1 | - | -2.5dB | -9dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | ISM |
