RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

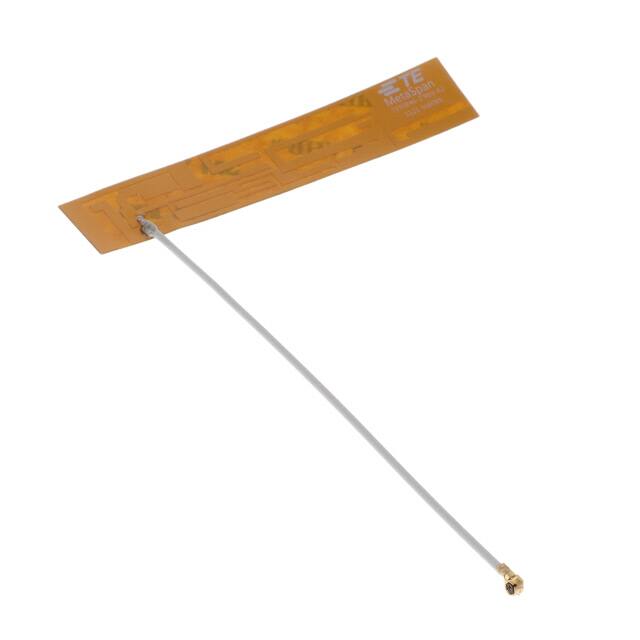

2195846-2FPC ANT, MHF, 100MM, 698-7125 MH |
2,017 | 2.57 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|

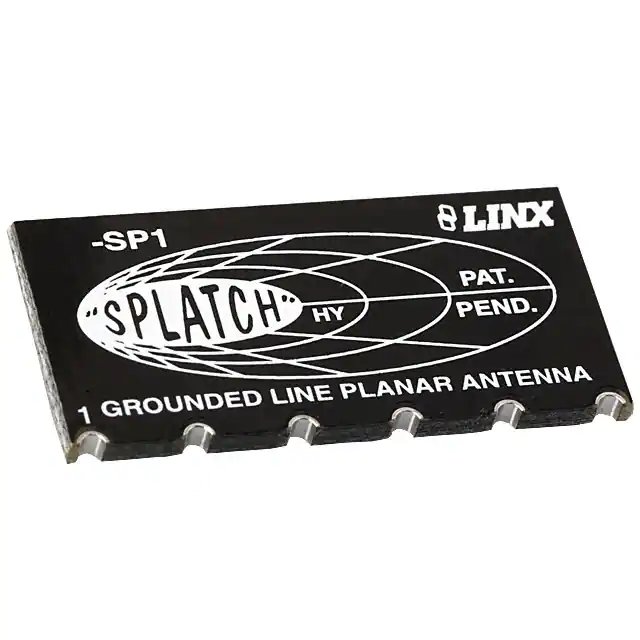

ANT-418-SPRF ANT 418MHZ CHIP SOLDER SMD |
4,256 | 3.85 |
|
Datasheet |
Splatch® | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 414MHz ~ 422MHz | Chip | 1 | 1.9 | - | -8dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Alarms, ISM, Remote Control, Security Systems |
|

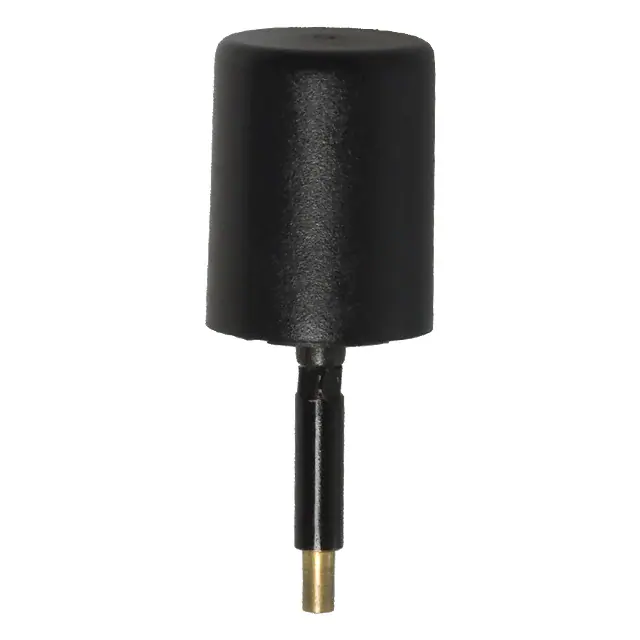

ANT-916-JJB-STRF ANT 916MHZ DOME SLD TH 7MM |
610 | 4.07 |
|
Datasheet |
JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 901MHz ~ 931MHz | Whip, Straight | 1 | 2 | - | -10.2dBi | - | - | Solder | - | - | - | Through Hole | 0.693" (17.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
2440AT62A0085001ERF ANT 2.4425GHZ CER PATCH SLD |
1,800 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | Ceramic Patch | 1 | - | 6dB | 3.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | General Purpose |
|

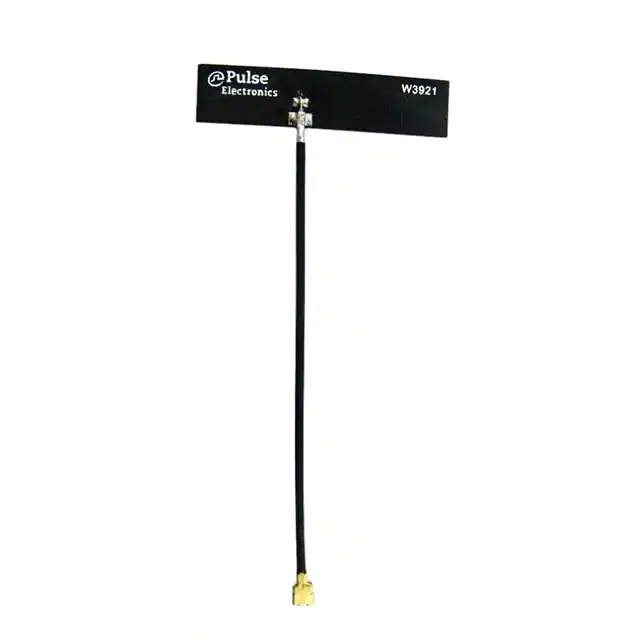

W3921B0100RF ANT 2.4GHZ FLAT PATCH CAB ADH |
1,232 | 2.60 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 2 | - | 1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

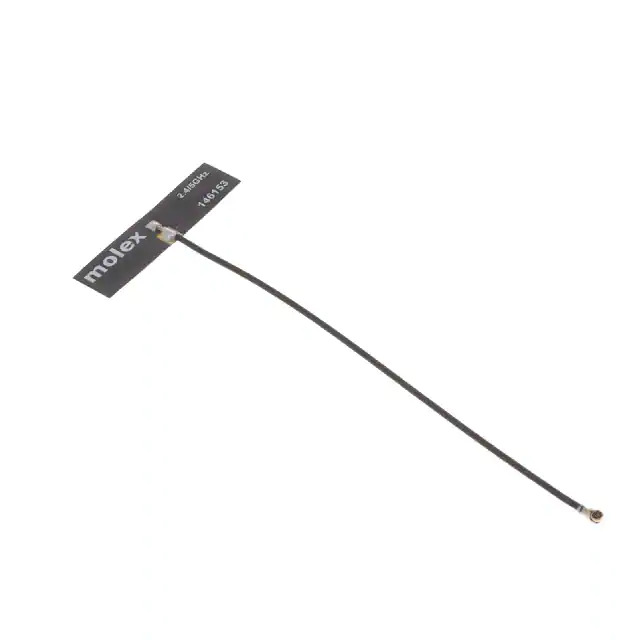

1461531100RF ANT 2.4/5GHZ FLAT PATCH 100MM |
428 | 2.89 |
|
Datasheet |
146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Flat Patch | 2 | - | -10dB | 3dBi, 4.5dBi | 2 W | Cable - 100mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|

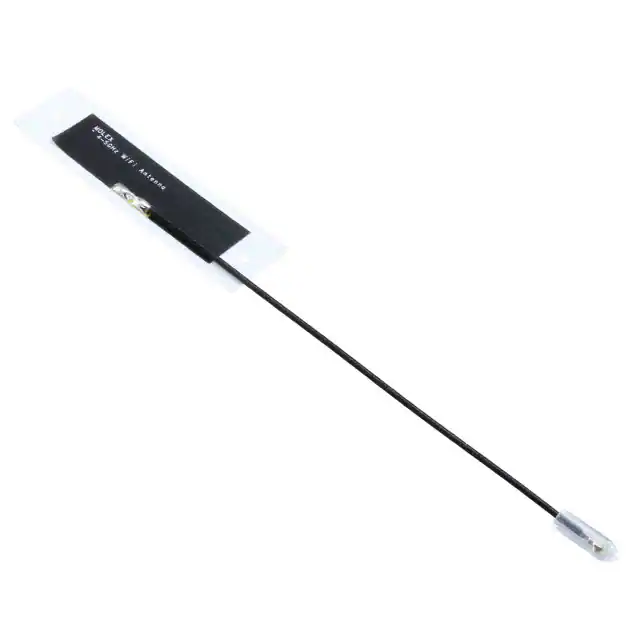

2042811200RF ANT 2.4/5GHZ PCB TRACE 200MM |
6,567 | 3.55 |
|
Datasheet |
204281 | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | - | -10dB | - | 2 W | Cable - 200mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|

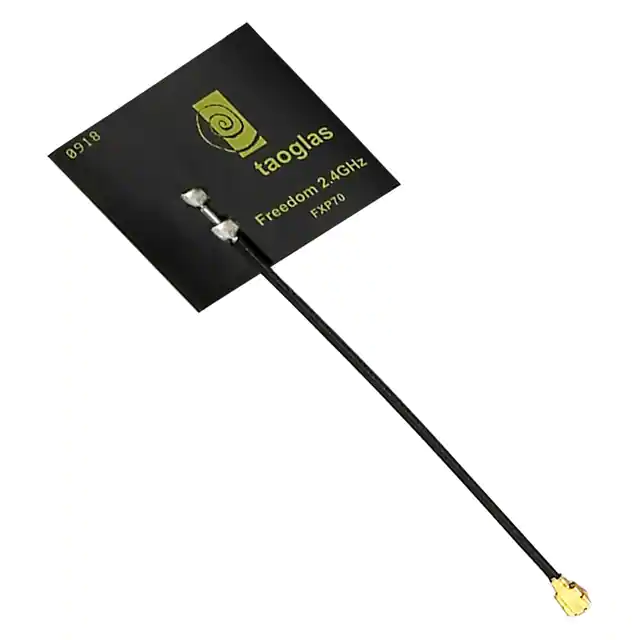

FXP70.07.0053ARF ANT 2.4GHZ FLAT PATCH IPEX |
4,526 | 3.52 |
|
Datasheet |
Freedom | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 1.5 | - | 1.1dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.003" (0.08mm) | Bluetooth, WLAN, Zigbee™ |
|

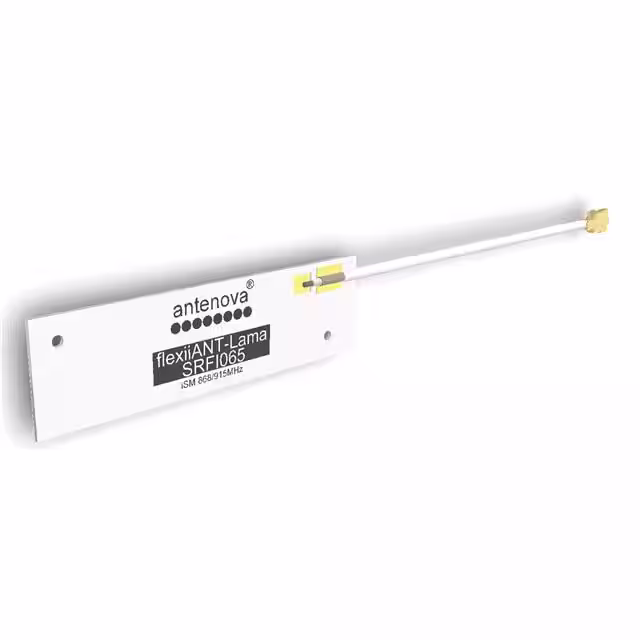

SRFI065-100LAMA ISM ANTENNA+100MM CABLE |
1,064 | 3.57 |
|
Datasheet |
flexiiANT® | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | 1.5 | -15dB | 0.82dBi, 1.33dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | LoRa |
|

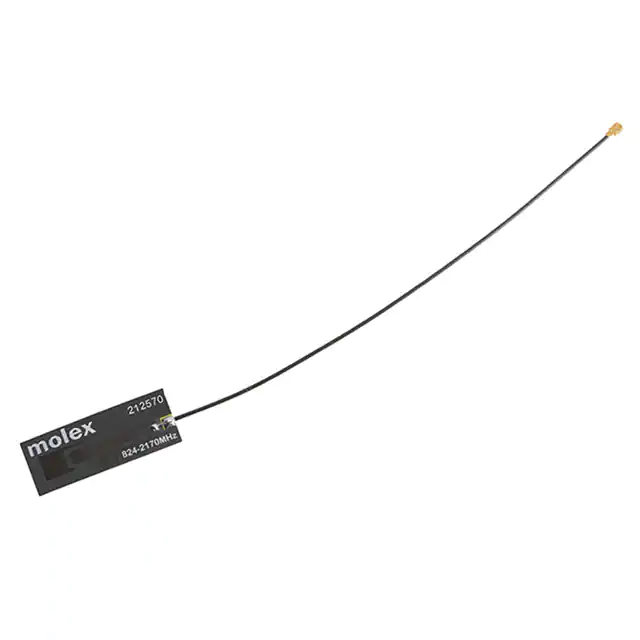

2125700100824~2170MHZ FLEXIBLE ANT SIDE-FE |
5,284 | 2.90 |
|
Datasheet |
212570 | Tray | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -3dB, -4dB | -0.45dBi, 1.76dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|
001-0022RF ANT 2.4GHZ FLEXPIFA MHF4L ADH |
1,331 | 3.75 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | FlexPIFA | 1 | 2 | - | 2dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.098" (2.50mm) | - |
|

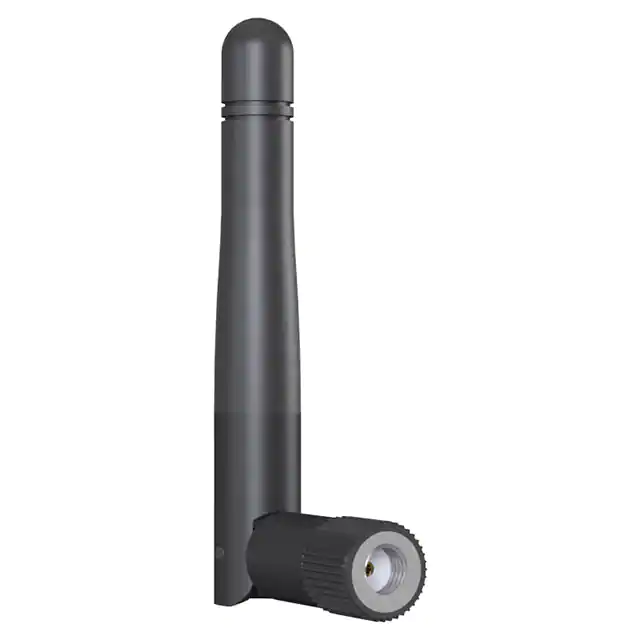

ANT-2.4-LCW-RPS2.4GHZ DIPOLE ANTENNA RP-SMA |
752 | 3.76 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 2.8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
|
ANT-2.4-LCW-SMA2.4GHZ DIPOLE ANTENNA SMA |
400 | 3.76 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 2.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|

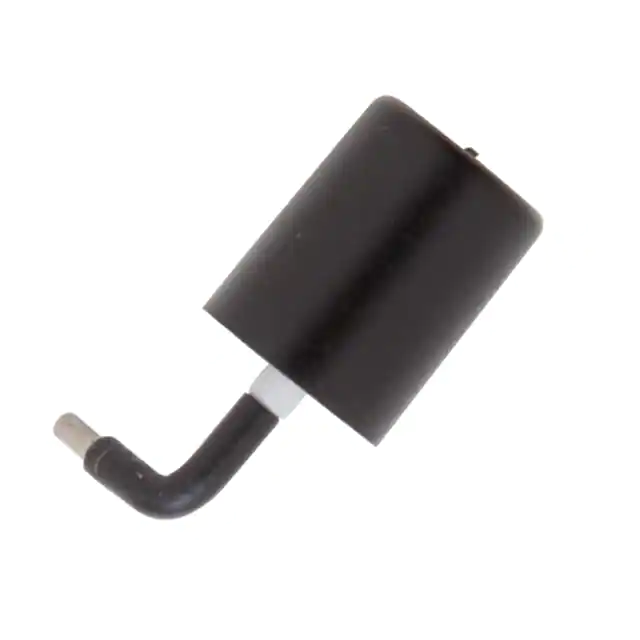

ANT-868-JJB-RARF ANT 868MHZ DOME SLD TH |
297 | 4.21 |
|
Datasheet |
JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | -1dBi | - | - | Solder | - | - | - | Through Hole | 0.571" (14.50mm) | ISM, LoRa, Sensor Networks, SigFox |
.jpg)
|
ANT-433-PW-RARF ANT 433MHZ WHIP TILT SCREW-MT |
1,108 | 4.54 |
|
Datasheet |
RA | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 443MHz | Whip, Tilt | 1 | 2 | - | -0.7dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 5.180" (131.57mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-916-JJB-RARF ANT 916MHZ DOME SLD TH 7MM |
3,017 | 4.07 |
|
Datasheet |
JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 901MHz ~ 931MHz | Whip, Right Angle | 1 | 2 | - | -0.5dBi | - | - | Solder | - | - | - | Through Hole | 0.571" (14.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|

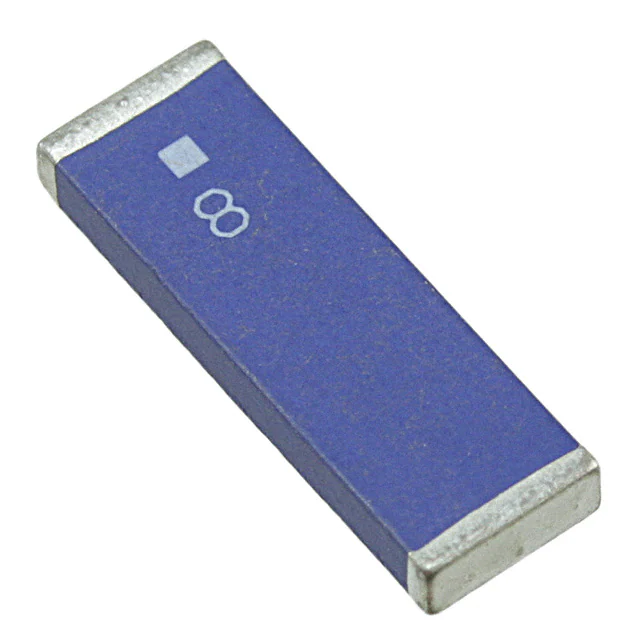

ANT1204LL05R0915ARF ANT 915MHZ CHIP SOLDER SMD |
25,860 | 3.54 |
|
Datasheet |
1204 | Tape & Reel (TR) | Active | 802.15.4 | UHF (300MHz ~ 1GHz) | 915MHz | 905MHz ~ 925MHz | Chip | 1 | 2 | -13.35dB | 3.32dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ZigBee™ |
|

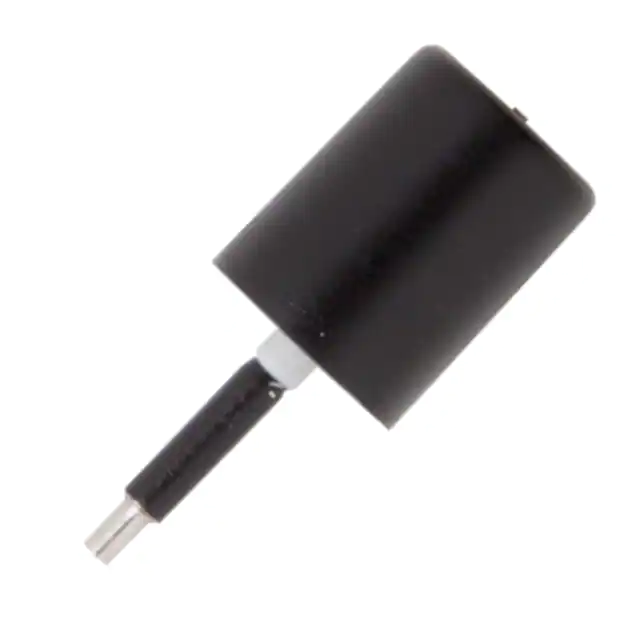

ANT-868-JJB-STRF ANT 868MHZ DOME SLD TH |
1,970 | 4.60 |
|
Datasheet |
JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 2 | - | -8.9dBi | - | - | Solder | - | - | - | Through Hole | 0.693" (17.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|

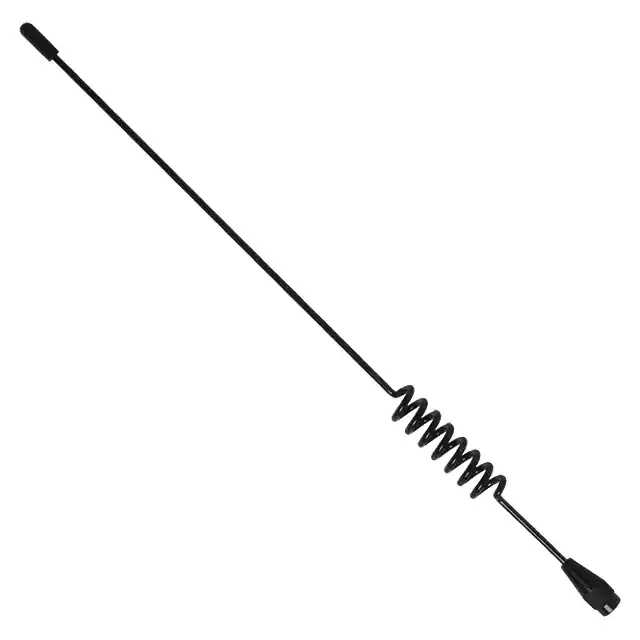

ANT-ELE-S01-005RF ANT 892MHZ WHIP STR M5 CONN |
1,086 | 4.58 |
|
Datasheet |
MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, 900MHz | 824MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 3.8dBi | - | - | M5 | - | - | - | Magnetic | 11.630" (295.40mm) | - |
|
ANT-LPL-FPC-100RF ANT LTE LPWA FLEX ADHES UFL |
2,094 | 3.71 |
|
Datasheet |
FPC | Bag | Active | Cellular, General ISM | Wide Band | 750MHz, 876MHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 696MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 7 | 2.3, 2.4, 4.6, 1.4, 1.8, 3.5 | -8.1dB, -7.7dB, -3.8dB, -15.6dB, -10.9dB, -5.1dB | 5.6dBi, 6.5dBi, 4.9dBi, 5.2dBi, 5dBi, 5.3dBi, 2.9dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.010" (0.20mm) | 4G, 5G, LTE |
