RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2195846-8FPC ANT, MHF4L, 200MM, 698-7125 |
1,078 | 2.88 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
2344657-4FPC ANTENNA, CABLE, MHF, WI-FI T |
4,730 | 2.41 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2.7 | - | 5.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

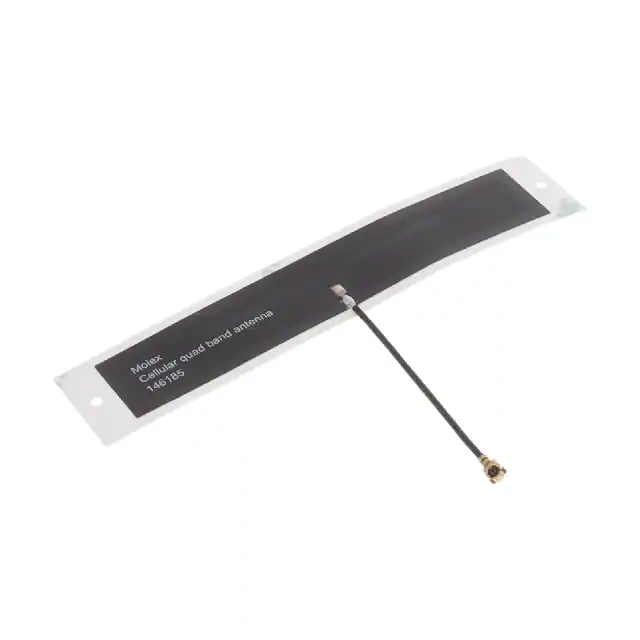

1461850050RF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,509 | 4.29 |
|
Datasheet |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4.2dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|

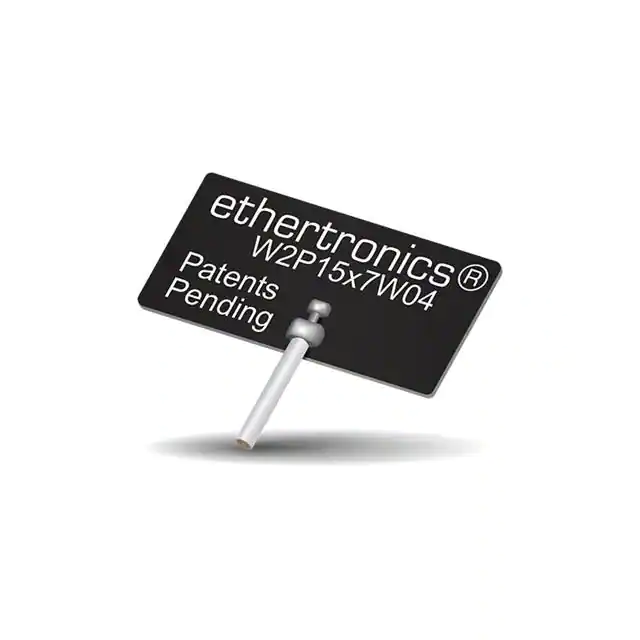

W2P15X7W04-U100D3B0AANT ASSY, WLAN2 04 100 D0230 |
1,690 | 2.81 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|

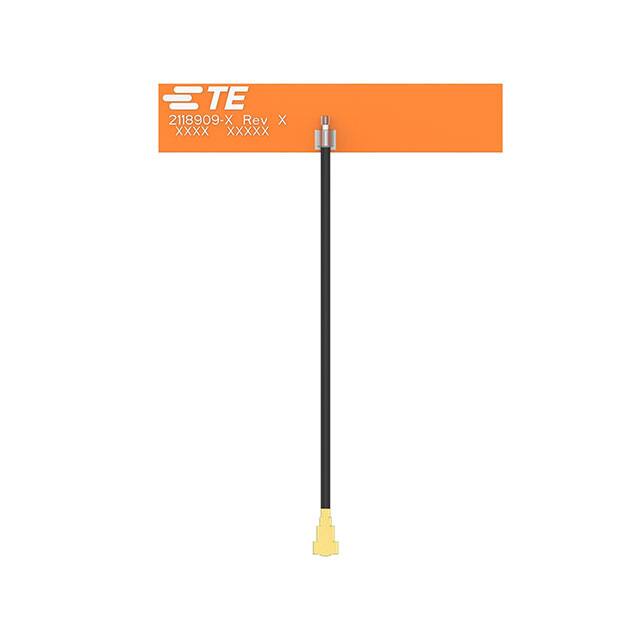

2118909-1WLAN TRIPLE BAND ANT MHF CABLE 1 |
1,577 | 2.98 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.5GHz, 5.5125GHz, 6.525GHz | 2.3GHz ~ 2.7GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 4.2dBi, 4.2dBi, 4.2dBi | - | Cable - 120mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1461860150RF ANT 1.561/1.575GHZ FLAT 150MM |
2,578 | 4.18 |
|
Datasheet |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.85dBi, 3.75dBi, 4.5dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|

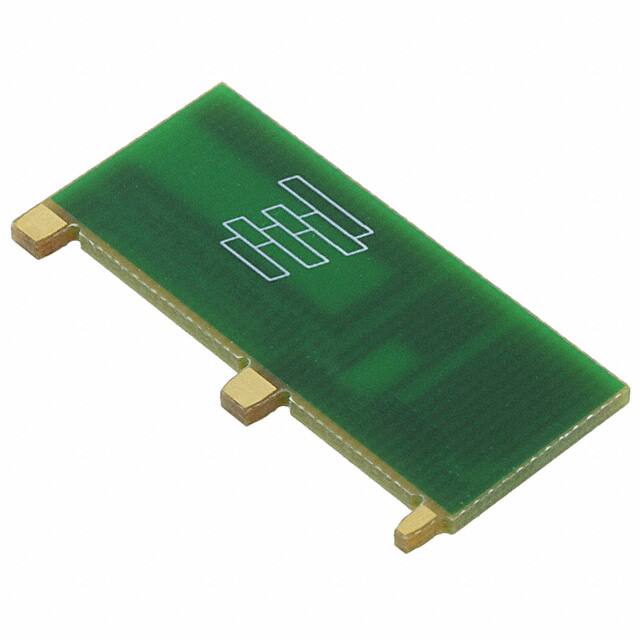

1513273-1RF ANT 850MHZ/900MHZ PCB TRACE |
3,565 | 3.77 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 3 | - | 2dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.595" (15.11mm) | CDMA, GSM, LTE, ZigBee™ |
|

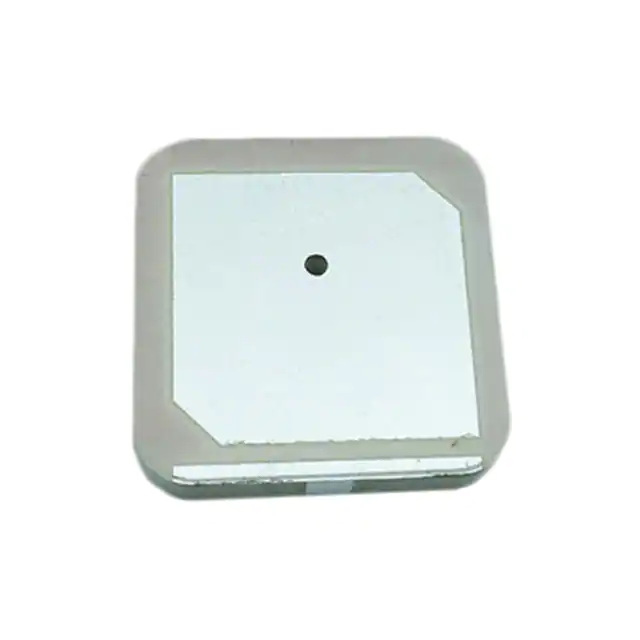

APAKN2504-S2448-TRF ANT 2.4GHZ CER PATCH SLDR SMD |
2,486 | 6.48 |
|
Datasheet |
APAK | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.412GHz ~ 2.484GHz | Ceramic Patch | 1 | - | -10dB | 7dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

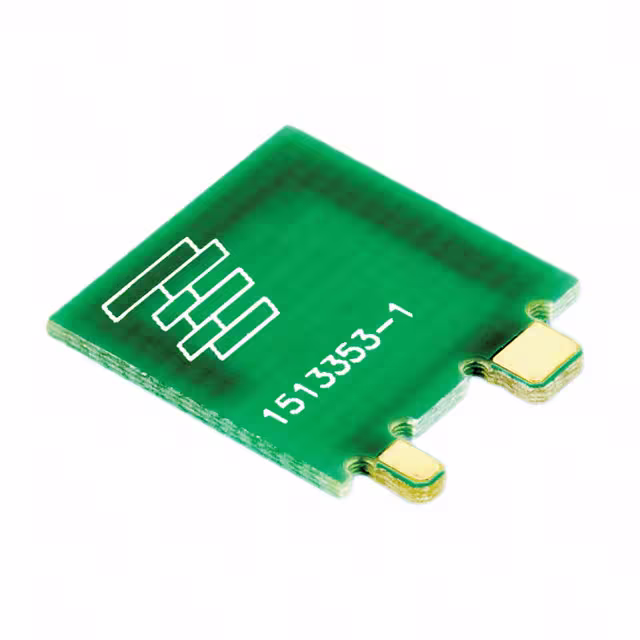

1513353-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
5,372 | 2.84 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.78mm) | Bluetooth, WLAN, Zigbee™ |
|
|
1-2118909-2PCB ANT, MHF, 100MM, WI-FI 6E TR |
2,843 | 2.87 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.2dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

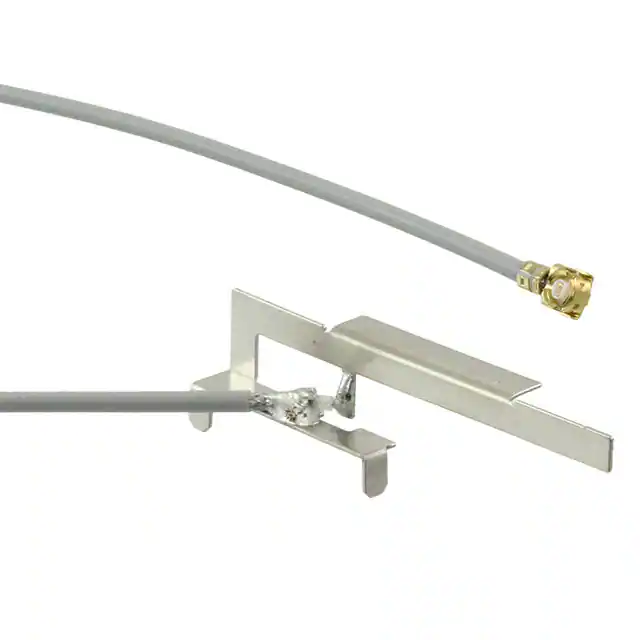

RFMTA310819IMAB701RF ANT 2.4GHZ STAMPED MET IPEX |
3,014 | 4.72 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 5.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.331" (8.40mm) | ISM |
|

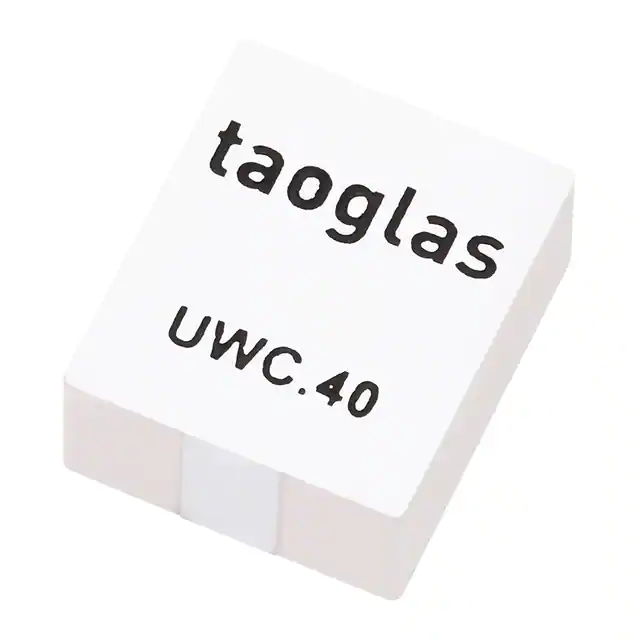

UWC.403~5GHZ ULTRA-WIDE BAND (UWB) SMD |
1,831 | 3.84 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz | 3.1GHz ~ 4.75GHz | Chip | 4 | 2.5, 2.8, 3.8, 2.8 | -7.5dB, -6.5dB, -5dB, -5dB | 3.5dBi, 4.5dBi, 4dBi, 4dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | General Purpose |
|
1462000011RF ANT CER PATCH SOLDER SMD |
8,592 | 3.03 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Ceramic Patch | 2 | - | -5dB | 0.5dBi, 3.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | LTE |
.jpg)
|

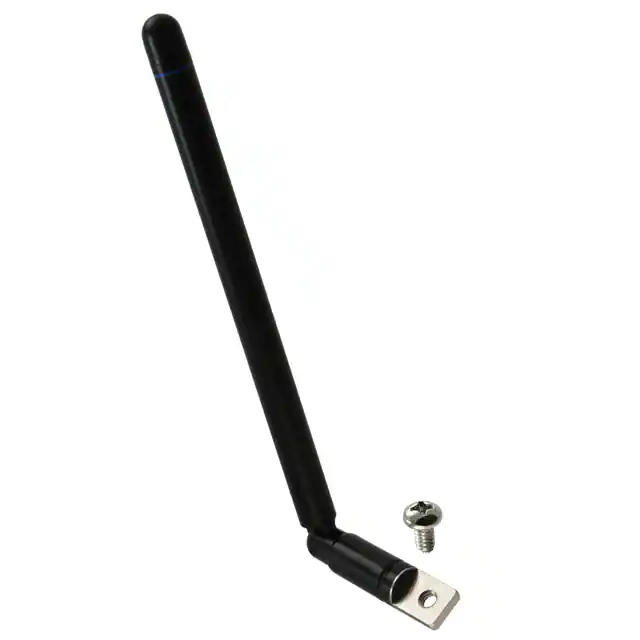

ANT-418-PW-RARF ANT 418MHZ WHIP TILT SCREW-MT |
377 | 4.63 |
|
Datasheet |
RA | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 409MHz ~ 427MHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 5.180" (131.57mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
SR4L069ALLANI SMD 5G CELLULAR ANTENNA |
1,720 | 0.00 |
|
Datasheet |
lamiiANT® | Tape & Reel (TR) | Active | Cellular | Wide Band | 720.5MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 698MHz, 824MHz ~ 803MHz, 1.71GHz ~ 894MHz, 2.3GHz ~ 1.518GHz, 2.5GHz ~ 1.661GHz, 3.3GHz ~ 2.2GHz, | Flat Bar | 6 | 2.2, 2.3, 2.4, 3.3, 3.6 | -8.5dB, -8dB, -7.7dB, -5.5dB, -5dB | -0.2dBi, 1.6dBi, 4.1dBi, 3.4dBi, 5.1dBi, 5.4dBi | - | - | - | - | - | - | Surface Mount | 0.130" (3.30mm) | 4G, 5G, DCS, GSM, LTE, WCDMA |
|
|
1-2118909-4PCB ANT, MHF, 200MM, WI-FI 6E TR |
2,644 | 3.03 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-LPC-FPC-150RF ANT LTE CBRS FLEX ADHES UFL |
1,731 | 4.84 |
|
Datasheet |
FPC | Bag | Active | 802.15.4, Bluetooth, General ISM, Navigation, WiFi | Wide Band | 750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 8.2, 4.8, 1.7, 4.9, 3.5, 2.7, 3.1, 2 | - | 0.1dBi, 3.7dBi, 3.3dBi, 2.2dBi, 3.3dBi, 3.9dBi, 5dBi, 5.7dBi | 2 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | General Purpose |
|
1462200100RF ANT 1.561/1.575GHZ PCB 100MM |
724 | 4.12 |
|
Datasheet |
146220 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | PCB Trace | 5 | - | -8dB | 2.4dBi, 2.9dBi, 3.5dBi, 3.8dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.032" (0.81mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|

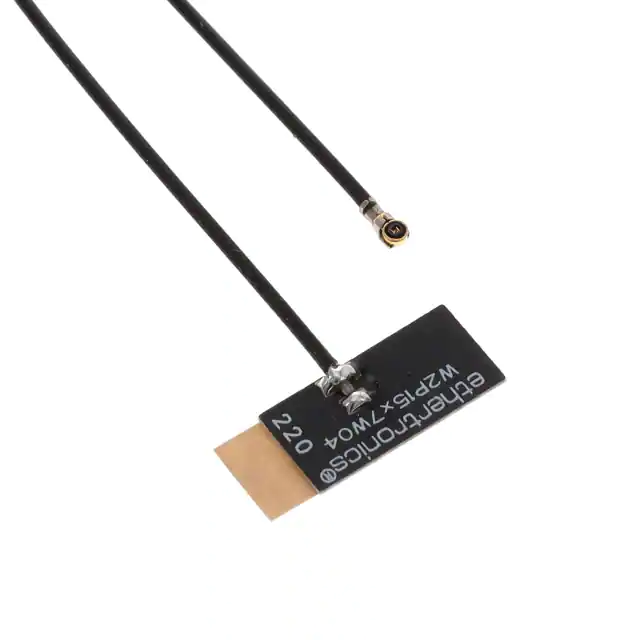

W2P15X7W04-H100D3B0AANT ASSY, WLAN2 04 100 D0230 |
910 | 3.09 |
|
Datasheet |
W | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|

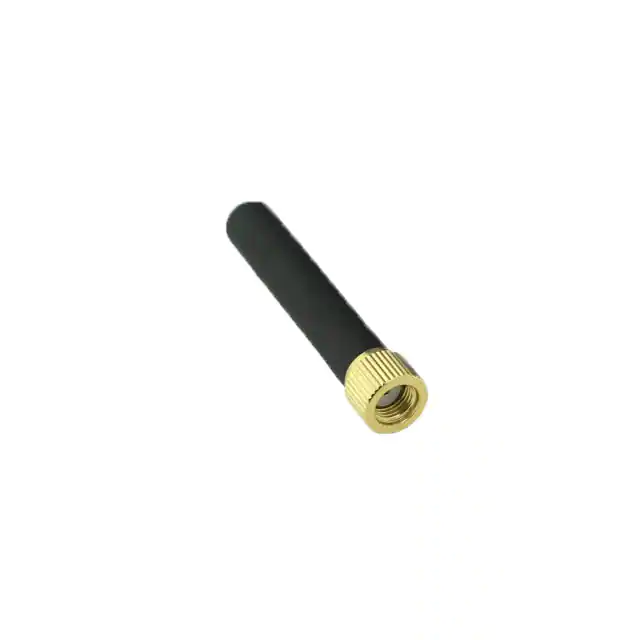

W1697ANT EXT 0.617-3.8GHZ RPSMA |
291 | 6.38 |
|
Datasheet |
Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | RP-SMA Male | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | LTE |
