RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GP.1575.18.2.A.02RF ANT 1.575GHZ CER PATCH PIN |
195 | 5.69 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | -10dB | -0.5dBic | - | - | Pin | - | - | - | Adhesive | 0.079" (2.00mm) | GPS |
|
APAE868R2540JBDB2-TRF ANT 868MHZ CER PATCH PIN ADH |
1,962 | 5.08 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Ceramic Patch | 1 | 1.5 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|

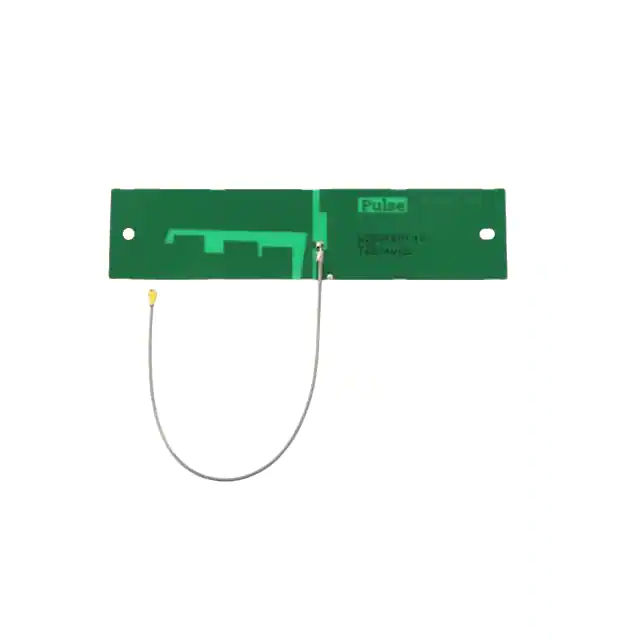

W3554B0140TPCB WITH ADHESIVE ANTENNA NPB |
8,082 | 5.67 |
|
Datasheet |
Internal PCB Antenna | Bulk | Active | - | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 5 | - | -4dB, -6dB | 1.9dBi, 3.2dBi | 5 W | Cable - 143mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | General Purpose |
|

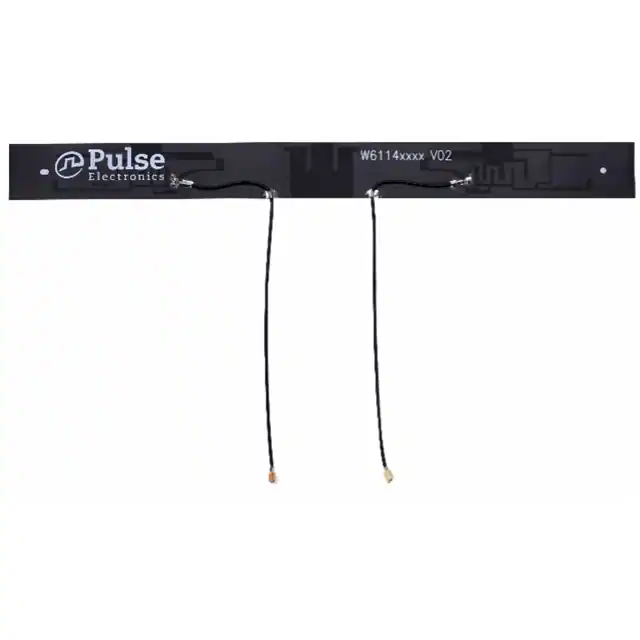

W6114B0100ANTENNA FLEX FPC 5G 617-7125 MHZ |
1,742 | 6.32 |
|
Datasheet |
W6114 | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.0585GHz, 3.75GHz, 4.7GHz, 5.5375GHz, 6.5625GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz | Flat Patch | 6 | - | -5dB, -6dB, -5dB, -6dB, -5dB, -4dB | 1.5dBi, 3.8dBi, 4.6dBi, 5.8dBi, 5dBi, 4.8dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 4G, 5G |
|

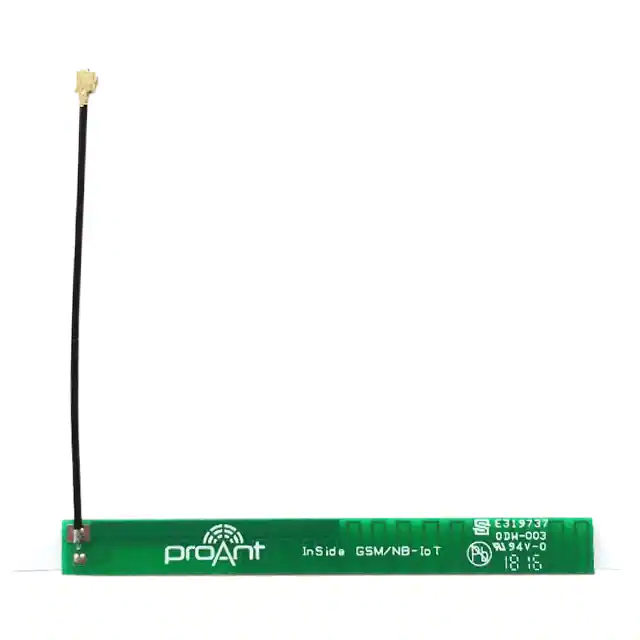

PRO-IS-573ANT GSM/NB-IOT 60MM MHF |
352 | 7.37 |
|
Datasheet |
Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.795GHz | 791MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | - | -4dB, 5dB | 4dBi | - | Cable - 60mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
ANT-GNFPC-SHL1100M4RF ANT GNSS FPC L1 100MM MHF4 |
794 | 0.00 |
|
Datasheet |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

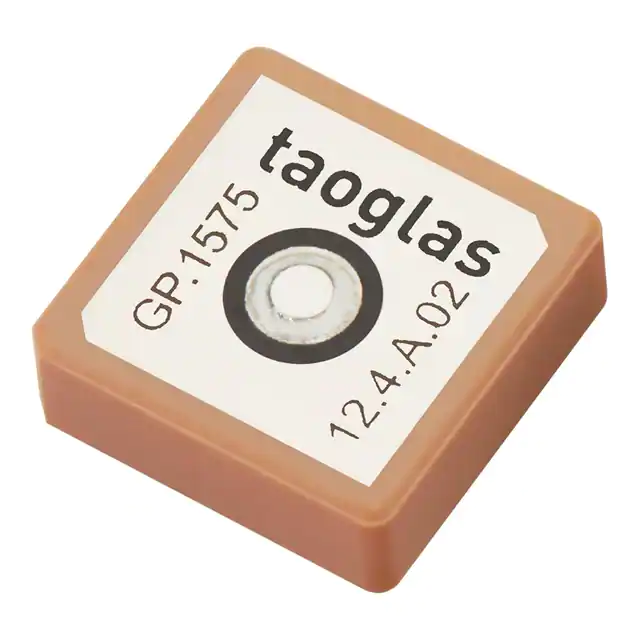

GP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
391 | 6.06 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 2 | -10dB | -0.5dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|
|
ANT-20287EB56RF ANT, 4G&3G&2G&NB-IOT, OMNI-DI |
109 | 3.93 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 5, 10 | -1.5dB, -3.5dB | -4.5dBi, 4dBi, 0dBi, 4dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 2.028" (51.50mm) | 2G, 3G |
|
ANT-2.4-FPC-SAH50M4ANT 2.4 FPC 12X8 50MM CBL MHF4 |
936 | 5.96 |
|
Datasheet |
ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

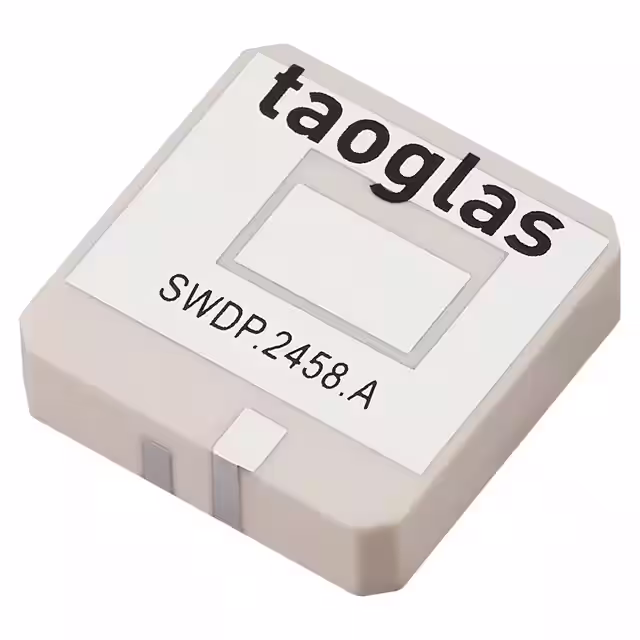

SWDP.2458.15.4.A.02SWDP.2458.15.4.A.02 5DBI 15MM EM |
217 | 5.76 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.2GHz, 5.675GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.5GHz, 5.5GHz ~ 5.85GHz | Ceramic Patch | 3 | - | - | 5.7dBi, 5.29dBi, 4.03dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Wi-Fi |
|
1052620002RF ANT 866MHZ/915MHZ FLAT 150MM |
697 | 5.15 |
|
Datasheet |
105262 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.3dBi, 1.3dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
|
ANT-2.4-FPC-SAH100M4ANT 2.4 FPC 12X8 100 CBL MHF4 |
961 | 6.05 |
|
Datasheet |
ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-W63-FPC-SAH100UFANT WIFI6/6E FPC SQR 100MM UFL |
1,941 | 6.88 |
|
Datasheet |
ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|
|
PRO-IS-589INSIDE GSM/NB-IOT ADHESIVE MHF4 |
145 | 8.93 |
|
Datasheet |
Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.795GHz | 791MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | - | -4dB, 5dB | 4dBi | - | Cable - 60mm | I-PEX MHF4 | - | - | - | Adhesive | 0.031" (0.80mm) | EDGE, GPRS, GSM, LTE, UMTS |
|
|
ANT-190061B77RF ANT, 4G/3G/2G, OMNI-DIRECTION |
213 | 5.42 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 2.2GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 2.8, 4.5 | -4dB, -6.5dB | -3.5dBi, 0.5dBi, 2dBi, 5dBi | 5 W | Cable - 101mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, 4G, LPWA |
|
1003893FT-AA10L0075ANTENNA ASSY, WLANB FT AA10 0075 |
798 | 5.20 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 75mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
|
1003893FT-AA10L0200ANTENNA ASSY, WLANB FT AA10 0200 |
114 | 5.20 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 200mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|

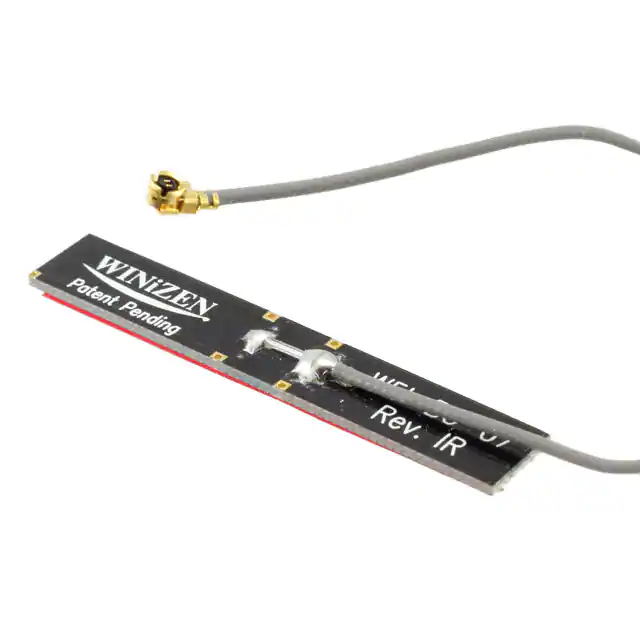

W5I-BO-07RF ANT 2.4GHZ PCB TRACE CAB ADH |
270 | 5.62 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | PCB Trace | 1 | 1.9 | -22.36dB | 2.5dBi | - | Cable - 130mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

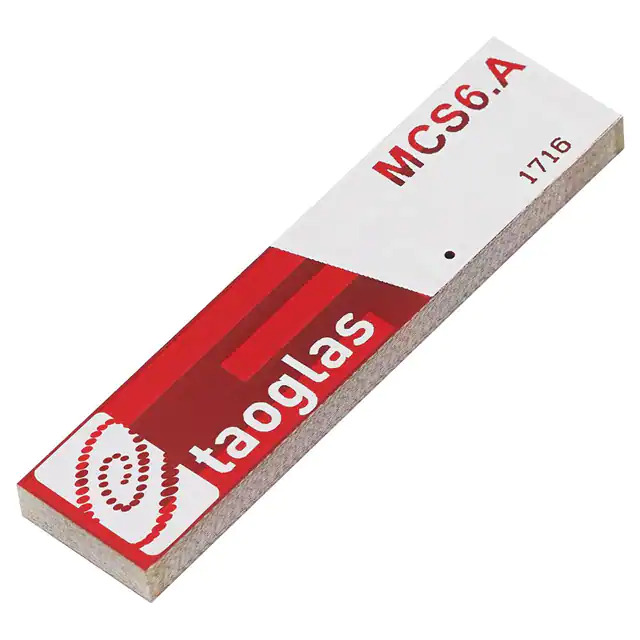

MCS6.ACAT M1 PENTA-BAND CELLULAR LOW P |
7,358 | 15.60 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 6 | - | -10dB | -0.02dBi, -1.05dBi, 2.76dBi, 3.11dBi, 3.26dBi, 3.75dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, EDGE, DCS, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
|
YE0038AATERMINAL ANT DB WIFI SMA MALE |
295 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | 2 | - | 2dBi, 2dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.677" (195.00mm) | Wi-Fi |
