RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

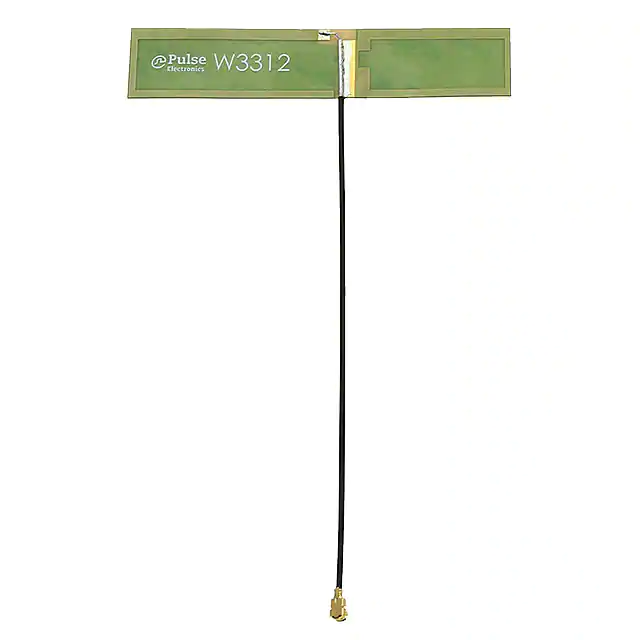

W3312B0100RF ANT 892MHZ PCB TRACE U.FL ADH |
3,765 | 4.72 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 863MHz ~ 928MHz | PCB Trace | 2 | - | -8dB | 0.8dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.044" (1.13mm) | ISM |
|
EFF6060A3S-15MHF1REVIE 600 5G CAT M1 NB-IOT ANT |
215 | 0.00 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
|
PRO-IS-432RF ANT 2.4/5.5GHZ PCB TRACE CAB |
2,907 | 0.00 |
|
Datasheet |
Embedded Antenna | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.18GHz ~ 5.875GHz | PCB Trace | 2 | - | - | 3dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | WLAN |
|

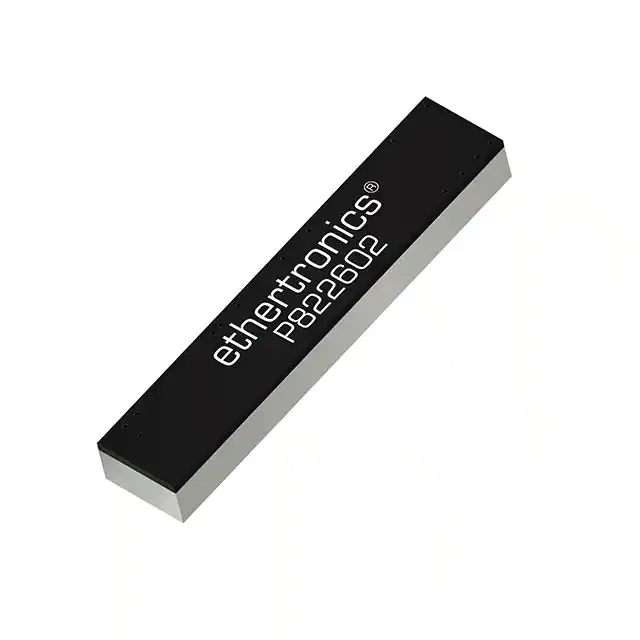

P822602RF ANT 700MHZ/750MHZ FLAT BAR |
4,845 | 3.65 |
|
Datasheet |
Prestta™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Flat Bar | 8 | 2.5 | - | 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|

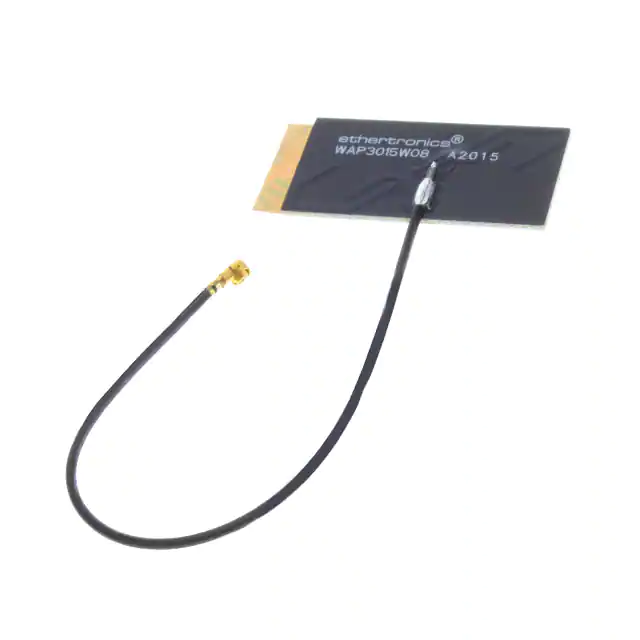

WAP3015W08-U100D3B0AANTENNA ASSY, WI-FI LEFT, 100 D0 |
866 | 3.65 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
ANT-ELE-S01-006RF ANT 892MHZ/1.795GHZ WHIP STR |
239 | 5.55 |
|
Datasheet |
MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Straight | 2 | 1.5 | - | 0.5dBi, 3.7dBi | - | - | M5 | - | - | - | Magnetic | 9.180" (233.17mm) | - |
|
|
2118907-3PCB ANT. MHF, 100MM, WI-FI 6E TR |
2,957 | 3.99 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.2dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
SRFL061-150LUTOSA LTE ANTENNA+150MM CABLE |
534 | 6.07 |
|
Datasheet |
FlexiiANT® | Bulk | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.47GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.42GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 2.9, 3.1, 1.6, 1.7, 2.1, 1.5, 2, 2.4 | - | -4.2dBi, -3.2dBi, -2.3dBi, -2.2dBi, -2.1dBi, -1.8dBi, -1.9dBi, -2.2dBi | - | Cable - 150mm | I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 5G |
|

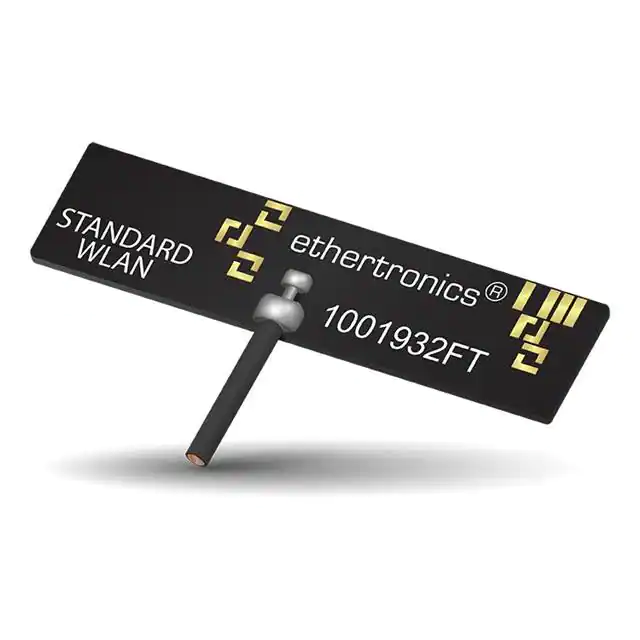

1001932FT-AA10L0200ANTENNA ASSY, WLAN 200 |
1,145 | 3.65 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 200mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

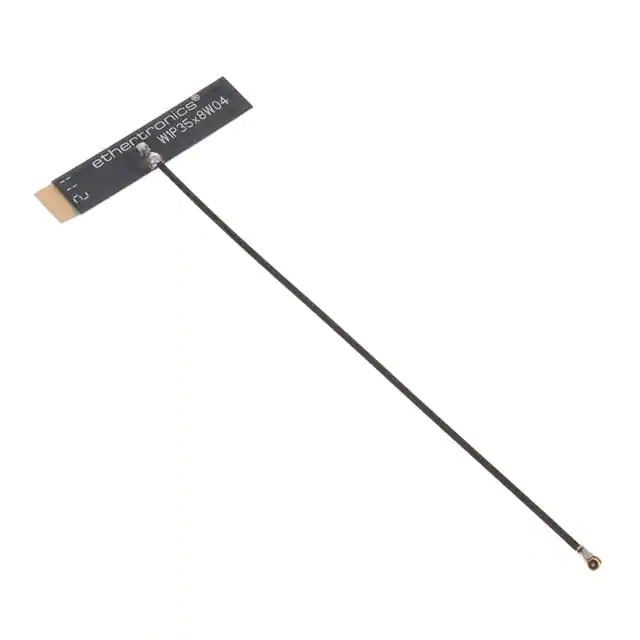

W1P35X8W04-H100D3B0AANTENNA ASSY, WLAN1 04 100 |
936 | 3.93 |
|
Datasheet |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
2118907-8PCB ANT. MHF4L, 150MM, WI-FI 6E |
356 | 4.16 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 150mm | MHF4L | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W1028BRF ANT 5.5GHZ WHIP TILT RP-SMA |
408 | 6.29 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.386" (136.80mm) | WLAN |
|
|
2118907-9PCB ANT. MHF4L, 200MM, WI-FI 6E |
6,582 | 4.24 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 3.7dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-GHEL2R-SMARF ANT 920MHZ/1.8GHZ WHIP RA |
166 | 5.25 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Right Angle | 2 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.323" (59.00mm) | General Purpose |
|

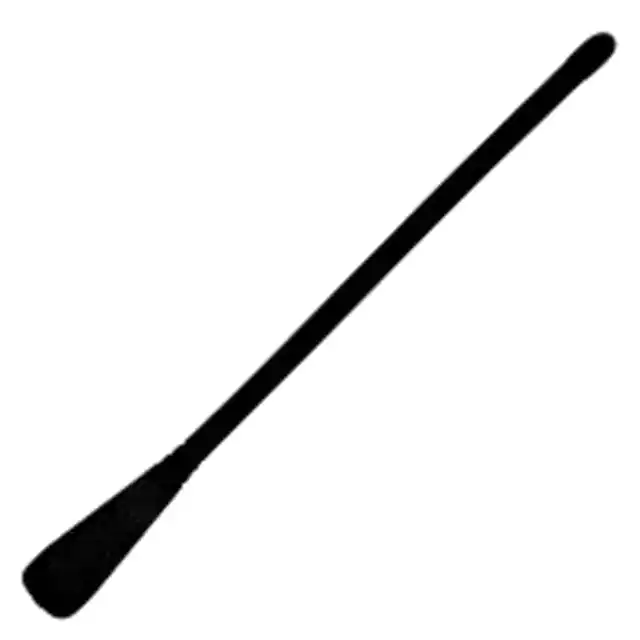

FLEXI-M4-433RF ANT 433MHZ WHIP STR |
337 | 5.34 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | - | - | - | - | Screw-Mount | - | - | - | Through Hole | 6.417" (163.00mm) | - |
|
20848201002.4/5GHZ MIMO 2X2 FLEXIBLE ANTEN |
2,865 | 4.33 |
|
Datasheet |
208482 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8dB, -9dB, -13dB | 2.9dBi, 3.4dBi, 5dBi, 5.9dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.16mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

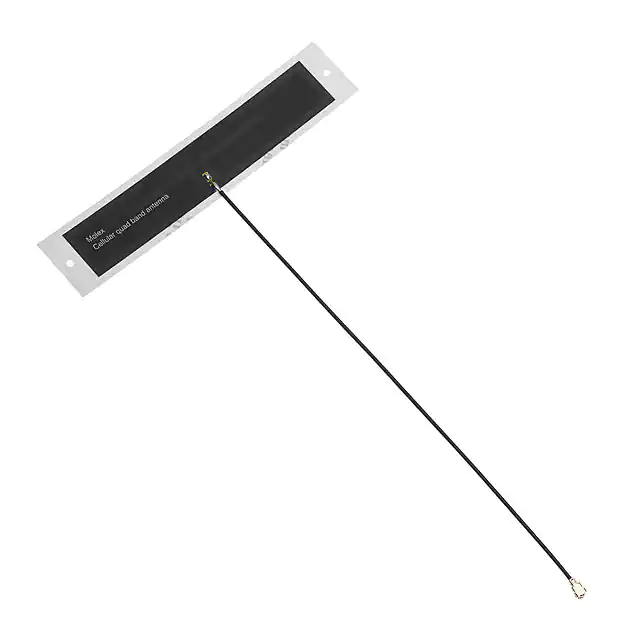

1461850100RF ANT 892MHZ/1.9GHZ FLAT 100MM |
1,062 | 4.41 |
|
Datasheet |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
SRFC025-150RF ANT 892MHZ/1.9GHZ FLAT 150MM |
705 | 4.44 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -17dB | 5.4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|

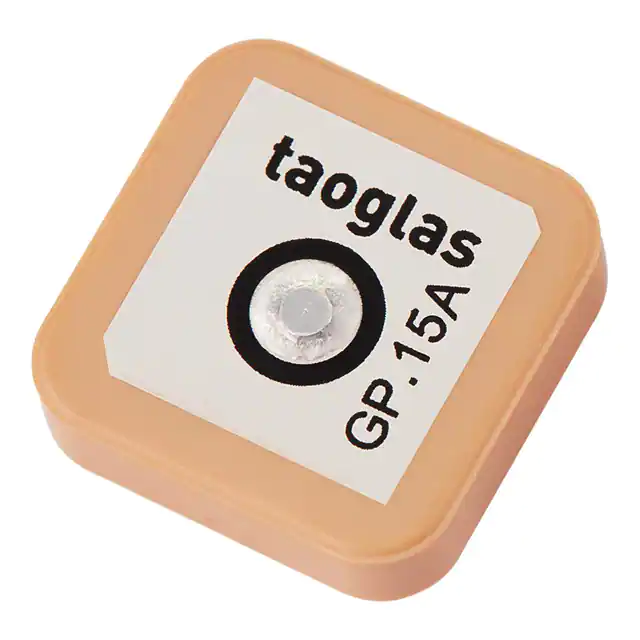

GP.1575.15.4.B.02RF ANT 1.575GHZ CER PATCH PIN |
1,832 | 5.69 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 1.5 | -10dB | 1dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|

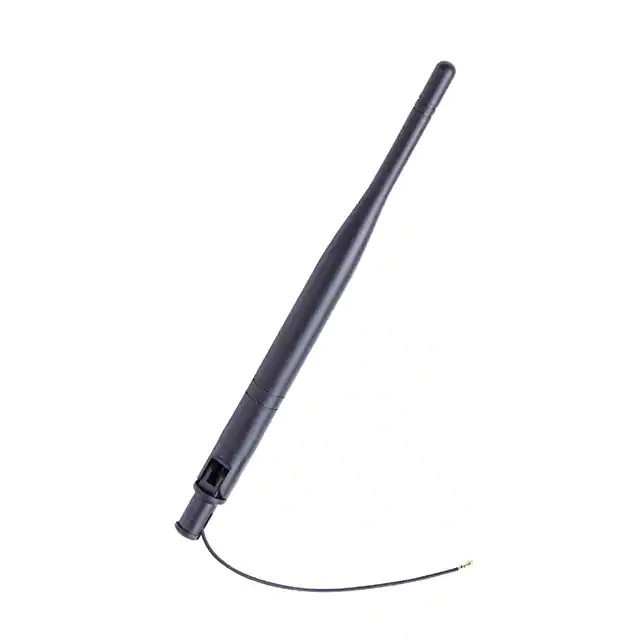

AEACAQ190012-S2400RF ANT 2.4GHZ WHIP STR IPEX MHF |
1,401 | 8.79 |
|
Datasheet |
AEAC | Bulk | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Whip, Straight | 1 | 2 | - | 5dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.480" (190.00mm) | ISM, Wi-Fi |
