RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANTX100P112B24553RF ANT 2.45/5.5125GHZ FLAT PATCH |
1,958 | 3.99 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 2.5 | - | 2.2dBi, 2.2dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

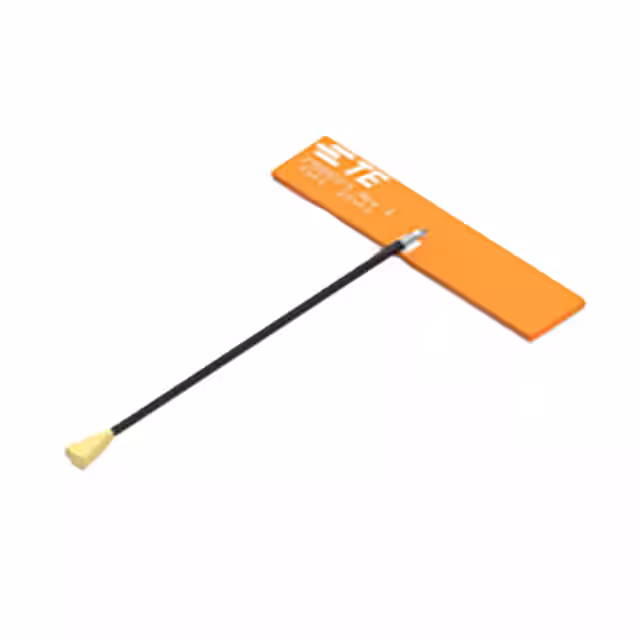

2118909-5WLAN TRIPLE BAND ANT MHF4 CABLE |
835 | 2.98 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 3.4dBi, 3.4dBi, 3.4dBi | - | Cable - 220mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1-2118909-5PCB ANT, MHF 4L, 50MM, WI-FI 6E |
2,953 | 3.01 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 3.4dBi | - | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1-2118909-3PCB ANT, MHF, 150MM, WI-FI 6E TR |
2,651 | 3.01 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.9dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1-2118909-6PCB ANT, MHF 4L, 100MM, WI-FI 6E |
2,951 | 3.03 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 5.9dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

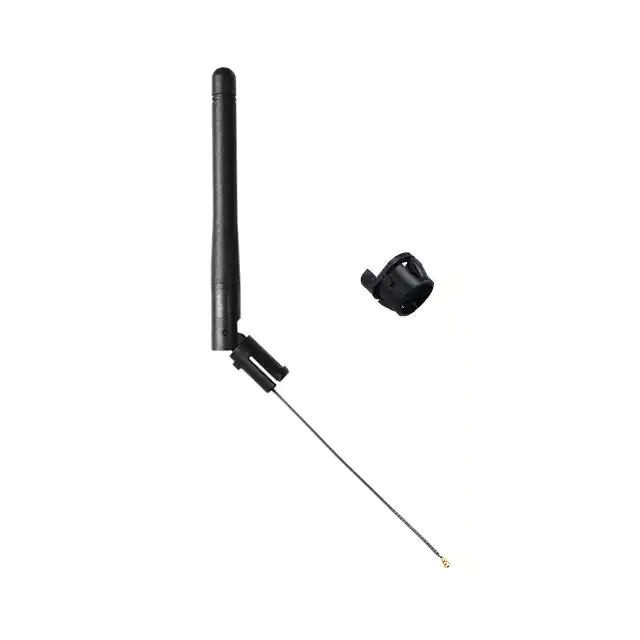

W1049B090RF ANT 2.4GHZ WHIP/TILT CONN MT |
798 | 4.10 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 229mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1-2118909-7PCB ANT, MHF 4L, 150MM, WI-FI 6E |
5,835 | 3.12 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.4dBi | - | Cable - 150mm | MHF4L | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1-2118909-8PCB ANT, MHF 4L, 200MM, WI-FI 6E |
2,811 | 3.17 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.1dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

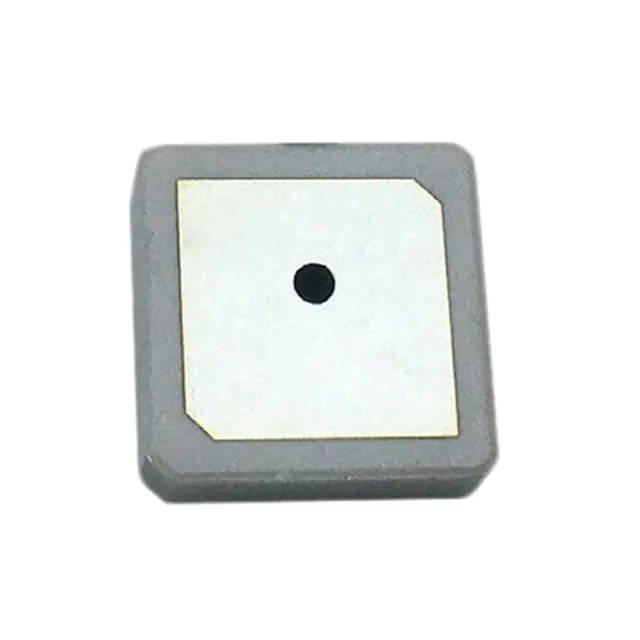

APAKN1304-C2G-TRF ANT 1.575/1.602GHZ CER PATCH |
2,000 | 3.37 |
|
Datasheet |
APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB, -10dB | 2.4dBi, 2.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
|
7488918022WE-MCA SMT-MULTILAYER CHIP ANTEN |
900 | 0.00 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Cellular, Navigation | Wide Band | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 4 | - | 2.1dBi, 5.5dBi | - | - | - | - | - | - | Surface Mount | 0.236" (6.00mm) | Bluetooth, GNSS, GPS, GSM , Wi-Fi, WLAN, Zigbee™ |
|

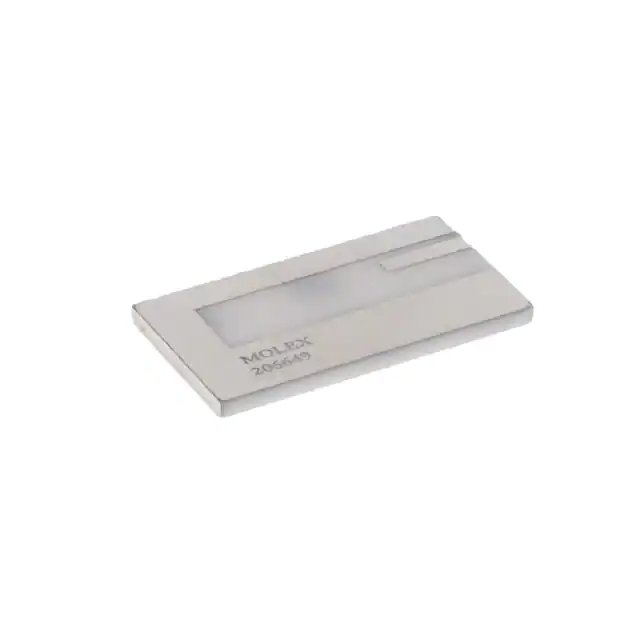

2066490001700 960MHZ CERAMIC ANTENNA |
836 | 4.02 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Ceramic Patch | - | - | -4dB, -5dB, -6dB, -7dB | 0.5dBi, 0.8dBi, 0.9dBi, 1.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | LTE |
|
W1049B120RF ANT 2.4GHZ WHIP/TILT CONN MT |
833 | 4.41 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 305mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

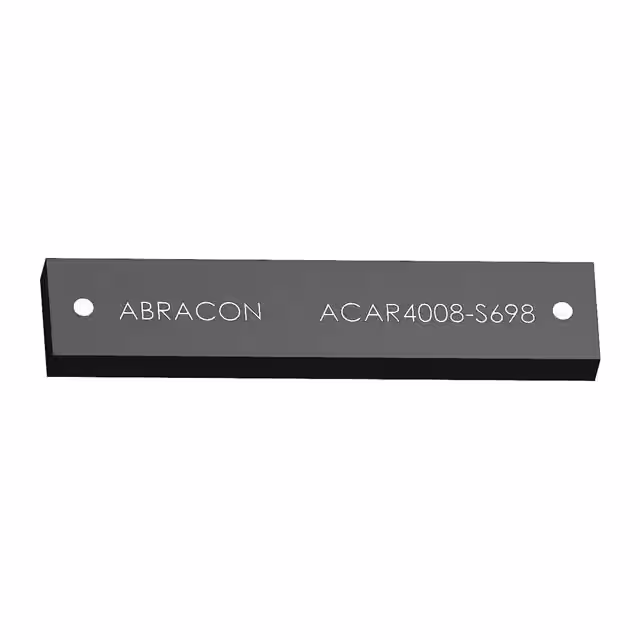

ACAR4008-S6984G/LTE CERAMIC CHIP ANT |
2,882 | 3.49 |
|
Datasheet |
ACAR | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 1.94GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 4 | - | -0.16dBi, -1.55dBi, 0.1dBi, 0.33dBi, 1.75dBi, 2.27dBi, 2.74dBi, 2.75dBi, 3.79dBi, 4.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | 2G, 3G, 4G, GSM, LTE |
|

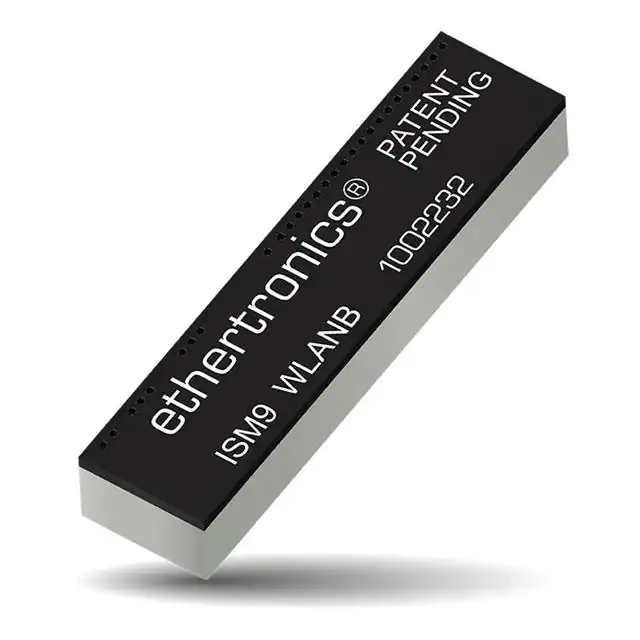

1002232ANTENNA PCB, ISM9 WLAMB |
254 | 3.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 868MHz, 915MHz, 2.4GHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Chip | 3 | 2 | - | 0.51dBi, 0.21dBi, 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | ISM, LoRa, Sigfox, WLAN |
|

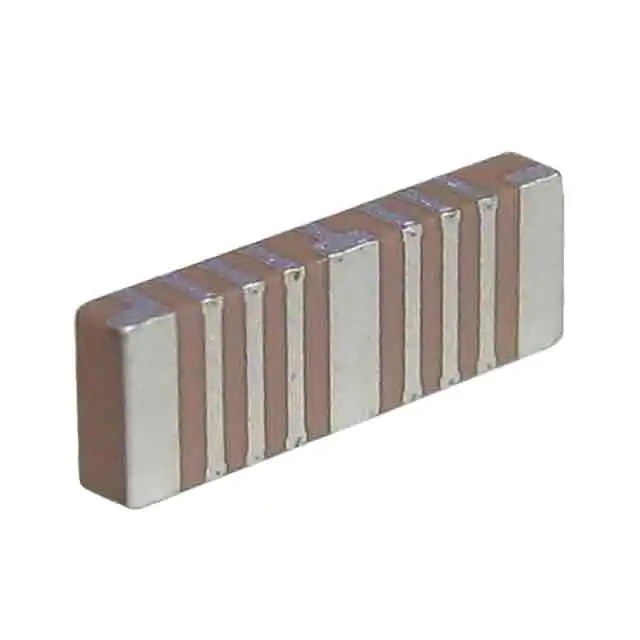

ACAJ-110-TRF ANT 868MHZ/915MHZ CHIP SLD |
2,694 | 6.94 |
|
Datasheet |
ACAJ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Chip | 2 | 3 | - | -2.5dBi, -2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | ISM |
|

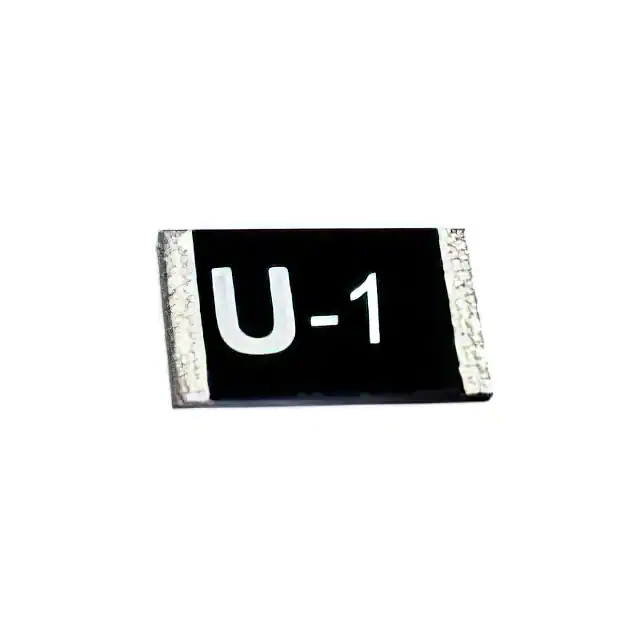

H2UJ4U1H2Q0100UNICTRON CB501F - QUAD BAND GNSS |
6,060 | 3.65 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.2276GHz, 1.2787GHz, 1.575GHz | - | Chip | 4 | 2 | - | - | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
ANT-5GW-FPC-LH100UFANT 5G FPC 120X20 100MM UFL |
902 | 0.00 |
|
Datasheet |
ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|

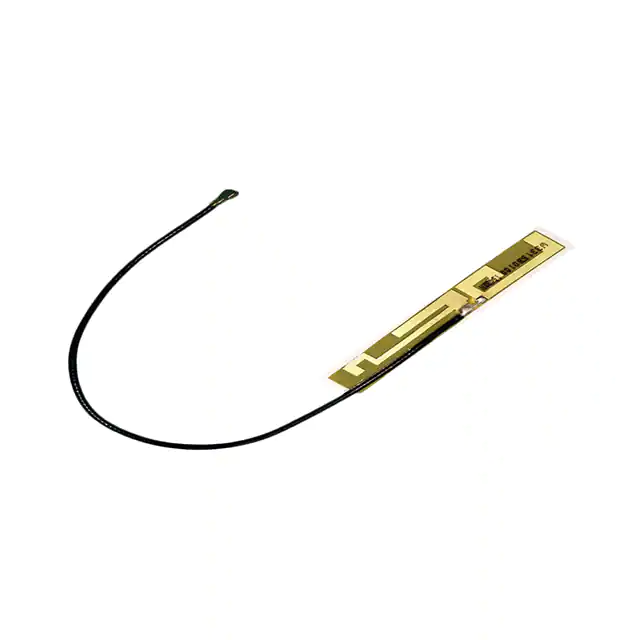

W3315B0100RF ANT 2.4/5.4GHZ PATCH IPEX |
664 | 4.33 |
|
Datasheet |
Internal Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 5dBi | 2 W | Cable - 100mm | I-PEX MHF-A13 | - | - | - | Adhesive | - | Bluetooth, WLAN, Zigbee™ |
|
ANT-2.4-FPC-LV100M4ANT 2.4 FPC 45X7 100 CBL MHF4 |
1,945 | 4.79 |
|
Datasheet |
ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
WBP3015W08-U100D3B0AANTENNA ASSY, WIFI RIGHT, 100, D |
980 | 3.65 |
|
Datasheet |
W | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
