RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

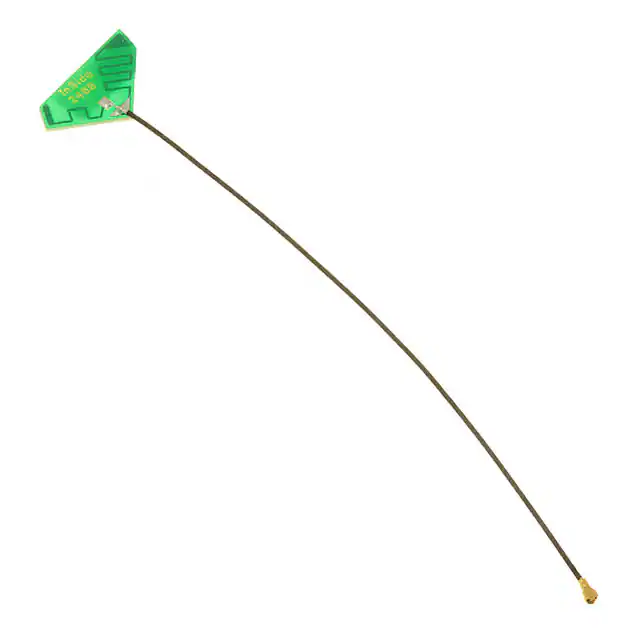

PRO-IS-587INSIDE 2400 TRIANGULAR 10CM MHF4 |
374 | 8.10 |
|
Datasheet |
Embedded Antenna | Bag | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 2 | - | 3dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | ISM |
|
ANT-200091B66RF ANT, 4G/3G/2G/GPS&GLONASS&GAL |
250 | 4.92 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, Navigation | Wide Band | 829MHz, 1.559GHz, 1.575GHz, 1.602GHz, 2.06GHz | 698MHz ~ 960MHz, 1.42GHz ~ 2.7GHz | PCB Trace | 5 | 2.1, 2.2, 2.3, 5 | -3.5dB, -8dB, -8.4dB, -8.8dB | 0.5dBi, 2.3dBi, 4.2dBi, 3.8dBi, 3.4dBi, -0.9dBi, 5.5dBi | 5 W | - | - | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G, GNSS, LPWA |
|
|
ANT-W63-FPC-SAH100M4ANT WIFI6/6E FPC SQR 100MM MHF4 |
1,883 | 6.43 |
|
Datasheet |
ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|

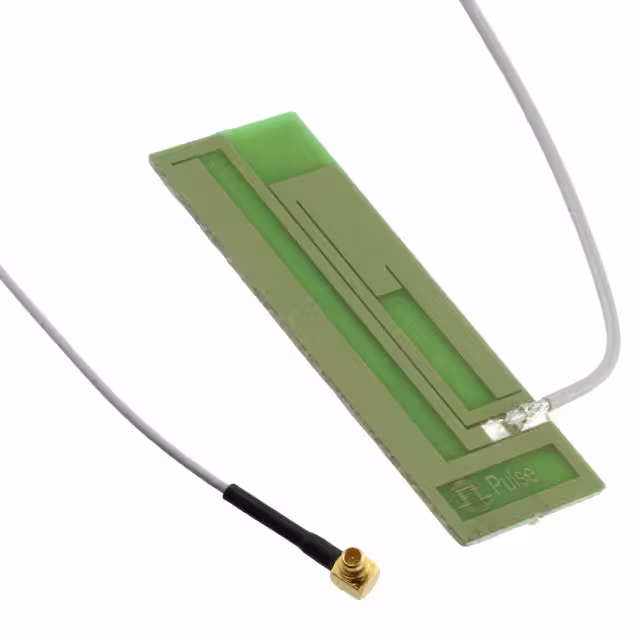

W3538E0200RF ANT 850/900MHZ PCB TRAC 200MM |
547 | 5.84 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -6dB | 2.8dBi, 5.8dBi, 6.3dBi | - | Cable - 200mm | MMCX Male | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|

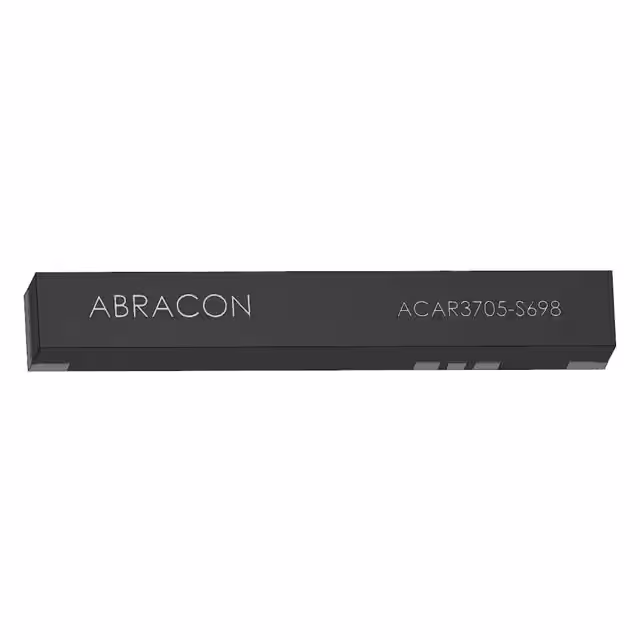

ACAR3705-S6984G/LTE CERAMIC CHIP ANT |
1,292 | 5.10 |
|
Datasheet |
ACAR | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 1.94GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 4.5 | -4.34dB, 4.62dB, -6.49dB, -8.49dB, -8.5dB, -13.87dB | -1.13dBi, -3.77dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | 2G, 3G, 4G, GSM, LTE |
|
|
ACG0806UUWB ANT 3.3GHZ- 7.2GHZ SMD CHIP |
1,177 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 5.25GHz | 3.3GHz ~ 7.2GHz | Chip | 1 | 3.5 | - | - | - | Filter | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|
1513247-1RF ANT 859MHZ/1.9GHZ PCB TRACE |
1,158 | 6.44 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 859MHz, 1.9GHz | 824MHz ~ 894MHz, 1.85GHz ~ 1.99GHz | PCB Trace | 2 | 3 | - | 0dBi, 3dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | - |
|

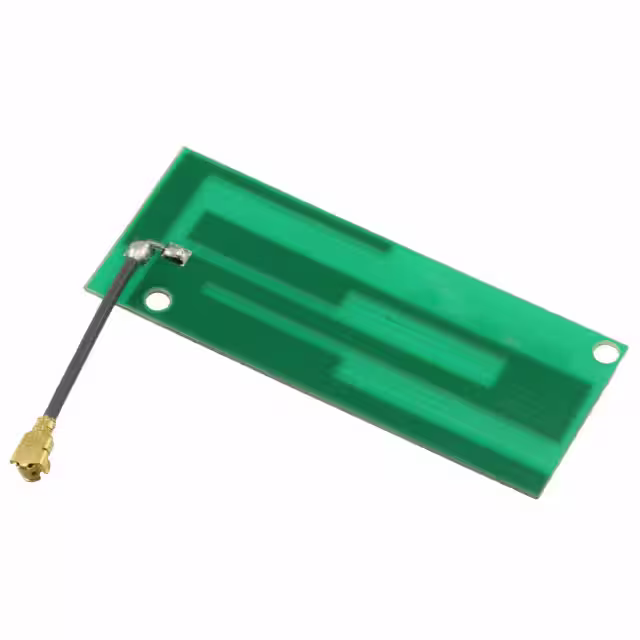

W3502RF ANT 892MHZ/1.9GHZ PCB TRACE |
389 | 4.97 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | - | -6dB, -4dB | 2dBi, 1dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | GSM |
|

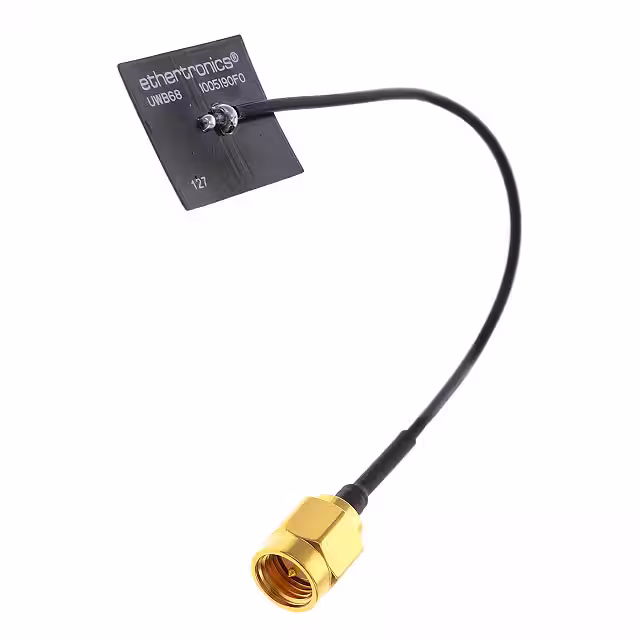

1005190F0-AS70L0100ANTENNA ASSY, UWB68 F0 0100 SMA |
397 | 4.63 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
|
ANT-210171B77RF ANT, 3G&2G/PWA, OMNI-DIRECTIO |
243 | 5.90 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | 2, 4.5 | -4dB, -10dB | -3.7dBi, 2.1dBi, 2.2dBi, 6.5dBi | 5 W | Cable - 100mm | I-PEX MHF1 | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, LPWA |
|
|
ANT-190071B77RF ANT, 4G/3G/2G/LPWA, OMNI-DIRE |
238 | 5.90 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 2.2GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 3, 5 | -3.5dB, -8dB | -2dBi, 1dBi, -1dBi, 5dBi | 5 W | Cable - 101mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, 4G, LPWA |
|
|
ANT-200051B66RF ANT, GPS L1+L5/GLONASS/GALILE |
249 | 4.92 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.1765GHz, 1.575GHz, 1.6025GHz | - | PCB Trace | 3 | 1.18, 1.19, 1.29 | -17.87, -21.1dB, -21.73dB | 2.7dBi, 2.5dBi, 2.8dBi | 5 W | - | - | - | - | - | Surface Mount | 0.118" (3.00mm) | GLONASS, GNSS, GPS |
|
|
ANT-190541B97RF ANT. 3G/2G, OMNI-DIRECTIONAL, |
240 | 250.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 1.45GHz | 800MHz ~ 2.1GHz | PCB Trace | 1 | 5 | -3.5dB | 1.5dBi, 2dBi | 5 W | Cable - 70mm | I-PEX | - | - | - | Adhesive | 0.031" (0.80mm) | 2G, 3G |
|

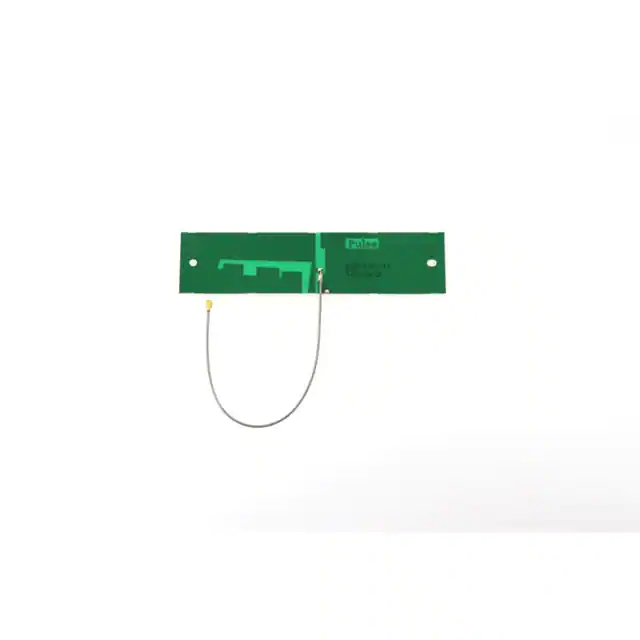

W3554G0457ANTENNA ASSEMBLY 6GHZ 457MM SMA |
957 | 8.93 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 457mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-W63-FPC2-M4-100RF ANT WIFI7 42X12 MHF4 100MM |
985 | 0.00 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 2.4 | - | 3.2dBi, 7.7dBi, 8.4dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11ac, 802.11ax, 802.11be, 802.11b/g, 802.11n, Bluetooth, ISM, WLAN, Zigbee™ |
|
|
ANT-W63-FPC-SAH50M4ANT WIFI6/6E FPC SQR 50MM MHF4 |
758 | 6.52 |
|
Datasheet |
ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 50mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|

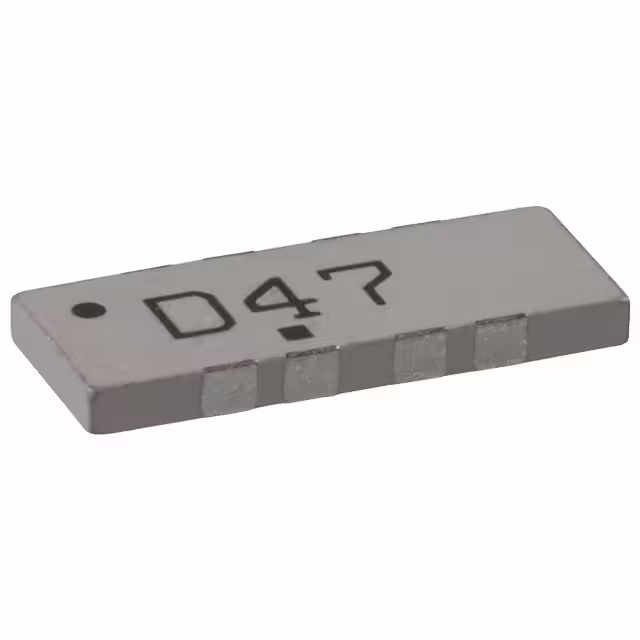

AH104F2450S1-TRF ANT 2.4GHZ CHIP SOLDER SMD |
4,609 | 6.57 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 3 | - | 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

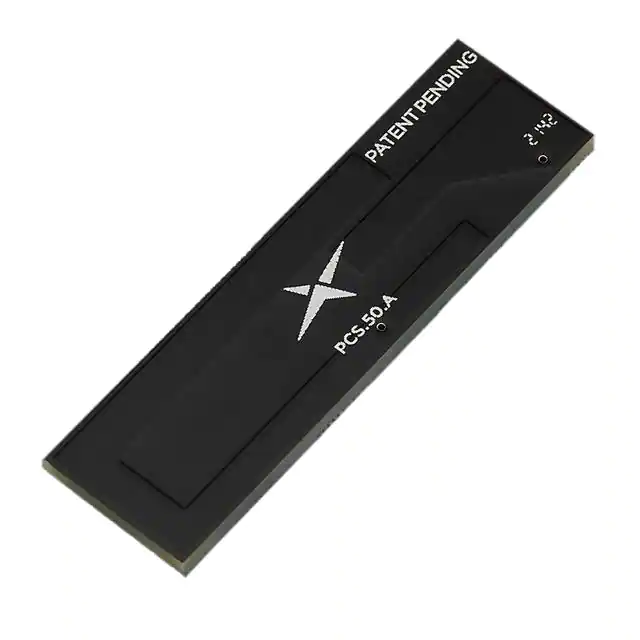

PCS.50AACTIVE CELLULAR AND GNSS ANTENNA |
749 | 7.51 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, Navigation, WiFi | Wide Band | 722MHz, 773MHz, 840MHz, 920MHz, 1.5845GHz, 2.2GHz | 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz | Chip | 6 | - | - | -4.8dBi, -2.5dBi, -3dBi, -1.1dBi, 0.8dBi, 3.2dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|

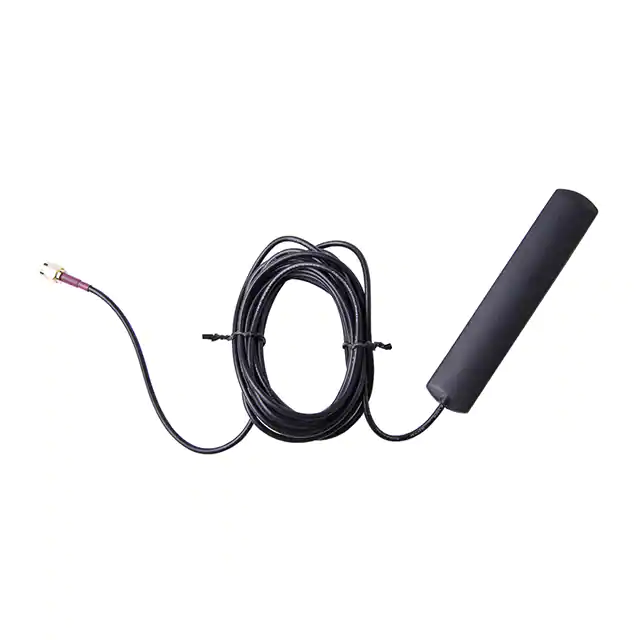

AEACCA115021-S850RF ANT 1.71GHZ FLT BAR SMA FAKRA |
156 | 6.31 |
|
Datasheet |
AEAC | Bulk | Active | Cellular | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 2 | 2 | - | 2dBi | 10 W | - | Fakra, SMA | - | - | - | Adhesive | 0.228" (5.80mm) | GSM |
|
PC27.09.0100ARF ANT 800MHZ/900MHZ FLAT PATCH |
165 | 7.98 |
|
Datasheet |
TheStripe™ | Bag | Not For New Designs | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 1.9GHz | - | Flat Patch | 4 | 3.59, 2.02. 2.21, 2.3 | - | - | - | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
