RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3P35X8F04-U100D3B0TANTENNA ASSY, WLAN 04 100 F |
975 | 3.65 |
|
Datasheet |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

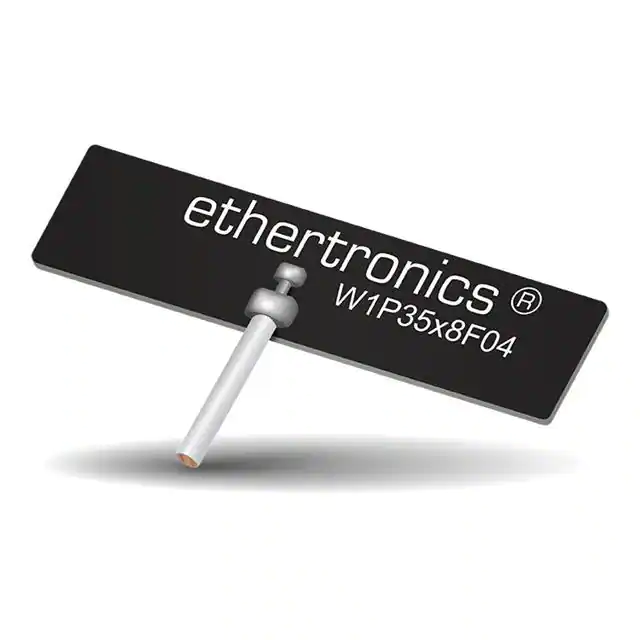

W1P35X8F04-U100D3B0TANTENNA ASSY, WLAN1 04 100 D0230 |
281 | 3.65 |
|
Datasheet |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
A1004795AUTOMOTIVE BROADBAND FR4 EMBEDDE |
883 | 0.00 |
|
Datasheet |
A | Tape & Reel (TR) | Active | Cellular, General ISM, WiFi | Wide Band | 315MHz, 400MHz, 433MHz, 450MHz | 600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz | Chip | 8 | 1.5, 2.5, 3, 3.7, 5.5 | - | -3dBi, -3dBi, -1.8dBi, -3dBi, 1.5dBi, 1.2dBi, 2.4dBi, 0.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi |
|
1461850200RF ANT 892MHZ/1.9GHZ FLAT 200MM |
284 | 4.64 |
|
Datasheet |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
|
2118907-2PCB ANT. MHF, 50MM, WI-FI 6E TRI |
2,927 | 3.90 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 1.8 | - | 5.5dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2123300100ANTENNA 2.4/5GHZ MIMO 4X4 100MM |
960 | 6.77 |
|
Datasheet |
212330 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | - | - | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
2118309-4DUAL BAND WIFI, 2.4 & 5GHZ, PCB |
2,375 | 2.93 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44175GHz, 5.3875GHz | 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 3.7dBi | - | Cable - 120mm | MHF4L | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
2118907-7PCB ANT. MHF4L, 100MM, WI-FI 6E |
2,982 | 4.10 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 3.8dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
2118907-5PCB ANT. MHF, 200MM, WI-FI 6E TR |
2,743 | 4.10 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.4dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W3915RF ANT 920MHZ/1.59GHZ CAB 100MM |
190 | 4.75 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | 920MHz, 1.59GHz, 1.94GHz | 880MHz ~ 960MHz, 1.575GHz ~ 1.605GHz, 1.71GHz ~ 2.17GHz | Flat Patch | 3 | - | 8dB | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | GNSS |
|
RFMTA340745IMAB701RF ANT 2.4GHZ STAMPED MET IPEX |
1,854 | 6.44 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 3.4dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.236" (6.00mm) | ISM |
|

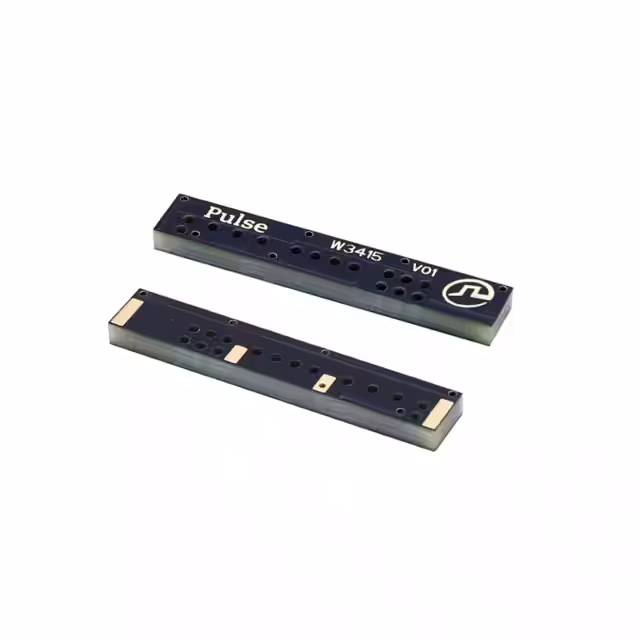

W3415ANTENNA EMBED PCB 617MHZ-6GHZ |
2,303 | 5.20 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | Cellular | Wide Band | 788.5MHz, 1.55GHz, 2.2GHz, 3.65GHz, 5.45GHz | 617MHz ~ 960MHz, 1.4GHz ~ 1.7GHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.9GHz, 4.9GHz ~ 6GHz | Chip | 5 | - | -4dB | -1dBi, -1dBi, 2.5dBi, 2.5dBi, 2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 4G, 5G |
|

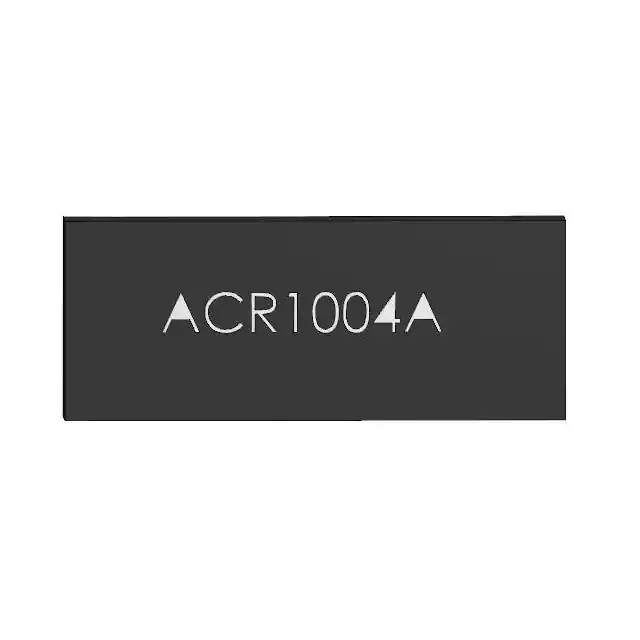

ACR1004A2.4/5/6GHZ WIFI/BT/ZIGBEE ANT |
1,864 | 4.21 |
|
Datasheet |
ACR | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Chip | 3 | - | -5dB | 4.02dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
APARM1804-SG3GNSS/GPS/GLONASS/BEIDOU PTCH ANT |
697 | 4.30 |
|
Datasheet |
APARM | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.586GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.583GHz ~ 1.589GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 4 | 1.8 | -10dB | 2dBi, 3dBi, 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
ANT-20264IB93RF ANT, GPS/GLONASS/GALILEO/BEID |
222 | 4.44 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz, 1.608GHz | - | Ceramic Patch | 3 | 1.3 | -17.4dB, -16.4dB, -15.9dB | 5.2dBi, 4.3dBi, 4dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GPS |
|

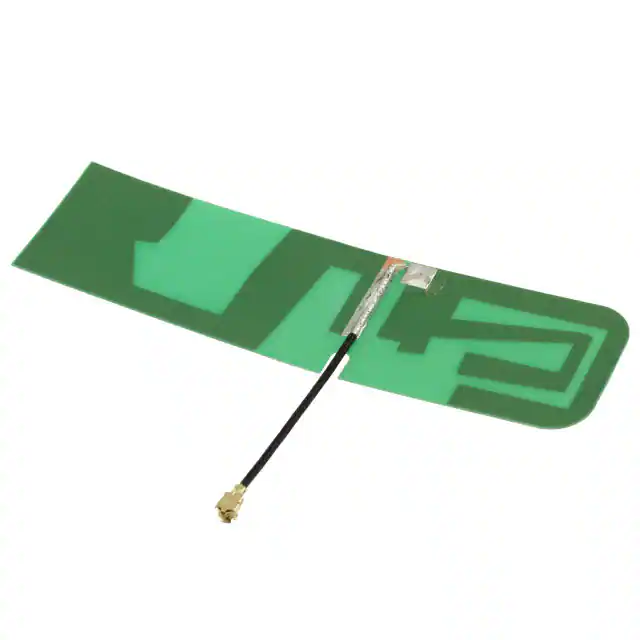

W3501RF ANT 892MHZ/1.9GHZ PCB TRACE |
374 | 5.39 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | - | -7dB, -8dB | 1.5dBi, 3.75dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | GSM |
|

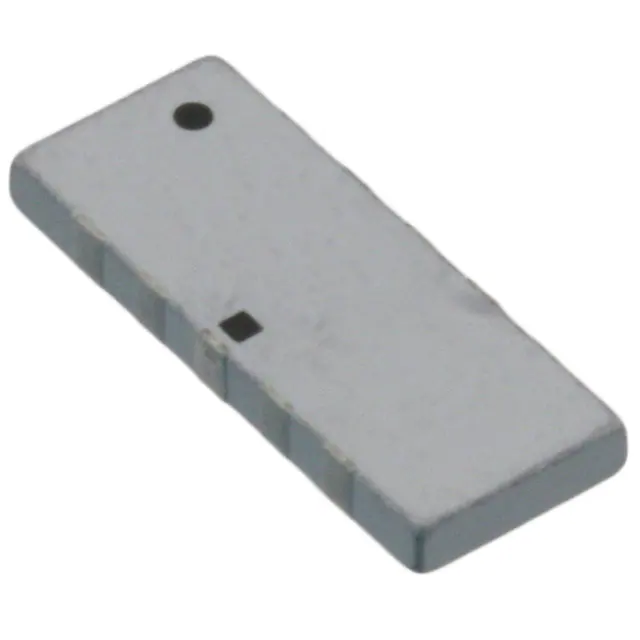

AH104N2450D1-TRF ANT 2.4GHZ/5.4GHZ CHIP SLD |
4,021 | 6.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Chip | 2 | 3 | - | 2.1dBi, 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WLAN |
|
|
YE0002AADIPOLE LTE ANTENNA RP SMAM |
396 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 1.699GHz | 699MHz ~ 2.7GHz | Whip, Straight | 1 | 3 | - | 3dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 6.874" (174.60mm) | LTE |
|

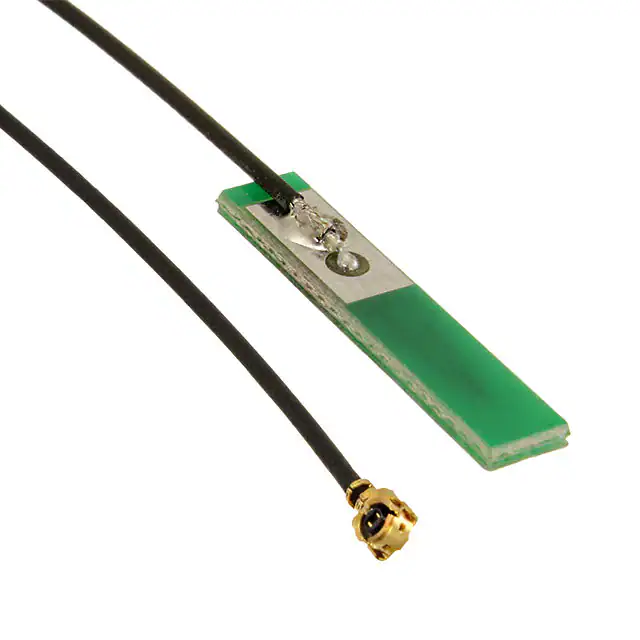

ANT-DK-WF0EM01-I0200RF ANT 2.45GHZ PCB TRACE SMD |
222 | 3.82 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 2dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.058" (1.47mm) | Wi-Fi |
|
|
AP822601AUTOMOTIVE UNIVERSAL BROADBAND F |
1,190 | 0.00 |
|
Datasheet |
A | Tape & Reel (TR) | Active | Cellular, General ISM, WiFi | Wide Band | 829MHz, 1.955GHz, 2.35GHz, 2.6GHz, 3.55GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz | Chip | 5 | 2.5, 3 | - | 2.6dBi, 4.4dBi, 1.8dBi, 3.4dBi, 2.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi |
