RF Directional Coupler
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHM2215SA5RF DIR COUPLER 824-915MHZ 0603 |
8,000 | 1.09 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Standard | 824MHz ~ 915MHz | -16 ± 1dB | AGSM, GSM | 0.35dB | - | 25dB | - | 0603 |
|
HHM2510B1RF DIR COUPLER 2.4-2.5GHZ 0202 |
19,593 | 0.26 |
|
Datasheet |
HHM | Tape & Reel (TR) | Active | Dual Band, Dual Path | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | - | General Purpose | 0.4dB | - | 25dB | - | 0202 |
|
|
TFSC06054125-2120A1XTHIN-FILM DIRECTIONLA COUPLER FO |
21,390 | 0.42 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | 19.4dB | General Purpose | 0.34dB | 3W | - | 35.8dB | 0202 |
|
1585CH15A0070001EMINI GPS, GNSS, BEIDOU, GALILEO |
4,514 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 1.55GHz ~ 1.62GHz | - | General Purpose | 3.3dB | 3W | 16dB | 10dB | 0805 |
|
|
CP0302A5425ENTRRF DIR COUPLER 2.4-2.5GHZ 0302 |
7,585 | 0.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | 20dB | General Purpose | 0.4dB | - | - | 30dB | - |
.jpg)
|
CP0603Q5425ENTRRF DIR COUPLER 2.4-2.5GHZ 0603 |
5,437 | 0.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | 20dB | General Purpose | 0.4dB | - | - | 30dB | 0603 (1608 Metric) |
.jpg)
|
DC1722J5015AHFRF DIR COUPLER 1.7-2.2GHZ 0805 |
8,324 | 1.12 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 1.7GHz ~ 2.2GHz | 15.2dB | General Purpose | 0.29dB | 2W | - | 17.6dB | 0805 (2012 Metric) |
|
|
C0409J5003AHFRF DIR COUPLER 400-900MHZ 0805 |
12,856 | 0.98 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 400MHz ~ 900MHz | - | General Purpose | 0.6dB | 4W | 24dB | -20dB | 0805 |
|
|
C2023J5003AHFRF DIR COUPLER 2GHZ-2.3GHZ 0805 |
10,043 | 0.98 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 2GHz ~ 2.3GHz | 3dB | General Purpose | 0.3dB | 4W | 25dB | 22dB | 0805 |
|
|
C1720J5003AHFRF DIR COUPLER 1.7GHZ-2GHZ 0805 |
5,148 | 0.98 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 1.7GHz ~ 2GHz | 3dB | DCS, PCS, WCDMA | 0.3dB | 4W | 36dB | 27dB | 0805 |
|
|
5300CF15A0950001ERF DIR COUPLER 4.9-5.85GHZ 0805 |
4,129 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Coupler, With Filter | 4.9GHz ~ 5.85GHz | 15 ± 1dB | - | 0.8dB | 2W | 22dB | -20dB | 0805 (2012 Metric) |
|
|
X4C25L1-03GIC 5G DIRECTIONAL COUPLER 0805 |
3,082 | 0.00 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 2.2GHz ~ 2.8GHz | - | Cellular | 0.25dB | 3W | 23dB | 23dB | 0603 |
|
X4C45J1-03GIC RF 5G HYBRID COUPLER |
2,812 | 1.22 |
|
Datasheet |
Xinger® IV | Tape & Reel (TR) | Active | Standard | 3.6GHz ~ 5.1GHz | - | General Purpose | 0.5dB | 5W | 20dB | 20dB | 0805 |
|
|
X4C55J1-03GIC RF 5G HYBRID COUPLER |
2,275 | 1.22 |
|
Datasheet |
Xinger® IV | Tape & Reel (TR) | Active | Standard | 5GHz ~ 6.3GHz | - | General Purpose | 0.5dB | 5W | 20dB | 20dB | 0805 |
|
|
X4C35J1-03GIC 3DB HYBRID COUPLER 0805 |
466 | 1.22 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 3.1GHz ~ 4.2GHz | - | 5G | 0.5dB | 5W | 20dB | 20dB | 0805 |
|
|
X4C40J1-30GIC 5G DIRECTIONAL COUPLER 0805 |
2,842 | 0.00 |
|
Datasheet |
Xinger® IV | Tape & Reel (TR) | Active | Standard | 3.2GHz ~ 5GHz | 30 ± 1.5dB | 5G, LTE | 0.1dB | 10W | - | 20dB | 0805 |
|

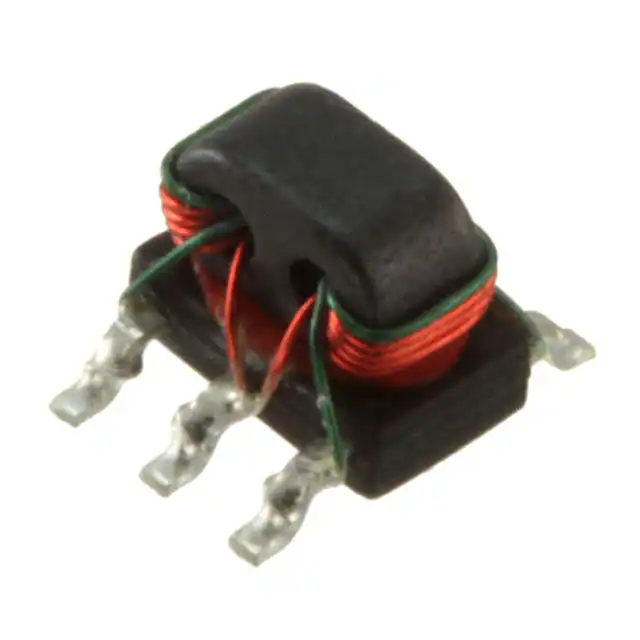

MACP-010250-C808A0RF DIR COUPLER 5MHZ-1.2GHZ MOD |
2,917 | 1.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 5MHz ~ 1.2GHz | 8.5dB | General Purpose | - | 631mW | - | 35dB | Module |
|
|
X4C35K1-03SRDIRECTIONAL COUPLER 5G 3DB ATTO |
5,158 | 0.00 |
|
Datasheet |
Xinger® IV | Tape & Reel (TR) | Active | Standard | 3.1GHz ~ 4.2GHz | - | General Purpose | 0.2dB | 10W | 23dB | 23dB | 1210 |
|
DBTC-10-13+RF DIR COUPLER 5MHZ-1GHZ 5SMD |
2,488 | 4.42 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 5MHz ~ 1GHz | 10.3 ± 0.5dB | Cellular | - | 1W | - | 29.42dB | - |
|
|
MACP-011068COUPLER,17.3 DB,5-2000MHZ,FR4, |
1,864 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 5MHz ~ 2GHz | 17.3dB | General Purpose | - | 2W | 23dB | 23dB | - |
