Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

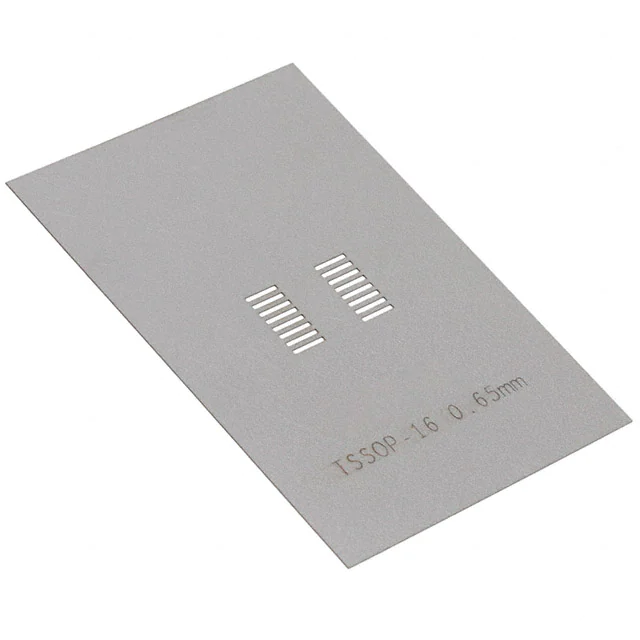

PA0034-SSTENCIL TSSOP-16 .65MM |
1,473 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 16 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

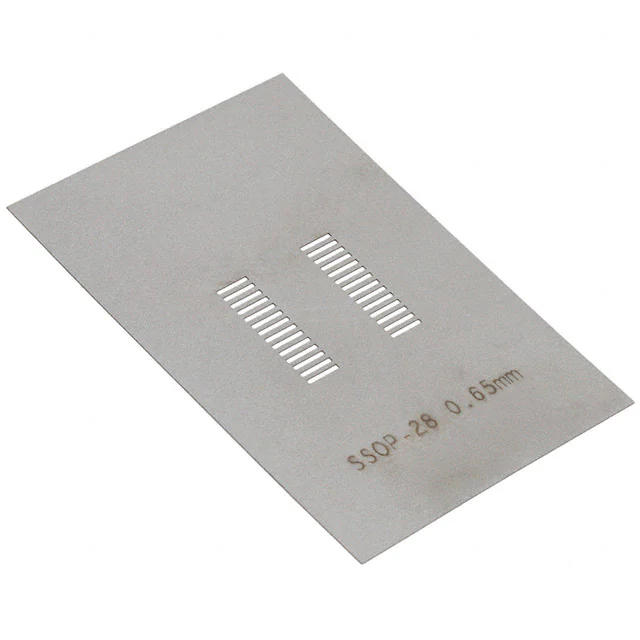

PA0020-SSTENCIL SSOP-28 .65MM |
2,990 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SSOP | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

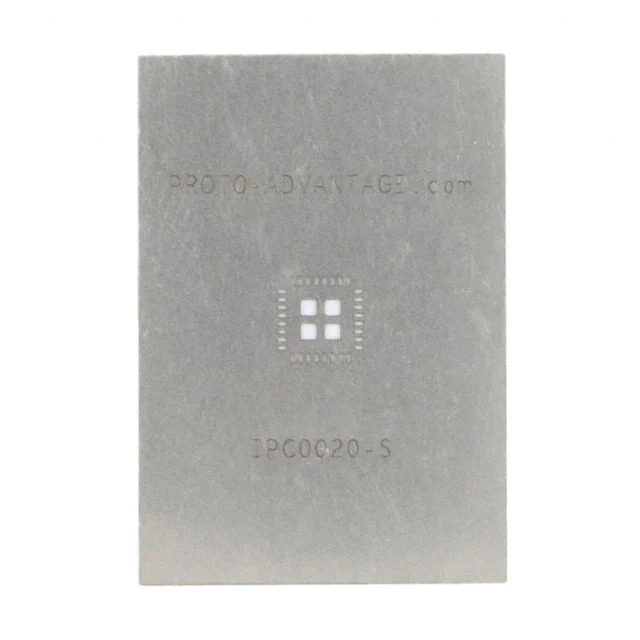

IPC0020-SSTENCIL 5X5 MM .5MM |
4,435 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.122" L x 0.122" W (3.10mm x 3.10mm) | Stainless Steel |
|
IPC0014-SSTENCIL 4X4MM .5MM |
4,205 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" L x 0.083" W (2.10mm x 2.10mm) | Stainless Steel |
|

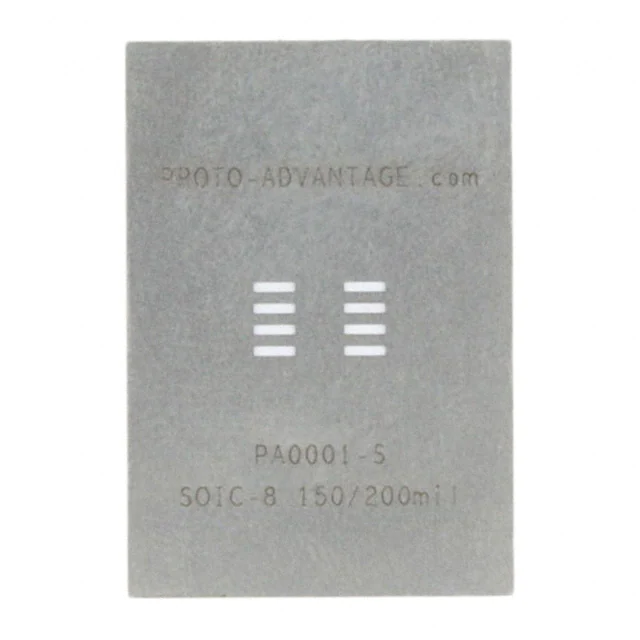

PA0001-SSOIC-8 STENCIL |
2,722 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

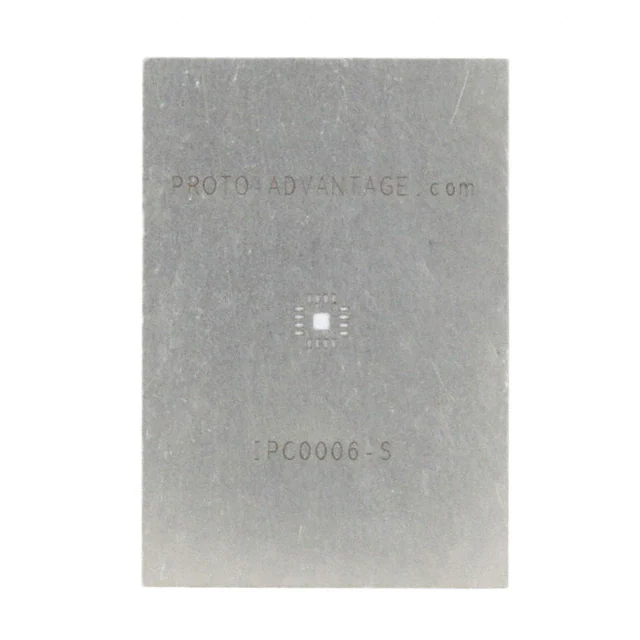

IPC0006-SQFN-16 STENCIL |
3,996 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" L x 0.059" W (1.50mm x 1.50mm) | Stainless Steel |
|

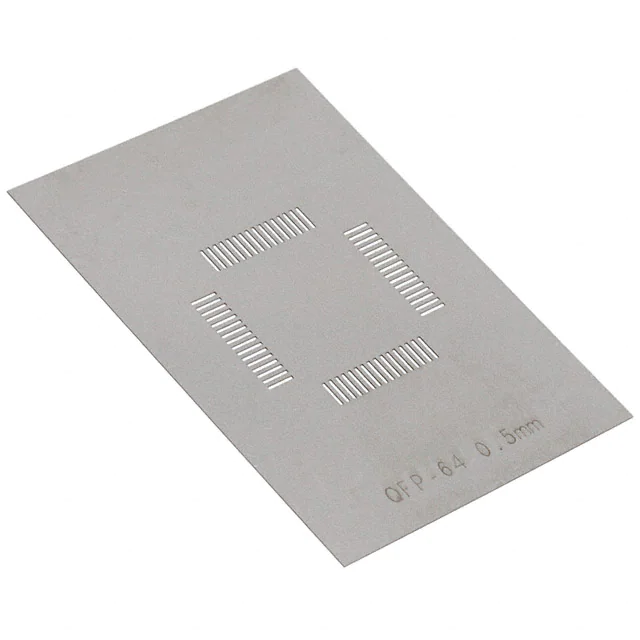

PA0096-SSTENCIL VQFP-64 .5MM |
3,218 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TQFP | 64 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | Stainless Steel |
|

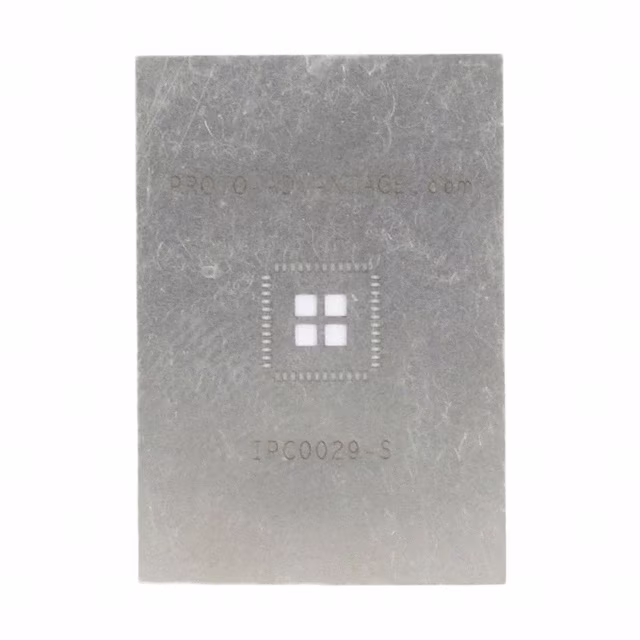

IPC0029-SQFN-48 STENCIL |
4,735 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Stainless Steel |
|

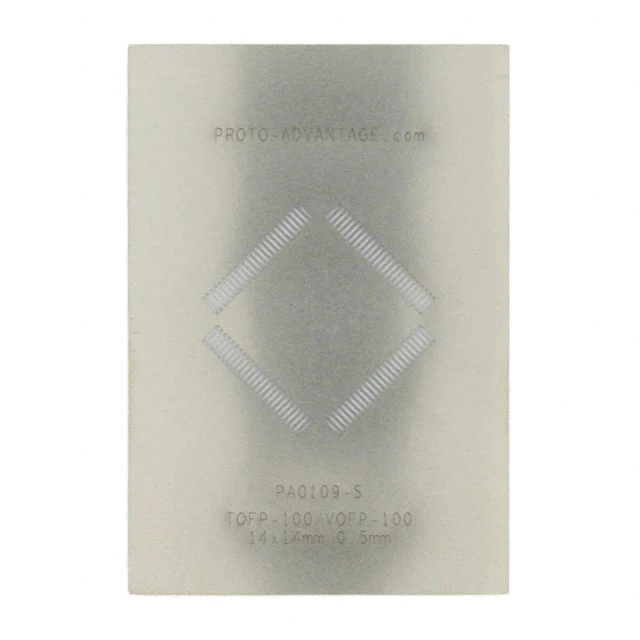

PA0109-SVQFP-100/TQFP-100 STENCIL |
1,020 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TQFP | 100 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

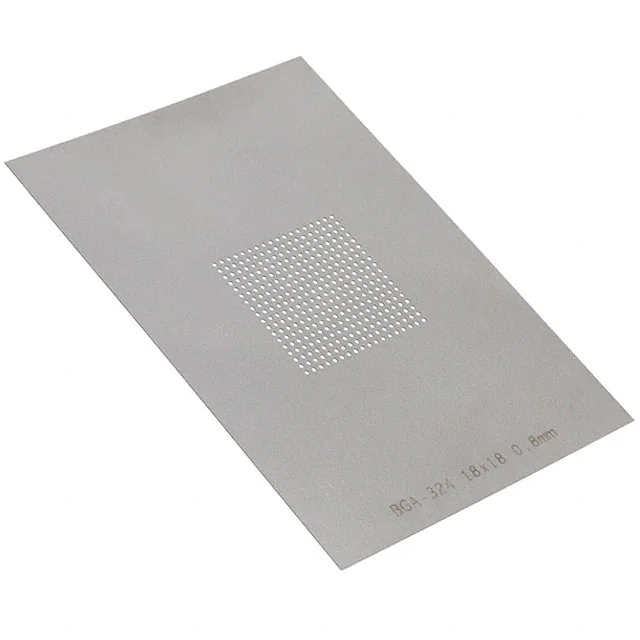

BGA0002-SSTENCIL BGA-324 .8MM |
1,196 | 20.99 |
|
Datasheet |
Proto-Advantage BGA | Bulk | Active | BGA | 324 | 0.031" (0.80mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | Stainless Steel |
|
BGA0006-SSTENCIL BGA-484 1MM |
2,950 | 20.99 |
|
Datasheet |
Proto-Advantage BGA | Bulk | Active | BGA | 484 | 0.039" (1.00mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | - | - | Stainless Steel |
|

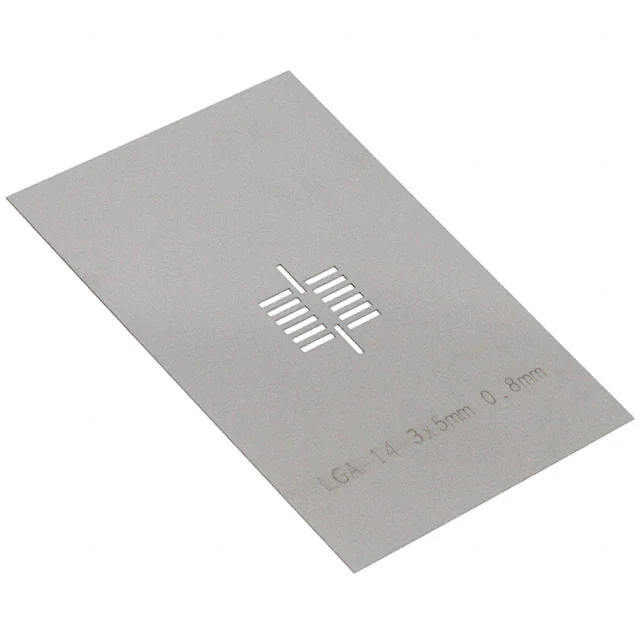

PA0101-SSTENCIL LGA-14 3X5MM .8MM |
3,008 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LGA | 14 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.118" W (5.00mm x 3.00mm) | - | Stainless Steel |
|

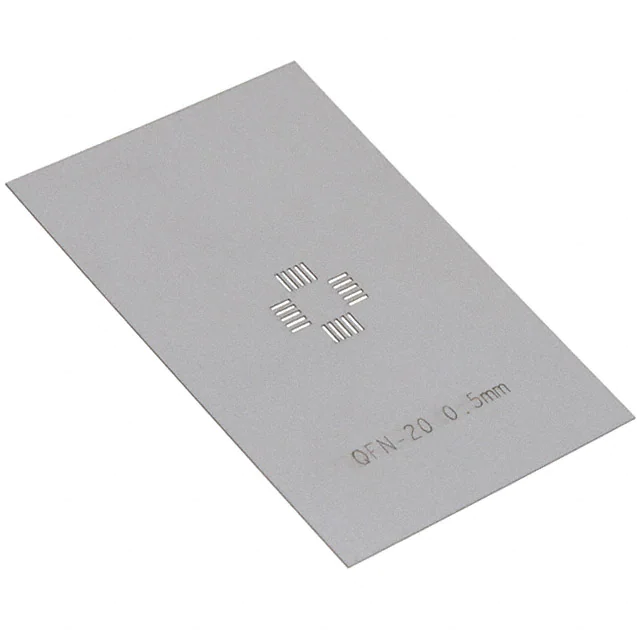

PA0063-SSTENCIL QFN-20 .5MM |
1,697 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | Stainless Steel |
|
PA0027-SSTENCIL MSOP-10 |
2,813 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | uMAX | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

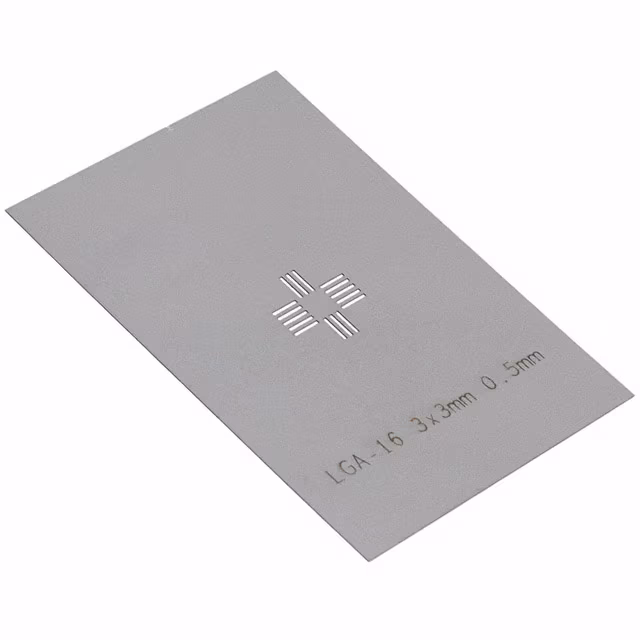

PA0103-SSTENCIL LGA-16 .5MM |
1,894 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LGA | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
|
DR100P100-S1MM PITCH 100-PIN STENCIL |
4,182 | 20.99 |
|
Datasheet |
Proto-Advantage | Bulk | Active | - | 100 | 0.039" (1.00mm) | - | - | - | Stainless Steel |
|

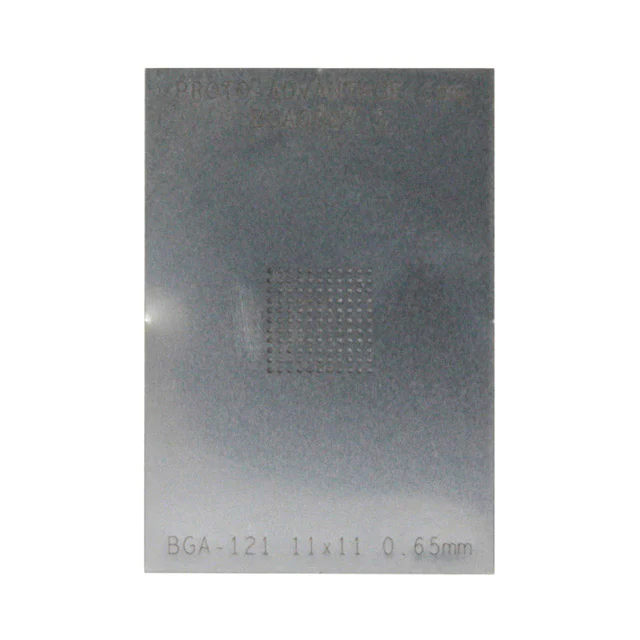

BGA0027-SBGA-121 (0.65MM PITCH, 11 X 11 G |
1,813 | 20.99 |
|
Datasheet |
Proto-Advantage BGA | Bulk | Active | BGA | 121 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

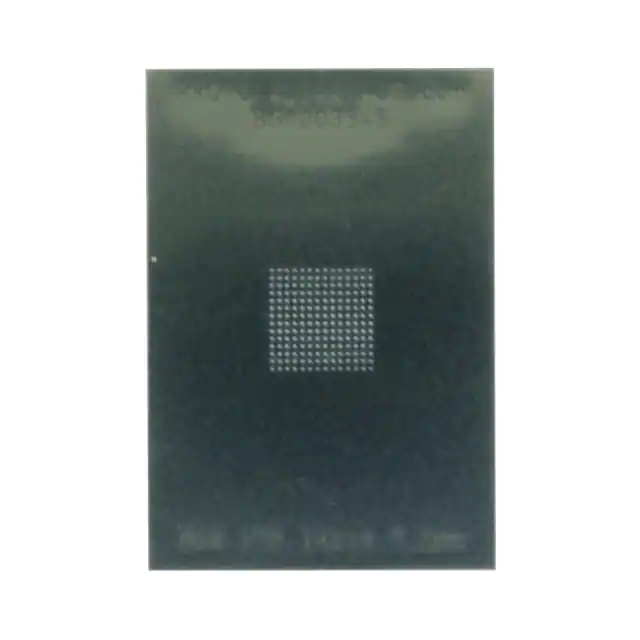

BGA0035-SBGA-196 STAINLESS STEEL STENCIL |
1,411 | 20.99 |
|
Datasheet |
Proto-Advantage | Bulk | Active | BGA | 196 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

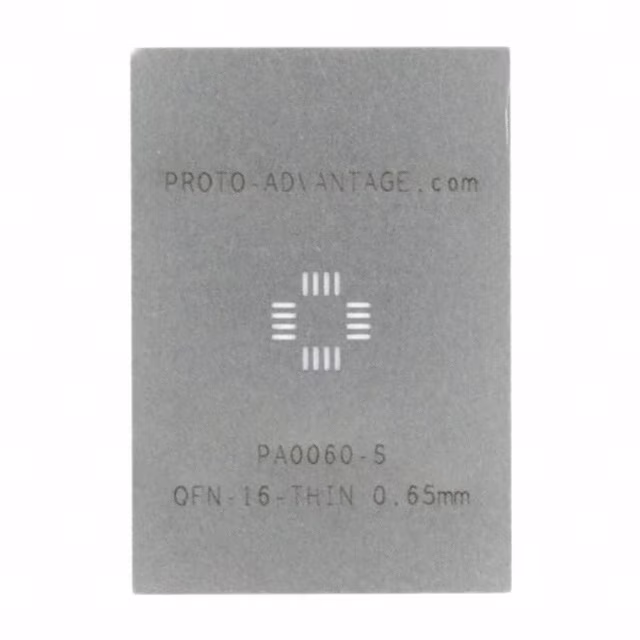

PA0060-SQFN-16-THIN STENCIL |
3,740 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 16 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | Stainless Steel |
|
IPC0102-SQFN-20 STENCIL |
2,937 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
