Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

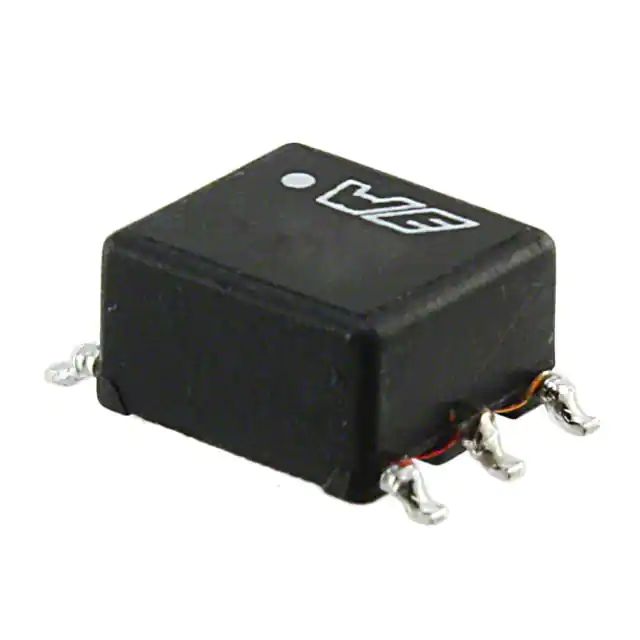

760390012XFMR FWD P-P DC/DC CONV 475UH SM |
30,816 | 1.90 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 3125Vrms | 475µH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
|
760390013XFMR FWD P-P DC/DC CONV 475UH SM |
22,460 | 1.90 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 3125Vrms | 475µH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
760390015XFMR FWD P-P DC/DC CONV 475UH SM |
20,737 | 1.90 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 3125Vrms | 475µH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
|
760390011XFMR FWD P-P DC/DC CONV 1MH SMD |
1,448 | 1.90 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 1500Vrms | 1mH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
|
760390014XFMR FWD P-P DC/DC CONV 475UH SM |
5,710 | 1.90 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 3125Vrms | 475µH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|

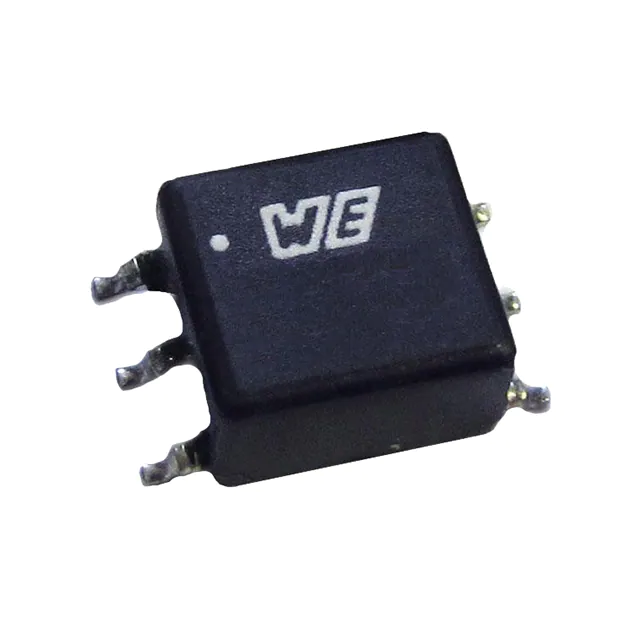

750315228XFMR FWD P-P SMD |
1,187 | 2.40 |
|
Datasheet |
MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | 3.3V | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.165" (4.19mm) | - | - |
|

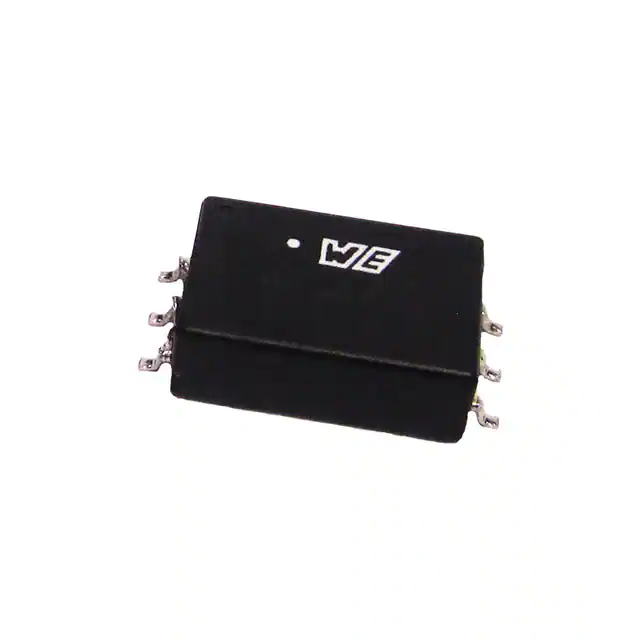

750316769XFMR FWD P-P DC/DC CONV 60UH SMD |
4,347 | 3.83 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.281" L x 0.265" W (7.14mm x 6.73mm) | 0.165" (4.19mm) | 0.412" L x 0.265" W (10.46mm x 6.73mm) | - |
|
|
750316819XFMR FWD P-P DC/DC CONV 86UH SMD |
1,500 | 3.83 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 86µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.364" L x 0.327" W (9.25mm x 8.30mm) | 0.161" (4.10mm) | 0.496" L x 0.327" W (12.60mm x 8.30mm) | - |
|
|
750316818XFMR FWD P-P DC/DC CONV 86UH SMD |
931 | 3.83 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 86µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.364" L x 0.327" W (9.25mm x 8.30mm) | 0.161" (4.10mm) | 0.496" L x 0.327" W (12.60mm x 8.30mm) | - |
|
|
750316770XFMR FWD P-P DC/DC CONV 350UH SM |
414 | 3.83 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 350µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.281" L x 0.265" W (7.14mm x 6.73mm) | 0.165" (4.19mm) | 0.401" L x 0.265" W (10.20mm x 6.73mm) | - |
|
P1597NLTXFMR ISOL DC/DC CONV SMD |
458 | 3.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Isolation | LTC1535 | Linear Technology | - | - | 2000Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.453" L x 0.339" W (11.50mm x 8.60mm) | 0.354" (9.00mm) | 0.453" L x 0.512" W (11.50mm x 13.00mm) | - |
|
PA2369NLXFMR SWITCH MODE 5A |
1,968 | 4.72 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | 0.551" L x 0.695" W (14.00mm x 17.65mm) | - |
|

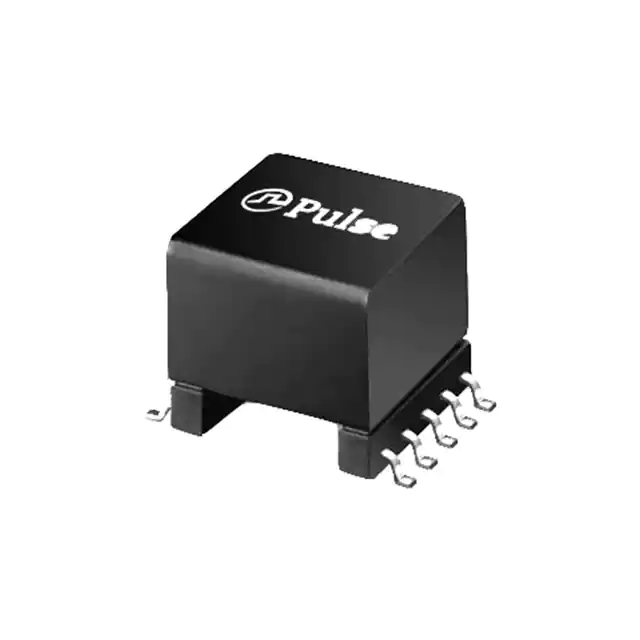

PA3855.006NLTXFMR FLYBACK DC/DC CONV SMD |
1,130 | 4.22 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
750316028XFMR FWD P-P DC/DC CONV 72UH SMD |
2,632 | 3.98 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 3.3V | - | 3125Vrms | 72µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.327" L x 0.364" W (8.30mm x 9.25mm) | 0.161" (4.10mm) | - | - |
|
750316029XFMR FWD P-P DC/DC CONV 72UH SMD |
164 | 4.02 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 3.3V | - | 3125Vrms | 72µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.327" L x 0.364" W (8.30mm x 9.25mm) | 0.161" (4.10mm) | - | - |
|

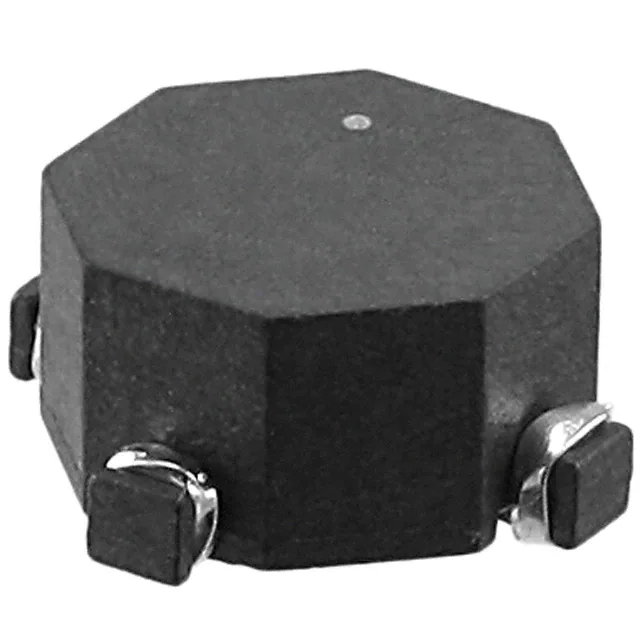

PA0367ANLTXFMR FLYBACK DC/DC CONV SMD |
338 | 4.42 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3420 | Linear Technology | - | - | 500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.215" (5.45mm) | 0.460" L x 0.460" W (11.68mm x 11.68mm) | - |
|

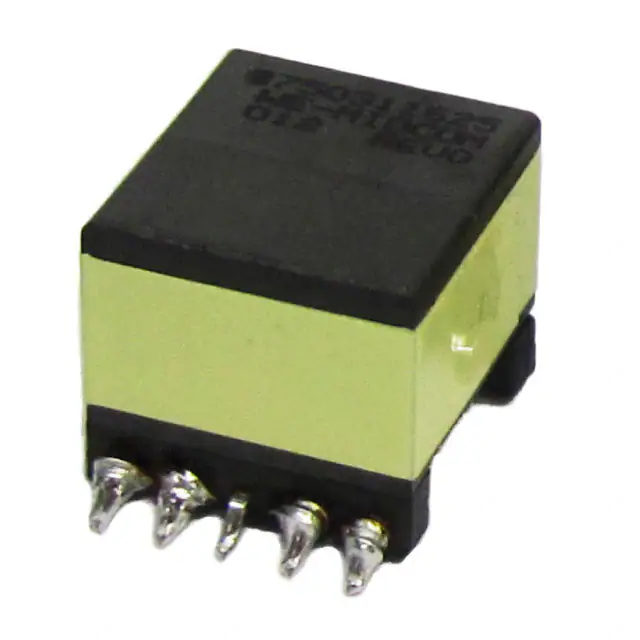

750313445XFMR FLYBACK DC/DC CONV 9UH SMD |
2,084 | 3.88 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 9µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|

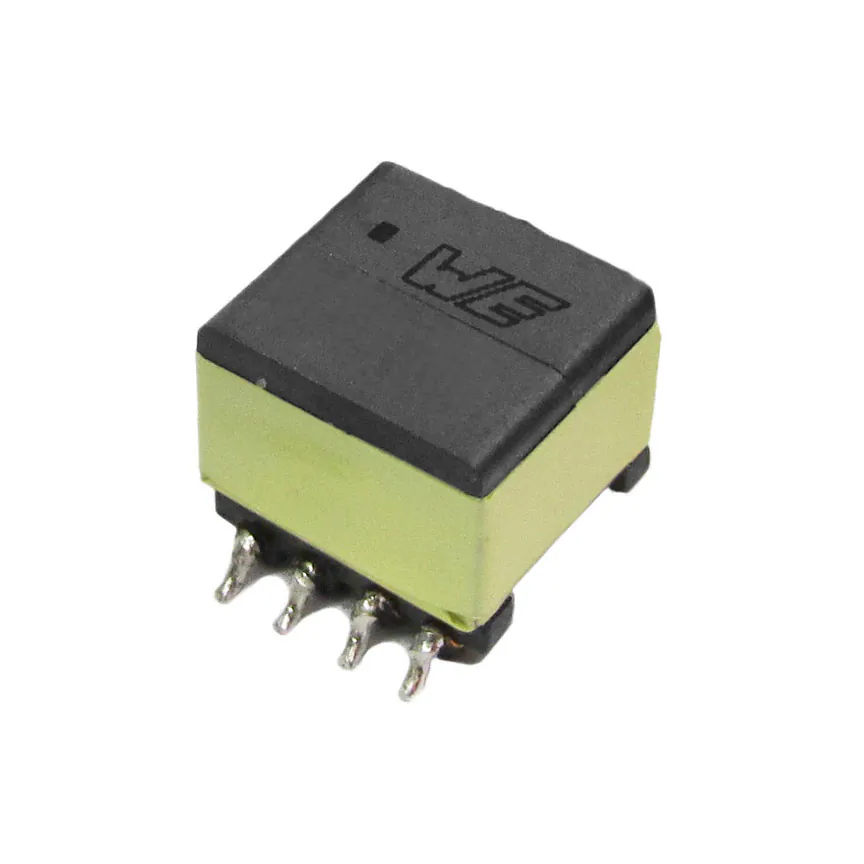

750313443XFMR FLYBACK DC/DC CONV 9UH SMD |
6,304 | 3.88 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 9µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|

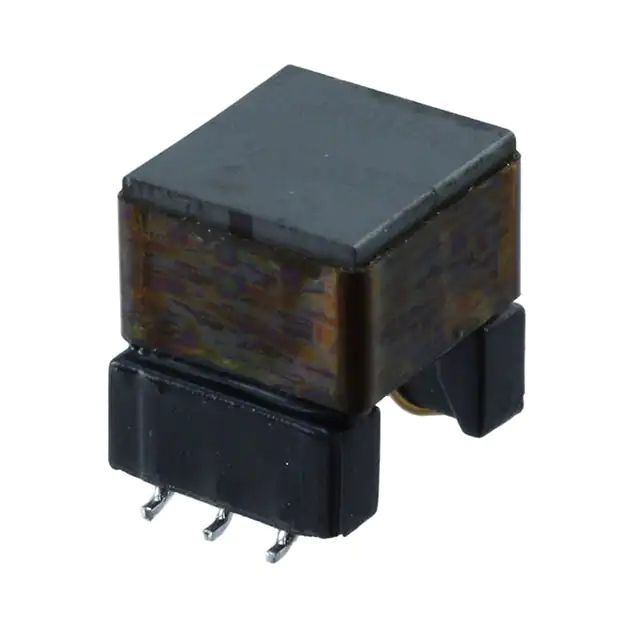

PH0416NLTXFMR FLYBACK DC/DC CONV SMD |
3,834 | 4.71 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 5000Vrms | - | 75kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.502" (12.75mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - |
|

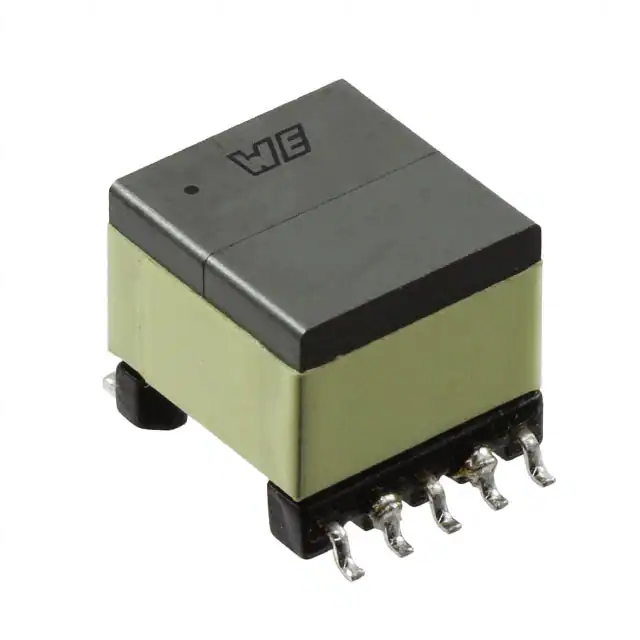

750315126XFMR FLYBACK DC/DC CONV 40UH SMD |
121 | 3.28 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8304 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 40µH @ 10kHz | 150 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
