Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

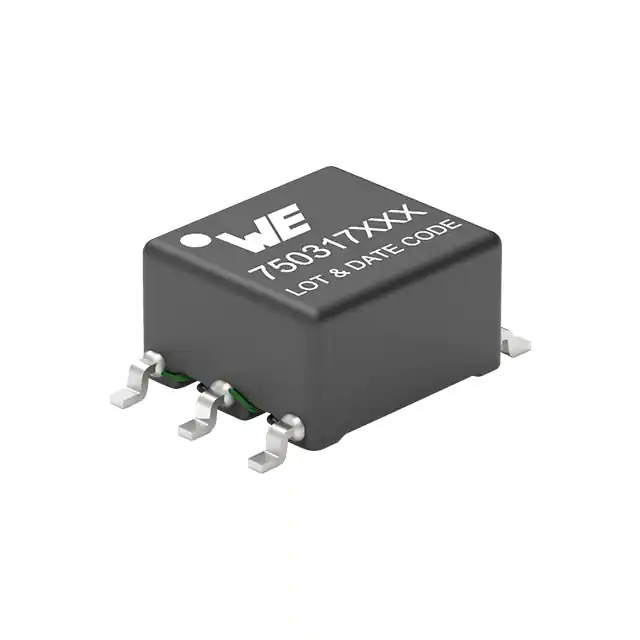

750317331XFMR FWD P-P DC/DC CONV 1MH SMD |
812 | 3.22 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 24V | - | 2500Vrms | 1mH @ 10kHz | 300 ~ 620kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.281" L x 0.265" W (7.14mm x 6.73mm) | 0.165" (4.19mm) | 0.402" L x 0.265" W (10.20mm x 6.73mm) | - |
|
750318525XFMR FLYBCK DC/DC CONV 4.16UH SM |
1,275 | 4.15 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Analog Devices, Inc | 36 ~ 57V | 10.5V | 1500Vrms | 4.16µH @ 1kHz, 21.1µH @ 1kHz, 150µH @ 1kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.719" L x 0.550" W (18.25mm x 13.97mm) | 0.571" (14.50mm) | 0.719" L x 0.550" W (18.25mm x 13.97mm) | - |
|
750316856XFMR FWD P-P DC/DC CONV 200UH SM |
3,037 | 4.49 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.327" W (11.43mm x 8.30mm) | 0.165" (4.20mm) | 0.581" L x 0.327" W (14.75mm x 8.30mm) | - |
|
|
750316854XFMR FWD P-P DC/DC CONV 200UH SM |
435 | 4.49 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.327" W (11.43mm x 8.30mm) | 0.165" (4.20mm) | 0.581" L x 0.327" W (14.75mm x 8.30mm) | - |
2-Series.jpg)
|

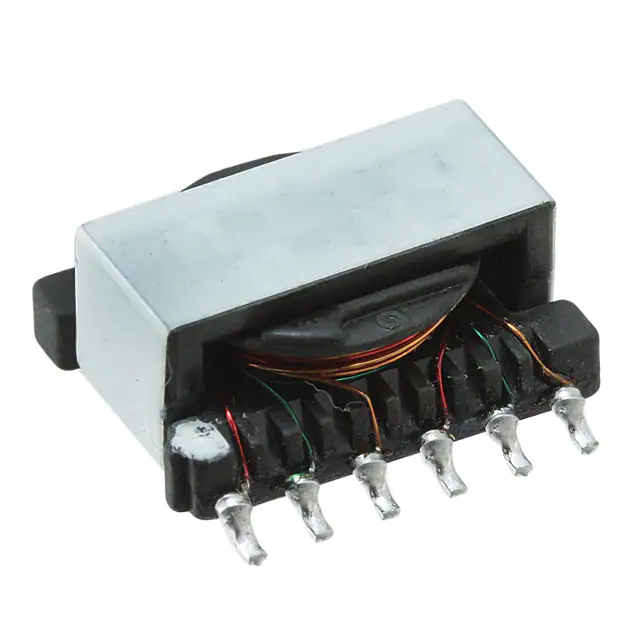

VPH2-0116-RXFMR 11.6UH SMD |
25,276 | 6.73 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.661" W (16.30mm x 16.80mm) | 0.307" (7.80mm) | - | - |
|
750316030XFMR FWD P-P DC/DC CONV SMD |
187 | 3.76 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 4.5 ~ 5.5V | - | 3125Vrms | - | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.327" L x 0.364" W (8.30mm x 9.25mm) | 0.161" (4.10mm) | - | - |
|

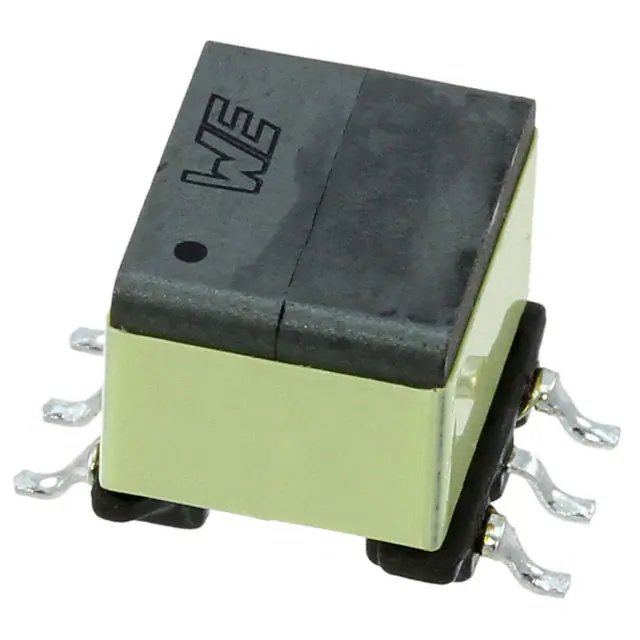

750314597XFMR ISOL BUCK DC/DC CON 60UH SM |
885 | 3.57 |
|
Datasheet |
MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | 10 ~ 40V | - | 1500Vrms | 60µH @ 10kHz | 150kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.345" (8.76mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
PA3855.003NLTXFMR FLYBACK DC/DC CONV SMD |
2,006 | 4.22 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
750314781XFMR P-P DC/DC CONV 40UH SMD |
449 | 0.00 |
|
Datasheet |
WE-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Push-Pull Converters | - | - | 9 ~ 15V | - | 1000V | 40µH @ 10kHz | 1MHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | - | Laminated Core |
|
13324-T086XFMR 40UH SMD |
4,420 | 4.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | 4 ~ 36V | - | 1500Vrms | 40µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.591" L x 0.531" W (15.00mm x 13.50mm) | 0.492" (12.50mm) | 0.709" L x 0.531" W (18.00mm x 13.50mm) | - |
|
|

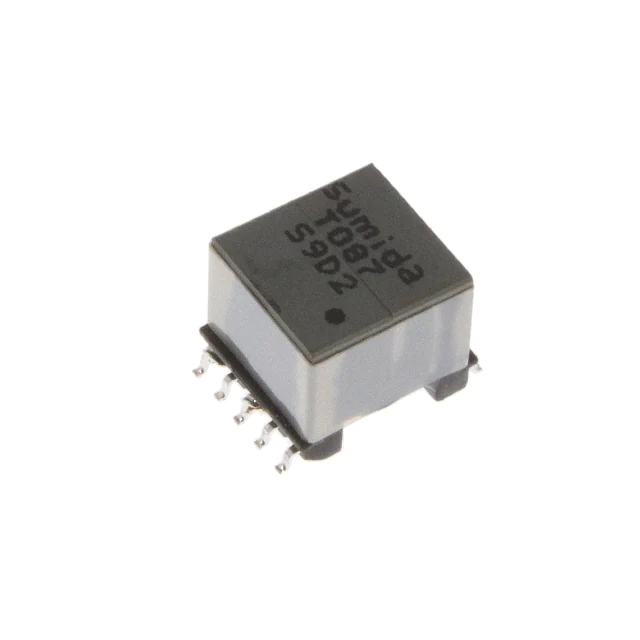

13324-T087XFMR 40UH SMD |
2,229 | 4.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | 4 ~ 18V | - | 1500Vrms | 40µH @ 100kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.591" L x 0.531" W (15.00mm x 13.50mm) | 0.492" (12.50mm) | 0.709" L x 0.531" W (18.00mm x 13.50mm) | - |
|
750313457XFMR FLYBACK DC/DC CONV 9UH SMD |
141 | 3.88 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 9µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
13324-T083XFMR 40UH SMD |
600 | 4.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | 36 ~ 75V | - | 1500Vrms | 40µH @ 100kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.591" L x 0.531" W (15.00mm x 13.50mm) | 0.492" (12.50mm) | 0.709" L x 0.531" W (18.00mm x 13.50mm) | - |
|
750312367XFMR FLYBACK DC/DC CONV 300UH SM |
2,280 | 4.17 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 22 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.342" (8.69mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
|
750313441XFMR FLYBACK DC/DC CONV 9UH SMD |
571 | 3.88 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 9µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|

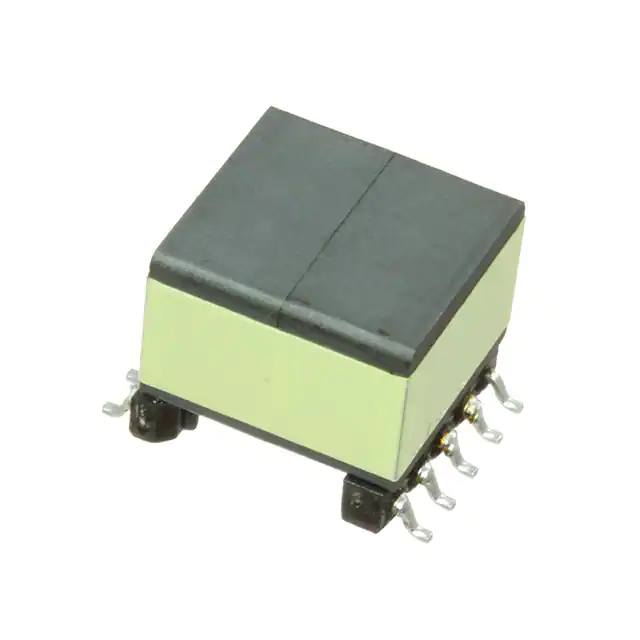

750311681XFMR FLYBACK DC/DC CONV 100UH SM |
157 | 4.40 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | - | 12V | - | 1500Vrms | 100µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.699" W (13.46mm x 17.75mm) | 0.500" (12.70mm) | - | - |
|
750312559XFMR FLYBACK DC/DC CONV 300UH SM |
523 | 4.17 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.342" (8.69mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|

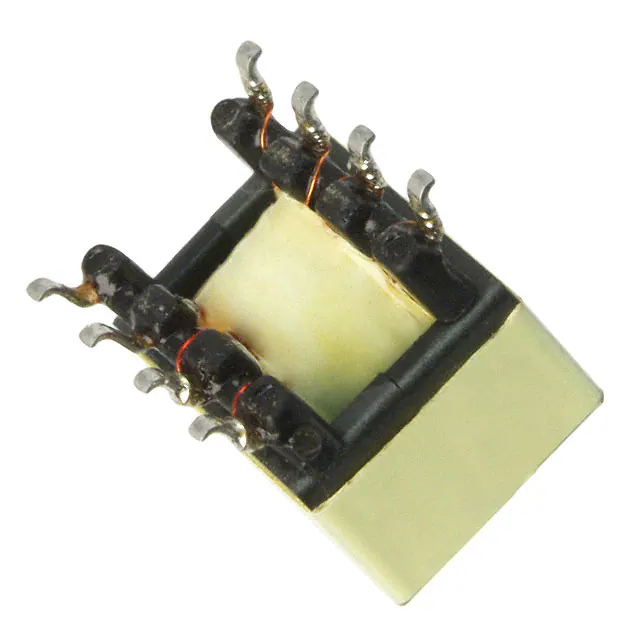

750311692XFMR FLYBACK DC/DC CONV 80UH SMD |
881 | 5.50 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 8 ~ 15V | - | 1500Vrms | 80µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.67mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|

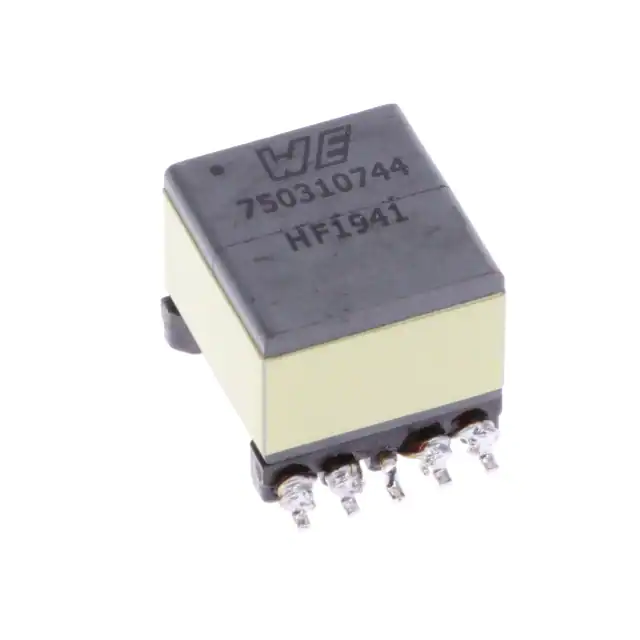

750310744XFMR POE DC/DC CONV 38UH SMD |
188 | 5.35 |
|
Datasheet |
WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 37 ~ 57V | 12V @ 30mA | 1500Vrms | 38µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|

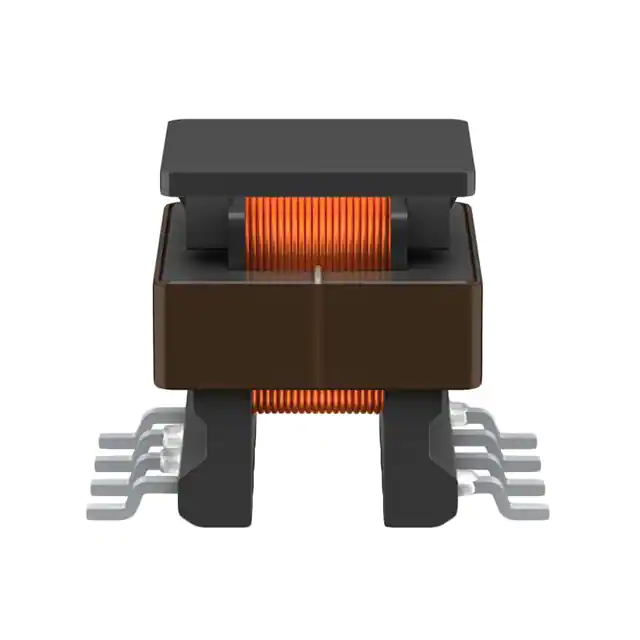

B78307A2276A003XFMR 100UH SMD |
5,019 | 8.02 |
|
Datasheet |
E10 EM | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | 100µH @ 50kHz | 100 ~ 400kHz | -40°C ~ 150°C | Automotive | AEC-Q200 | Surface Mount | - | - | - | - |
