Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750315371XFMR FWD P-P DC/DC CONV 72UH SMD |
6,728 | 2.50 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6505B | Texas Instruments | 4.5 ~ 5.5V | - | 2500Vrms | 72µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.327" L x 0.364" W (8.30mm x 9.25mm) | 0.161" (4.10mm) | 0.327" L x 0.496" W (8.30mm x 12.60mm) | - |
|

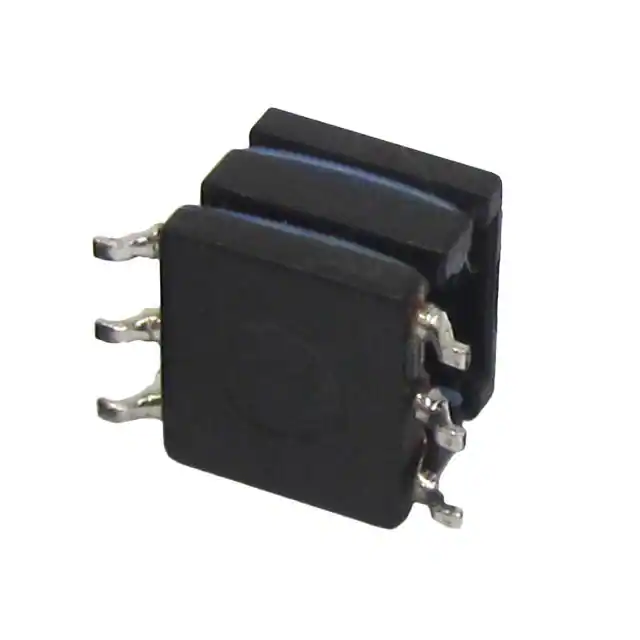

750313626XFMR FWD P-P DC/DC CONV 340UH SM |
3,692 | 3.25 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 5000Vrms | 340µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.305" (7.75mm) | 0.360" L x 0.500" W (9.14mm x 12.70mm) | - |
|
|
750313734XFMR FWD P-P DC/DC CONV 340UH SM |
3,029 | 3.25 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 5000Vrms | 340µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.305" (7.75mm) | 0.360" L x 0.500" W (9.14mm x 12.70mm) | - |
|

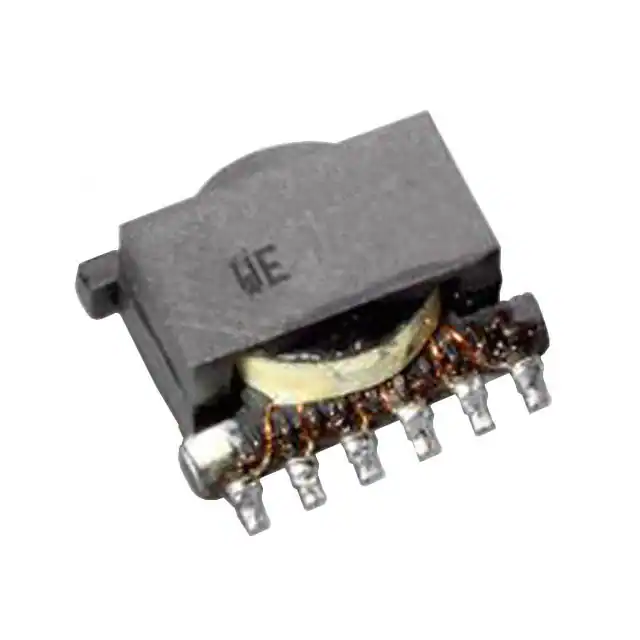

749196111XFMR FLEXIBLE CONFIG DC/DC SMD |
536 | 5.64 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.362" W (12.90mm x 9.20mm) | 0.244" (6.20mm) | 0.508" L x 0.559" W (12.90mm x 14.20mm) | - |
|
750313973XFMR FLYBACK DC/DC CONV 40UH SMD |
884 | 4.93 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8301 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 40µH @ 10kHz | 200 ~ 300kHz | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750313976XFMR FLYBACK DC/DC CONV 40UH SMD |
1,000 | 4.93 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8301 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 40µH @ 10kHz | 200 ~ 300kHz | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750313975XFMR FLYBACK DC/DC CONV 40UH SMD |
262 | 4.93 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8301 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 40µH @ 10kHz | 200 ~ 300kHz | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
1-Series.jpg)
|
VPH1-0190-RXFMR 27.4UH SMD |
690 | 5.79 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.512" W (12.90mm x 13.00mm) | 0.244" (6.20mm) | - | - |
|

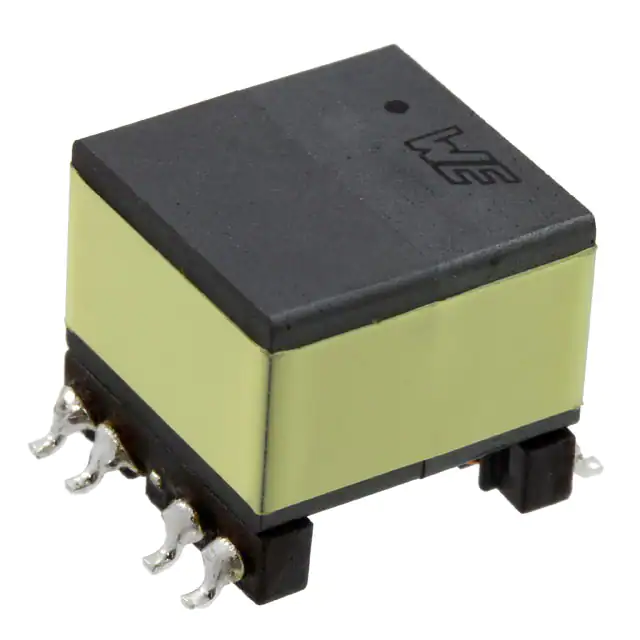

750312504XFMR CAP CHAR DC/DC 3.46UH SM |
3,538 | 5.62 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Capacitor Charger | LTC3300-1, LTC6804-2, LTC3300ILXE-1, LTC6803IG-2 | Linear Technology | - | - | 500VDC | 3.46µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|

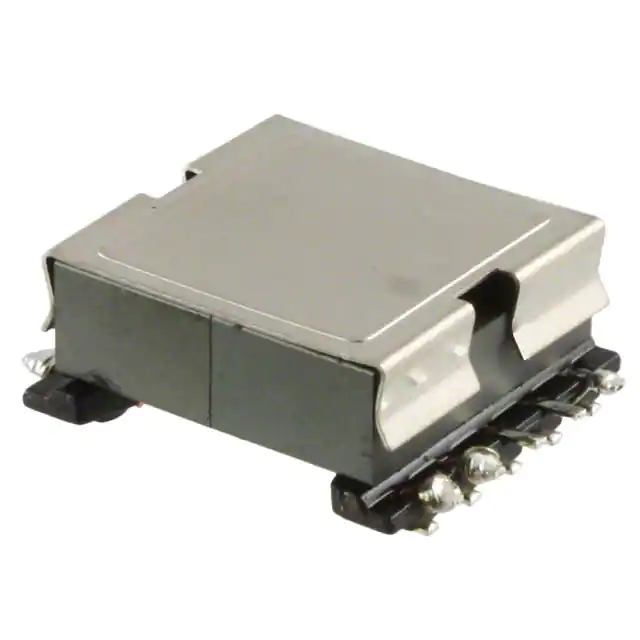

750032052XFMR CAP CHAR DC/DC CONV 10UH SM |
526 | 10.18 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Capacitor Charger | LT3751 | Linear Technology | 18 ~ 30V | - | 1000Vrms | 10µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.58mm) | 0.865" L x 1.130" W (21.97mm x 28.70mm) | - |
|
|
VP1-0190-RXFMR 12.2UH SMD |
14,404 | 5.78 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.512" W (12.90mm x 13.00mm) | 0.244" (6.20mm) | - | - |
|
|
750313972XFMR FLYBACK DC/DC CONV 40UH SMD |
988 | 5.50 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8301 | Linear Technology | 18 ~ 42V | - | 1500Vrms | 40µH @ 10kHz | 200 ~ 300kHz | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750313974XFMR FLYBACK DC/DC CONV 40UH SMD |
1,342 | 4.93 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8301 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 40µH @ 10kHz | 200 ~ 300kHz | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750311558XFMR FLYBACK DC/DC CONV 300UH SM |
646 | 6.21 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 35 ~ 75V | 5V | 1500Vrms | 300µH @ 10kHz | 200 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750314782XFMR POE DC/DC CONV 37UH SMD |
1,266 | 6.44 |
|
Datasheet |
MID-POELT | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | Linear Technology | 40 ~ 57V | - | 3000Vrms | 37µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.699" W (13.46mm x 17.75mm) | 0.500" (12.70mm) | - | - |
2-Series.jpg)
|
VPH2-0216-RXFMR 21.6UH SMD |
1,200 | 9.93 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.661" W (16.30mm x 16.80mm) | 0.307" (7.80mm) | - | - |
|

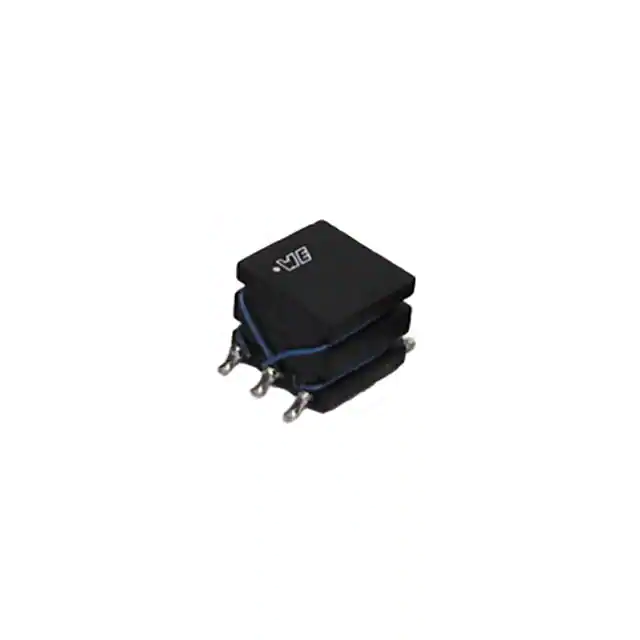

750343725XFMR DC/DC CONV 250UH SMD |
1,514 | 7.34 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | Texas Instruments | 5VDC | - | - | 250µH @ 100kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | 0.272" L x 0.480" W (6.91mm x 12.19mm) | Wirewound |
|
7491195112XFMR POE DC/DC CONV 41UH SMD |
1,038 | 7.39 |
|
Datasheet |
WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 10V | 1500Vrms | 41µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|

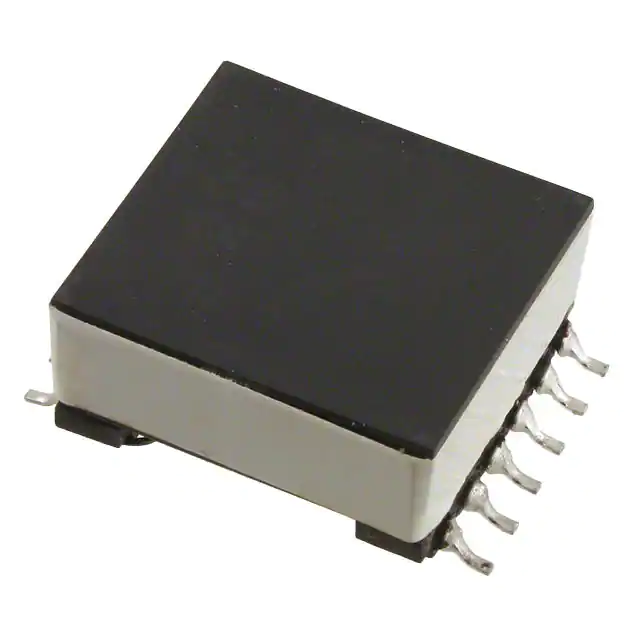

VP5-0155-RXFMR 9.9UH SMD |
766 | 8.27 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|
750311564XFMR FLYBCK DC/DC CONV 9.07UH SM |
9,904 | 9.08 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 10 ~ 40V | 8V @ 20mA | 1500Vrms | 9.07µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
