Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7508110151XFMR FLYBACK AC/DC CONV 1.5MH TH |
1,284 | 3.85 |
|
Datasheet |
WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | UCC287xx, UCC289xx | Texas Instruments | 120 ~ 375V | 15V | 4000Vrms | 1.5mH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.505" (12.83mm) | 0.550" L x 0.550" W (13.97mm x 13.97mm) | - |
|
750311486XFMR FLYBACK DC/DC CONV 100UH SM |
2,606 | 5.50 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 12V | 4V @ 20mA | 1500Vrms | 100µH @ 50kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|

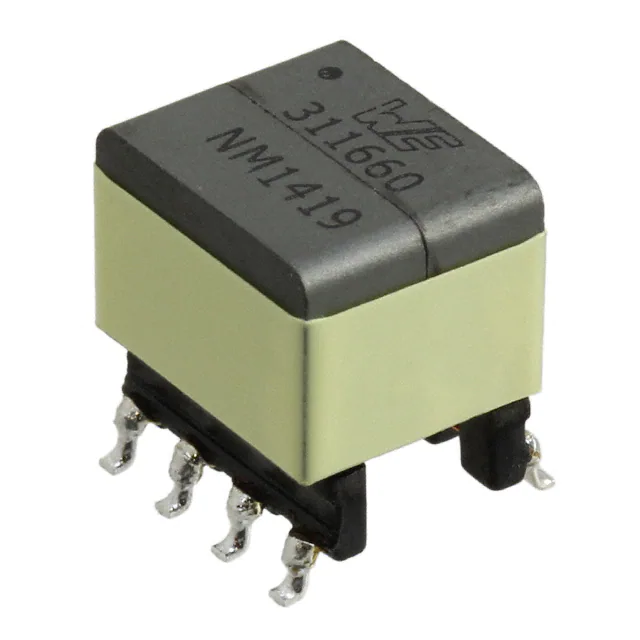

750311660XFMR FLYBACK DC/DC CONV 350UH SM |
1,215 | 4.54 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | 5V @ 20mA | 1500Vrms | 350µH @ 100kHz | 190kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750320340XFMR FWD P-P DC/DC CONV 200UH SM |
597 | 0.00 |
|
Datasheet |
WE-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 5V | - | 6000Vrms | 200µH @ 100kHz | 220kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | Laminated Core |
|

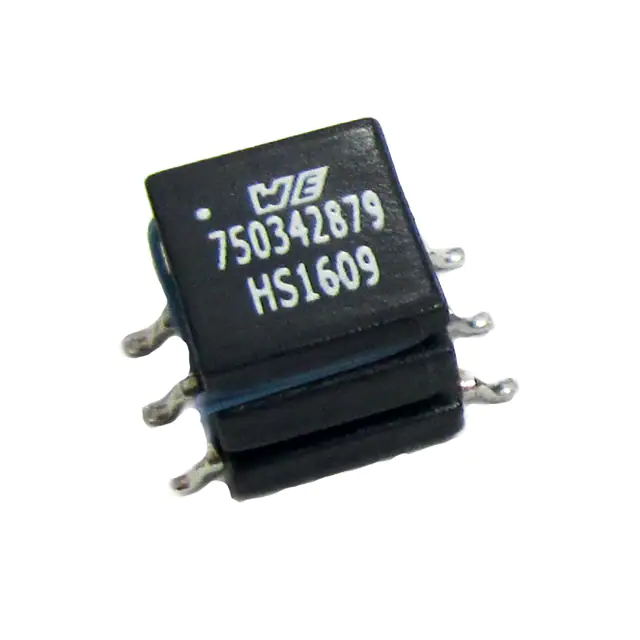

750342879XFMR FWD P-P DC/DC CONV 50UH SMD |
2,934 | 4.87 |
|
Datasheet |
WE-FB, MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 3750Vrms | 50µH @ 100kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|

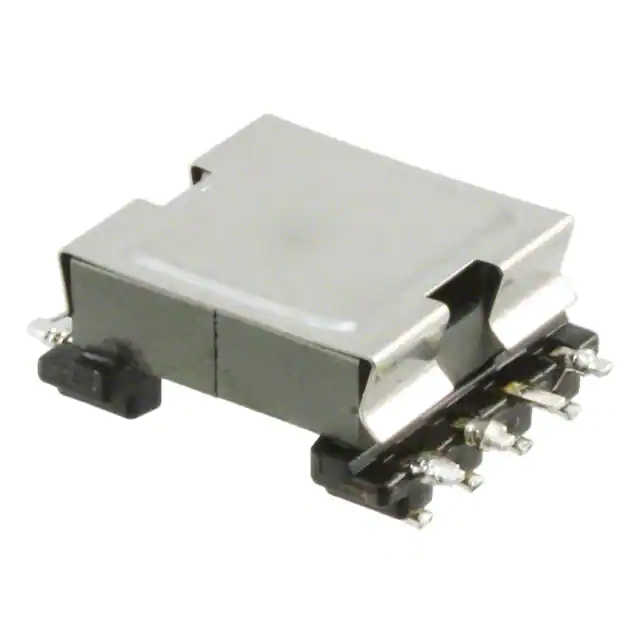

750032050XFMR FLYBACK DC/DC CONV 10UH SMD |
966 | 4.82 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3751, LT3750 | Linear Technology | 3 ~ 24V | - | 1000VDC | 10µH @ 10kHz | 100 ~ 400kHz | - | - | - | Surface Mount | 0.709" L x 0.695" W (18.01mm x 17.65mm) | 0.375" (9.53mm) | 0.709" L x 0.910" W (18.01mm x 23.11mm) | - |
|
PA5112.003NLTXFMR FLYBACK DC/DC CONV 155UH SM |
665 | 5.38 |
|
Datasheet |
PA5112.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 3000Vrms | 155µH @ 140kHz | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
750313109XFMR POE DC/DC CONV SMD |
1,361 | 5.27 |
|
Datasheet |
MID-POELT | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | Linear Technology | 36 ~ 57V | 12V @ 10mA | 3000Vrms | - | 132kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.360" W (9.77mm x 9.14mm) | - | - | - |
|

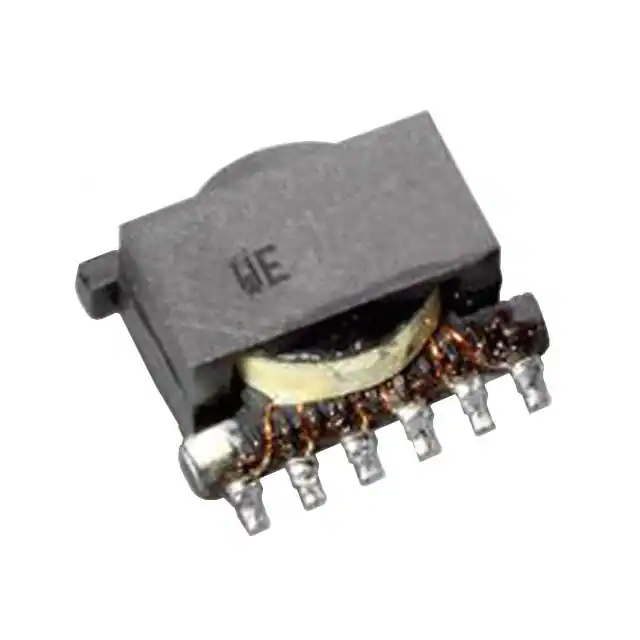

749196101XFMR FLEXIBLE CONFIG DC/DC SMD |
161 | 5.64 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.362" W (12.90mm x 9.20mm) | 0.244" (6.20mm) | 0.508" L x 0.559" W (12.90mm x 14.20mm) | - |
|

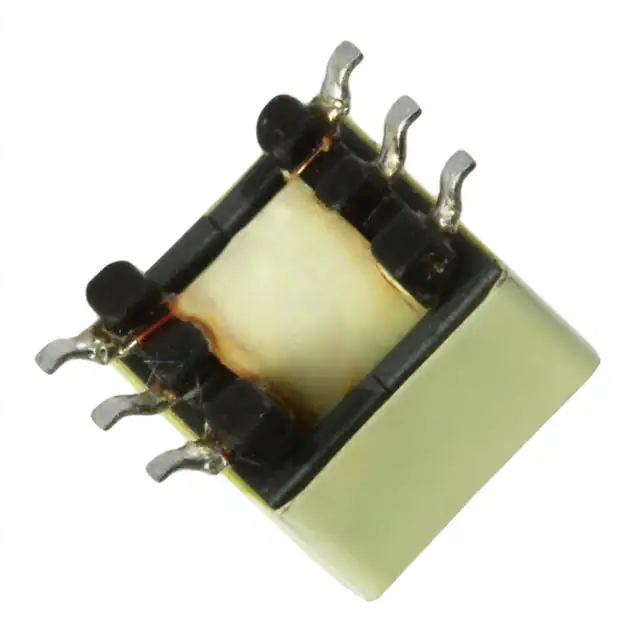

750311691XFMR FLYBACK DC/DC CONV 60UH SMD |
252 | 5.50 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 8 ~ 15V | - | 1500Vrms | 60µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.225" (5.72mm) | 0.260" L x 0.325" W (6.60mm x 8.26mm) | - |
|

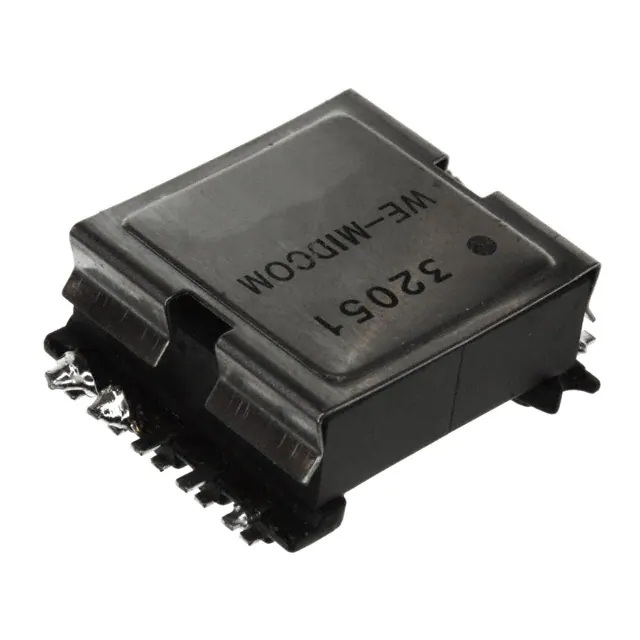

750032051XFMR CAP CHAR DC/DC CONV 10UH SM |
359 | 10.18 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Capacitor Charger | LT3751 | Linear Technology | 18 ~ 30V | - | 1000Vrms | 10µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.58mm) | 0.865" L x 1.130" W (21.97mm x 28.70mm) | - |
|

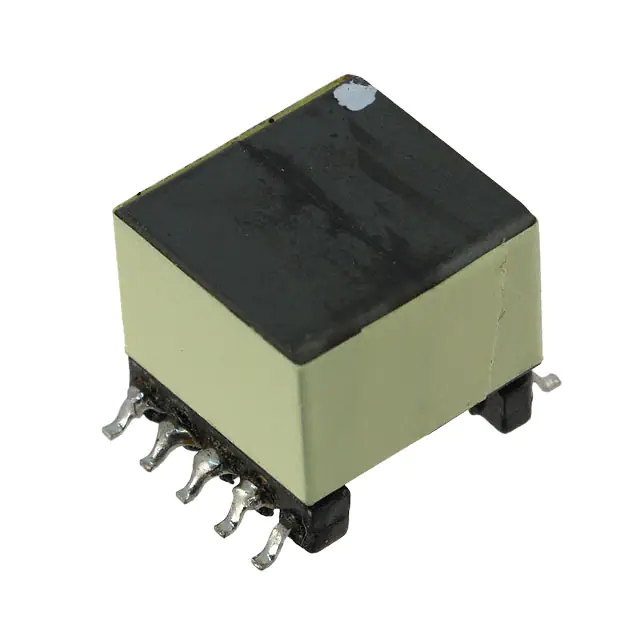

7491199112XFMR POE DC/DC CONV 127UH SMD |
634 | 6.02 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 34 ~ 72V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
|
749119950XFMR POE DC/DC CONV 127UH SMD |
191 | 6.02 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 36 ~ 57V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | 200 ~ 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
7491194912XFMR POE DC/DC CONV 42UH SMD |
137 | 6.02 |
|
Datasheet |
WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V | 1500Vrms | 42µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.910" L x 1.044" W (23.11mm x 26.52mm) | 0.450" (11.43mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
750313769XFMR FWD P-P DC/DC CONV 340UH SM |
9,624 | 3.25 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 5000Vrms | 340µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.305" (7.75mm) | 0.360" L x 0.500" W (9.14mm x 12.70mm) | - |
|
750310355XFMR CAP CHAR DC/DC 2.5UH TH |
228 | 12.10 |
|
Datasheet |
WE-FB | Tray | Active | For DC/DC Converters | Capacitor Charger | LT3751 | Linear Technology | 18 ~ 30V | - | 1000Vrms | 2.5µH @ 50kHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.910" (23.11mm) | 1.437" L x 1.653" W (36.50mm x 42.00mm) | - |
|

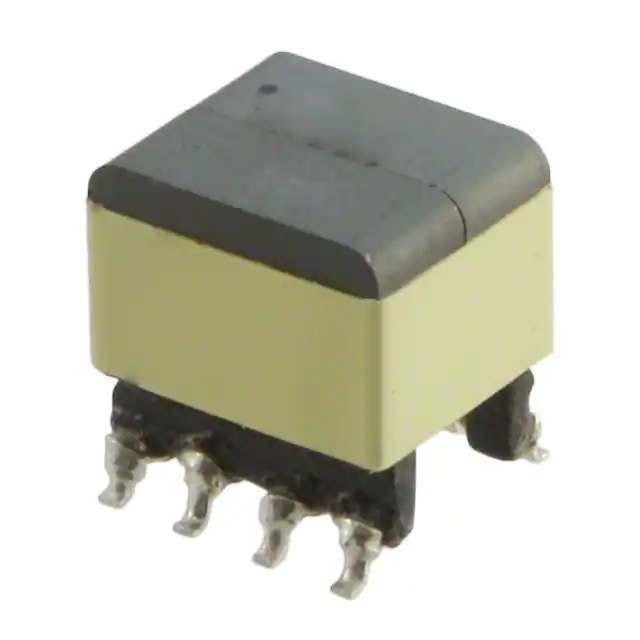

750311880XFMR FLYBACK DC/DC CONV 2.5UH SM |
237 | 5.62 |
|
Datasheet |
WE-FB, MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | TPS55010 | Texas Instruments | 3 ~ 6V | - | 2500Vrms | 2.5µH @ 100kHz | 200 ~ 600kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.67mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|

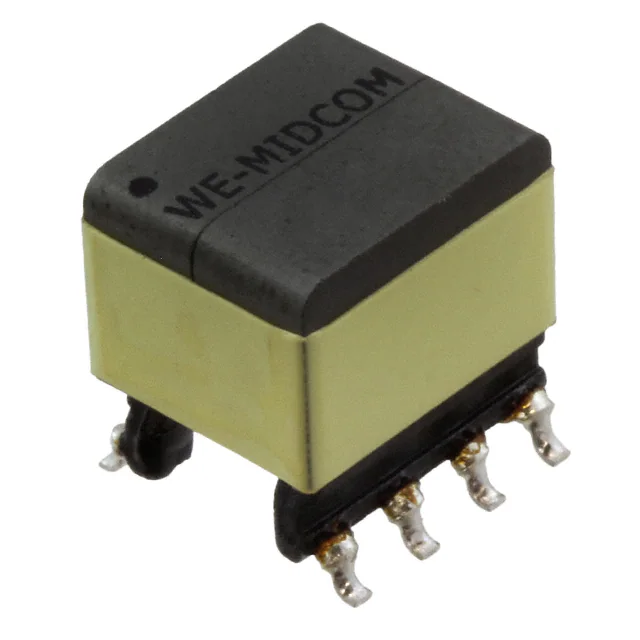

750311838XFMR FLYBACK DC/DC CONV 350UH SM |
173 | 5.39 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 350µH @ 100kHz | 190kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750315125XFMR FLYBACK DC/DC CONV 40UH SMD |
1,131 | 3.74 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8304 | Linear Technology | 18 ~ 72V | - | 1500Vrms | 40µH @ 10kHz | 150 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|

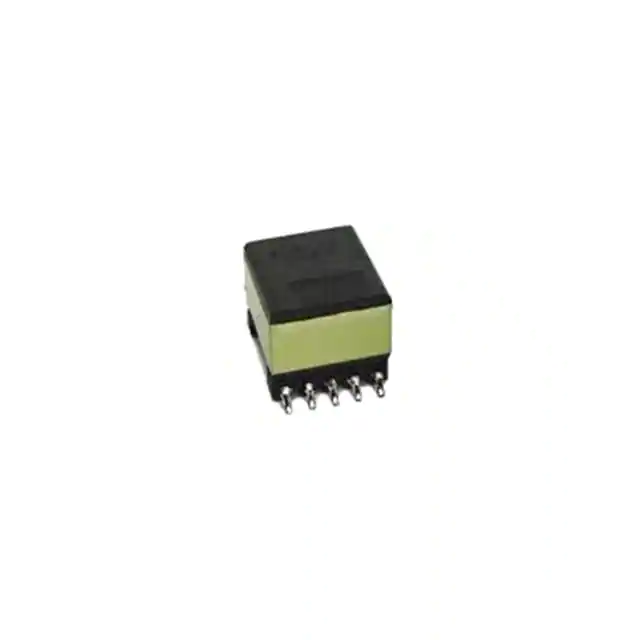

750315839XFMR FLYBACK DC/DC CONV 40UH SMD |
852 | 5.49 |
|
Datasheet |
MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8304 | Linear Technology | 4 ~ 36V | - | 1500Vrms | 40µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | - | - |
