Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGMR-450V8LFTRISO MOD DC 1C:1C 22VUS 4.5KV 8P |
4,426 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-420V8LFTRISO MOD DC 1:0.375C 18VUS 4.5KV |
4,099 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-430V8LFTRISO MOD DC 1C:0.75C 18VUS 4.5KV |
2,216 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-440V8LFTRISO MOD DC 1C:1.33C 20VUS 4.5KV |
1,783 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|

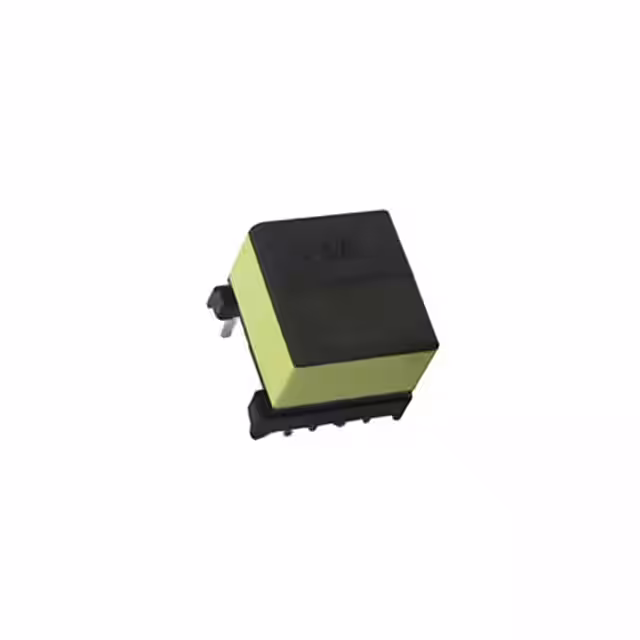

750312870XFMR FLYBACK AC/DC CONV TH |
1,269 | 4.94 |
|
Datasheet |
WE-UNIT, MID-OLNXP | Tray | Active | For AC/DC Converters | Flyback Converters | - | NXP Semiconductors | - | - | 4000Vrms | - | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.500" (12.70mm) | - | - |
|
750845150XFMR LED DR AC/DC CONV 2.7MH TH |
3,994 | 4.93 |
|
Datasheet |
WE-FB, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TPS92310 | Texas Instruments | 196 ~ 264V | 22V @ 10mA | 3000Vrms | 2.7mH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.744" L x 0.862" W (18.90mm x 21.90mm) | 0.605" (15.37mm) | 0.744" L x 0.862" W (18.90mm x 21.90mm) | - |
|

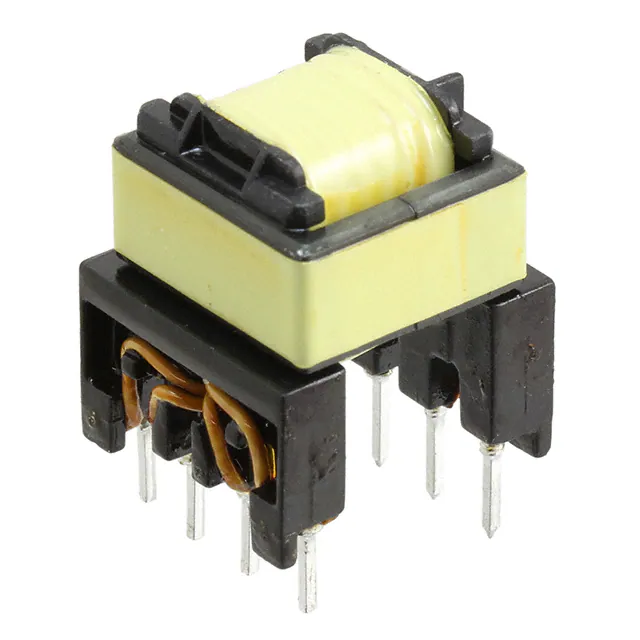

750313747XFMR ISOL AC/DC CONV 960UH TH |
3,165 | 4.03 |
|
Datasheet |
WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | Isolation | - | - | 85 ~ 265V | 20V | 3500Vrms | 960µH @ 100kHz | 68 ~ 110kHz | -40°C ~ 125°C | - | - | Through Hole | 0.591" L x 0.620" W (15.00mm x 15.75mm) | 0.732" (18.59mm) | 0.591" L x 0.620" W (15.00mm x 15.75mm) | - |
|
750311019XFMR FLYBACK DC/DC CONV 400UH SM |
2,844 | 3.41 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 35 ~ 75V | 6.6V | 1500Vrms | 400µH @ 10kHz | 200 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|

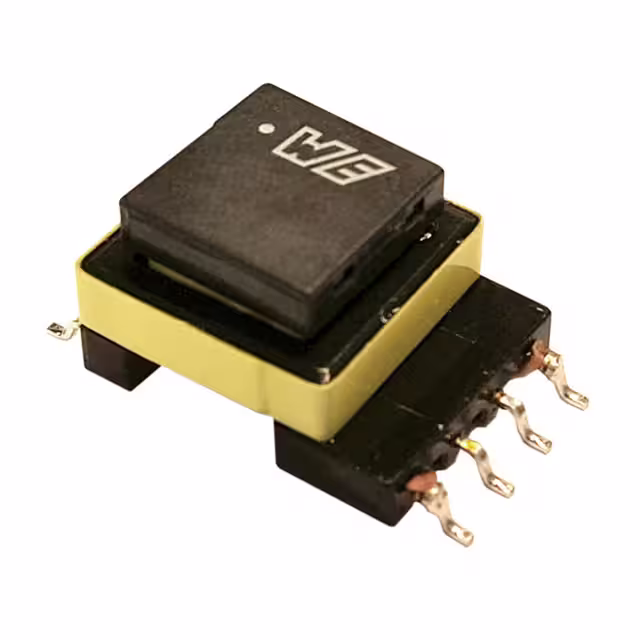

7508170313XFMR FLYBACK AC/DC CONV 592UH SM |
3,727 | 3.24 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 592µH @ 10kHz | 150kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|
|
TGM-440NFRLTRISO MOD DC MAX253 1C:1.33C 11VUS |
1,101 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.475" L x 0.455" W (12.07mm x 11.56mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGM-450NFRLTRISO MOD DC MAX253 1C:1C 11VUS 4. |
1,324 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.475" L x 0.455" W (12.07mm x 11.56mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGM-410NFRLTRISO MOD DC MAX253 1C:0.5C 11VUS |
2,317 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.475" L x 0.455" W (12.07mm x 11.56mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGM-420NFRLTRISO MOD DC MAX253 1C:0.375C |
2,613 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.475" L x 0.455" W (12.07mm x 11.56mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGM-430NFRLTRISO MOD DC MAX253 1C:0.75C |
1,115 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.475" L x 0.455" W (12.07mm x 11.56mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
760370111XFMR FLYBACK |
4,739 | 4.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TGMR-H540V8LFISO MOD DC 1:1:1.375:1.375 25VUS |
3,348 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGRAD-560V8LFISO MOD DC 1C:2C 14VUS 5KV SMD |
1,523 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | - | ADUM4070 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
750342878XFMR FLYBACK DC/DC CONV 50UH SMD |
4,572 | 3.46 |
|
Datasheet |
MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 17 ~ 36V | 7V @ 200mA | 1500Vrms | 50µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.67mm) | 0.385" L x 0.374" W (9.78mm x 9.50mm) | - |
|
|
750342859XFMR FLYBACK DC/DC CONV 50UH SMD |
1,294 | 5.76 |
|
Datasheet |
MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 17 ~ 36V | 15V @ 200mA | 1875Vrms | 50µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750310059XFMR POE DC/DC CONV SMD |
3,752 | 4.25 |
|
Datasheet |
WE-PoE, MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | - | 1875Vrms | - | 200kHz | - | - | - | Surface Mount | - | - | - | - |
