Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

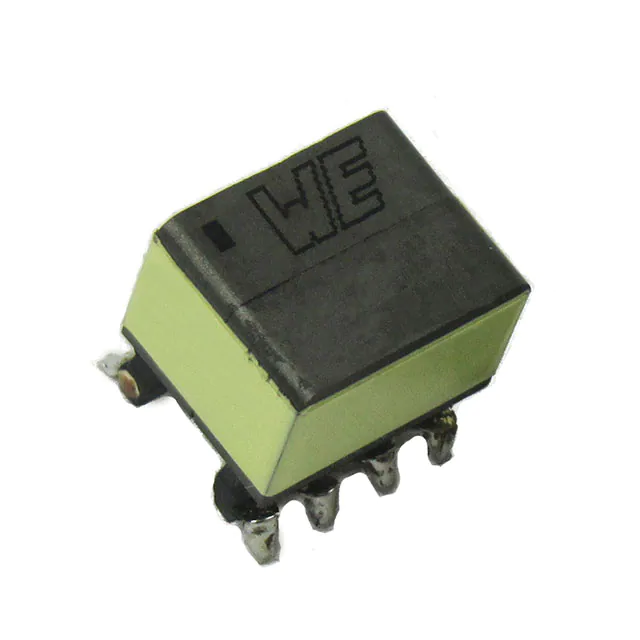

750342156XFMR FLYBACK DC/DC CONV 66UH SMD |
1,881 | 3.01 |
|
Datasheet |
MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | FlyBuck™ | Texas Instruments | 15 ~ 40V | - | 1500Vrms | 66µH @ 50kHz | 600kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
B78334B1018A003XFMR DC/DC CONV 288.3UH SMD |
1,147 | 5.41 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1200Vrms | 288.3µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.472" L x 0.535" W (12.00mm x 13.60mm) | 0.252" (6.40mm) | 0.480" L x 0.535" W (12.20mm x 13.60mm) | - |
|
TGMR-H560V8LFISO MOD DC 1:1:2:2 1A 25VUS 4.5K |
3,092 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-H580V8LFISO MOD DC 1:1:2.67:2.67 1A |
3,021 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGRAD-590V8LFISO MOD DC 1C:3C 14VUS 5KV SMD |
4,830 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | - | ADUM4070 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
PA5179NLXFMR DC/DC CONV 4UH SMD |
2,086 | 0.00 |
|
Datasheet |
PA5179NL | Tray | Active | For DC/DC Converters | - | - | - | 2 ~ 8V | - | 1500Vrms | 4µH | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.451" (11.45mm) | 0.600" L x 0.516" W (15.24mm x 13.10mm) | Wirewound |
|

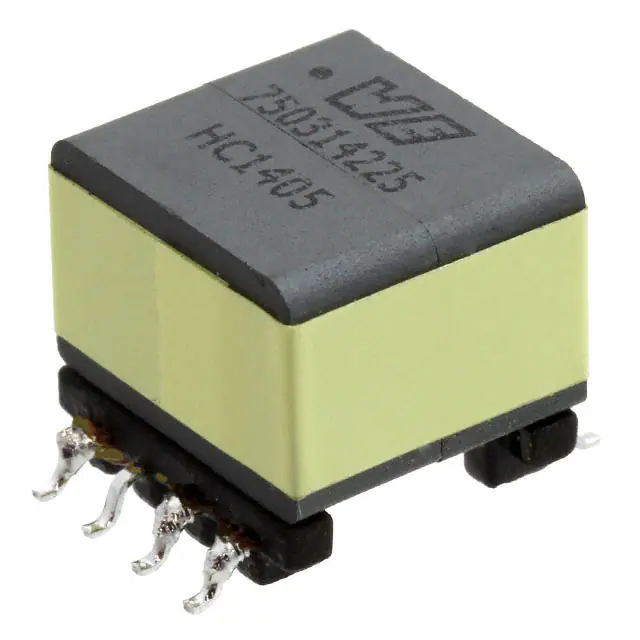

750314225XFMR FLYBACK DC/DC CONV 50UH SMD |
2,939 | 3.72 |
|
Datasheet |
WE-FB, MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | FlyBuck™ | Texas Instruments | 15 ~ 40V | - | 1500Vrms | 50µH @ 10kHz | 250 ~ 600kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
TGRAD-560V8LFTRISO MOD DC 1C:2C 14VUS 5KV SMD T |
3,441 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | ADUM4070 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
750311525XFMR LED DR AC/DC CONV 700UH TH |
3,385 | 5.26 |
|
Datasheet |
WE-UNIT, MID-OLNXP | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL2101 | NXP Semiconductors | 120 ~ 375V | - | 2000Vrms | 700µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.580" L x 0.580" W (14.73mm x 14.73mm) | 0.605" (15.37mm) | 0.580" L x 0.580" W (14.73mm x 14.73mm) | - |
|
750311992XFMR LED DR AC/DC CONV 1.2MH TH |
1,605 | 5.26 |
|
Datasheet |
- | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | CY8CLEDAC02 | Cypress Semiconductor Corp | 153 ~ 187V | 12.2V @ 10mA | 1500Vrms | 1.2mH @ 65kHz | 65kHz | -40°C ~ 125°C | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|

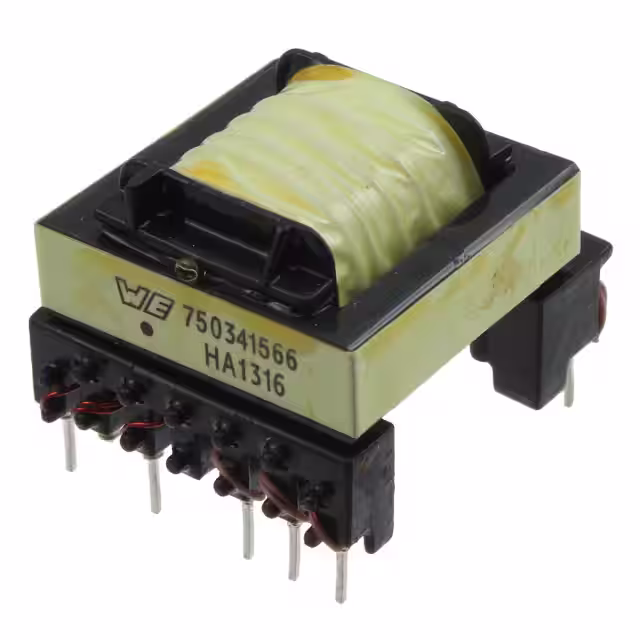

750341566XFMR FWD P-P AC/DC CONV 970UH TH |
4,870 | 5.26 |
|
Datasheet |
WE-FB, MID-OLON | Tray | Active | For AC/DC Converters | Forward, Push-Pull Converters | - | - | 45 ~ 600V | - | 3750Vrms | 970µH @ 10kHz | 67kHz | -55°C ~ 125°C | - | - | Through Hole | 1.065" L x 1.270" W (27.05mm x 32.25mm) | 0.871" (22.12mm) | 1.065" L x 1.270" W (27.05mm x 32.25mm) | - |
|
PA5131.002NLTXFMR FWD P-P DC/DC CONV SMD |
2,537 | 118.00 |
|
Datasheet |
PA5131XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
750316888XFMR FWD P-P DC/DC CONV 200UH SM |
1,075 | 5.24 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.327" W (11.43mm x 8.30mm) | 0.165" (4.20mm) | 0.581" L x 0.327" W (14.75mm x 8.30mm) | - |
|
|
TGMR-H580V8LFTRISO MOD DC 1:1:2.67:2.67 1A |
4,765 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-H560V8LFTRISO MOD DC 1:1:2:2 1A 25VUS |
3,600 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGRAD-590V8LFTRISO MOD DC 1C:3C 14VUS 5KV SMD T |
2,704 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | ADUM4070 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
750811612XFMR LED DR AC/DC CONV 800UH TH |
1,721 | 6.50 |
|
Datasheet |
MID-OLEFD | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 110kHz | -40°C ~ 125°C | - | - | Through Hole | 0.846" L x 1.142" W (21.50mm x 29.00mm) | 0.477" (12.12mm) | 0.846" L x 1.142" W (21.50mm x 29.00mm) | - |
|
|
750811614XFMR LED DR AC/DC CONV 800UH TH |
3,494 | 6.50 |
|
Datasheet |
MID-OLEFD | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 220kHz | -40°C ~ 125°C | - | - | Through Hole | 0.846" L x 1.142" W (21.50mm x 29.00mm) | 0.477" (12.12mm) | 0.846" L x 1.142" W (21.50mm x 29.00mm) | - |
|

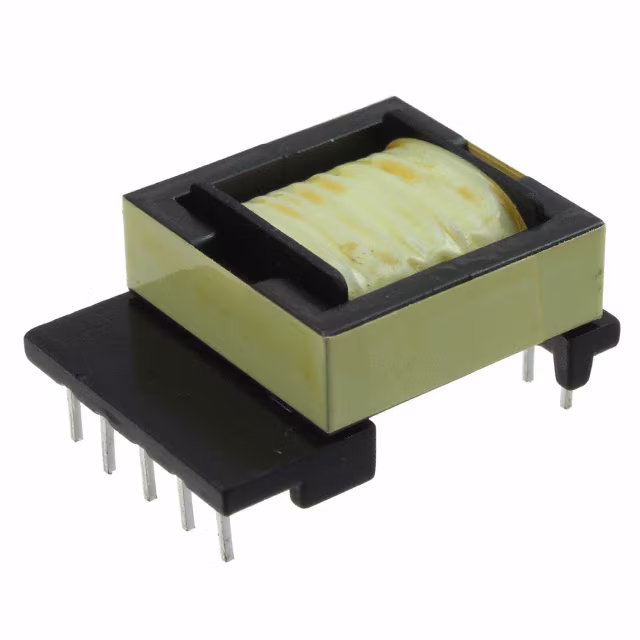

7508112512XFMR LED DR AC/DC CONV 800UH TH |
3,307 | 6.50 |
|
Datasheet |
MID-OLEFD | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 170kHz | -40°C ~ 125°C | - | - | Through Hole | 0.846" L x 1.142" W (21.50mm x 29.00mm) | 0.477" (12.12mm) | 0.846" L x 1.142" W (21.50mm x 29.00mm) | - |
|
7508112513XFMR LED DR AC/DC CONV 800UH SMD |
1,052 | 6.50 |
|
Datasheet |
MID-OLEFD | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 180kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.846" L x 1.142" W (21.50mm x 29.00mm) | 0.477" (12.12mm) | 0.846" L x 1.142" W (21.50mm x 29.00mm) | - |
