Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

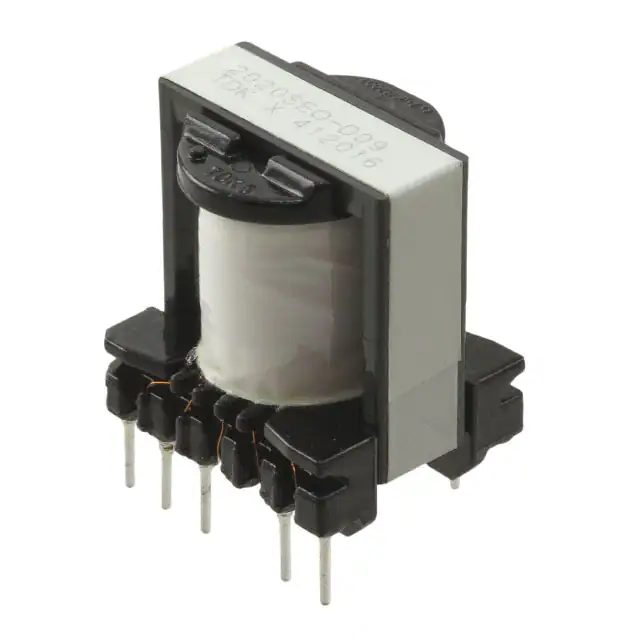

ECO2020SEO-D09V015XFMR FLYBCK AC/DC CONV 12.6MH TH |
2,591 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 154 ~ 312V | 12V @ 500mA | 2000Vrms | 12.6mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.886" L x 0.768" W (22.50mm x 19.50mm) | 1.063" (27.00mm) | 0.886" L x 0.768" W (22.50mm x 19.50mm) | - |
|
ECO2017SEO-D01V017XFMR FLYBCK AC/DC CONV 1.49MH TH |
4,874 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 75 ~ 326V | 5.7V @ 200mA, 12V @ 90mA, 12.8V @ 600mA, 15.2V @ 50mA | 1500Vrms | 1.49mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.768" L x 0.886" W (19.50mm x 22.50mm) | 0.945" (24.00mm) | 0.768" L x 0.886" W (19.50mm x 22.50mm) | - |
|

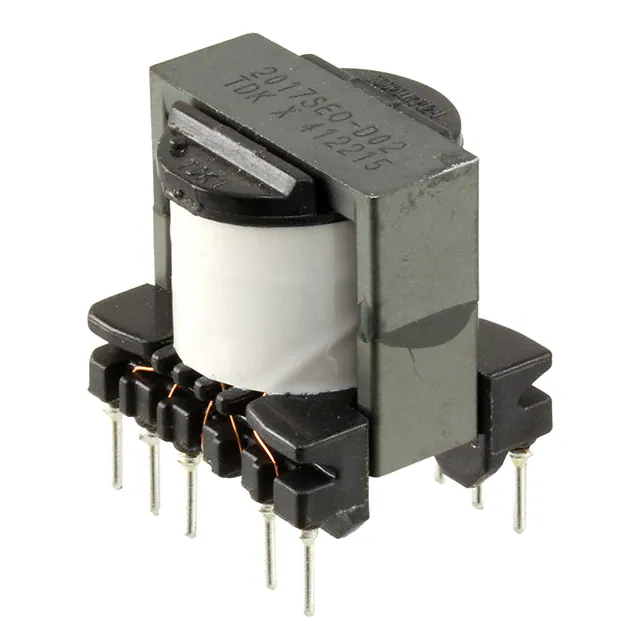

ECO2017SEO-D02V016XFMR FLYBACK AC/DC CONV 712UH TH |
3,597 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 80 ~ 144V | 12V @ 620mA | 3000Vrms | 712µH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 0.768" L x 0.886" W (19.50mm x 22.50mm) | 0.945" (24.00mm) | 0.768" L x 0.886" W (19.50mm x 22.50mm) | - |
|

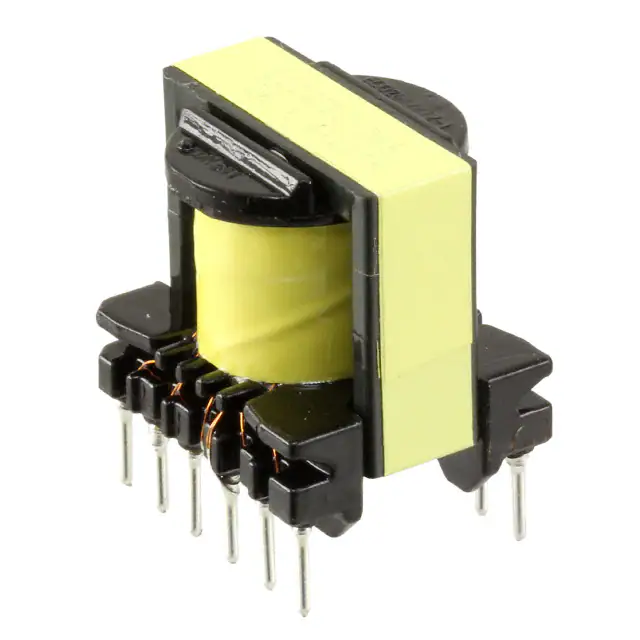

ECO2017SEO-D05V016XFMR FLYBACK AC/DC CONV 1.8MH TH |
2,363 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 169 ~ 312V | 5V @ 250mA, 15V @ 200mA | 3000Vrms | 1.8mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.768" L x 0.886" W (19.50mm x 22.50mm) | 0.945" (24.00mm) | 0.768" L x 0.886" W (19.50mm x 22.50mm) | - |
|

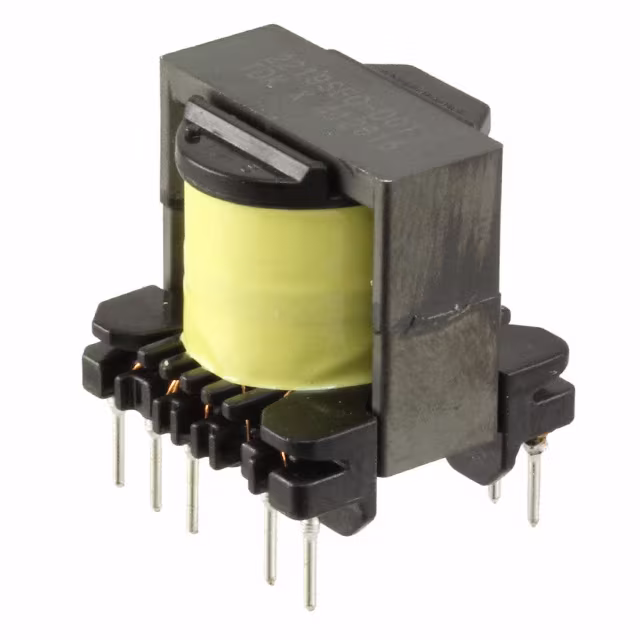

ECO2219SEO-D01V018XFMR FLYBACK AC/DC CONV 816UH TH |
4,027 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 8V @ 220mA, 8V @ 300mA, 12V @ 320mA | 2500Vrms | 816µH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.945" L x 0.906" W (24.00mm x 23.00mm) | 0.984" (25.00mm) | 0.945" L x 0.906" W (24.00mm x 23.00mm) | - |
|

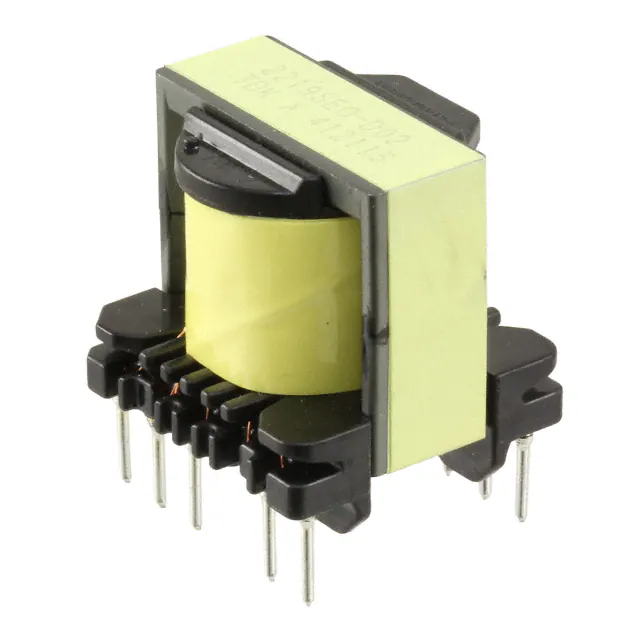

ECO2219SEO-D02V016XFMR FLYBCK AC/DC CONV 3.22MH TH |
4,048 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 264 ~ 373V | 5V @ 90mA, 12.4V @ 300mA | 1250Vrms | 3.22mH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 0.945" L x 0.906" W (24.00mm x 23.00mm) | 0.984" (25.00mm) | 0.945" L x 0.906" W (24.00mm x 23.00mm) | - |
|
ECO2219SEO-D03V017XFMR FLYBCK AC/DC CONV 1.77MH TH |
3,156 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 170 ~ 400V | 5V @ 110mA, 12V @ 540mA, 18V @ 30mA, 19V @ 20mA | 2000Vrms | 1.77mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.945" L x 0.906" W (24.00mm x 23.00mm) | 0.984" (25.00mm) | 0.945" L x 0.906" W (24.00mm x 23.00mm) | - |
|

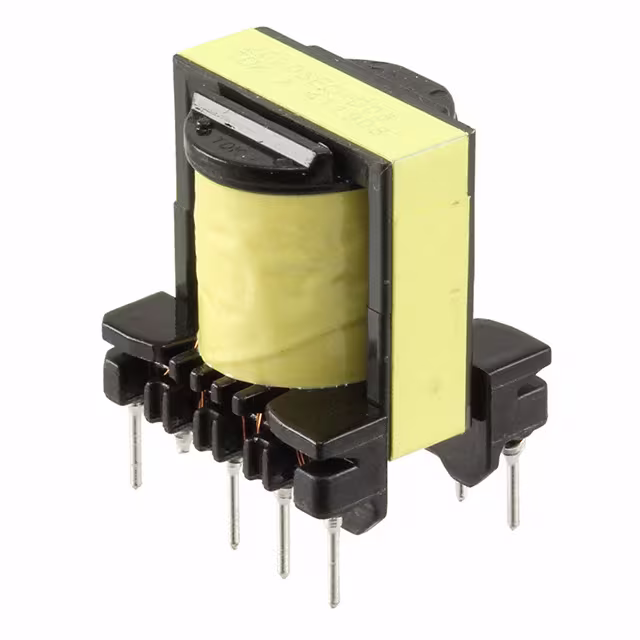

ECO2020SEO-D03V016XFMR FLYBACK AC/DC CONV 764UH TH |
2,640 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 12V @ 850mA, 17V @ 150mA | 3600Vrms | 764µH @ 100kHz | 124kHz | -30°C ~ 120°C | - | - | Through Hole | 0.886" L x 0.768" W (22.50mm x 19.50mm) | 1.063" (27.00mm) | 0.886" L x 0.768" W (22.50mm x 19.50mm) | - |
|

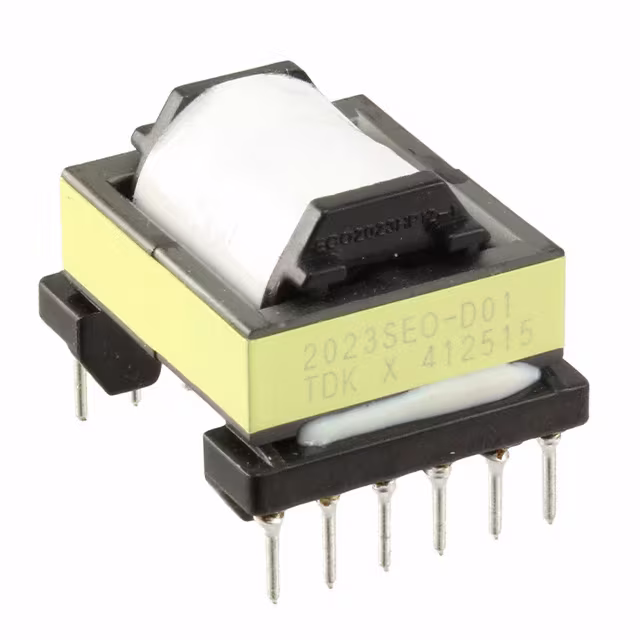

ECO2023SEO-D01H016XFMR FLYBACK AC/DC CONV 489UH TH |
2,729 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 12V @ 1.3A | 3000Vrms | 489µH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 0.925" L x 1.161" W (23.50mm x 29.50mm) | 0.787" (20.00mm) | 0.925" L x 1.161" W (23.50mm x 29.50mm) | - |
|

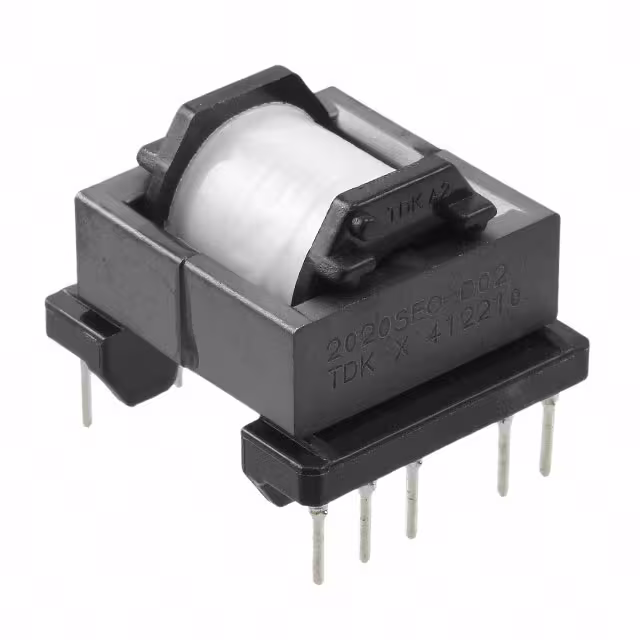

ECO2020SEO-D02H015XFMR FLYBACK AC/DC CONV 534UH TH |
4,729 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 75 ~ 326V | 12.7V @ 600mA | 1500Vrms | 534µH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.925" L x 1.063" W (23.50mm x 27.00mm) | 0.787" (20.00mm) | 0.925" L x 1.063" W (23.50mm x 27.00mm) | - |
|

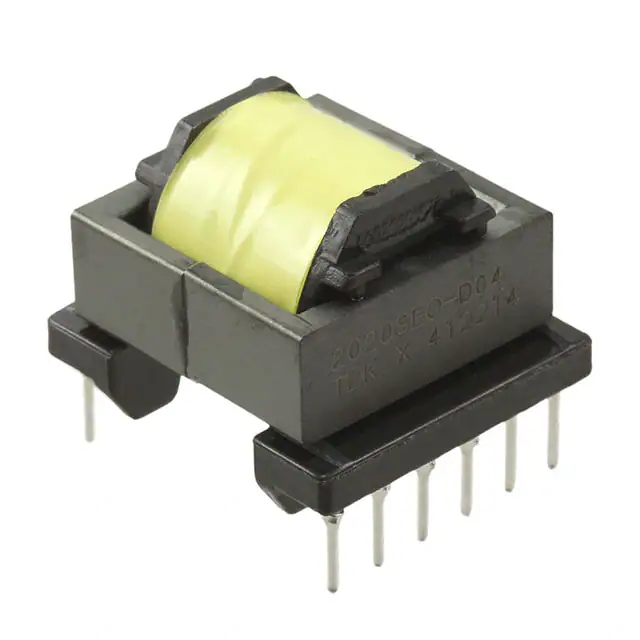

ECO2020SEO-D04H015XFMR FLYBACK AC/DC CONV 867UH TH |
2,456 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 96 ~ 144V | 12V @ 1.5A | 3000Vrms | 867µH @ 10kHz | 67kHz | -30°C ~ 120°C | - | - | Through Hole | 0.925" L x 1.063" W (23.50mm x 27.00mm) | 0.787" (20.00mm) | 0.925" L x 1.063" W (23.50mm x 27.00mm) | - |
|
ECO2020SEO-D06H015XFMR FLYBACK AC/DC CONV 1.3MH TH |
1,093 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 80 ~ 276V | 19.7V @ 267mA | 1500Vrms | 1.3mH @ 10kHz | 80kHz | -30°C ~ 120°C | - | - | Through Hole | 0.925" L x 1.063" W (23.50mm x 27.00mm) | 0.787" (20.00mm) | 0.925" L x 1.063" W (23.50mm x 27.00mm) | - |
|
ECO2020SEO-D07H016XFMR FLYBACK AC/DC CONV 1.3MH TH |
1,099 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 264V | 21.5V @ 465mA | 3600Vrms | 1.3mH @ 100kHz | 65kHz | -30°C ~ 120°C | - | - | Through Hole | 0.925" L x 1.063" W (23.50mm x 27.00mm) | 0.787" (20.00mm) | 0.925" L x 1.063" W (23.50mm x 27.00mm) | - |
|

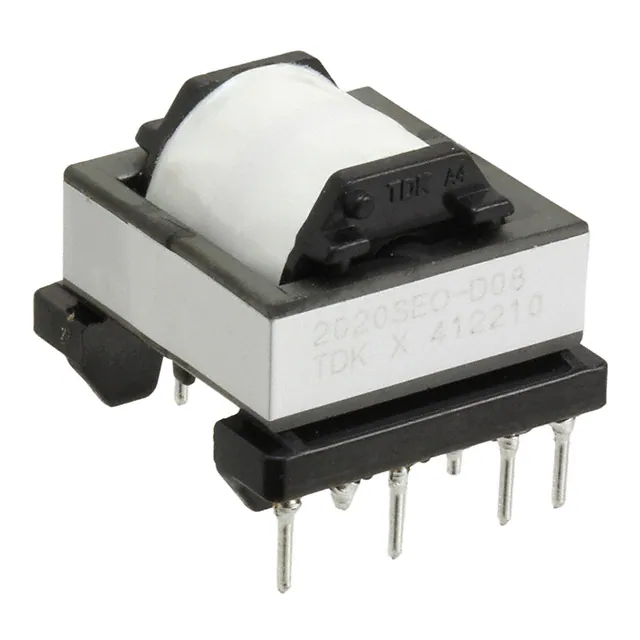

ECO2020SEO-D08H016XFMR FLYBACK AC/DC CONV 1.3MH TH |
1,218 | 4.45 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 264V | 30V @ 333mA | 3000Vrms | 1.3mH @ 100kHz | 65kHz | -30°C ~ 120°C | - | - | Through Hole | 0.925" L x 1.063" W (23.50mm x 27.00mm) | 0.787" (20.00mm) | 0.925" L x 1.063" W (23.50mm x 27.00mm) | - |
|
PA0273NLTXFMR FWD P-P DC/DC CONV SMD |
1,792 | 4.61 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 36 ~ 72V | 12V @ 100mA | 1500Vrms | - | 250kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.860" L x 0.930" W (21.84mm x 23.62mm) | 0.450" (11.43mm) | 0.860" L x 1.150" W (21.84mm x 29.21mm) | - |
|

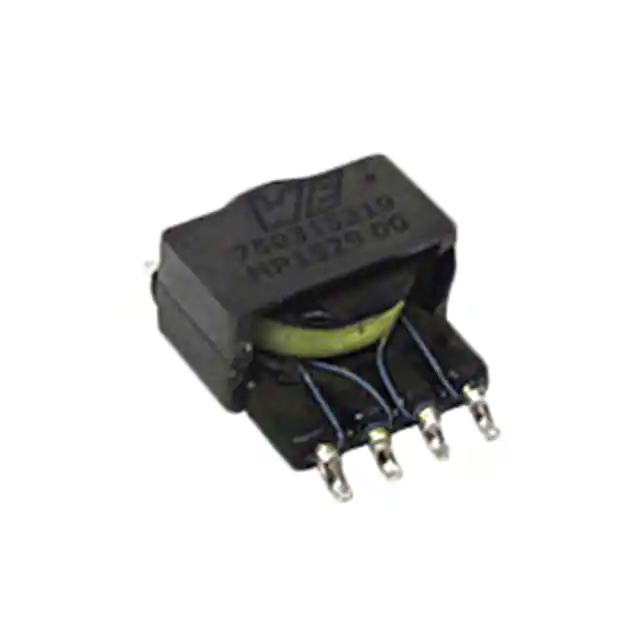

750315319XFMR FLYBACK DC/DC CONV 300UH SM |
4,309 | 3.45 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 24V | 12V @ 20mA | 3750Vrms | 300µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.197" (5.00mm) | - | - |
|
750311688XFMR FLYBACK DC/DC CONV 50UH SMD |
3,166 | 6.05 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 10V @ 20mA | 1500Vrms | 50µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|

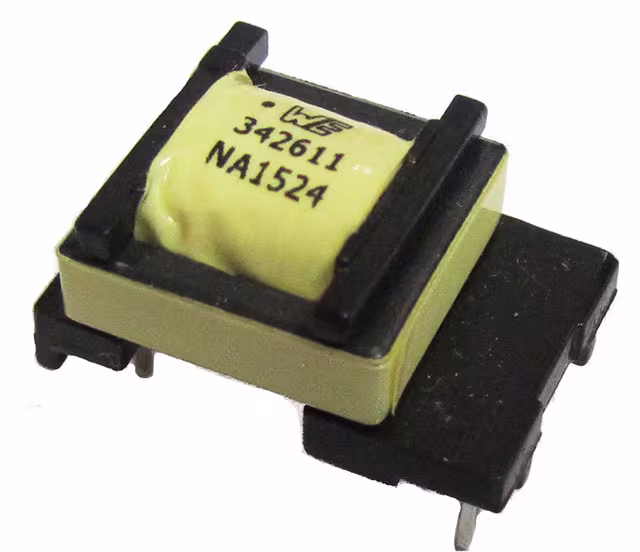

750342627XFMR ISOL BUCK DC/DC CONV SMD |
1,904 | 5.27 |
|
Datasheet |
MID-IBTI | Tray | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | - | - | 4500Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.630" (16.00mm) | - | - |
|

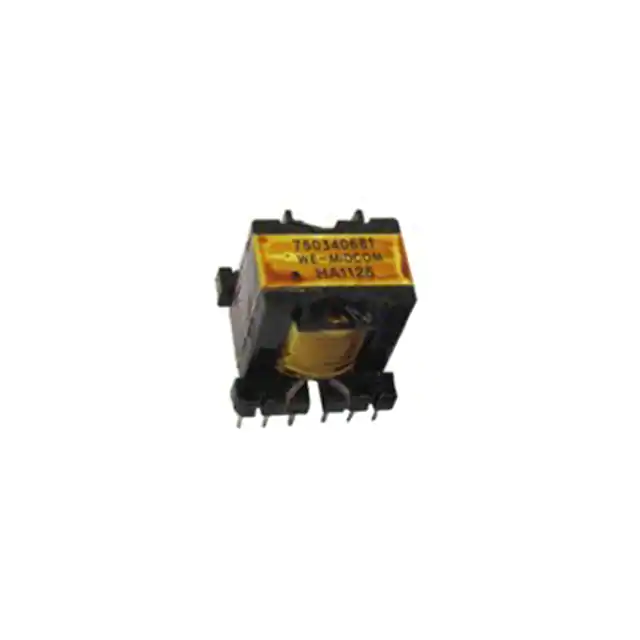

750340681XFMR FLYBACK DC/DC CONV SMD |
3,023 | 5.27 |
|
Datasheet |
MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | - | - | 3750Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|

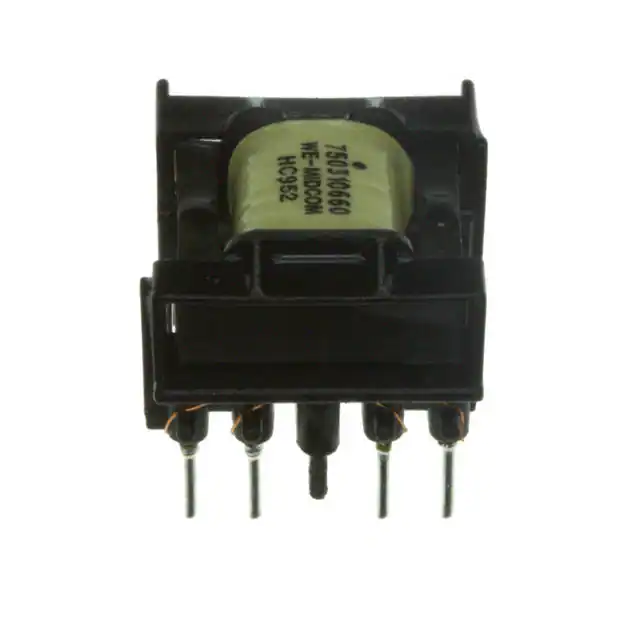

750310660XFMR FLYBACK AC/DC CONV 1.2MH TH |
4,403 | 4.03 |
|
Datasheet |
WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | VIPER17H | STMicroelectronics | 85 ~ 265V | 12V @ 20mA | 4000Vrms | 1.2mH @ 10kHz | 120kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.690" (17.53mm) | 0.820" L x 0.880" W (20.83mm x 22.35mm) | - |
