Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82802A0030A220XFMR FLYBACK DC/DC CONV 40UH SMD |
4,533 | 3.51 |
|
Datasheet |
B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 40µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.866" L x 0.878" W (22.00mm x 22.30mm) | 0.421" (10.70mm) | 0.866" L x 1.035" W (22.00mm x 26.30mm) | - |
|

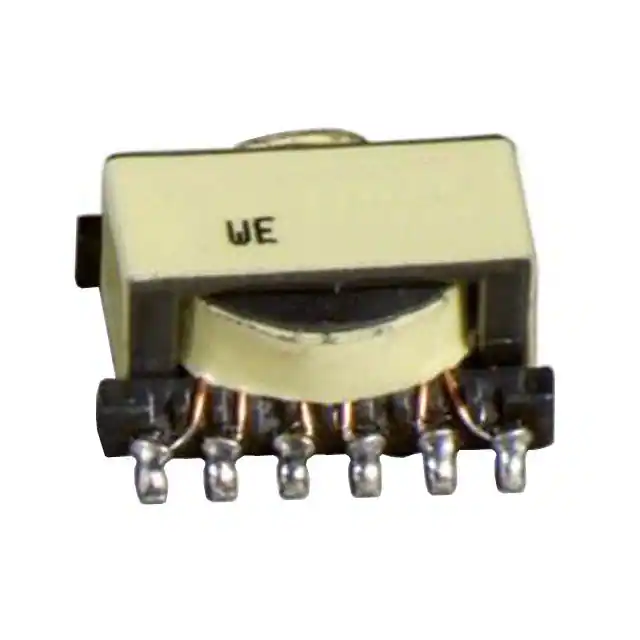

749119233XFMR POE DC/DC CONV SMD |
3,685 | 5.05 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | Linear Technology, Texas Instruments | 36 ~ 57V | - | 1500Vrms | - | 200 ~ 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.291" (7.40mm) | - | - |
|
750313241XFMR LED DR AC/DC CONV 3.52MH TH |
3,825 | 7.56 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL4101 | NXP Semiconductors | 127 ~ 432V | 16V @ 20mA | 3000Vrms | 3.52mH @ 10kHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.740" (18.80mm) | 0.945" L x 0.945" W (24.00mm x 24.00mm) | - |
|
750815550XFMR LED DR AC/DC CONV 6MH SMD |
3,072 | 6.46 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 195 ~ 265V | - | 3000Vrms | 6mH @ 10kHz | 80 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.548" (13.92mm) | 0.700" L x 1.028" W (17.78mm x 26.10mm) | - |
|

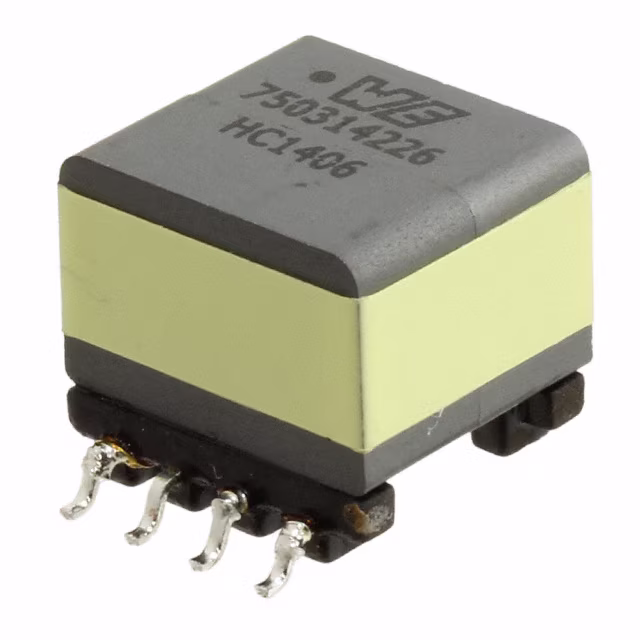

750314226XFMR FLYBCK DC/DC CONV 33.8UH SM |
2,885 | 6.35 |
|
Datasheet |
WE-FB, MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | FlyBuck™ | Texas Instruments | 15 ~ 40V | - | 1500Vrms | 33.8µH @ 10kHz | 250 ~ 600kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
PLN071-ER20A05STRANSF PLANAR 71W 5V OUT |
4,208 | 0.00 |
|
Datasheet |
PLN0xx-ER20 | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V @ 30mA | 1500Vrms | 18µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.886" L x 0.827" W (22.50mm x 21.00mm) | 0.315" (8.00mm) | - | Planar |
|
|
PLN071-ER20A03STRANSF PLANAR 71W 3.3V OUT |
3,387 | 0.00 |
|
Datasheet |
PLN0xx-ER20 | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V @ 30mA | 1500Vrms | 18µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.886" L x 0.827" W (22.50mm x 21.00mm) | 0.354" (9.00mm) | - | Planar |
|
|
PLN071-ER20A24STRANSF PLANAR 71W 24V OUT |
3,311 | 0.00 |
|
Datasheet |
PLN0xx-ER20 | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V @ 30mA | 1500Vrms | 18µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.886" L x 0.827" W (22.50mm x 21.00mm) | 0.315" (8.00mm) | - | Planar |
|
750370059XFMR FLYBACK DC/DC CONV 50UH SMD |
1,394 | 6.16 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 10 ~ 30V | - | 1500Vrms | 50µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.365" (9.27mm) | 0.425" L x 0.525" W (10.80mm x 13.35mm) | - |
|
760871631XFMR LED DR AC/DC CONV 2.2MH TH |
4,036 | 7.67 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TEA1733 | NXP Semiconductors | 120 ~ 385V | 12V @ 10mA | 1500Vrms | 2.2mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 1.150" L x 1.100" W (29.21mm x 27.94mm) | 0.850" (21.59mm) | 1.150" L x 1.100" W (29.21mm x 27.94mm) | - |
|
|
760871632XFMR LED DR AC/DC CONV 4MH TH |
3,002 | 7.67 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TEA1733 | NXP Semiconductors | 120 ~ 385V | 12V @ 10mA | 1500Vrms | 4mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 1.150" L x 1.100" W (29.21mm x 27.94mm) | 0.850" (21.59mm) | 1.150" L x 1.100" W (29.21mm x 27.94mm) | - |
|

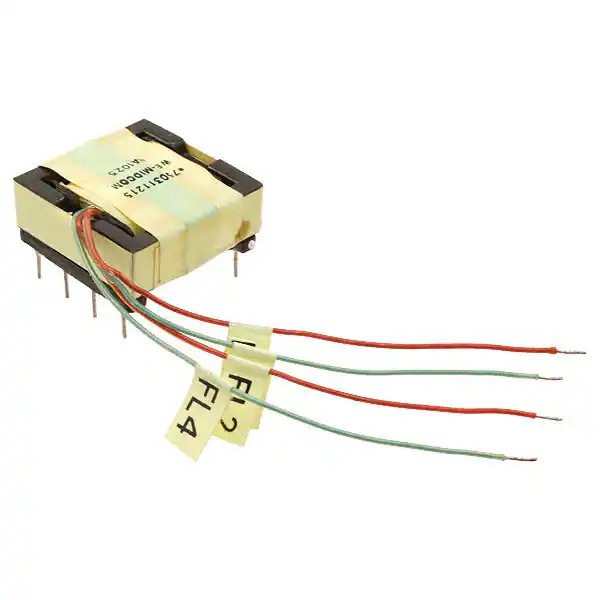

750311215XFMR LED DR AC/DC CONV 870UH TH |
1,899 | 7.67 |
|
Datasheet |
WE-UNIT, MID-OLON | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCL30000 | On Semiconductor | - | - | 4500Vrms | 870µH @ 10kHz | - | -40°C ~ 125°C | - | - | Through Hole | 0.850" L x 0.830" W (21.59mm x 21.08mm) | 0.430" (10.92mm) | 0.850" L x 0.830" W (21.59mm x 21.08mm) | - |
|

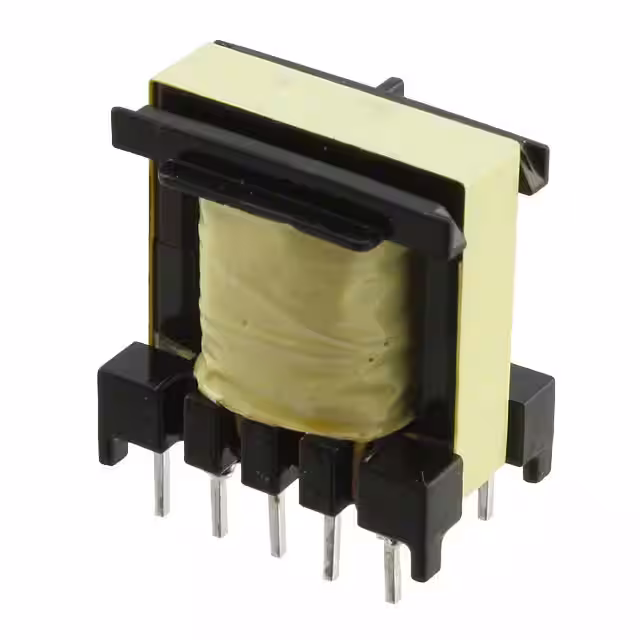

750811145XFMR LED DR AC/DC CONV 1.2MH TH |
3,492 | 7.67 |
|
Datasheet |
WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TPS92210DR | Texas Instruments | 88 ~ 269V | - | 3750VDC | 1.2mH @ 65kHz | 130kHz | -40°C ~ 125°C | - | - | Through Hole | 0.876" L x 0.567" W (22.88mm x 14.40mm) | 0.878" (22.30mm) | 0.876" L x 0.567" W (22.25mm x 14.40mm) | - |
|

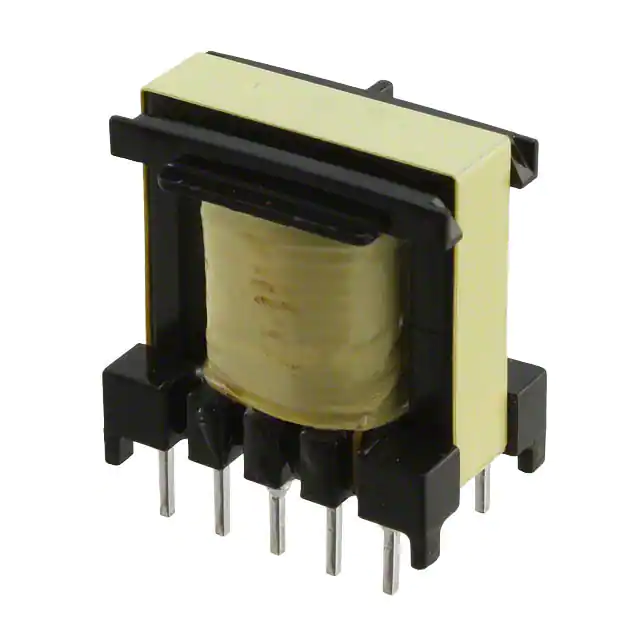

750811148XFMR LED DR AC/DC CONV 430UH TH |
2,763 | 7.67 |
|
Datasheet |
WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TPS92210DR | Texas Instruments | 88 ~ 269V | - | 3750VDC | 430µH @ 65kHz | 130kHz | -40°C ~ 125°C | - | - | Through Hole | 0.876" L x 0.567" W (22.88mm x 14.40mm) | 0.878" (22.30mm) | 0.876" L x 0.567" W (22.25mm x 14.40mm) | - |
|
750314851XFMR ISOL BUCK DC/DC CON 68UH SM |
2,338 | 5.27 |
|
Datasheet |
MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | - | - | 4000Vrms | 68µH @ 10kHz | 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.543" (13.80mm) | - | - |
|
|
750813530XFMR LED DR AC/DC CONV 1.5MH SMD |
2,404 | 6.46 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 130V | - | 3000Vrms | 1.5mH @ 10kHz | 80 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.548" (13.92mm) | 0.700" L x 1.028" W (17.78mm x 26.10mm) | - |
|
|
750813540XFMR LED DR AC/DC CONV 1.25MH SM |
4,007 | 6.46 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 130V | - | 3000Vrms | 1.25mH @ 10kHz | 80 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.548" (13.92mm) | 0.700" L x 1.028" W (17.78mm x 26.10mm) | - |
|
|
750815542XFMR LED DR AC/DC CONV 5MH SMD |
3,823 | 6.46 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 195 ~ 265V | - | 3000Vrms | 5mH @ 10kHz | 80 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.548" (13.92mm) | 0.700" L x 1.028" W (17.78mm x 26.10mm) | - |
|
750311305XFMR FLYBACK DC/DC CONV 50UH SMD |
2,093 | 8.06 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 9 ~ 30V | 8V @ 20mA | 1500Vrms | 50µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|

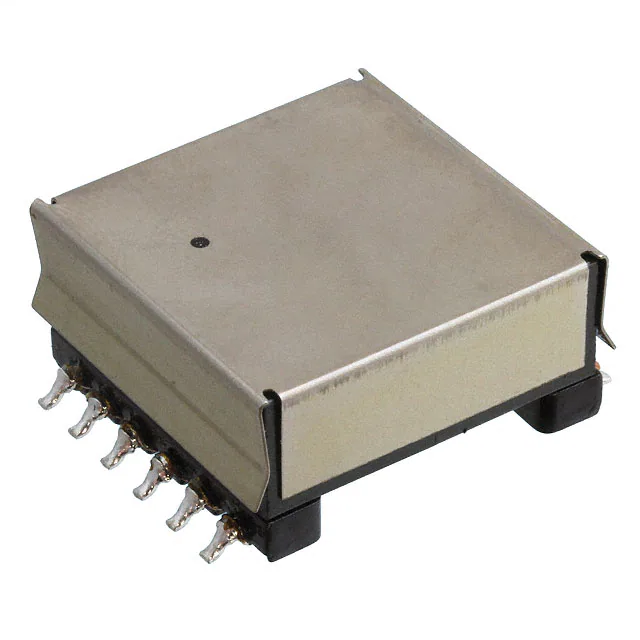

750311715XFMR FLYBACK DC/DC CONV 280UH SM |
1,999 | 6.57 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3748 | Linear Technology | 60 ~ 600V | 8V | 2000Vrms | 280µH @ 10kHz, 2.8µH @ 10kHz, 224µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
