Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
749196248XFMR FLEX DC/DC CONV 6.6UH SMD |
1,337 | 7.16 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 6.6µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.472" L x 0.642" W (11.99mm x 16.31mm) | 0.291" (7.40mm) | 0.661" L x 0.642" W (16.79mm x 16.31mm) | - |
|
VPH3-0055-RXFMR 9.3UH SMD |
1,094 | 6.80 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.673" L x 0.878" W (17.10mm x 22.30mm) | 0.331" (8.40mm) | - | - |
|
|
VPH3-0780-RXFMR 132UH SMD |
4,459 | 6.80 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.673" L x 0.878" W (17.10mm x 22.30mm) | 0.331" (8.40mm) | - | - |
|

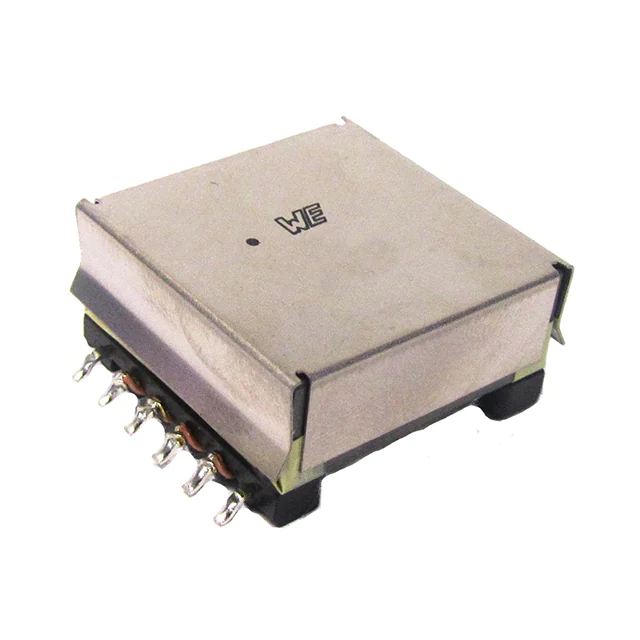

750316152XFMR FLYBACK DC/DC CONV 12UH SMD |
2,015 | 5.12 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LM3481 | Texas Instruments | 5 ~ 32V | - | - | 12µH @ 10kHz | 130kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.555" (14.10mm) | 1.064" L x 1.278" W (27.03mm x 32.46mm) | - |
|
750311620XFMR LED DR AC/DC CONV 1.9MH SMD |
3,696 | 8.54 |
|
Datasheet |
WE-UNIT, MID-OLON | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCL30000 | On Semiconductor | 30 ~ 190V | 19V @ 5mA | 4500Vrms | 1.9mH @ 10kHz | 53 ~ 120kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.435" (11.05mm) | 0.910" L x 1.020" W (23.11mm x 25.91mm) | - |
|
PA0491NLTXFMR FWD P-P DC/DC CONV 140UH SM |
3,436 | 0.00 |
|
Datasheet |
Spyglass | Tape & Reel (TR) | Obsolete | For DC/DC Converters | Forward, Push-Pull Converters | LT1952 | Linear Technology | 36 ~ 72V | - | 1500Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.790" L x 0.920" W (20.07mm x 23.37mm) | 0.348" (8.85mm) | 0.790" L x 0.920" W (20.07mm x 23.37mm) | Planar |
|
750311593XFMR FLYBACK DC/DC CONV 15UH SMD |
1,093 | 10.98 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 30 ~ 75V | 10V | 1500Vrms | 15µH @ 150kHz | 150kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
|

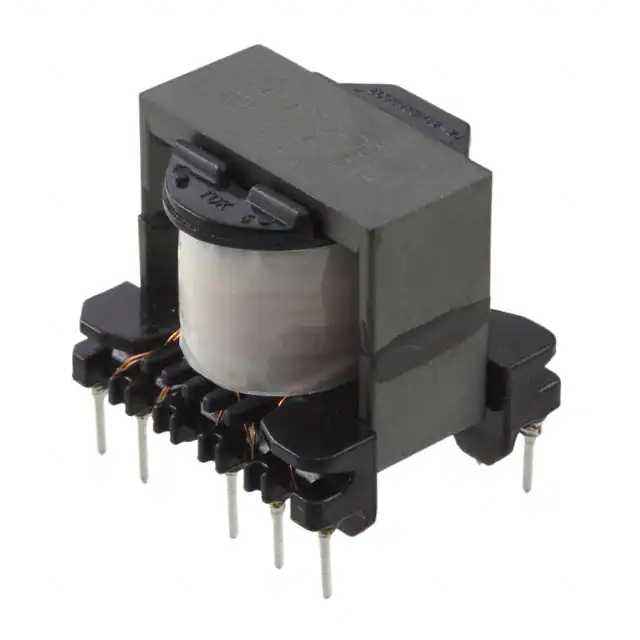

ECO2420SEO-D01V019XFMR FLYBCK AC/DC CONV 4.72MH TH |
2,159 | 6.34 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 200 ~ 300V | 5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA | 2000Vrms | 4.72mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.043" (26.50mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | - |
|

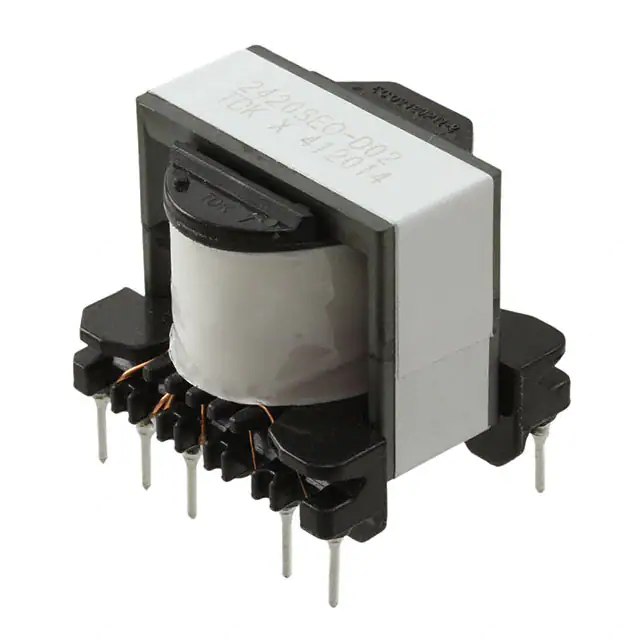

ECO2420SEO-D02V019XFMR FLYBACK AC/DC CONV 278UH TH |
2,517 | 6.34 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 138V | 12.3V @ 3.3A | 3000Vrms | 278µH @ 10kHz | 33kHz | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.043" (26.50mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | - |
|
ECO2425SEO-D02V016XFMR FLYBACK AC/DC CONV 700UH TH |
1,105 | 6.34 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 96 ~ 276V | 3.3V @ 700mA, 18V @ 500mA, 20V @ 200mA | 3000Vrms | 700µH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.240" (31.50mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | - |
|

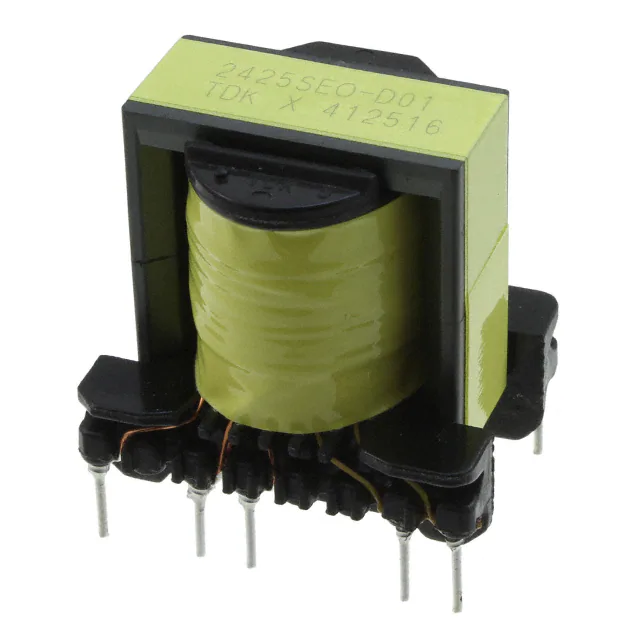

ECO2425SEO-D01V019XFMR FLYBCK AC/DC CONV 1.06MH TH |
4,978 | 6.34 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 264 ~ 373V | 5V @ 140mA, 12.7V @ 1.18A, 20V @ 50mA, 20V @ 70mA | 1250Vrms | 1.06mH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 1.400" L x 0.984" W (35.50mm x 25.00mm) | 1.240" (31.50mm) | 1.400" L x 0.984" W (35.50mm x 25.00mm) | - |
|

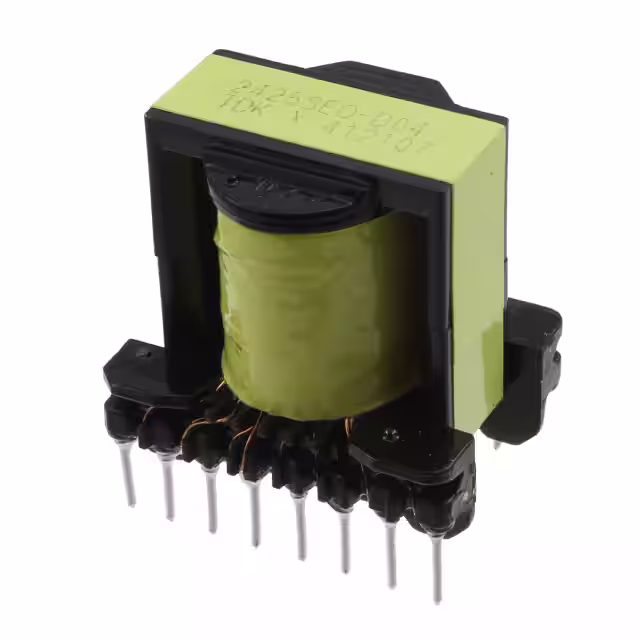

ECO2425SEO-D04V017XFMR FLYBACK AC/DC CONV 428UH TH |
4,574 | 6.34 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 169 ~ 312V | 22V @ 1.5A | 3000Vrms | 428µH @ 10kHz | 65kHz | -30°C ~ 120°C | - | - | Through Hole | 1.240" L x 0.984" W (31.50mm x 25.00mm) | 1.240" (31.50mm) | 1.240" L x 0.984" W (31.50mm x 25.00mm) | - |
|

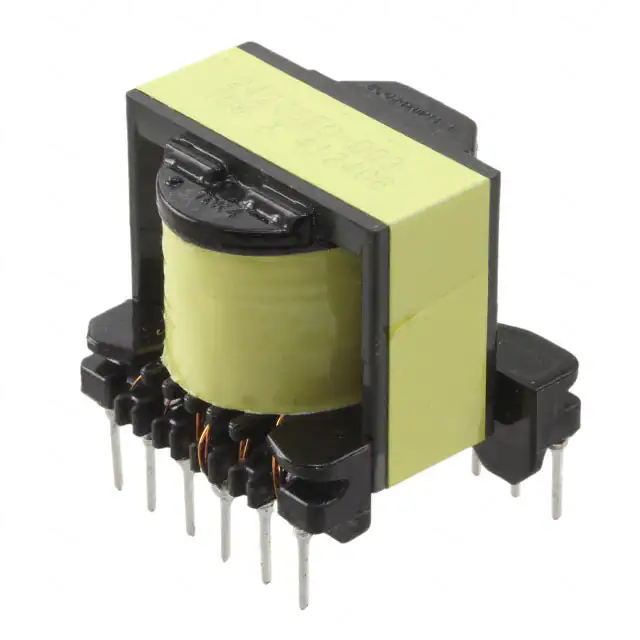

ECO2420SEO-D03V018XFMR FLYBACK AC/DC CONV 750UH TH |
2,935 | 6.34 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 169 ~ 312V | 5V @ 200mA, 12V @ 2.5A | 3000Vrms | 750µH @ 100kHz | 60kHz | -30°C ~ 120°C | - | - | Through Hole | 1.240" L x 0.984" W (31.50mm x 25.00mm) | 1.043" (26.50mm) | 1.240" L x 0.984" W (31.50mm x 25.00mm) | - |
|
750311303XFMR FLYBACK DC/DC CONV 50UH SMD |
3,955 | 7.36 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 9 ~ 30V | 10V @ 20mA | 1500Vrms | 50µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750311304XFMR FLYBACK DC/DC CONV 50UH SMD |
1,971 | 8.06 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 9 ~ 30V | 10V @ 20mA | 1500Vrms | 50µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750311456XFMR FLYBACK DC/DC CONV 100UH SM |
4,989 | 8.06 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 8V @ 20mA | 2500Vrms | 100µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
|
750311422XFMR FLYBACK DC/DC CONV 50UH SMD |
2,035 | 6.05 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 10V @ 20mA | 1500Vrms | 50µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
750311600XFMR FLYBACK DC/DC CONV 12UH SMD |
2,206 | 8.96 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 30 ~ 75V | - | 1500Vrms | 12µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.150" W (23.11mm x 29.08mm) | - |
|

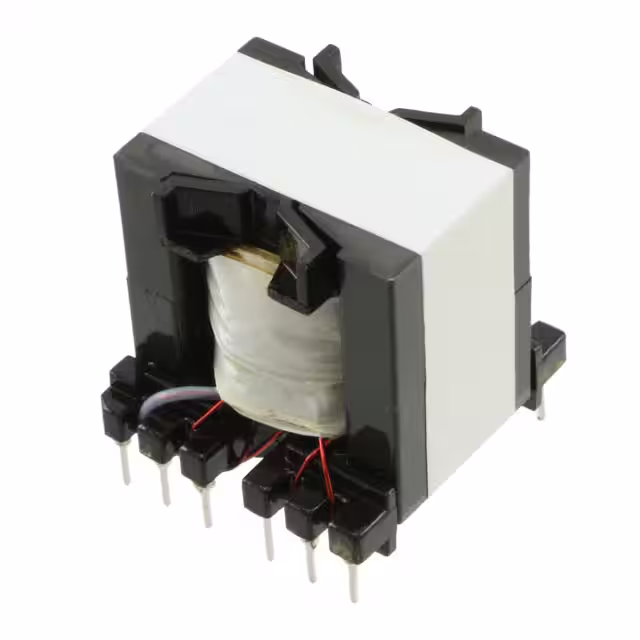

750311267XFMR FLYBACK AC/DC CONV 625UH TH |
3,926 | 8.76 |
|
Datasheet |
WE-FB, MID-OLON | Tray | Active | For AC/DC Converters | Flyback Converters | NCP1652 | On Semiconductor | - | - | 3000Vrms | 625µH @ 10kHz | - | - | - | - | Through Hole | 1.400" L x 1.470" W (35.56mm x 37.34mm) | 1.355" (34.42mm) | 1.400" L x 1.470" W (35.56mm x 37.34mm) | - |
|

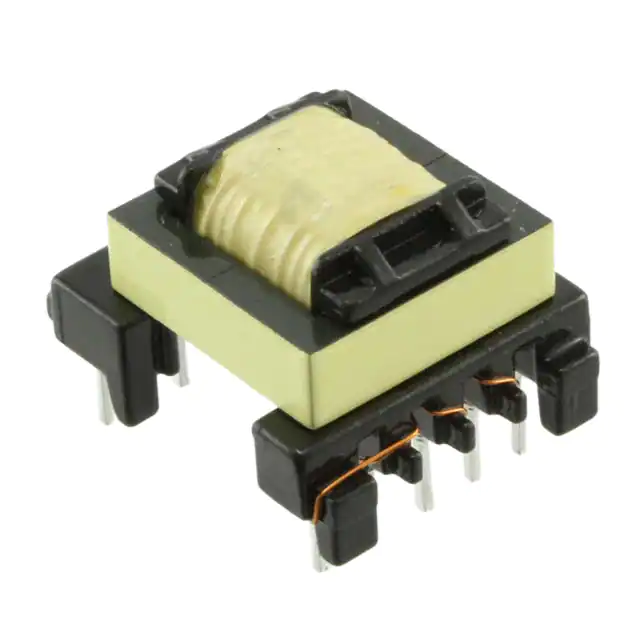

750811042XFMR FLYBACK AC/DC CONV 1.8MH TH |
4,012 | 8.76 |
|
Datasheet |
WE-UNIT, MID-OLON | Tray | Active | For AC/DC Converters | Flyback Converters | NCP1014 | On Semiconductor | 120 ~ 375V | - | 4500Vrms | 1.8mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
