Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPH5-1200TR-RXFMR 173UH SMD |
1,754 | 8.27 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|
POE7W3X3.3-RXFMR POE CONFIG DC/DC 100UH SMD |
1,511 | 7.10 |
|
Datasheet |
PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 100µH @ 100kHz | 250kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.673" L x 0.630" W (17.10mm x 16.00mm) | 0.341" (8.65mm) | 0.673" L x 0.935" W (17.10mm x 23.74mm) | - |
|

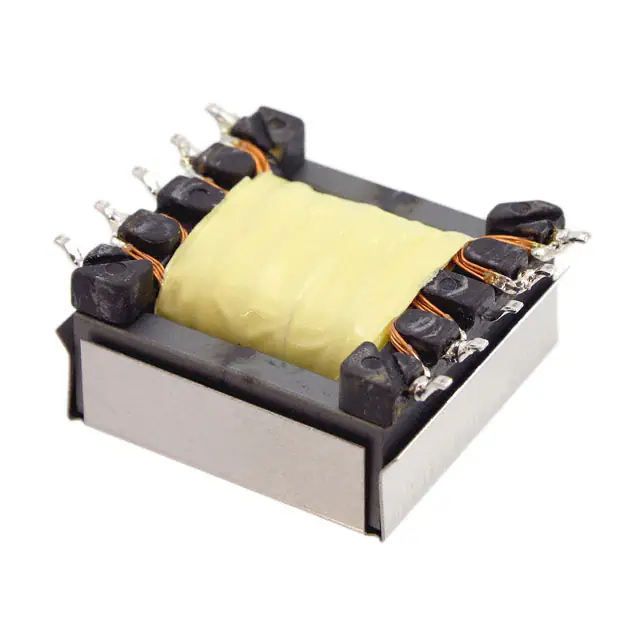

B82802A0055A325XFMR FLYBACK DC/DC CONV 22UH SMD |
1,291 | 5.34 |
|
Datasheet |
B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 22µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.583" (14.80mm) | 1.063" L x 1.283" W (27.00mm x 32.60mm) | - |
|
750340477XFMR LED DR AC/DC CONV 550UH TH |
4,923 | 10.95 |
|
Datasheet |
- | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL1750 | NXP Semiconductors | - | - | 1000Vrms | 550µH @ 60kHz | - | - | - | - | Through Hole | 1.339" L x 1.370" W (34.00mm x 34.80mm) | 0.955" (24.26mm) | 1.339" L x 1.370" W (34.00mm x 34.80mm) | - |
|
750845455XFMR FLYBACK |
3,744 | 9.11 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
750841152XFMR FLYBACK AC/DC CONV 1MH SMD |
2,951 | 9.11 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | SSL2103 | NXP Semiconductors | 207 ~ 253V | 20V @ 30mA | 3000Vrms | 1mH @ 50kHz | 85kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.213" L x 0.740" W (30.81mm x 18.80mm) | 0.472" (12.00mm) | 1.460" L x 0.740" W (37.09mm x 18.80mm) | - |
|
|
750841150XFMR FLYBACK |
2,522 | 9.11 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
750841151XFMR FLYBACK |
2,757 | 9.11 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VPH4-0860TR-RXFMR 159.65UH SMD |
1,222 | 8.91 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
|
750844150XFMR FLYBACK |
4,838 | 9.34 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

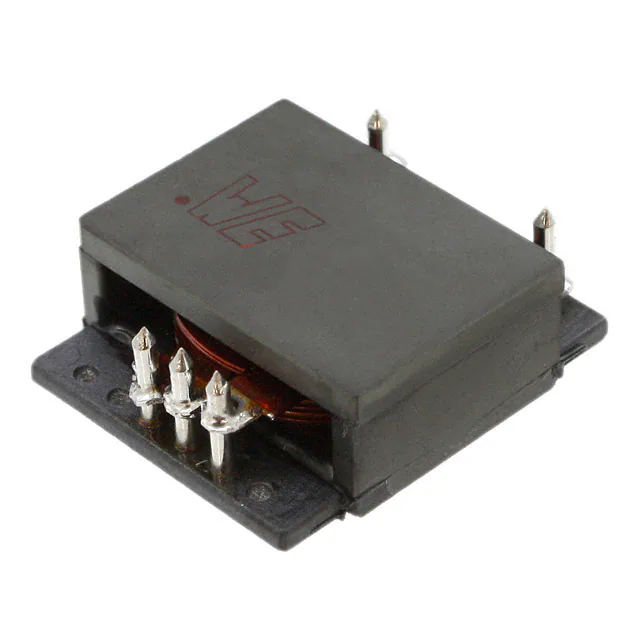

750341143XFMR FWD P-P DC/DC CONV 170UH SM |
3,524 | 12.97 |
|
Datasheet |
WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 170µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
750341144XFMR FWD P-P DC/DC CONV 260UH SM |
2,106 | 12.97 |
|
Datasheet |
WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 260µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|

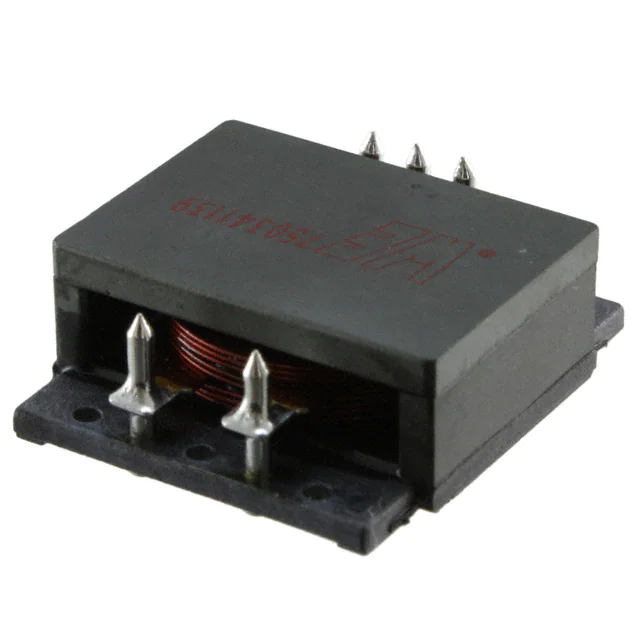

750341139XFMR FWD P-P DC/DC CONV 170UH SM |
2,959 | 12.97 |
|
Datasheet |
WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 170µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
|
750841140XFMR FLYBACK |
3,479 | 10.27 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
750845250XFMR FLYBACK |
3,518 | 10.27 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
750845456XFMR FLYBACK |
2,154 | 10.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
750845452XFMR FLYBACK DC/DC CONV 470UH SM |
3,217 | 10.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ISL6745 | Renesas Electronics Corporation | 110 ~ 380V | 14.7V @ 50mA | 3000Vrms | 470µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.472" (12.00mm) | 1.634" L x 0.728" W (41.50mm x 18.50mm) | - |
|
|
750845450XFMR FLYBACK |
4,624 | 10.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SIT1253IXFMR FLEXIBLE DC/DC CONV 50UH SM |
1,526 | 9.25 |
|
Datasheet |
SIT12xxI | Tape & Reel (TR) | Obsolete | For DC/DC Converters | Flexible | SCALE-iDriver™ Ics | - | - | - | - | 50µH @ 100kHz | - | -40°C ~ 105°C | - | - | Surface Mount | 1.030" L x 0.925" W (26.15mm x 23.50mm) | 0.650" (16.50mm) | 1.043" L x 0.925" W (26.50mm x 23.50mm) | Thick Film |
|
|
750341208PLANAR TRANSFORMER ER19/4.8/15; |
4,467 | 0.00 |
|
- |
MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | ERI10, ERI18, ERI25 | - | - | - | 2250V | 345µH @ 10kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.920" L x 0.830" W (23.37mm x 21.08mm) | 0.413" (10.50mm) | - | Planar |
