Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750341135XFMR FWD P-P DC/DC CONV 170UH SM |
3,465 | 14.29 |
|
Datasheet |
WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 170µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
POE13W3X5.0-RXFMR POE CONFIG DC/DC 100UH SMD |
2,926 | 6.07 |
|
Datasheet |
PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 100µH @ 100kHz | 250kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.709" L x 0.709" W (18.00mm x 18.00mm) | 0.404" (10.25mm) | 0.709" L x 1.024" W (18.00mm x 26.00mm) | - |
|
|
POE13W2VERS-RXFMR POE CONFIG DC/DC 100UH SMD |
3,235 | 6.07 |
|
Datasheet |
PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 100µH @ 100kHz | 250kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.709" L x 0.709" W (18.00mm x 18.00mm) | 0.404" (10.25mm) | 0.709" L x 1.024" W (18.00mm x 26.00mm) | - |
|
750845242XFMR FLYBACK |
2,397 | 11.21 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
750312775XFMR FLYBACK SMD |
1,283 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | - | - | - | - | 12V | - | - | - | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.550" L x 0.676" W (13.97mm x 17.17mm) | - |
|
750341140XFMR FWD P-P DC/DC CONV 300UH SM |
2,221 | 15.88 |
|
Datasheet |
WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 300µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|

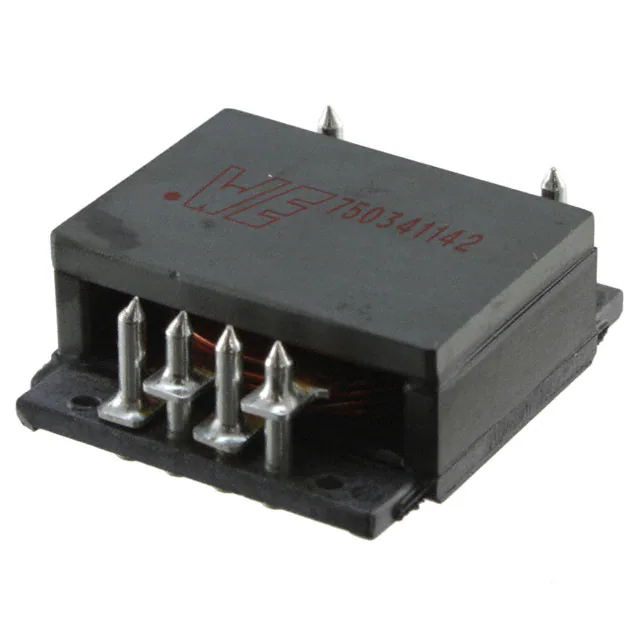

750341142XFMR FWD P-P DC/DC CONV 70UH SMD |
2,256 | 23.66 |
|
Datasheet |
WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 70µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|

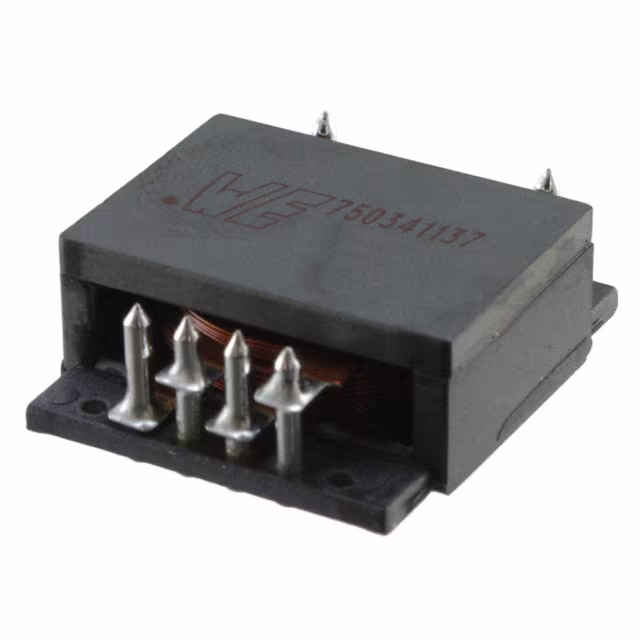

750341137XFMR FWD P-P DC/DC CONV 480UH SM |
3,621 | 15.88 |
|
Datasheet |
WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 480µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
VP4-0060TR-RXFMR 4.9UH SMD |
2,334 | 7.65 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|

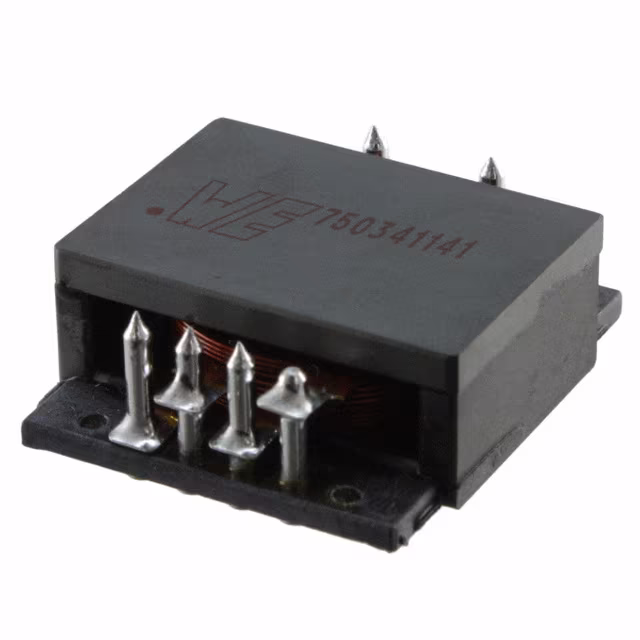

750341141XFMR FWD P-P DC/DC CONV 480UH SM |
3,810 | 17.20 |
|
Datasheet |
WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 480µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
|
PH9278NLTXFMR |
3,050 | 13.35 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 1.055" L x 1.319" W (26.80mm x 33.50mm) | 0.730" (18.55mm) | 1.055" L x 1.319" W (26.80mm x 33.50mm) | - |
|
|
VPH4-0060TR-RXFMR 10.1UH SMD |
2,818 | 9.71 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
|
POL-24219XFMR LED DR AC/DC CONV 750UH TH |
2,607 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TOP227Y | Power Integrations | - | - | 3000V | 750µH @ 100kHz | - | - | - | - | Through Hole | 1.350" L x 1.260" W (34.30mm x 32.00mm) | 1.417" (36.00mm) | - | - |
|
|
L101374SP-05XFMR 22UH TH |
4,563 | 0.00 |
|
Datasheet |
L101374SP | Tray | Active | For DC/DC Converters | Resonant Converters | - | - | - | - | - | 22µH @ 100kHz | - | -55°C ~ 130°C | - | - | Through Hole | 1.319" L x 0.728" W (33.50mm x 18.50mm) | 1.102" (28.00mm) | - | Wirewound |
|
|
L101374SP-03XFMR 15UH TH |
3,557 | 0.00 |
|
Datasheet |
L101374SP | Tray | Active | For DC/DC Converters | Resonant Converters | - | - | - | - | - | 15µH @ 100KHz | - | -55°C ~ 130°C | - | - | Through Hole | 1.319" L x 0.728" W (33.50mm x 18.50mm) | 1.102" (28.00mm) | - | Wirewound |
|
|
PL10305NLPOWER |
3,941 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -55°C ~ 125°C | - | - | Surface Mount | 0.920" L x 0.740" W (23.37mm x 18.80mm) | 0.339" (8.60mm) | 0.921" L x 0.850" W (23.39mm x 21.59mm) | Planar |
|
|
PL10303NLPOWER |
2,251 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -55°C ~ 125°C | - | - | Surface Mount | 0.920" L x 0.740" W (23.37mm x 18.80mm) | 0.339" (8.60mm) | 0.921" L x 0.850" W (23.39mm x 21.59mm) | Planar |
|
|
PL10310TPOWER |
2,431 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -55°C ~ 125°C | - | - | Surface Mount | 0.920" L x 0.740" W (23.37mm x 18.80mm) | 0.339" (8.60mm) | 0.921" L x 0.850" W (23.39mm x 21.59mm) | Planar |
|
|
PL10310NLTPOWER |
4,405 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -55°C ~ 125°C | - | - | Surface Mount | 0.920" L x 0.740" W (23.37mm x 18.80mm) | 0.339" (8.60mm) | 0.921" L x 0.850" W (23.39mm x 21.59mm) | Planar |
|
|
PL10305TPOWER |
1,733 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -55°C ~ 125°C | - | - | Surface Mount | 0.920" L x 0.740" W (23.37mm x 18.80mm) | 0.339" (8.60mm) | 0.921" L x 0.850" W (23.39mm x 21.59mm) | Planar |
