Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL10207POWER |
4,822 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -40°C ~ 130°C | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.161" L x 1.051" W (29.50mm x 26.70mm) | Planar |
|
|
PL10235POWER |
2,674 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -40°C ~ 130°C | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.358" (9.10mm) | 1.161" L x 1.051" W (29.50mm x 26.70mm) | Planar |
|
|
PL10235NLPOWER |
1,902 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -40°C ~ 130°C | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.358" (9.10mm) | 1.161" L x 1.051" W (29.50mm x 26.70mm) | Planar |
|
|
PL10210NLPOWER |
4,490 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -40°C ~ 130°C | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.161" L x 1.051" W (29.50mm x 26.70mm) | Planar |
|
|
PL10210POWER |
3,743 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | 1750V | - | 200 ~ 700kHz | -40°C ~ 130°C | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.161" L x 1.051" W (29.50mm x 26.70mm) | Planar |
|
|
PLAC100P250XFMR |
4,245 | 42.28 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FW30T20015VB25XFMR |
4,999 | 75.10 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FW30T10015VB25XFMR |
3,258 | 75.10 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FW30T1005VB25XFMR |
4,293 | 75.10 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FW30T1003V3B25XFMR |
2,692 | 75.10 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FW100T10015VB25XFMR |
3,583 | 81.09 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FW100T20015VB25XFMR |
4,839 | 81.09 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

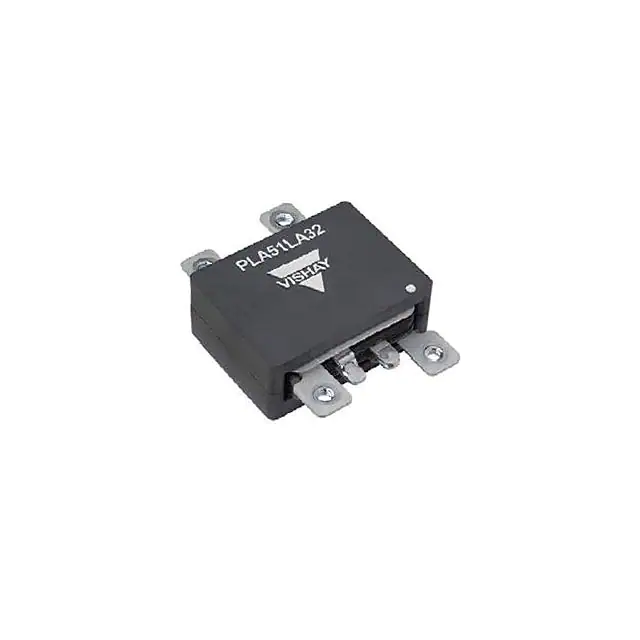

PLA51LA32XFMR DC/DC CONV 128UH CHAS MT |
4,446 | 121.94 |
|
Datasheet |
PLA51 | Box | Obsolete | For DC/DC Converters | - | - | - | 50 ~ 110V | - | - | 128µH @ 10kHz | 50 ~ 400kHz | -55°C ~ 125°C | - | - | Chassis Mount | - | 0.886" (22.50mm) | 2.087" L x 2.756" W (53.00mm x 70.00mm) | Planar |
|
PCA11/5ER-U10S002XFMR CAP CHAR CON DC/DC 3.8UH SM |
2,714 | 0.00 |
|
Datasheet |
PCA11/5ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 3.8µH @ 10kHz, Series 136µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.535" L x 0.362" W (13.60mm x 9.20mm) | 0.256" (6.50mm) | 0.535" L x 0.512" W (13.60mm x 13.00mm) | - |
|
|
PCA11/5ER-U06S002XFMR CAP CHAR CON DC/DC 6.5UH SM |
3,231 | 0.00 |
|
Datasheet |
PCA11/5ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 6.5µH @ 10kHz, Series 235µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.535" L x 0.362" W (13.60mm x 9.20mm) | 0.256" (6.50mm) | 0.535" L x 0.512" W (13.60mm x 13.00mm) | - |
|
|
PCA11/5ER-U07S002XFMR CAP CHAR CONF DC/DC 10.9UH |
3,015 | 0.00 |
|
Datasheet |
PCA11/5ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 10.9µH @ 10kHz, Series 394µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.535" L x 0.362" W (13.60mm x 9.20mm) | 0.256" (6.50mm) | 0.535" L x 0.512" W (13.60mm x 13.00mm) | - |
|
|
PCA11/5ER-U04S002XFMR CAP CHAR CONF DC/DC 12.2UH |
4,380 | 0.00 |
|
Datasheet |
PCA11/5ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 12.2µH @ 10kHz, Series 438µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.535" L x 0.362" W (13.60mm x 9.20mm) | 0.256" (6.50mm) | 0.535" L x 0.512" W (13.60mm x 13.00mm) | - |
|
|
PCA11/5ER-U05S002XFMR CAP CHAR CONF DC/DC 14.7UH |
3,857 | 0.00 |
|
Datasheet |
PCA11/5ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 14.7µH @ 10kHz, Series 529µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.535" L x 0.362" W (13.60mm x 9.20mm) | 0.256" (6.50mm) | 0.535" L x 0.512" W (13.60mm x 13.00mm) | - |
|
|
PCA11/5ER-U03S002XFMR CAP CHAR CONF DC/DC 27.4UH |
1,144 | 0.00 |
|
Datasheet |
PCA11/5ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 27.4µH @ 10kHz, Series 985µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.535" L x 0.362" W (13.60mm x 9.20mm) | 0.256" (6.50mm) | 0.535" L x 0.512" W (13.60mm x 13.00mm) | - |
|
|
PCA11/5ER-U02S002XFMR CAP CHAR CONF DC/DC 85.8UH |
1,151 | 0.00 |
|
Datasheet |
PCA11/5ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 85.8µH @ 10kHz, Series 3.1mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.535" L x 0.362" W (13.60mm x 9.20mm) | 0.256" (6.50mm) | 0.535" L x 0.512" W (13.60mm x 13.00mm) | - |
