Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCA11/5ER-U01S002XFMR CAP CHAR CON DC/DC 193UH SM |
1,322 | 0.00 |
|
Datasheet |
PCA11/5ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 193µH @ 10kHz, Series 6.9mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.535" L x 0.362" W (13.60mm x 9.20mm) | 0.256" (6.50mm) | 0.535" L x 0.512" W (13.60mm x 13.00mm) | - |
|

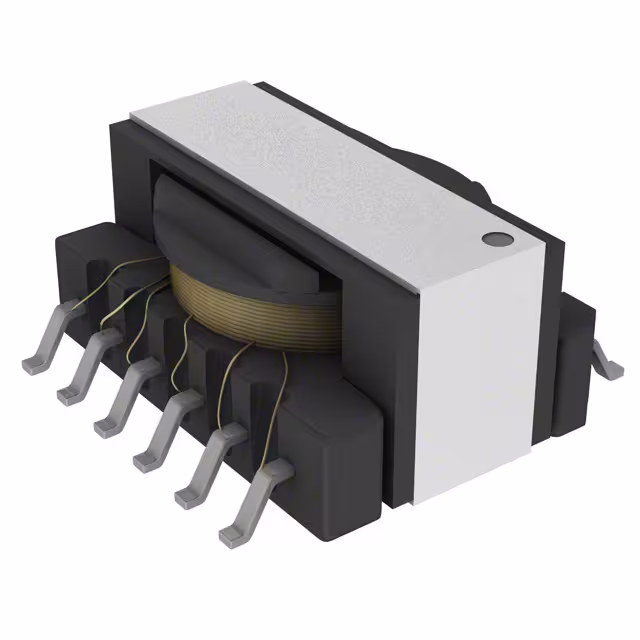

PCA14.5/6ER-U10S002XFMR CAP CHAR CON DC/DC 3.2UH SM |
2,158 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 3.2µH @ 10kHz, Series 116µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
PCA14.5/6ER-U08S002XFMR CAP CHAR CON DC/DC 4.1UH SM |
1,825 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 4.1µH @ 10kHz, Series 146µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
PCA14.5/6ER-U06S002XFMR CAP CHAR CON DC/DC 5.7UH SM |
1,649 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 5.7µH @ 10kHz, Series 205µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
PCA14.5/6ER-U09S002XFMR CAP CHAR CON DC/DC 6.6UH SM |
1,774 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 6.6µH @ 10kHz, Series 238µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
PCA14.5/6ER-U07S002XFMR CAP CHAR CON DC/DC 8.3UH SM |
2,922 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 8.3µH @ 10kHz, Series 299µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
PCA14.5/6ER-U04S002XFMR CAP CHAR CONF DC/DC 10.6UH |
4,289 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 10.6µH @ 10kHz, Series 381µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
PCA14.5/6ER-U05S002XFMR CAP CHAR CONF DC/DC 11.6UH |
3,678 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 11.6µH @ 10kHz, Series 418µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
PCA14.5/6ER-U02S002XFMR CAP CHAR CONF DC/DC 78.4UH |
4,525 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 78.4µH @ 10kHz, Series 2.8mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
PCA14.5/6ER-U01S002XFMR CAP CHAR CON DC/DC 160UH SM |
2,592 | 0.00 |
|
Datasheet |
PCA14.5/6ER | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 160µH @ 10kHz, Series 5.8mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
PCA15EFD-U08S002XFMR CAP CHAR CON DC/DC 4.5UH SM |
2,386 | 0.00 |
|
Datasheet |
PCA15EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 4.5µH @ 10kHz, Series 160µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.713" L x 0.630" W (18.10mm x 16.00mm) | 0.354" (9.00mm) | 0.713" L x 0.886" W (18.10mm x 22.50mm) | - |
|
|
PCA15EFD-U06S002XFMR CAP CHAR CON DC/DC 6.8UH SM |
3,153 | 0.00 |
|
Datasheet |
PCA15EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 6.8µH @ 10kHz, Series 245µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.713" L x 0.630" W (18.10mm x 16.00mm) | 0.354" (9.00mm) | 0.713" L x 0.886" W (18.10mm x 22.50mm) | - |
|
|
PCA15EFD-U04S002XFMR CAP CHAR CONF DC/DC 11.2UH |
3,609 | 0.00 |
|
Datasheet |
PCA15EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 11.2µH @ 10kHz, Series 402µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.713" L x 0.630" W (18.10mm x 16.00mm) | 0.354" (9.00mm) | 0.713" L x 0.886" W (18.10mm x 22.50mm) | - |
|
|
PCA15EFD-U05S003XFMR CAP CHAR CONF DC/DC 14.2UH |
3,586 | 0.00 |
|
Datasheet |
PCA15EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 14.2µH @ 10kHz, Series 511µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.713" L x 0.630" W (18.10mm x 16.00mm) | 0.354" (9.00mm) | 0.713" L x 0.886" W (18.10mm x 22.50mm) | - |
|
|
PCA15EFD-U03S003XFMR CAP CHAR CONF DC/DC 23.3UH |
2,102 | 0.00 |
|
Datasheet |
PCA15EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 23.3µH @ 10kHz, Series 840µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.713" L x 0.630" W (18.10mm x 16.00mm) | 0.354" (9.00mm) | 0.713" L x 0.886" W (18.10mm x 22.50mm) | - |
|

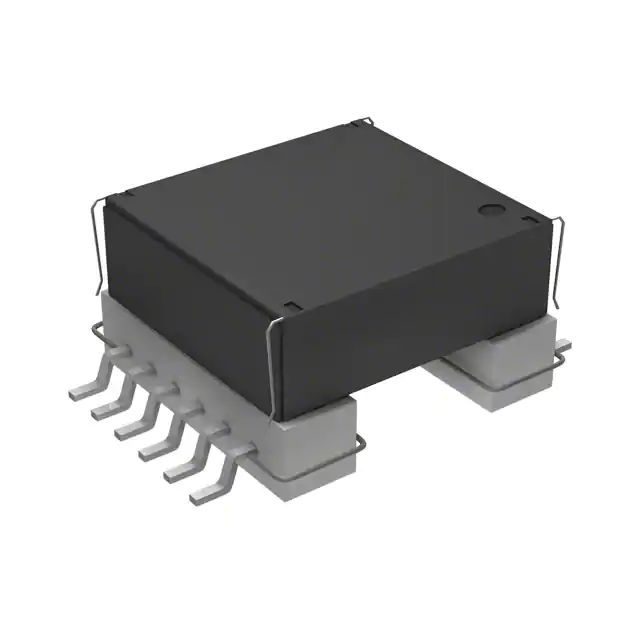

PCA20EFD-U10S002XFMR CAP CHAR CON DC/DC 3.4UH SM |
2,753 | 0.00 |
|
Datasheet |
PCA20EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 3.4µH @ 10kHz, Series 122µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.866" L x 0.850" W (22.00mm x 21.60mm) | 0.472" (12.00mm) | 0.866" L x 1.173" W (22.00mm x 29.80mm) | - |
|
|
PCA20EFD-U06S002XFMR CAP CHAR CON DC/DC 5.3UH SM |
2,459 | 0.00 |
|
Datasheet |
PCA20EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 5.3µH @ 10kHz, Series 191µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.866" L x 0.850" W (22.00mm x 21.60mm) | 0.472" (12.00mm) | 0.866" L x 1.173" W (22.00mm x 29.80mm) | - |
|
|
PCA20EFD-U07S003XFMR CAP CHAR CON DC/DC 9.6UH SM |
3,035 | 0.00 |
|
Datasheet |
PCA20EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 9.6µH @ 10kHz, Series 347µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.866" L x 0.850" W (22.00mm x 21.60mm) | 0.472" (12.00mm) | 0.866" L x 1.173" W (22.00mm x 29.80mm) | - |
|
|
PCA20EFD-U04S002XFMR CAP CHAR CON DC/DC 9.9UH SM |
2,802 | 0.00 |
|
Datasheet |
PCA20EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 9.9µH @ 10kHz, Series 357µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.866" L x 0.850" W (22.00mm x 21.60mm) | 0.472" (12.00mm) | 0.866" L x 1.173" W (22.00mm x 29.80mm) | - |
|
|
PCA20EFD-U05S003XFMR CAP CHAR CONF DC/DC 12UH SM |
3,903 | 0.00 |
|
Datasheet |
PCA20EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 12µH @ 10kHz, Series 430µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.866" L x 0.850" W (22.00mm x 21.60mm) | 0.472" (12.00mm) | 0.866" L x 1.173" W (22.00mm x 29.80mm) | - |
