Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCA20EFD-U03S003XFMR CAP CHAR CONF DC/DC 22.3UH |
2,111 | 0.00 |
|
Datasheet |
PCA20EFD | Tape & Reel (TR) | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 22.3µH @ 10kHz, Series 804µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.866" L x 0.850" W (22.00mm x 21.60mm) | 0.472" (12.00mm) | 0.866" L x 1.173" W (22.00mm x 29.80mm) | - |
|
|
PCA20EFD-U02S002XFMR CAP CHAR CONF DC/DC 87.7UH |
1,847 | 0.00 |
|
Datasheet |
PCA20EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 87.7µH @ 10kHz, Series 3.2mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.866" L x 0.850" W (22.00mm x 21.60mm) | 0.472" (12.00mm) | 0.866" L x 1.173" W (22.00mm x 29.80mm) | - |
|
|
PCA20EFD-U01S003XFMR CAP CHAR CONF DC/DC 197.3UH |
1,901 | 0.00 |
|
Datasheet |
PCA20EFD | Tray | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 197.3µH @ 10kHz, Series 7.14mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.866" L x 0.850" W (22.00mm x 21.60mm) | 0.472" (12.00mm) | 0.866" L x 1.173" W (22.00mm x 29.80mm) | - |
|
PA1877NLXFMR FLYBACK DC/DC CONV SMD |
2,967 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | - | - | 34 ~ 57V | 13V @ 15mA | 1500Vrms | - | 250kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.860" L x 0.930" W (21.84mm x 23.62mm) | 0.450" (11.43mm) | 0.860" L x 1.150" W (21.84mm x 29.21mm) | - |
|
|
PE-68422XFMR FLYBACK DC/DC CONV SMD |
4,129 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.970" L x 1.070" W (24.64mm x 27.18mm) | 0.680" (17.27mm) | 0.970" L x 1.070" W (24.64mm x 27.18mm) | - |
|
|
PA0273NLXFMR FWD P-P DC/DC CONV SMD |
2,748 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 36 ~ 72V | 12V @ 100mA | 1500Vrms | - | 250kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.860" L x 0.930" W (21.84mm x 23.62mm) | 0.450" (11.43mm) | 0.860" L x 1.150" W (21.84mm x 29.21mm) | - |
|
|
PE-68411NLXFMR FLYBACK DC/DC CONV SMD |
4,351 | 12.22 |
|
Datasheet |
- | Tray | Obsolete | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 8 ~ 16V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.480" (12.19mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | - |
|
|
PE-68412NLXFMR FLYBACK DC/DC CONV SMD |
4,511 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 4 ~ 6V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.480" (12.19mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | - |
|
|
PA1032NLTXFMR FLYBACK DC/DC CONV SMD |
4,504 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 30 ~ 57V | 10V @ 15mA | 1500Vrms | - | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.366" W (11.43mm x 9.30mm) | 0.260" (6.60mm) | 0.450" L x 0.500" W (11.43mm x 12.70mm) | - |
|
|
PA0491NLXFMR FWD P-P DC/DC CONV SMD |
3,987 | 0.00 |
|
Datasheet |
Spyglass | Tray | Obsolete | For DC/DC Converters | Forward, Push-Pull Converters | LT1952 | Linear Technology | 36 ~ 72V | - | 1500Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.790" L x 0.920" W (20.07mm x 23.37mm) | 0.348" (8.85mm) | 0.790" L x 0.920" W (20.07mm x 23.37mm) | Planar |
|
|
PA0810NLTXFMR FWD P-P DC/DC CONV SMD |
1,422 | 0.00 |
|
Datasheet |
PA08 | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | LTC3901, LTC3765, UCC2891, UCC2897 | Linear Technology, Texas Instruments | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.920" W (21.59mm x 23.37mm) | 0.339" (8.60mm) | - | Planar |
|
|
PE-65300NLXFMR FWD P-P DC/DC CONV TH |
2,150 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Forward, Push-Pull Converters | LM1577, LM2577 | National Semiconductor | - | - | 600Vrms | - | - | -30°C ~ 130°C | - | - | Through Hole | - | 0.820" (20.82mm) | 1.050" L x 1.080" W (26.27mm x 27.43mm) | - |
|
|
PE-65301NLXFMR FWD P-P DC/DC CONV TH |
1,483 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | For DC/DC Converters | Forward, Push-Pull Converters | LM1577, LM2577 | National Semiconductor | - | - | 600Vrms | - | - | -30°C ~ 130°C | - | - | Through Hole | 1.050" L x 1.150" W (26.67mm x 29.21mm) | 0.810" (20.57mm) | 1.050" L x 1.150" W (26.27mm x 29.21mm) | - |
|

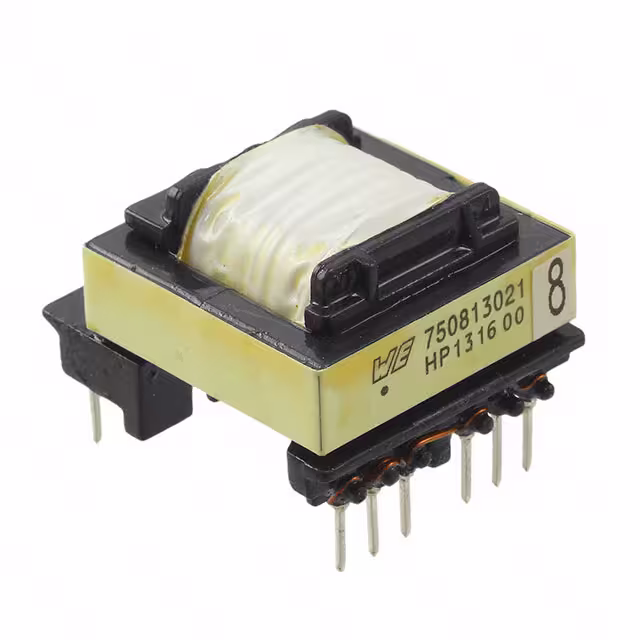

750813021XFMR LED DR DC/DC CONV 1.6MH TH |
3,966 | 0.00 |
|
Datasheet |
WE-UNIT | Tray | Obsolete | For DC/DC Converters | LED Drivers, AC/DC SMPS | LM3445 | Texas Instruments | 120 ~ 191V | 12V @ 20mA | 3000Vrms | 1.6mH @ 60kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 0.984" W (22.20mm x 25.00mm) | 0.635" (16.13mm) | 0.874" L x 0.984" W (22.20mm x 25.00mm) | - |
|

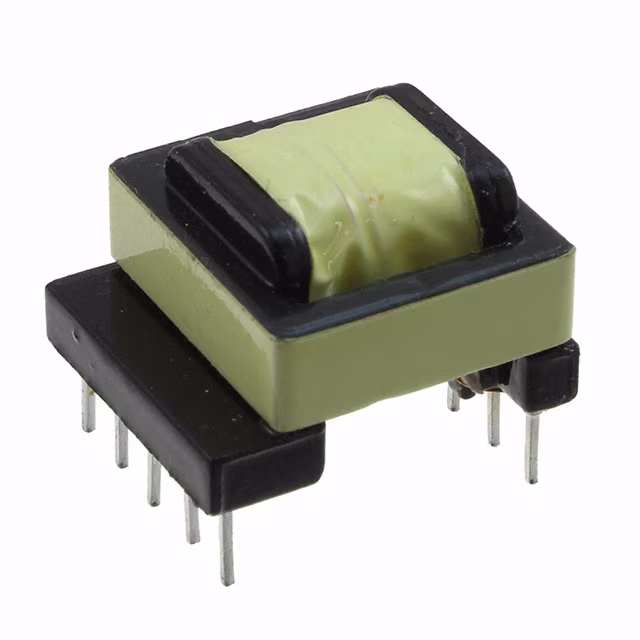

750813049XFMR LED DR DC/DC CONV 1.3MH TH |
2,384 | 0.00 |
|
Datasheet |
WE-UNIT | Tray | Obsolete | For DC/DC Converters | LED Drivers, AC/DC SMPS | LM3447 | Texas Instruments | 127 ~ 191V | 15V @ 20mA | 3000Vrms | 1.3mH @ 70kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|

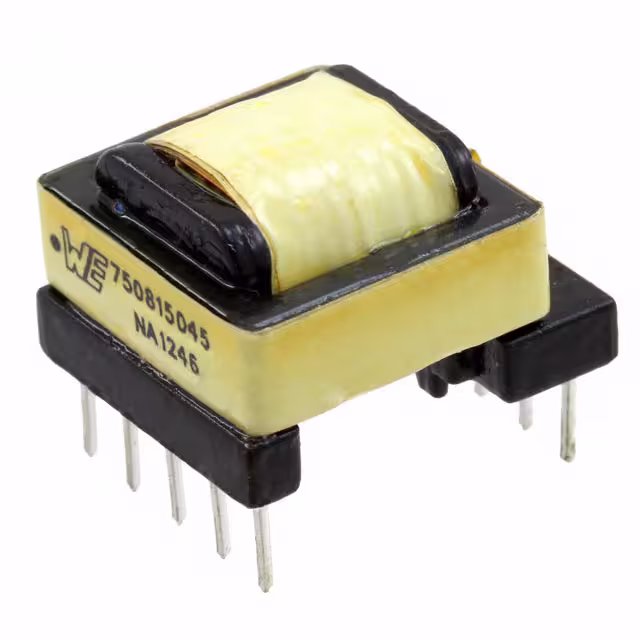

750815045XFMR LED DR AC/DC CONV 3.45MH TH |
3,020 | 0.00 |
|
- |
WE-UNIT | Tray | Obsolete | For AC/DC Converters | LED Drivers, AC/DC SMPS | LM3448 | Texas Instruments | 250 ~ 375V | - | 4500Vrms | 3.45mH @ 10kHz | 72kHz | - | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|
750341146XFMR FLYBACK DC/DC CONV 750UH TH |
2,948 | 0.00 |
|
Datasheet |
WE-FB | Tray | Obsolete | For DC/DC Converters | Flyback Converters | LM3445 | Texas Instruments | 180 ~ 265V | 20V @ 50mA | 3000Vrms | 750µH @ 100kHz | 60kHz | - | - | - | Through Hole | 0.695" L x 0.740" W (17.65mm x 18.80mm) | 0.555" (14.10mm) | 0.695" L x 0.740" W (17.65mm x 18.80mm) | - |
|
|
PA0910NLXFMR FWD P-P DC/DC CONV SMD |
4,680 | 0.00 |
|
Datasheet |
PA09 | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | LTC3901, LTC3765, UCC2891, UCC2897 | Linear Technology, Texas Instruments | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.000" L x 1.160" W (25.40mm x 29.46mm) | 0.402" (10.20mm) | - | Planar |
|
|
PH0256NLXFMR FLYBACK AC/DC CONV TH |
1,556 | 0.00 |
|
Datasheet |
- | Tube | Active | For AC/DC Converters | Flyback Converters | TNY264/274 | Power Integrations | 80 ~ 375V | 9V @ 20mA | 500Vrms | - | 132kHz | - | - | - | Through Hole | 0.689" L x 0.748" W (17.50mm x 19.00mm) | 0.571" (14.50mm) | 0.689" L x 0.748" W (17.50mm x 19.00mm) | - |
|
|
PH0259NLXFMR FLYBACK AC/DC CONV TH |
4,741 | 0.00 |
|
Datasheet |
- | Tube | Active | For AC/DC Converters | Flyback Converters | TNY266/274 | Power Integrations | 85 ~ 375V | - | 500Vrms | - | 132kHz | - | - | - | Through Hole | 0.630" L x 0.720" W (16.00mm x 18.30mm) | 0.709" (18.00mm) | 0.630" L x 0.720" W (16.00mm x 18.30mm) | - |
