Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-06D-24-C2-R0HEATSINK 60X60X20MM XCUT T766 |
1,925 | 9.34 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 8.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54375K-C1-R0HEAT SINK 37.5 X 37.5 X 14.5MM |
1,198 | 9.27 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.571" (14.50mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-55330W-C1-R0HEAT SINK 33MM X 33MM X 24.5MM |
4,016 | 11.78 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.965" (24.50mm) | - | 3.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

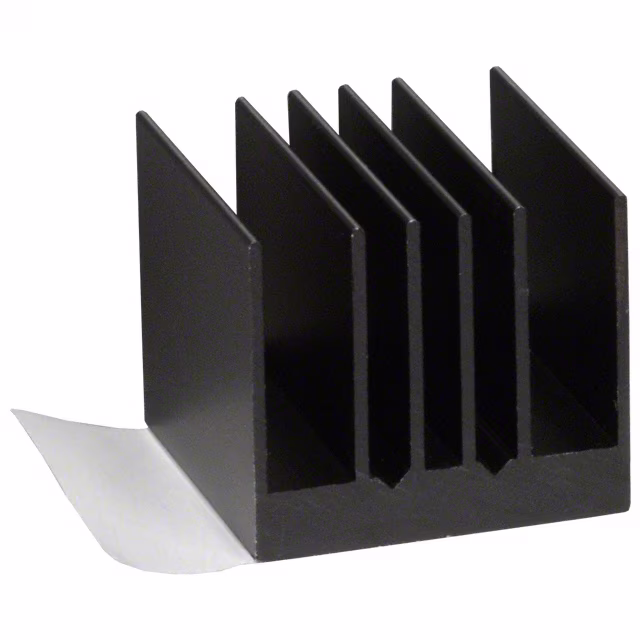

ATS-54230R-C1-R0HEAT SINK 23MM X 23MM X 19.5MM |
4,412 | 9.36 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.768" (19.50mm) | 0.3W @ 20°C | 7.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52450B-C1-R0HEAT SINK 45MM X 45MM X 7.5MM |
1,282 | 9.38 |
|
Datasheet |
maxiFLOW | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.295" (7.50mm) | - | 4.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-152-C2-R0HEATSINK 35X35X35MM L-TAB T766 |
3,089 | 10.48 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-135-C2-R0HEATSINK 70X70X20MM XCUT T766 |
3,156 | 15.29 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 3.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54290R-C1-R0HEAT SINK 29MM X 29MM X 19.5MM |
2,863 | 9.62 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.768" (19.50mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-17H-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
4,041 | 9.77 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-15A-133-C2-R0HEATSINK 70X70X10MM XCUT T766 |
3,361 | 10.74 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 7.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05B-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
2,169 | 9.77 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-210-C2-R0HEATSINK 70X70X12MM XCUT T766 |
4,208 | 10.99 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.472" (12.00mm) | - | 5.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-50170B-C1-R0HEAT SINK 17MM X 17MM X 7.5MM |
1,704 | 11.84 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.295" (7.50mm) | - | 18.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-02C-136-C2-R0HEATSINK 70X70X25MM XCUT T766 |
2,679 | 12.33 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
1,890 | 16.51 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-208-C2-R0HEATSINK 70X70X6MM XCUT T766 |
4,414 | 13.62 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.50°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

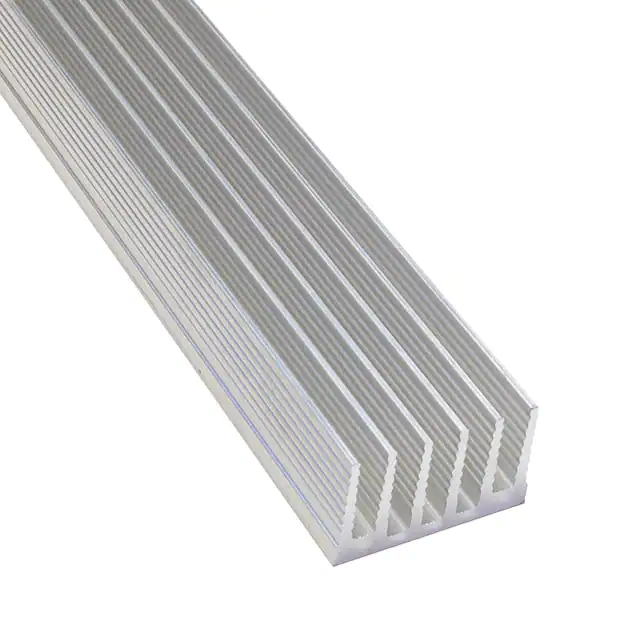

1276941.47" WIDE X 12" DC/DC HEATSINK |
3,400 | 13.98 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.470" (37.34mm) | - | 0.910" (23.11mm) | - | - | 1.35°C/W | Aluminum | - |
|
ATS-1103-C1-R01/2 BRICK HEATSINK 61X58X6.1MM |
2,872 | 14.65 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | Half Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.402" (61.00mm) | 2.323" (59.00mm) | - | 0.240" (6.10mm) | - | 9.60°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-60002-C1-R0HEAT SINK 61MM X 58.2MM X 5.5MM |
1,501 | 15.47 |
|
Datasheet |
blueICE | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 2.291" (58.20mm) | 2.401" (61.00mm) | - | 0.216" (5.50mm) | - | 4.00°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-X51230R-C1-R0MAXIFLOW 22.25X22.25X19.5MM T766 |
2,759 | 22.62 |
|
Datasheet |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.768" (19.50mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
