Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-61375D-C1-R0MAXIGRIP FANSINK 37.5X37.5X9.5MM |
2,183 | 16.50 |
|
Datasheet |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.374" (9.50mm) | - | 2.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X53350P-C1-R0SUPERGRIP HEATSINK 35X35X17.5MM |
2,595 | 22.22 |
|
Datasheet |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.689" (17.50mm) | - | 3.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1277882.00" WIDE X 36" CENTER CHANNEL |
3,700 | 26.14 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | - | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 2.000" (50.80mm) | - | 0.562" (14.28mm) | - | - | 1.63°C/W | Aluminum | - |
|
ATS-56011-C4-R0HEAT SINK 57.5 X 57.5 X 12.5MM |
1,715 | 28.28 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 2.264" (57.50mm) | 2.264" (57.50mm) | - | 0.492" (12.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

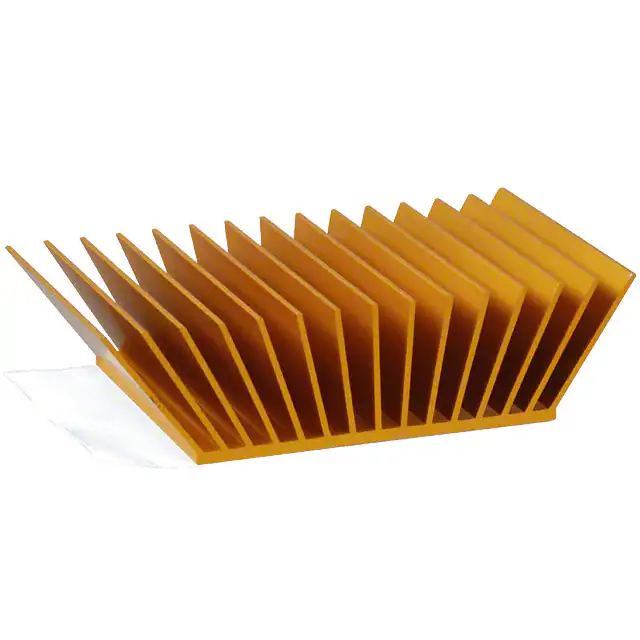

ATS-56012-C3-R0HEAT SINK 42MM X 42MM X 16MM |
4,474 | 26.23 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.654" (42.00mm) | 1.654" (42.00mm) | - | 0.630" (16.00mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
1253562.28WX36" EXTRUSION 14362 |
1,887 | 29.34 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.280" (57.91mm) | - | 0.455" (11.56mm) | - | - | 1.00°C/W | Aluminum | - |
|
1277246.85" WIDE X 12" FLATBACK HEATSI |
1,219 | 42.98 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.850" (173.99mm) | - | 1.252" (31.80mm) | - | - | 0.33°C/W | Aluminum | - |
|
ATS-EXL69-300-R0HEATSINK AL6063 300X36.28MM |
4,247 | 30.87 |
|
Datasheet |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.417" (36.00mm) | - | 1.122" (28.50mm) | - | 5.40°C/W @ 200 LFM | 12.10°C/W | Aluminum | Degreased |
|

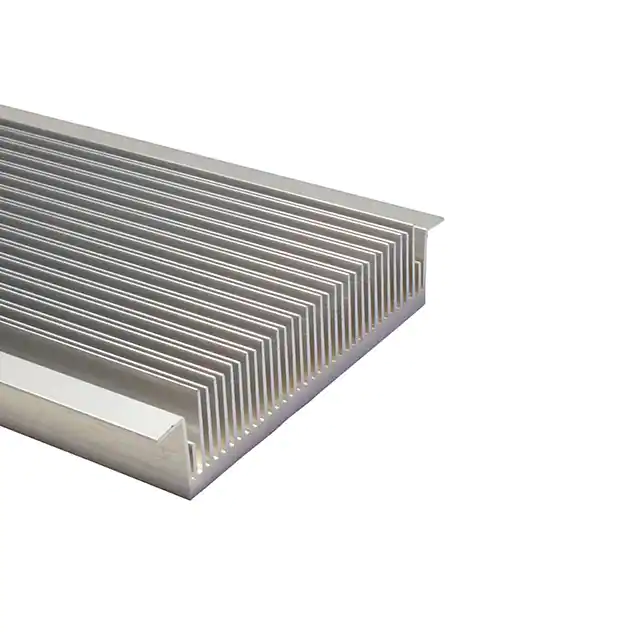

1277377.13" WIDE X 12" FLATBACK W/MOUN |
4,227 | 46.69 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 7.130" (181.10mm) | - | 1.550" (39.37mm) | - | - | 0.19°C/W | Aluminum | - |
|
1254944.75X36" EXTRUSION 5410 XX1025 |
2,715 | 65.05 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 4.750" (120.65mm) | - | 2.625" (66.67mm) | - | - | 0.33°C/W | Aluminum | - |
|
ATS-EXL63-1220-R0HEATSINK AL6063 1220X25X35MM |
3,892 | 81.43 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 0.984" (25.00mm) | - | 1.378" (35.00mm) | - | 2.50°C/W @ 200 LFM | 13.00°C/W | Aluminum | Degreased |
|
122257HEATSINK 19275 PROFILE 12" |
2,316 | 94.55 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.362" (186.99mm) | - | 2.165" (54.99mm) | - | - | - | Aluminum | Unfinished |
|
1256519.24WX36" EXTRUSION 19035 |
2,904 | 132.11 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 9.240" (234.70mm) | - | 2.535" (64.39mm) | - | - | 0.16°C/W | Aluminum | - |
|
780652F00000G78065 EXTRUSION 1.1X0.76"X4.1' |
2,572 | 128.58 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | - | Rectangular, Pin Fins | 49.500" (1257.30mm) | 0.764" (19.40mm) | - | 0.846" (21.50mm) | - | 3.80°C/W @ 200 LFM | - | Aluminum | - |
|
|
1255457WX36" EXTRUSION 16235 XX5733 |
3,150 | 158.92 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | SCR | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 7.000" (177.80mm) | - | 3.125" (79.38mm) | - | - | 0.22°C/W | Aluminum | - |
|

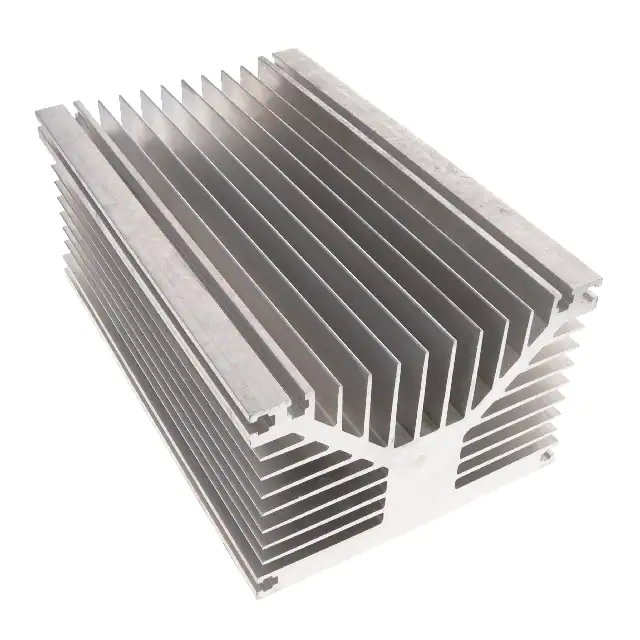

1256137.52WX12" EXTRUSION 17003 |
3,034 | 212.55 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | Power Modules | Press Fit | Rectangular, Fins | 12.000" (304.80mm) | 7.520" (191.01mm) | - | 5.300" (134.62mm) | - | - | 0.16°C/W | Aluminum | - |
|
603402F00000G60340 EXTRUSION 1.312X6.437"X4' |
4,720 | 192.43 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular | 48.000" (1219.20mm) | - | - | 1.312" (33.32mm) | - | - | - | Aluminum | - |
|
|
657-10ABPNEHEATSINK TO-220 W/PINS BLK 1" |
1,501 | 0.89 |
|
Datasheet |
657 | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 41°C | 3.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
657-25ABPEHEATSINK TO-220 W/PINS BLK 2.5" |
4,343 | 1.63 |
|
Datasheet |
657 | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 2.500" (63.50mm) | 6.0W @ 25°C | 2.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
667-15ABPPEHEATSINK TO-220 W/S/O PINS BLK |
4,215 | 1.57 |
|
Datasheet |
667 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 1.375" (34.93mm) | - | 1.500" (38.10mm) | 6.0W @ 66°C | 5.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
