Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SKV606021-ALALUMINUM HEATSINK 60X60X21MM |
1,391 | 9.25 |
|
Datasheet |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.827" (21.00mm) | - | 0.90°C/W @ 200 LFM | 7.90°C/W | Aluminum | - |
|
|
SKV606014-ALALUMINUM HEATSINK 60X60X14MM |
3,487 | 9.77 |
|
Datasheet |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.551" (14.00mm) | - | 1.80°C/W @ 200 LFM | 7.60°C/W | Aluminum | - |
|
|
ATS045045024-SF-15WHEATSINK 45X45X24MM |
3,841 | 0.00 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.945" (24.00mm) | - | 2.39°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-56010-C3-R0HEAT SINK 50MM X 45MM X 8.5MM |
4,262 | 15.89 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 1.969" (50.00mm) | 1.772" (45.00mm) | - | 0.335" (8.50mm) | - | 4.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-30-C2-R0HEATSINK 70X70X25MM XCUT T766 |
2,186 | 17.33 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
SKV4545225-CUCOPPER HEATSINK 45X44X22.5MM |
1,849 | 14.05 |
|
Datasheet |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Rectangular, Fins | 1.732" (44.00mm) | 1.772" (45.00mm) | - | 0.886" (22.50mm) | - | 1.65°C/W @ 200 LFM | 8.00°C/W | Copper | - |
|
401FHEATSINK POWER TO-3 |
3,459 | 13.72 |
|
Datasheet |
401 | Bulk | Active | Board Level, Extrusion | TO-3 | Press Fit | Rectangular, Fins | 1.500" (38.10mm) | 4.750" (120.65mm) | - | 1.250" (31.75mm) | 30.0W @ 80°C | 1.50°C/W @ 250 LFM | - | Aluminum | Black Anodized |
|
ATS-X53400B-C1-R0SUPERGRIP HEATSINK 40X40X7.5MM |
4,521 | 19.27 |
|
Datasheet |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.295" (7.50mm) | - | 9.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
KU-PA-ST-3-5,5MMDM-651-SGKU-PA-ST-3-5,5MMDM-651-SG |
2,748 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7236ASTAMPED HEATSINK |
2,365 | 0.00 |
|
- |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.250" (6.35mm) | - | - | 29.00°C/W | Aluminum Alloy | Clean Finished |
|
|
V7236CSTAMPED HEATSINK |
2,579 | 0.00 |
|
- |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | - | - | 21.00°C/W | Aluminum Alloy | Clean Finished |
|

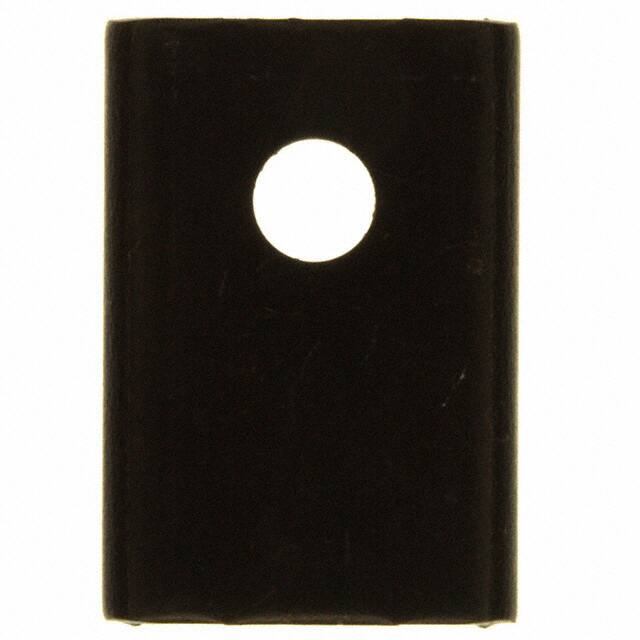

821102B00000HEATSINK STAMP 9.5X13.2X19.1MM |
4,804 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.375" (9.52mm) | 1.0W @ 30°C | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
821002B00000HEATSINK STAMP 6.4X13.2X19.1MM |
3,282 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.250" (6.35mm) | 1.5W @ 50°C | 10.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
|
KU-SBK-0443-CS-ST-0,6MM-SGKU-SBK-0443-CS-ST-0,6MM-SG |
4,996 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
822812B00000HEATSINK STAMP 17.8X44.5X12.7MM |
2,138 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.500" (12.70mm) | 10.0W @ 70°C | 4.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
V7236BSTAMPED HEATSINK |
2,700 | 0.00 |
|
- |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.375" (9.52mm) | - | - | 24.00°C/W | Aluminum Alloy | Clean Finished |
|
274-3ABHEAT SINKS BOARD LEVEL PWR SEMI |
2,088 | 0.19 |
|
Datasheet |
274 | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.250" (6.35mm) | 2.0W @ 62°C | 9.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|

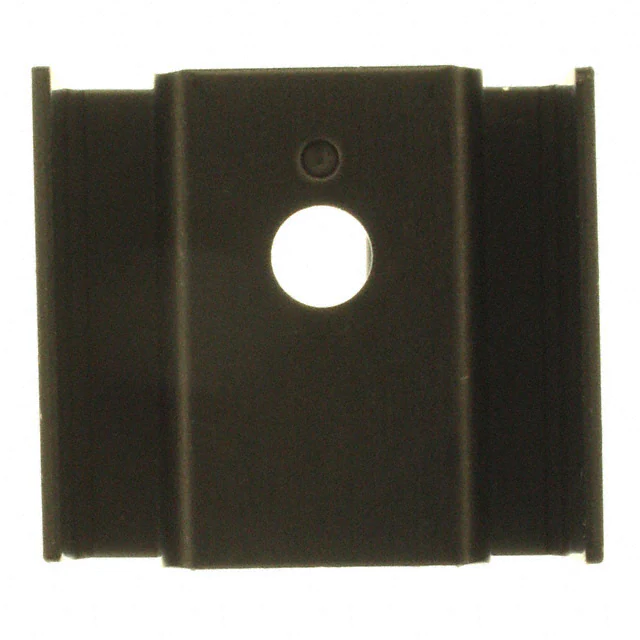

833202B00000HEATSINK STAMP 10X21.2X19MM |
1,341 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular | 0.750" (19.05mm) | 0.860" (21.84mm) | - | 0.355" (9.02mm) | 3.0W @ 60°C | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
821202B00000HEATSINK STAMP 12.7X13.2X19.1MM |
3,440 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | 1.5W @ 40°C | 10.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
KU-SBK-0398-ES-ST-0,4MM-SGKU-SBK-0398-ES-ST-0,4MM-SG |
4,178 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
