Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

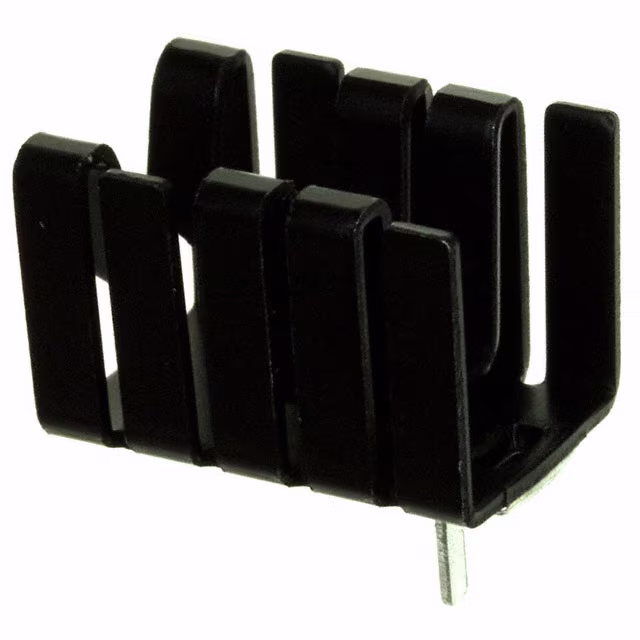

831402B00000HEATSINK STAMP 19X12.8X12.7MM |
3,542 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220, TO-262 | Clip and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 1.0W @ 30°C | 7.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|

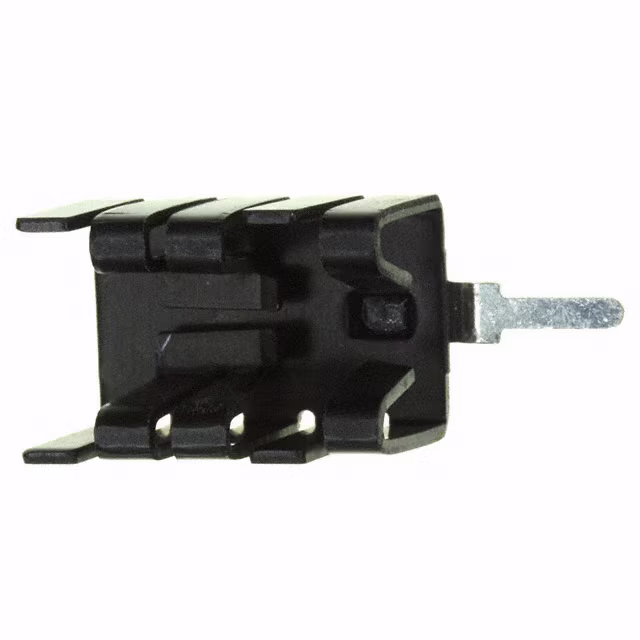

831502B03700HEATSINK STAMP 19X12.8X12.7MM |
2,682 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level, Vertical | TO-220, TO-262 | Clip and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 1.0W @ 30°C | 7.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
233-60AB-10HEATSINK TO-220 VERT BLK W/TABS |
1,783 | 0.31 |
|
Datasheet |
233 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.600" (15.24mm) | 0.570" (14.47mm) | - | 0.500" (12.70mm) | 2.0W @ 58°C | 11.00°C/W @ 400 LFM | 29.00°C/W | Aluminum | Black Anodized |
|

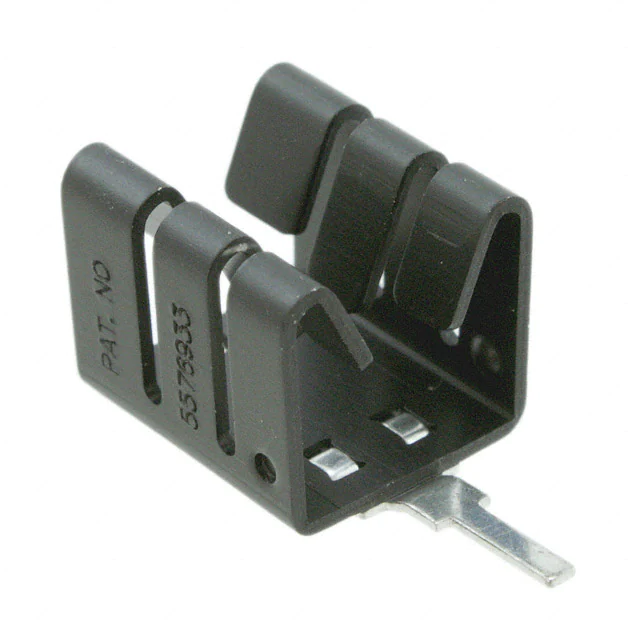

233-60AB-10EHEATSINK TO-220 VERT BLK W/TABS |
3,869 | 0.31 |
|
Datasheet |
233 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.725" (18.42mm) | 0.570" (14.47mm) | - | 0.500" (12.70mm) | 2.0W @ 58°C | 11.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
HSS-B20-0452HHEATSINK TO-220 3.2W ALUMINUM |
4,996 | 0.00 |
|
Datasheet |
HSS | Bag | Obsolete | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 0.500" (12.70mm) | - | 0.748" (19.00mm) | 3.2W @ 75°C | 6.40°C/W @ 200 LFM | 23.81°C/W | Aluminum | Black Anodized |
|

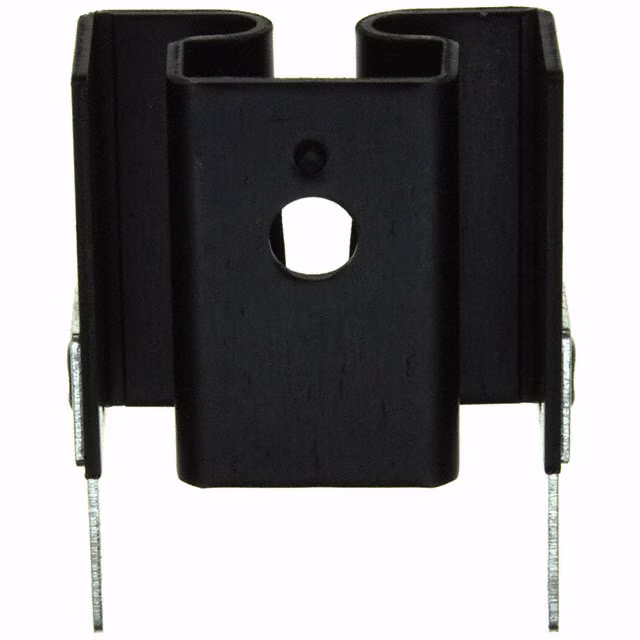

833202B03300HEATSINK STAMP 10X21.2X19MM |
4,376 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular | 0.750" (19.05mm) | 0.835" (21.21mm) | - | 0.394" (10.00mm) | 3.0W @ 60°C | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

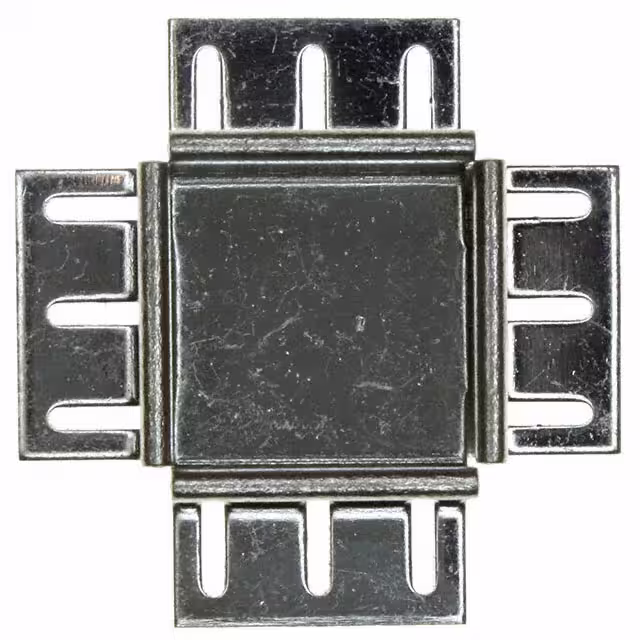

832700T00000HEATSINK STAMP 26.2X12.7X9.9MM |
1,890 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Top Mount | TO-263 (D²Pak) | SMD Pad | Rectangular, Fins | 0.500" (12.70mm) | 1.031" (26.20mm) | - | 0.390" (9.91mm) | 1.3W @ 30°C | 10.00°C/W @ 200 LFM | - | Copper | Tin |
|
|
V2006ASTAMPED HEATSINK |
3,322 | 0.00 |
|
- |
- | Bulk | Active | Top Mount | TO-220 | Bolt On | Rectangular, Fins | 1.450" (36.83mm) | 0.700" (17.80mm) | - | 0.850" (21.60mm) | - | - | 10.00°C/W | Aluminum Alloy | Clean Finished |
|
HSS-B20-NP-01HEATSINK TO-220 4.1W ALUMINUM |
1,943 | 0.23 |
|
Datasheet |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.787" (20.00mm) | 0.775" (19.68mm) | - | 0.303" (7.70mm) | 4.1W @ 75°C | 7.05°C/W @ 200 LFM | 18.29°C/W | Aluminum | Black Anodized |
|
|
V2220BSTAMPED HEATSINK |
2,747 | 0.00 |
|
- |
- | Bulk | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | - | - | 26.80°C/W | Aluminum Alloy | Black Anodized |
|
|
KU-SBK-0396/24-ES-ST-0,5MM-SGKU-SBK-0396/24-ES-ST-0,5MM-SG |
2,909 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
834100T00000HEATSINK STAMP 22.9X8X10.2MM |
1,304 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Top Mount | TO-252 (DPak) | SMD Pad | Rectangular, Fins | 0.315" (8.00mm) | 0.900" (22.86mm) | - | 0.400" (10.16mm) | 2.5W @ 35°C | 17.50°C/W @ 300 LFM | - | Copper | Tin |
|
|
243-1PABEHEATSINK TO-220 |
4,791 | 0.33 |
|
Datasheet |
243 | Bulk | Active | Board Level | TO-220 | Clip | Rectangular | 0.800" (20.32mm) | 0.270" (6.86mm) | - | 1.000" (25.40mm) | 2.0W @ 50°C | 4.50°C/W @ 400 LFM | - | Aluminum | Pre-Black Anodized |
|
|
243-3PABEHEATSINK TO-221 |
3,046 | 0.33 |
|
Datasheet |
243 | Bulk | Active | Board Level | TO-220 | Clip | Rectangular | 0.800" (20.32mm) | 0.270" (6.86mm) | - | 0.800" (20.32mm) | 2.0W @ 78°C | 8.20°C/W @ 400 LFM | 39.00°C/W | Aluminum | Pre-Black Anodized |
|
|
286-ABHEATSINK FOR TO220 |
3,856 | 0.35 |
|
Datasheet |
286 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.190" (30.23mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 58°C | 7.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
10240-2 REV J-GTHM,10240-2 REV J-G |
1,141 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V-1103-SMD/A-LSTAMPED HEATSINK |
1,139 | 0.00 |
|
- |
- | Bulk | Active | Top Mount | TO-252 | SMD Pad | Rectangular, Fins | 0.315" (8.00mm) | 0.900" (22.86mm) | - | 0.400" (10.16mm) | - | - | 24.00°C/W | Copper Alloy | Tin |
|
|
V6503A-TSTAMPED HEATSINK |
1,274 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V2198N1HEATSINK CPU STAMPED |
4,358 | 0.47 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum Alloy | Natural Anodized |
|

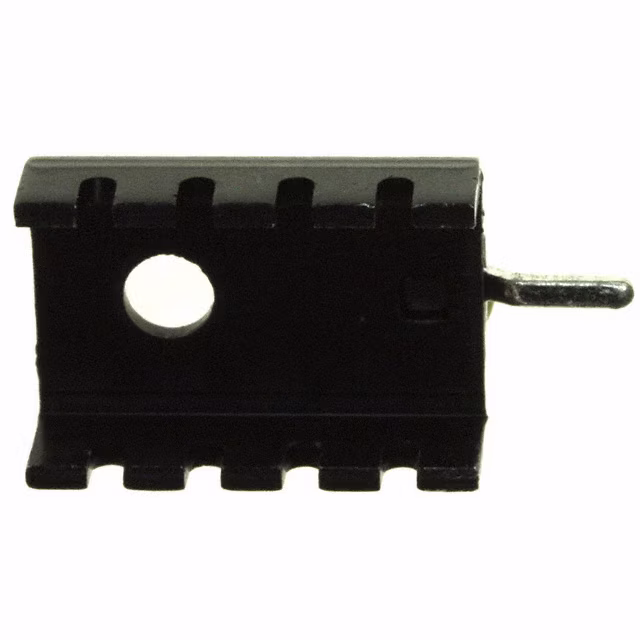

821002B04000HEATSINK STAMP 6.4X13.3X19.1MM |
1,952 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.250" (6.35mm) | 1.5W @ 50°C | 16.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
