Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-03D-115-C2-R0HEATSINK 40X40X20MM XCUT T766 |
2,039 | 5.72 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02E-115-C2-R0HEATSINK 40X40X20MM XCUT T766 |
1,494 | 5.72 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03E-115-C2-R0HEATSINK 40X40X20MM XCUT T766 |
4,352 | 5.72 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-193-C1-R0HEATSINK 40X40X6MM XCUT |
4,279 | 3.84 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.236" (6.00mm) | - | 21.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

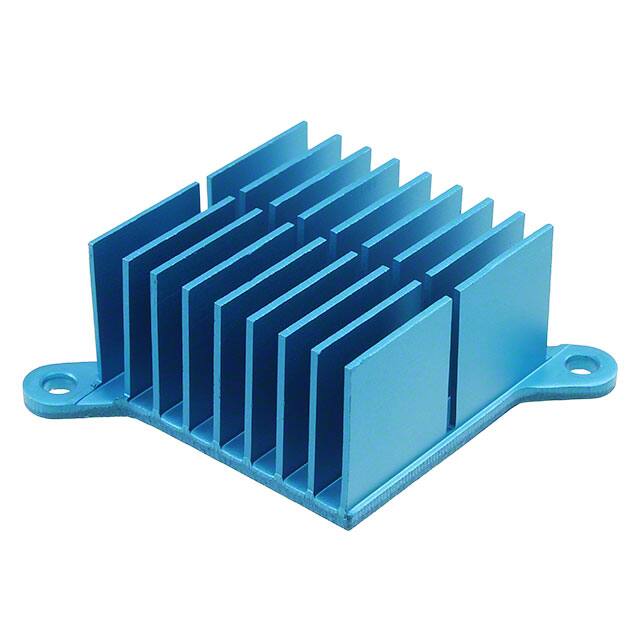

ATS-CPX035035020-177-C2-R0HEATSINK 35X35X20MM R-TAB CP |
3,340 | 4.57 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 6.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
322805B00000GBOARD LEVEL HEAT SINK |
2,865 | 3.43 |
|
Datasheet |
- | Bulk | Active | Top Mount | TO-5 | Press Fit | Cylindrical | - | - | 0.315" (8.00mm) ID, 0.875" (22.23mm) OD | 0.531" (13.50mm) | 1.0W @ 50°C | 30.00°C/W @ 200 LFM | 40.00°C/W | Aluminum | Black Anodized |
|
|
2333BHEAT SINK |
3,305 | 3.86 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CR401-25AEALUMINUM HEATSINK 25MM BLK ANODI |
2,929 | 3.39 |
|
Datasheet |
CR | Box | Obsolete | Board Level, Vertical | TO-401 | 2 Clips and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 1.570" (39.88mm) | - | 2.950" (74.93mm) | - | - | 5.40°C/W | Aluminum Alloy | Black Anodized |
|
ATS-P1-01-C1-R0HEATSINK 40X40X10MM XCUT |
3,731 | 4.07 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
531002B02100GBOARD LEVEL HEAT SINK |
4,869 | 3.69 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 4.00°C/W @ 400 LFM | 13.40°C/W | Aluminum | Black Anodized |
|
|
MBH45001-10W5/3.0AL HEAT SINK 45X45X10MM |
4,152 | 0.00 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MBH45001-14W/2.9-1AL HEAT SINK 45X45X15MM |
1,154 | 0.00 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MBH45001-10W4/3.0AL HEAT SINK 45X45X10MM |
4,313 | 0.00 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
574102B03300GBOARD LEVEL HEAT SINK |
1,105 | 3.70 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | 1.5W @ 40°C | 8.00°C/W @ 500 LFM | 23.20°C/W | Aluminum | Black Anodized |
|
ATS-FPS037058011-36-C1-R0HEATSINK 36.83X57.6X11.43MM FP |
3,584 | 3.89 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.450" (11.43mm) | - | 14.81°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
D1085040T3DELTAM HEAT SINK |
1,608 | 0.00 |
|
- |
Deltem™ | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.850" (21.59mm) | 0.850" (21.59mm) | - | 0.400" (10.16mm) | 2.5W @ 90°C | 20.00°C/W @ 100 LFM | - | Composite | - |
|
|
519803B00000GBOARD LEVEL HEAT SINK |
4,287 | 3.90 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-3 | Bolt On | Rhombus | 1.550" (39.37mm) | 1.550" (39.37mm) | - | 1.750" (44.45mm) | 10.0W @ 50°C | 2.00°C/W @ 400 LFM | 4.50°C/W | Aluminum | Black Anodized |
|
|
ATS-P1-113-C1-R0HEATSINK 40X40X10MM XCUT |
3,612 | 3.91 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.76°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P1-194-C1-R0HEATSINK 40X40X10MM XCUT |
4,199 | 3.91 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 13.02°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-196-C1-R0HEATSINK 45X45X6MM XCUT |
1,159 | 3.91 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.236" (6.00mm) | - | 18.07°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
