Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
960-23-18-F-AB-0HEATSINK 23X18MM FRONT PUSH PIN |
4,200 | 5.42 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.709" (18.00mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
960-23-18-D-AB-0HEATSINK 23X18MM DIA PUSH PIN |
4,524 | 5.26 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.709" (18.00mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-17F-82-C2-R0HEATSINK 30X30X25MM R-TAB T766 |
1,019 | 6.00 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 10.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17G-82-C2-R0HEATSINK 30X30X25MM R-TAB T766 |
2,523 | 6.00 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 10.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17H-82-C2-R0HEATSINK 30X30X25MM R-TAB T766 |
4,561 | 6.00 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 10.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-82-C2-R0HEATSINK 30X30X25MM R-TAB T766 |
2,233 | 6.00 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 10.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

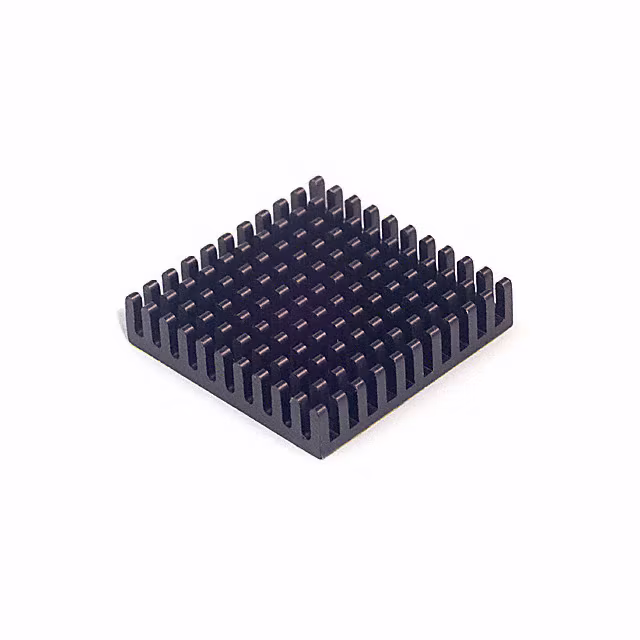

BDN16-3CB/A01HEATSINK CPU W/ADHESIVE 1.61"SQ |
4,486 | 3.78 |
|
Datasheet |
BDN | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.610" (40.89mm) | 1.610" (40.89mm) | - | 0.355" (9.02mm) | - | 4.50°C/W @ 400 LFM | 13.50°C/W | Aluminum | Black Anodized |
|
PF752BGPRESSED HTSK-AL-PF752-B-(D) (MRP |
2,731 | 0.00 |
|
- |
- | Bulk | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.866" (22.00mm) | 0.433" (11.00mm) | - | 0.750" (19.05mm) | 3.0W @ 60°C | 6.00°C/W @ 600 LFM | - | Aluminum | Black Anodized |
|
C2A-XT4-46EALUMINUM HEATSINK 46MM BLK ANODI |
3,197 | 4.22 |
|
Datasheet |
C2 | Box | Obsolete | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 1.820" (46.23mm) | 1.650" (41.91mm) | - | 1.260" (32.00mm) | - | - | 2.80°C/W | Aluminum | Black Anodized |
|
|
D10850-40T5HEATSINK 128PQFP COMPOSITE |
2,792 | 4.21 |
|
Datasheet |
Deltem™ | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.850" (21.59mm) | 0.850" (21.59mm) | - | 0.400" (10.16mm) | 2.5W @ 90°C | 20.00°C/W @ 100 LFM | - | Composite | - |
|
ATS-P1-138-C1-R0HEATSINK 25X25X15MM L-TAB |
3,372 | 3.92 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P1-166-C1-R0HEATSINK 25X25X15MM R-TAB |
3,481 | 3.92 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
547-95AB-MEHEATSINK DC/DC QUARTER BRICK |
2,293 | 4.18 |
|
Datasheet |
547 | Bulk | Active | Board Level, Vertical | Quarter Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 1.450" (36.83mm) | 2.280" (57.91mm) | - | 0.950" (24.13mm) | - | 2.20°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
547-95AB-MET725HEATSINK DC/DC QUARTER BRICK |
4,021 | 6.98 |
|
Datasheet |
547 | Bulk | Active | Board Level, Vertical | Quarter Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 1.450" (36.83mm) | 2.280" (57.91mm) | - | 0.950" (24.13mm) | - | 2.20°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
547-95AB-T725HEATSINK DC/DC QUARTER BRICK |
4,225 | 4.45 |
|
Datasheet |
547 | Bulk | Active | Board Level, Vertical | Quarter Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 1.450" (36.83mm) | 2.280" (57.91mm) | - | 0.950" (24.13mm) | - | 2.20°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
WV-DT2-101EHEATSINK DUAL FOR TO-220/247 |
4,062 | 3.74 |
|
Datasheet |
W | Box | Obsolete | Board Level, Vertical | TO-220, TO-247 (Dual) | Clip and PC Pin | Rectangular, Fins | 1.200" (30.48mm) | 1.710" (43.43mm) | - | 0.630" (16.00mm) | 4.0W @ 40°C | 6.00°C/W @ 200 LFM | 6.00°C/W | Aluminum | Degreased |
|
ATS-08F-171-C2-R0HEATSINK 30X30X20MM R-TAB T766 |
2,637 | 6.02 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14F-171-C2-R0HEATSINK 30X30X20MM R-TAB T766 |
3,998 | 6.02 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-08G-171-C2-R0HEATSINK 30X30X20MM R-TAB T766 |
3,082 | 6.02 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14E-171-C2-R0HEATSINK 30X30X20MM R-TAB T766 |
2,417 | 6.02 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
