Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-FPX030030035-84-C3-R0HEATSINK 30X30X35MM R-TAB FP |
100 | 4.68 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.19°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

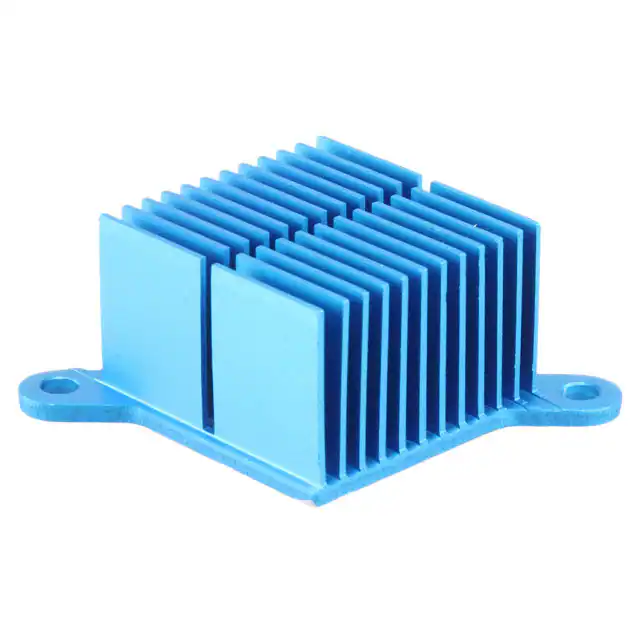

ATS-FPX030030020-51-C2-R0HEATSINK 30X30X20MM L-TAB FP |
3,759 | 3.97 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 14.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX035035030-179-C2-R0HEATSINK 35X35X30MM R-TAB CP |
100 | 4.86 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 3.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-43-C2-R0HEATSINK 25X25X10MM L-TAB T766 |
100 | 5.07 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 28.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

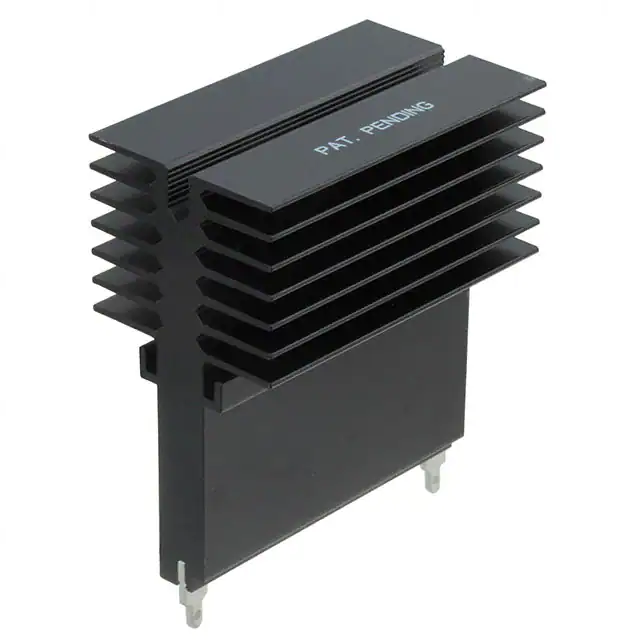

CR301-50AEALUMINUM HEATSINK 50MM BLK ANODI |
100 | 4.80 |
|
Datasheet |
CR | Box | Active | Board Level, Vertical | TO-301 | 2 Clips and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 2.362" (60.00mm) | - | - | - | - | 5.70°C/W | Aluminum Alloy | Black Anodized |
|

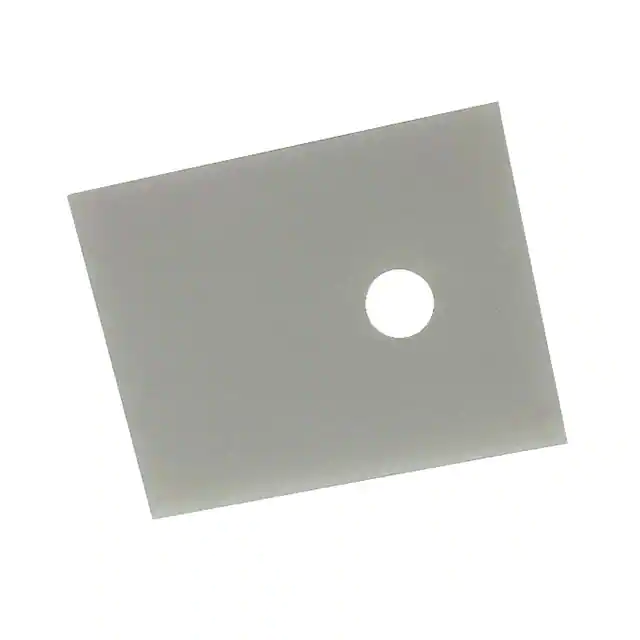

XL25D-TO3P-25-20-1CERAMIC HEAT SPREADER 25X20X1MM |
2,465 | 4.93 |
|
Datasheet |
XL-25 | Bulk | Active | Heat Spreader | TO-3P | Thermal Tape | Rectangular | 0.984" (25.00mm) | 0.787" (20.00mm) | - | 0.039" (1.00mm) | - | - | - | Ceramic | - |
|
960-19-23-F-AB-0HEATSINK 19X23MM FRONT PUSH PIN |
1,789 | 5.12 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.905" (23.00mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

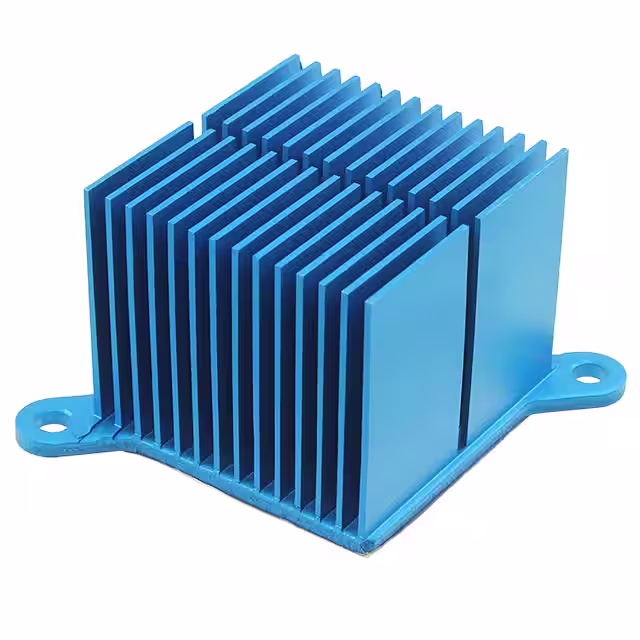

ATS-FPX035035030-89-C2-R0HEATSINK 35X35X30MM R-TAB FP |
1,324 | 5.32 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040035-186-C3-R0HEATSINK 40X40X35MM R-TAB CP |
100 | 5.24 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 2.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX060060010-129-C1-R0HEATSINK 60X60X10MM XCUT CP |
100 | 4.34 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 8.64°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

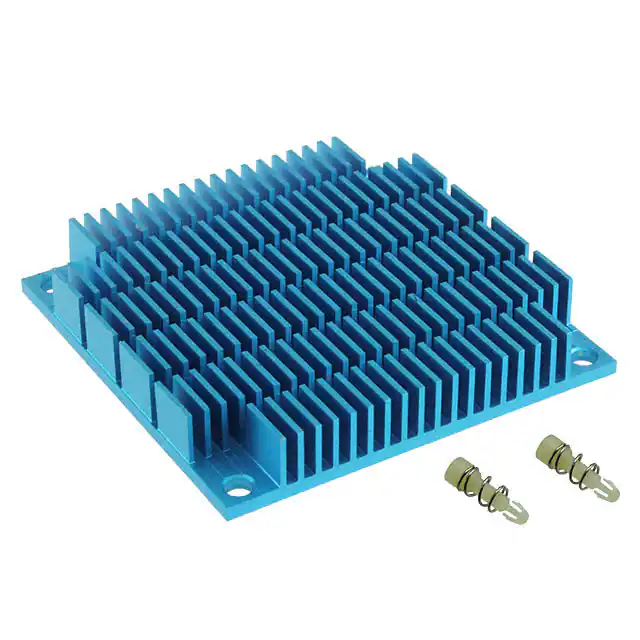

ATS-P1-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
1,942 | 7.47 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

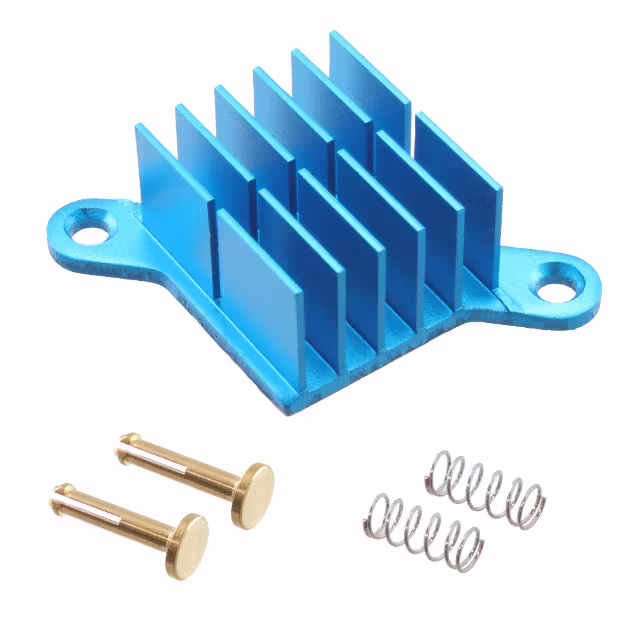

ATS-01F-138-C2-R0HEATSINK 25X25X15MM L-TAB T766 |
2,135 | 5.37 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

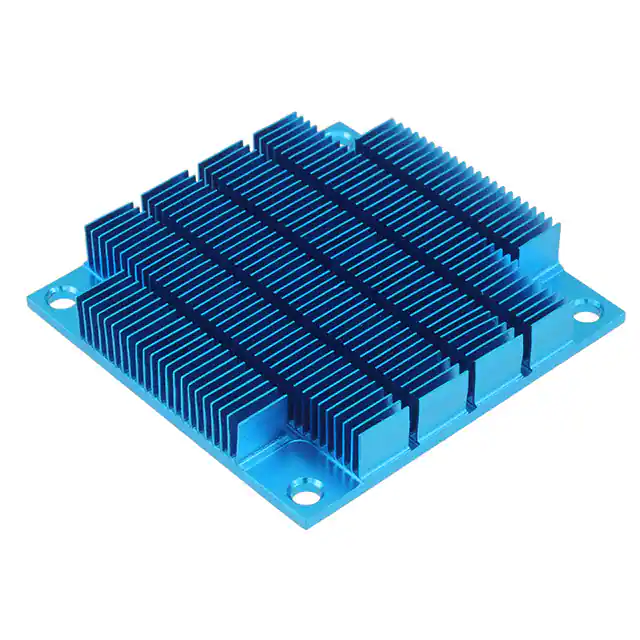

ATS-FPX054054010-109-C1-R1HEATSINK 54X54X9.5MM XCUT SFP |
2,921 | 5.39 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.374" (9.50mm) | - | 27.68°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

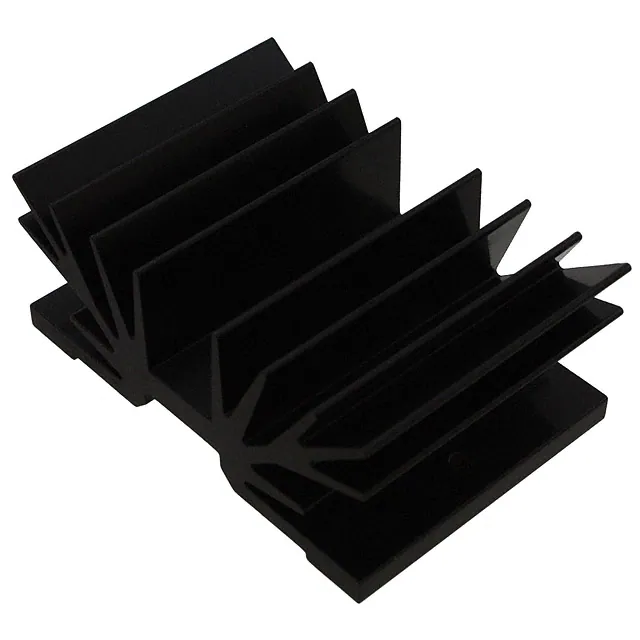

V5224CHEATSINK ALUM ANOD |
4,512 | 2.80 |
|
Datasheet |
- | Bulk | Active | Board Level | SOT-32, TO-220 | Bolt On | Rectangular, Fins | 1.476" (37.50mm) | 2.126" (54.00mm) | - | 0.886" (22.50mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-P1-17-C2-R0HEATSINK 54X54X12.7MM XCUT T766 |
100 | 6.82 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.500" (12.70mm) | - | 15.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-05H-74-C2-R0HEATSINK 25X25X15MM R-TAB T766 |
2,142 | 5.57 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 20.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

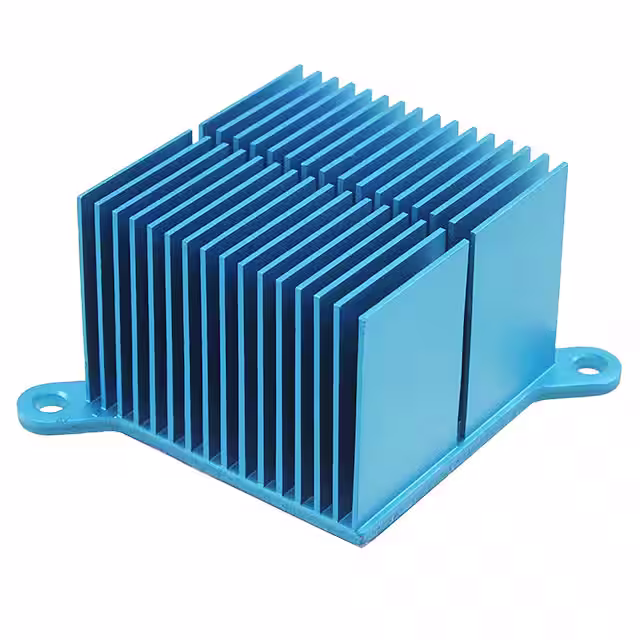

ATS-FPX040040030-95-C2-R0HEATSINK 40X40X30MM R-TAB FP |
4,362 | 5.74 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
960-31-12-F-AB-0HEATSINK 31X12MM FRONT PUSH PIN |
3,172 | 5.90 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.472" (12.00mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX070070006-208-C1-R0HEATSINK 70X70X6MM XCUT CP |
1,830 | 6.00 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.49°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

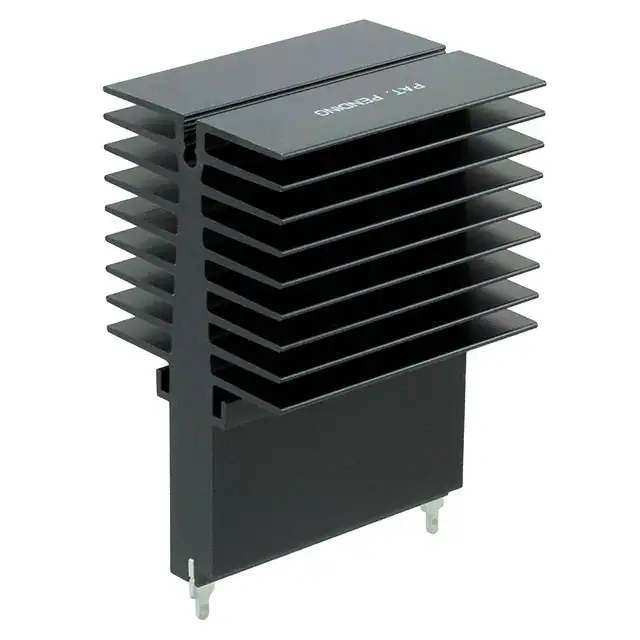

CR201-50AEALUMINUM HEATSINK 50MM BLK ANODI |
4,298 | 5.70 |
|
Datasheet |
CR | Box | Active | Board Level, Vertical | TO-201 | 3 Clips and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 2.953" (75.00mm) | - | - | - | - | 3.30°C/W | Aluminum Alloy | Black Anodized |
