Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

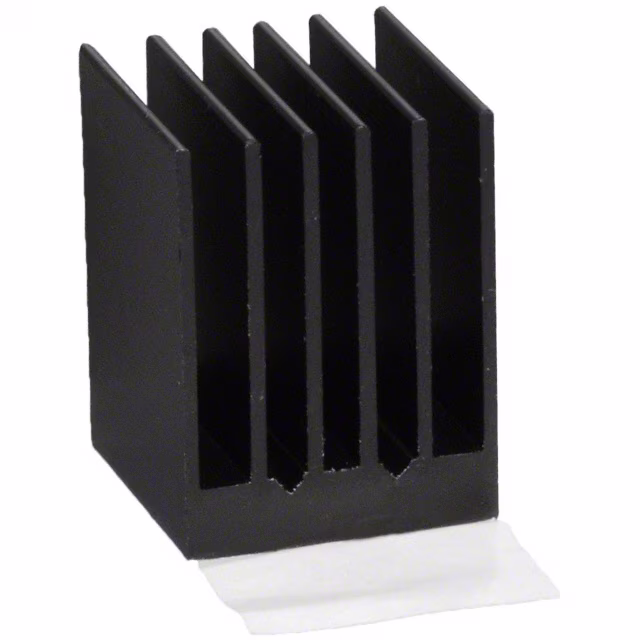

ATS-54190W-C1-R0HEAT SINK 19MM X 19MM X 24.5MM |
1,561 | 10.63 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.965" (24.50mm) | 0.3W @ 20°C | 6.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-55170W-C1-R0HEAT SINK 17MM X 17MM X 24.5MM |
1,071 | 10.73 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.965" (24.50mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

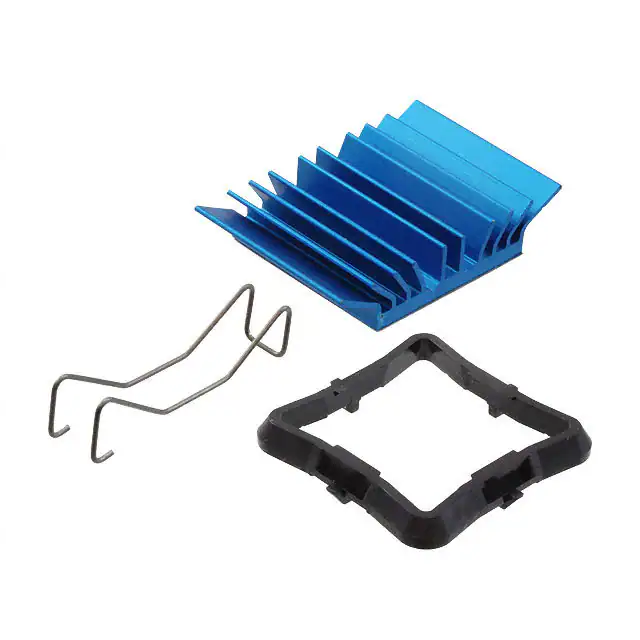

ATS-50250B-C3-R0HEAT SINK PASSIVE BGA SPREAD CLP |
2,162 | 10.80 |
|
- |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.295" (7.50mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

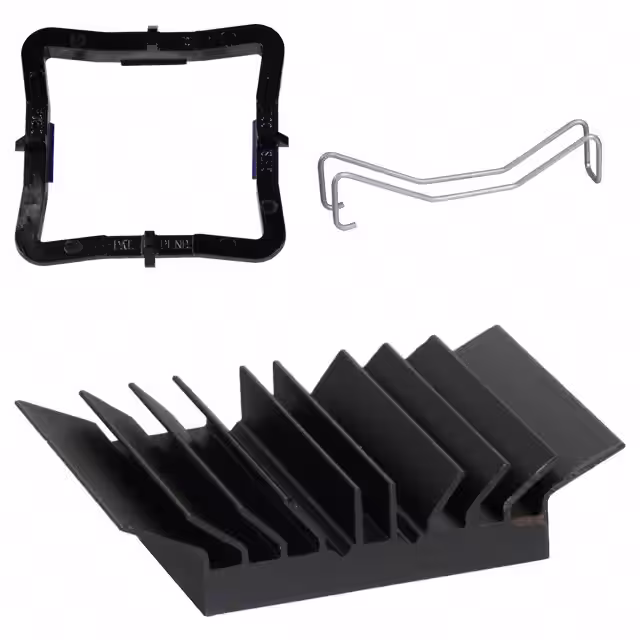

ATS-51310D-C1-R0HEAT SINK 31MM X 31MM X 9.5MM |
2,580 | 13.56 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.374" (9.50mm) | - | 7.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

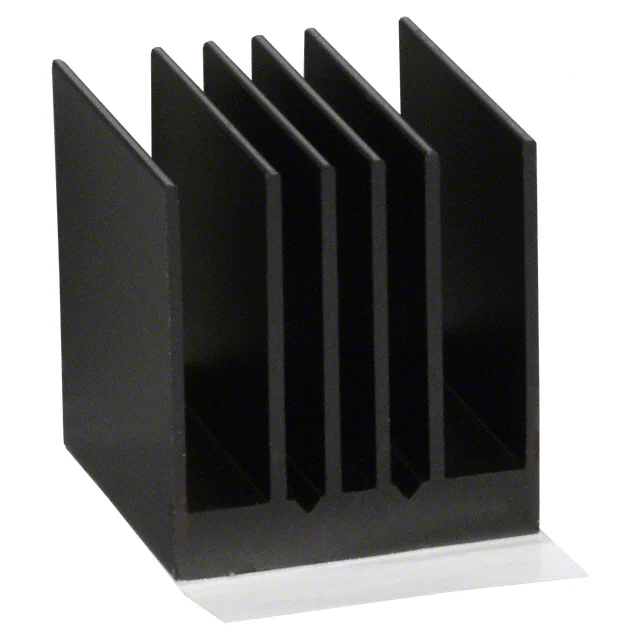

ATS-54230W-C1-R0HEAT SINK 23MM X 23MM X 24.5MM |
2,019 | 10.86 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.965" (24.50mm) | - | 5.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

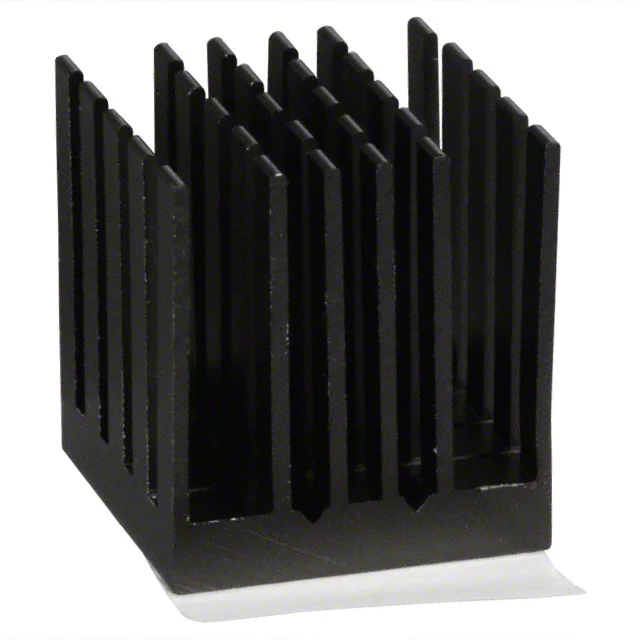

ATS-55230W-C1-R0HEAT SINK 23MM X 23MM X 24.5MM |
100 | 10.93 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.965" (24.50mm) | - | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

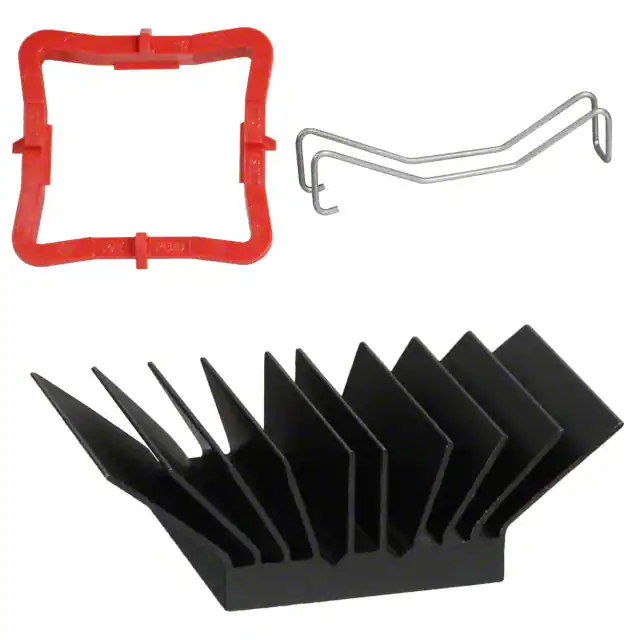

ATS-51270K-C1-R0HEAT SINK 27MM X 27MM X 14.5MM |
2,650 | 14.20 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.571" (14.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

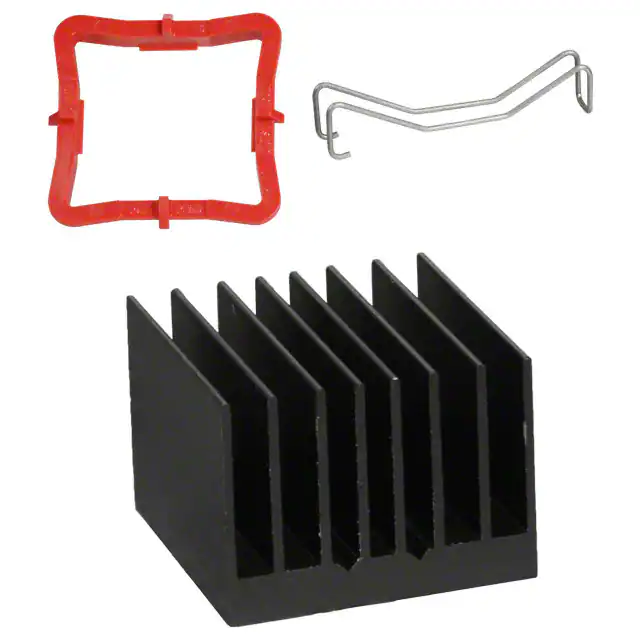

ATS-53270R-C1-R0HEAT SINK 27MM X 27MM X 19.5MM |
100 | 13.38 |
|
Datasheet |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.768" (19.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

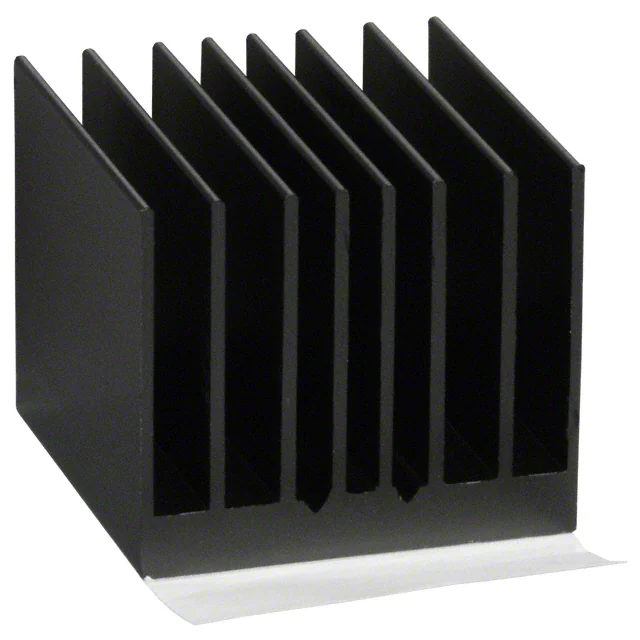

ATS-54300W-C1-R0HEAT SINK 30MM X 30MM X 24.5MM |
1,310 | 10.98 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.965" (24.50mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

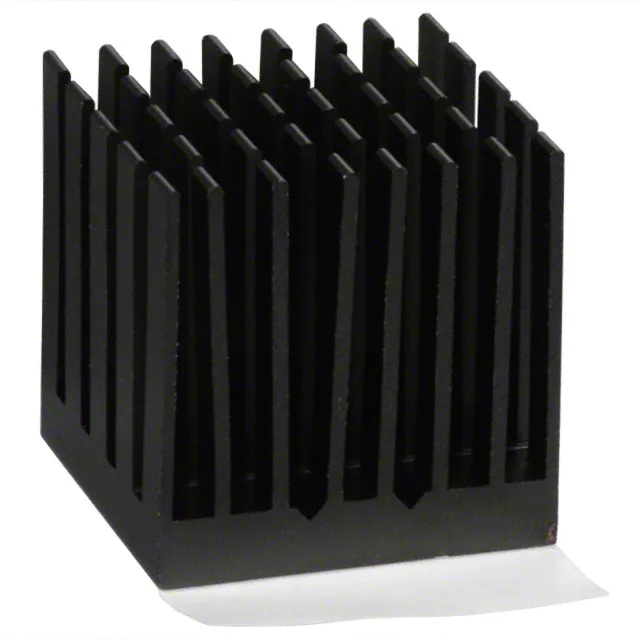

ATS-55250W-C1-R0HEAT SINK 25MM X 25MM X 24.5MM |
100 | 11.07 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.965" (24.50mm) | - | 4.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX070070025-30-C3-R0HEATSINK 70X70X25MM XCUT FP |
4,086 | 11.51 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

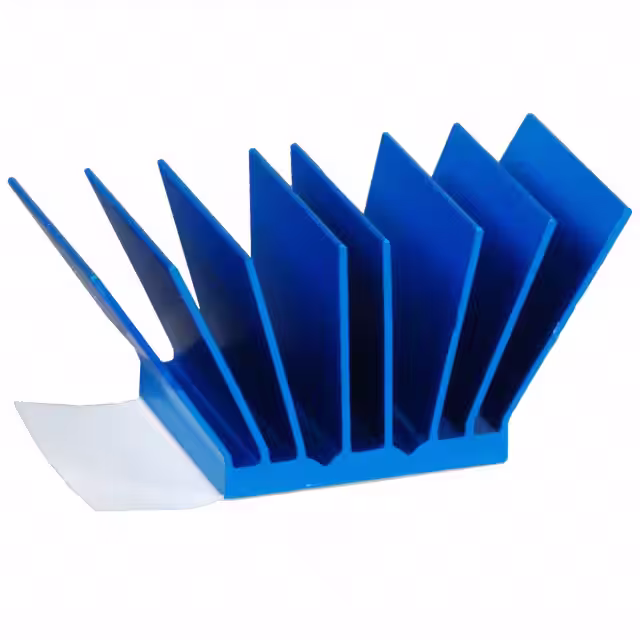

ATS-52210P-C1-R0HEAT SINK 21MM X 21MM X 17.5MM |
2,074 | 11.29 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.689" (17.50mm) | - | 5.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

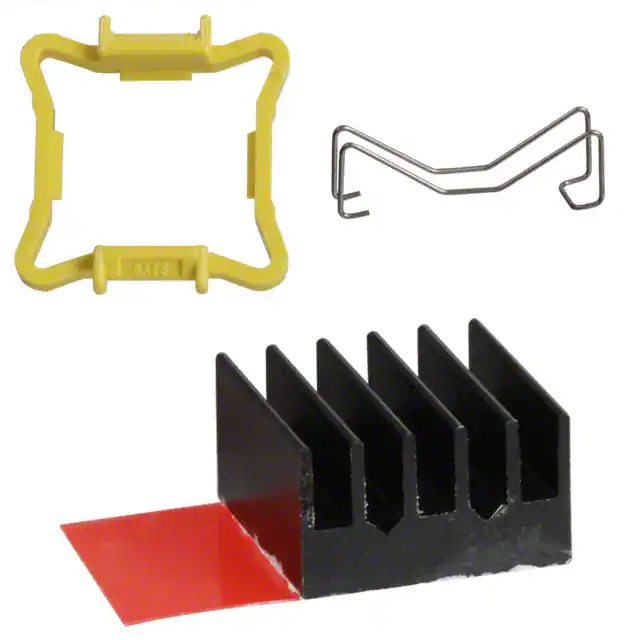

ATS-53170D-C1-R0HEAT SINK 17MM X 17MM X 9.5MM |
1,489 | 11.29 |
|
Datasheet |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.374" (9.50mm) | - | 24.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

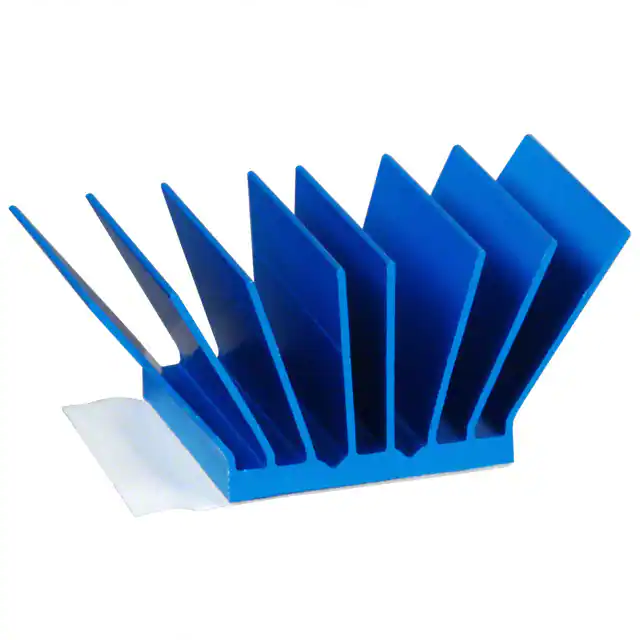

ATS-52230P-C1-R0HEAT SINK 23MM X 23MM X 17.5MM |
100 | 11.40 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.689" (17.50mm) | - | 5.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

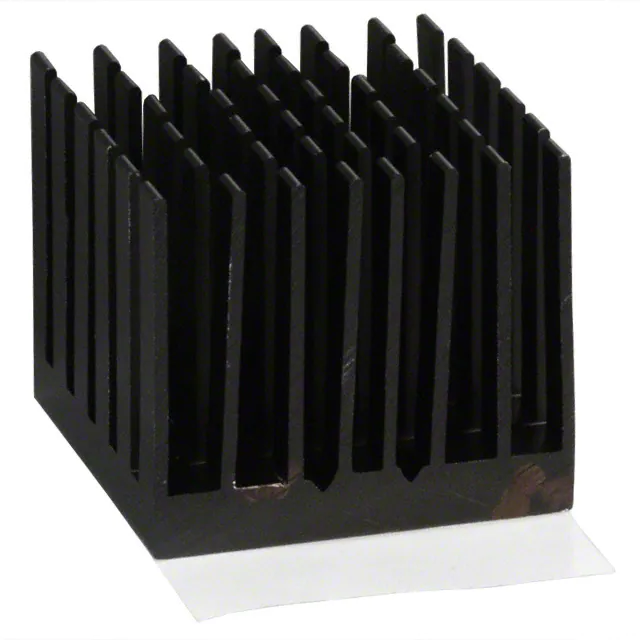

ATS-55290W-C1-R0HEAT SINK 29MM X 29MM X 24.5MM |
1,098 | 11.40 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.965" (24.50mm) | - | 4.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

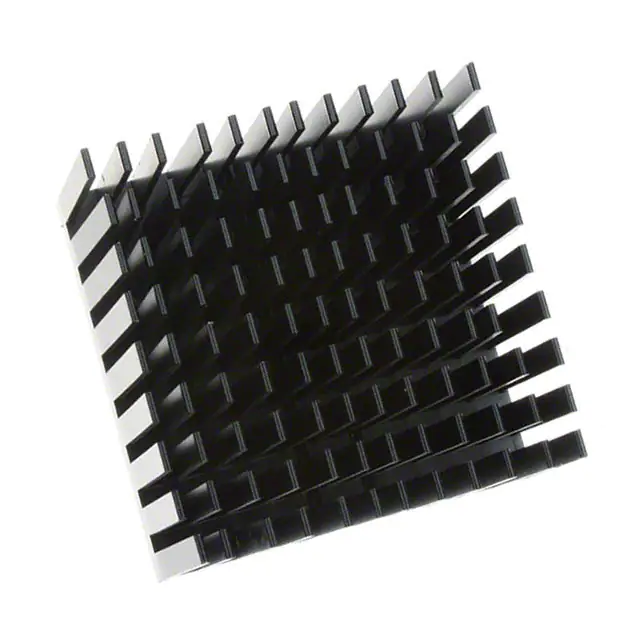

ATS-54425W-C1-R0HEAT SINK 42.5 X 42.5 X 24.5MM |
3,394 | 11.65 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.965" (24.50mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

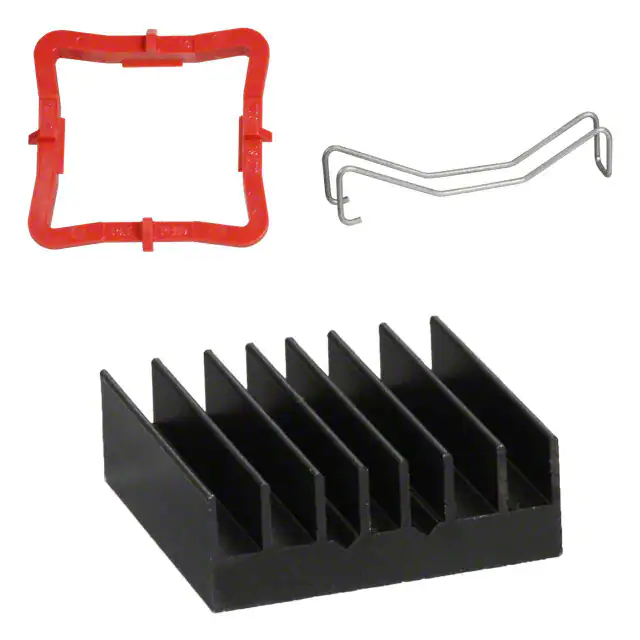

ATS-53270D-C1-R0HEAT SINK 27MM X 27MM X 9.5MM |
100 | 11.87 |
|
Datasheet |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.374" (9.50mm) | - | 14.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

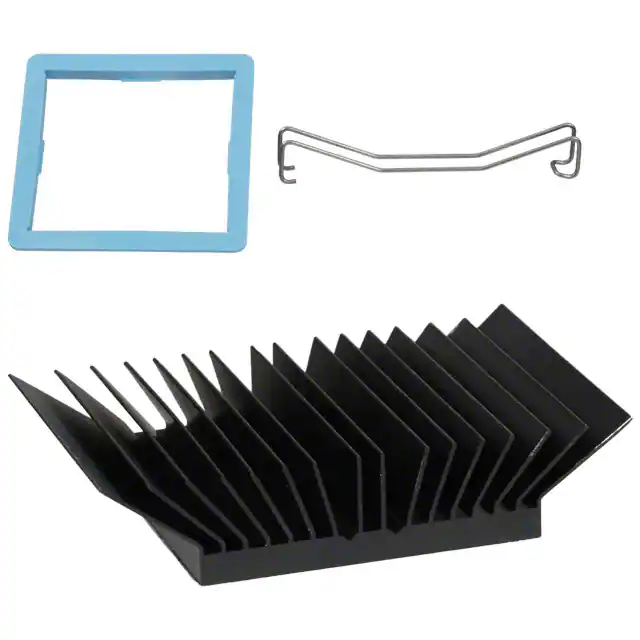

ATS-51450K-C1-R0HEAT SINK 45MM X 45MM X 14.5MM |
4,845 | 15.51 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.571" (14.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-28-C2-R0HEATSINK 70X70X15MM XCUT T766 |
4,647 | 15.54 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

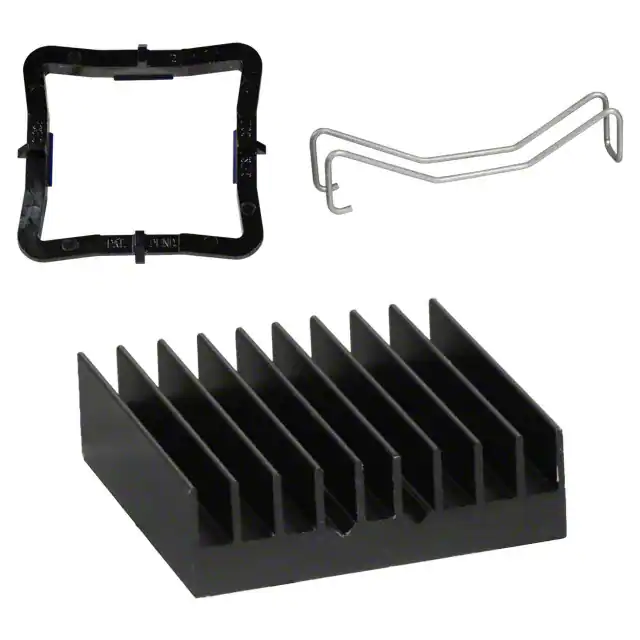

ATS-53310D-C1-R0HEAT SINK 31MM X 31MM X 9.5MM |
1,768 | 12.25 |
|
Datasheet |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.374" (9.50mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
