Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

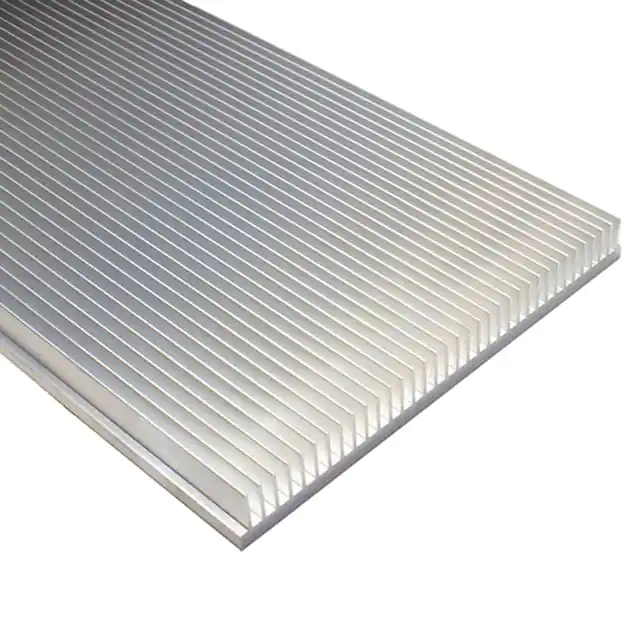

12768711.578" WIDE X 12" FLATBACK HEAT |
2,368 | 106.72 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 11.578" (294.08mm) | - | 1.320" (33.53mm) | - | - | 0.21°C/W | Aluminum | - |
|

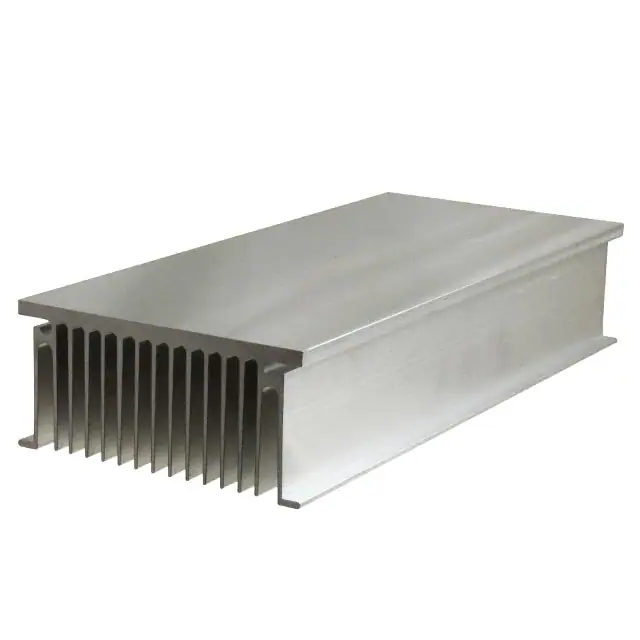

511-12MHEATSINK FOR PWR MOD/IGBT/RELAY |
4,283 | 85.23 |
|
Datasheet |
511 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.210" (132.33mm) | - | 2.350" (59.69mm) | - | - | 0.45°C/W | Aluminum | - |
|
510-12UHEATSINK FOR PWR MOD/IGBT/RELAY |
1,530 | 100.76 |
|
Datasheet |
510 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.380" (187.45mm) | - | 3.136" (79.65mm) | - | - | 0.24°C/W | Aluminum | - |
|
780252F00000G78025 EXTRUSION 1.24X1.54"X4.1' |
2,747 | 106.32 |
|
Datasheet |
- | Box | Active | Board Level, Vertical, Extrusion | - | PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.535" (39.00mm) | - | 1.240" (31.50mm) | - | - | - | Aluminum | - |
|

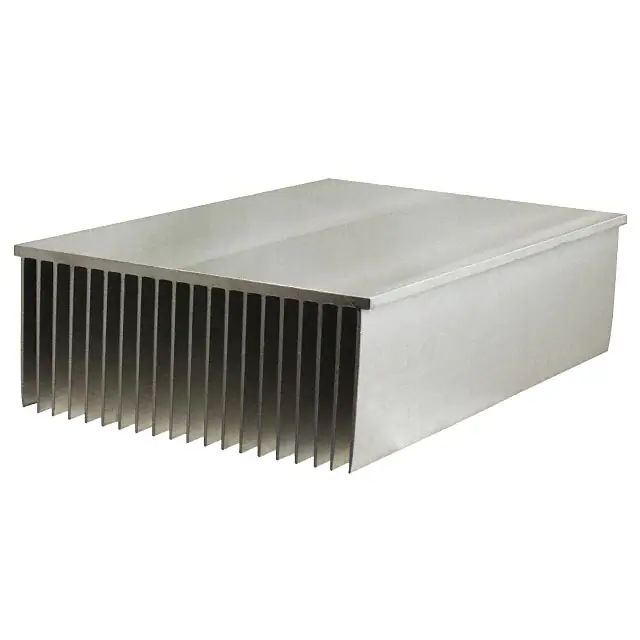

510-12MHEATSINK FOR PWR MOD/IGBT/RELAY |
1,656 | 116.48 |
|
Datasheet |
510 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.380" (187.45mm) | - | 3.106" (78.89mm) | - | - | 0.24°C/W | Aluminum | - |
|
783502F00000G78350 EXTRUSION 3.37X1.95"X4.1' |
1,709 | 168.82 |
|
Datasheet |
- | Box | Active | Board Level, Vertical, Extrusion | - | PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.950" (49.53mm) | - | 3.366" (85.50mm) | - | - | - | Aluminum | - |
|

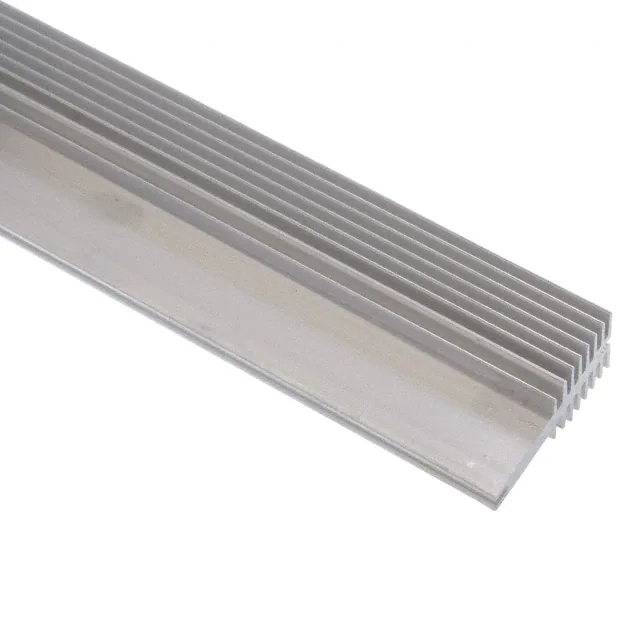

782202F00000G78220 EXTRUSION 2.36X1.18"X4.1' |
3,190 | 194.71 |
|
Datasheet |
- | Box | Active | Board Level, Vertical, Extrusion | - | PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.181" (30.00mm) | - | 2.362" (60.00mm) | - | 1.50°C/W @ 400 LFM | - | Aluminum | - |
|
ATS-EXL105-300-R0HEATSINK AL6063 300X342X49.5MM |
3,681 | 156.11 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 13.465" (342.00mm) | - | 1.949" (49.50mm) | - | 0.59°C/W @ 200 LFM | 2.04°C/W | Aluminum | Degreased |
|

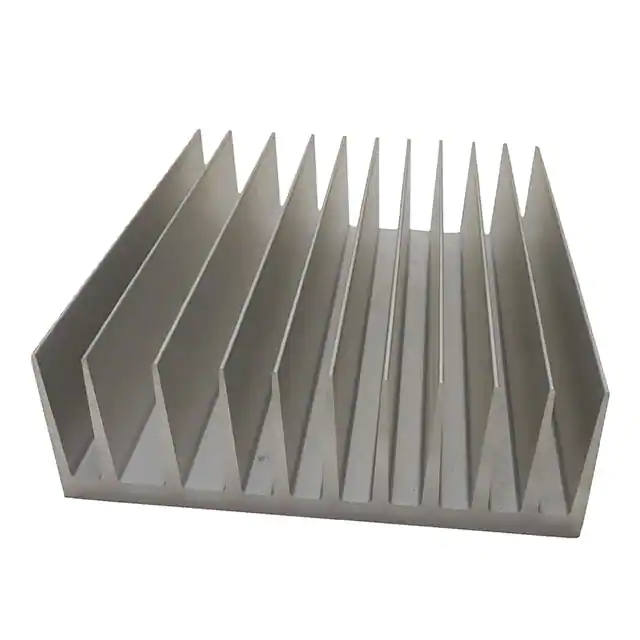

12546010.78WX12" EXTRUSION XX4559 |
1,260 | 169.39 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 10.780" (273.81mm) | - | 3.770" (95.76mm) | - | - | 0.13°C/W | Aluminum | - |
|
688552F00000G68855 EXTRUSION 0.46X7.201"X4' |
3,250 | 168.32 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular | 48.000" (1219.20mm) | 7.200" (182.88mm) | - | 0.480" (12.19mm) | - | 0.50°C/W @ 500 LFM | - | Aluminum | - |
|
ATS-EXL121-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
2,994 | 185.35 |
|
Datasheet |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 2.362" (60.00mm) | - | 0.551" (14.00mm) | - | 3.20°C/W @ 200 LFM | 16.10°C/W | Aluminum | Degreased |
|

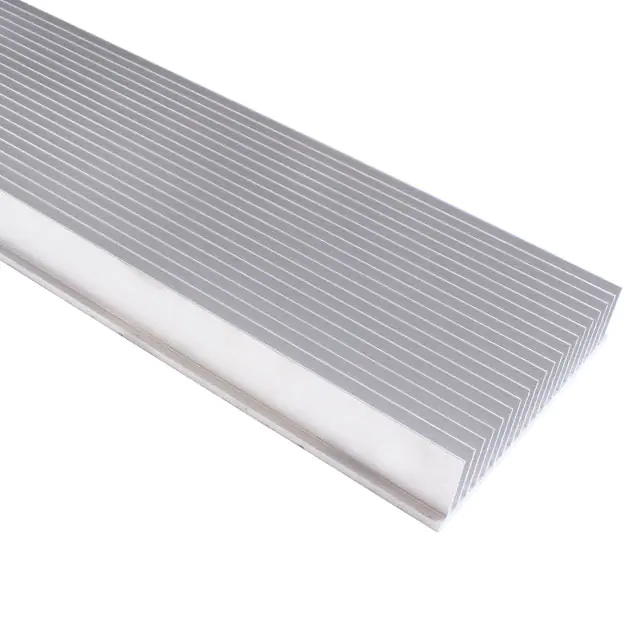

627252F0000062725 EXTRUSION 2.28X9.75"X4.62' |
2,606 | 779.01 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 55.500" (1409.70mm) | 9.750" (247.65mm) | - | 2.280" (57.91mm) | - | 0.20°C/W @ 700 LFM | - | Aluminum | - |
|
HSS-B20-NP-07HEATSINK TO-220 2.3W ALUMINUM |
121 | 0.48 |
|
Datasheet |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.591" (15.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 2.3W @ 75°C | 11.04°C/W @ 200 LFM | 33.28°C/W | Aluminum | Black Anodized |
|

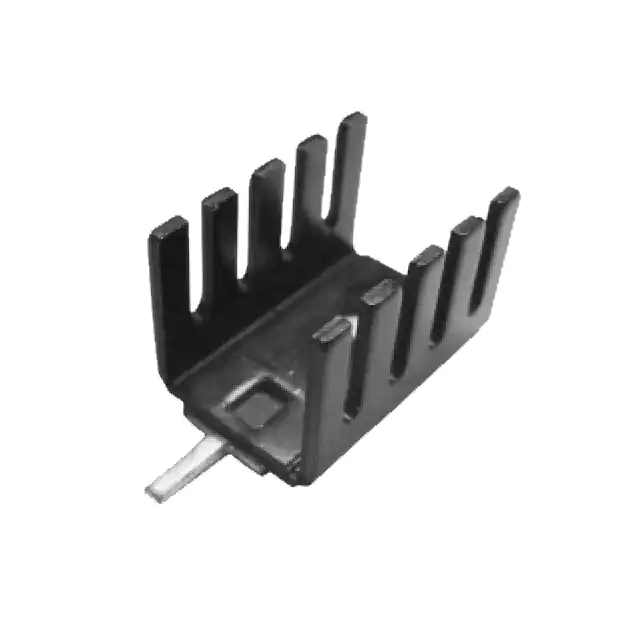

ATS-PCB1013HEATSINK TO-220 VERT MNT W/TAB |
396 | 1.02 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | - | 9.50°C/W @ 200 LFM | 24.40°C/W | Aluminum | Black Anodized |
|
ATS-PCB1044HEATSINK TO-220 BLACK |
198 | 1.49 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.748" (19.00mm) | 0.866" (22.00mm) | - | 0.433" (11.00mm) | - | 11.20°C/W @ 200 LFM | 23.70°C/W | Aluminum | Black Anodized |
|
HSS-B20-0508H-01SHEATSINK TO-220 4.7W ALUMINUM |
656 | 0.70 |
|
Datasheet |
HSS | Bag | Active | Board Level | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 0.500" (12.70mm) | 1.000" (25.40mm) | - | 1.180" (29.97mm) | 4.7W @ 75°C | 5.87°C/W @ 200 LFM | 15.83°C/W | Aluminum | Black Anodized |
|

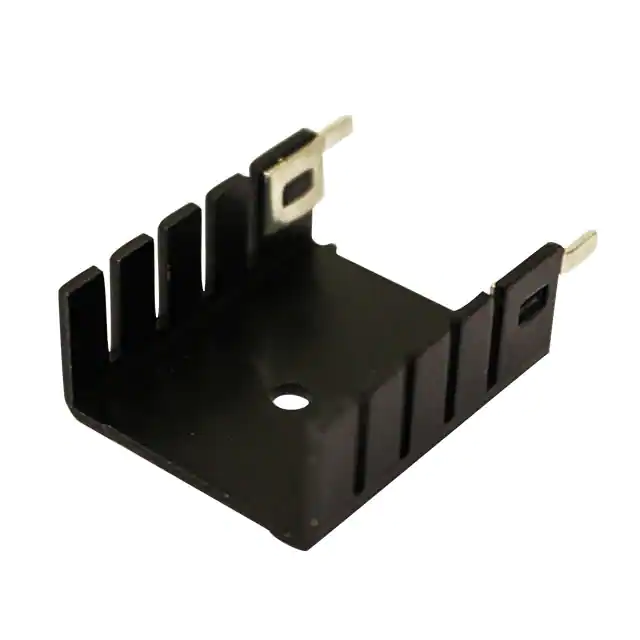

ATS-PCBT1077HEATSINK TO-220 BLACK W/TAB |
1,000 | 1.01 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 7.30°C/W @ 200 LFM | 12.50°C/W | Aluminum | Black Anodized |
|

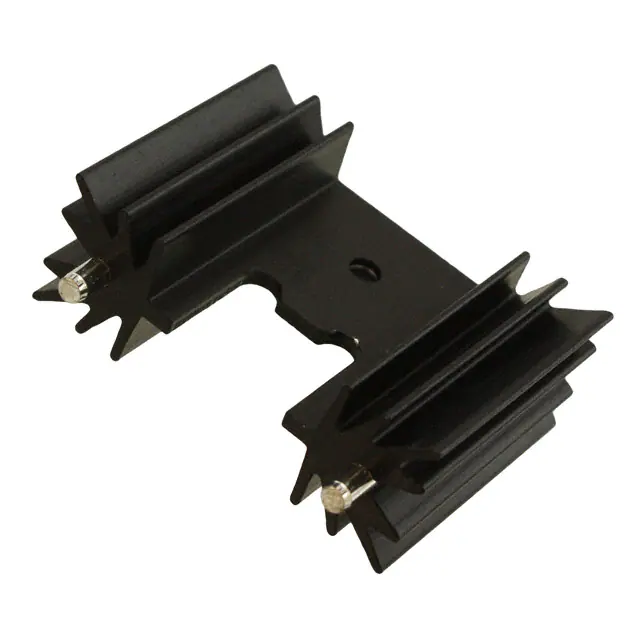

V7477WCHEATSINK ALUM ANOD |
100 | 0.72 |
|
Datasheet |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.000" (25.40mm) | 1.374" (34.90mm) | - | 0.500" (12.70mm) | - | - | 14.00°C/W | Aluminum | Black Anodized |
|

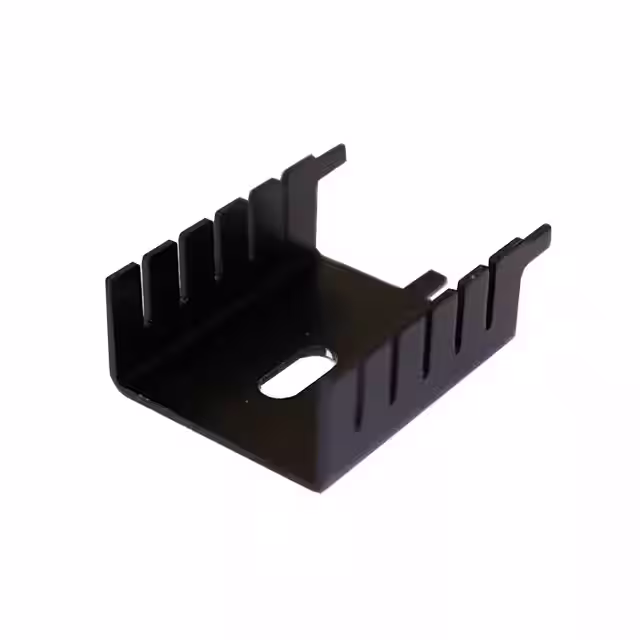

ATS-PCBT1079HEATSINK TO-220 VERT BLACK |
892 | 0.87 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 7.10°C/W @ 200 LFM | 13.00°C/W | Aluminum | Black Anodized |
|

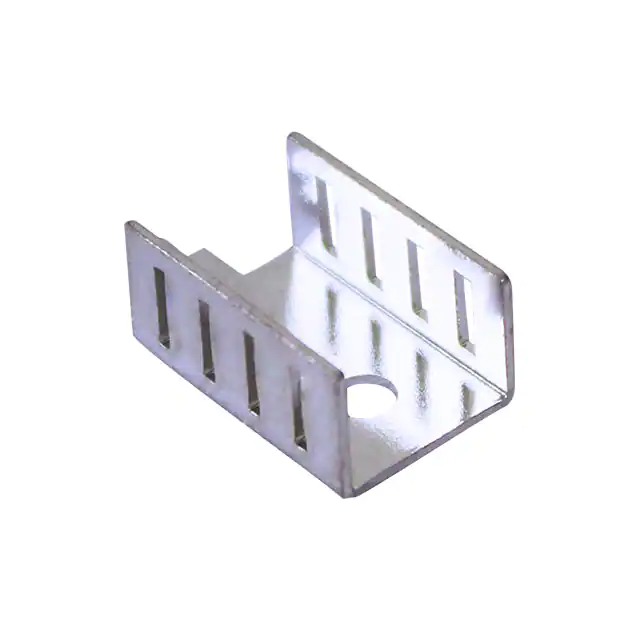

ATS-PCBT1096HEATSINK TO-220 STEEL W/TAB |
747 | 0.87 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.375" (9.52mm) | - | 14.00°C/W @ 200 LFM | 35.70°C/W | Steel | Tin |
