Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7237AHEATSINK ALUM ANOD |
985 | 0.97 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.250" (6.35mm) | - | - | 28.00°C/W | Aluminum | Black Anodized |
|
HSS05-C20-SMT-TRHEAT SINK, STAMPING, TO-220, 12. |
1,106 | 0.98 |
|
Datasheet |
HSS | Tape & Reel (TR) | Active | Board Level, Vertical | TO-220 | - | Rectangular | 1.031" (26.20mm) | 0.500" (12.70mm) | - | 0.390" (9.91mm) | 2.3W @ 75°C | 14.00°C/W @ 200 LFM | 32.69°C/W | Copper Alloy | Tin |
|

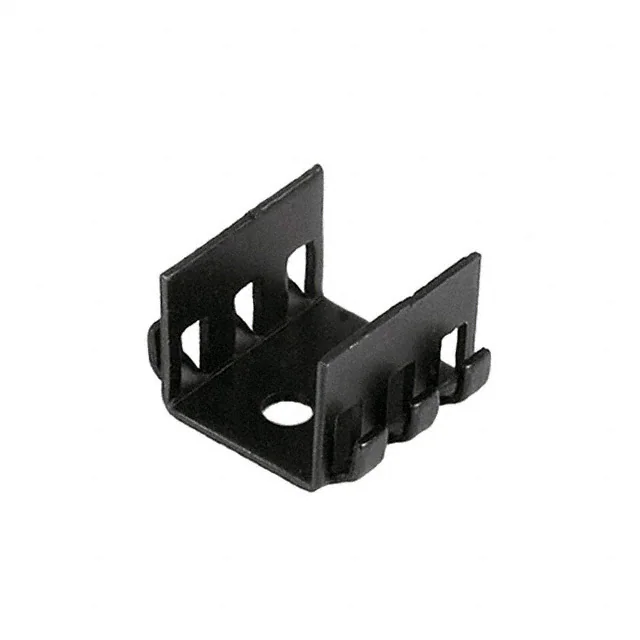

7-361-BAHEATSINK VERT HORZ TO-220 |
2,983 | 1.24 |
|
Datasheet |
7 | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.710" (18.03mm) | 0.800" (20.32mm) | - | 0.500" (12.70mm) | 1.5W @ 40°C | - | 30.00°C/W | Aluminum | Black Anodized |
|

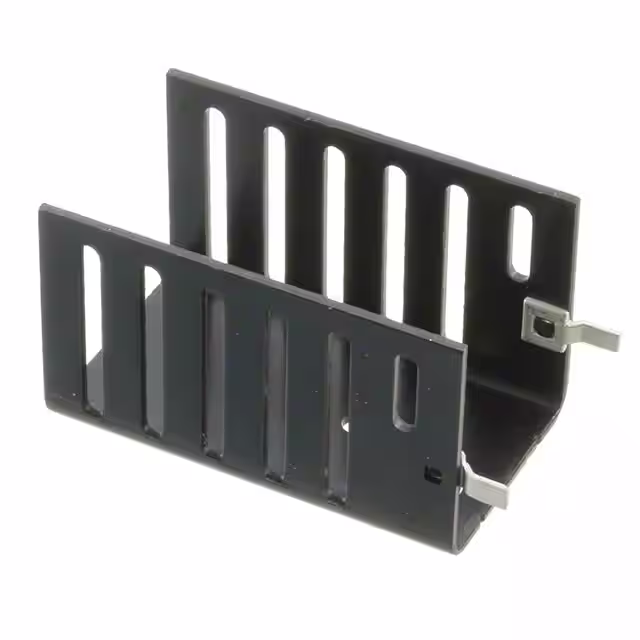

ATS-PCB1048HEATSINK TO-220 W/TAB BLACK |
886 | 1.94 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.678" (42.62mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 8.00°C/W @ 200 LFM | 13.00°C/W | Aluminum | Black Anodized |
|

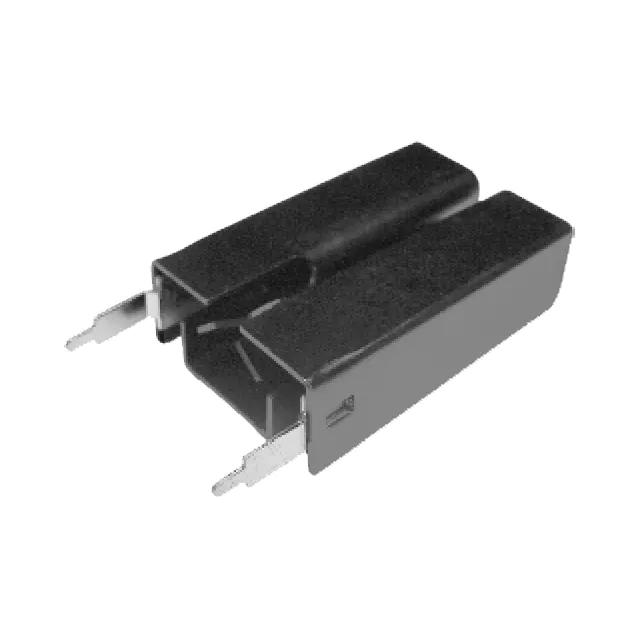

ATS-PCB1068HEATSINK TO-220 W/TAB BLACK |
2,015 | 1.56 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.375" (34.93mm) | 0.860" (21.84mm) | - | 0.358" (9.10mm) | - | 11.00°C/W @ 200 LFM | 16.00°C/W | Aluminum | Black Anodized |
|
V8511ZHEATSINK ALUM ANOD |
2,429 | 1.56 |
|
Datasheet |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Rectangular, Fins | 1.378" (35.00mm) | 0.866" (22.00mm) | - | 0.984" (25.00mm) | - | - | 3.50°C/W | Aluminum | Black Anodized |
|
ATS-FPX025025010-43-C1-R0HEATSINK 25X25X10MM L-TAB FP |
2,962 | 2.96 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 28.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040013-02-C1-R0HEATSINK 40X40X12.7MM XCUT FP |
1,519 | 3.13 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 18.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035010-85-C1-R0HEATSINK 35X35X10MM R-TAB FP |
2,879 | 3.15 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 23.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040025-116-C3-R0HEATSINK 40X40X25MM XCUT CP |
100 | 3.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX035035025-178-C1-R0HEATSINK 35X35X25MM R-TAB CP |
3,374 | 3.82 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 4.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

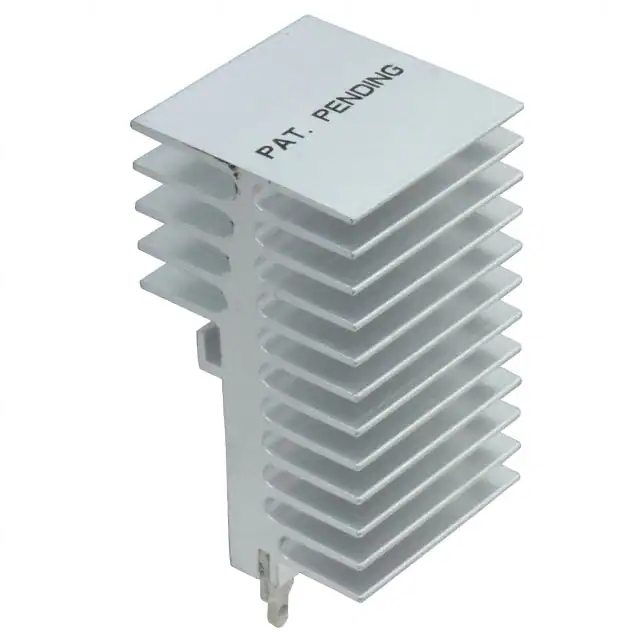

CR101-25VEALUMINUM HEATSINK 25MM DEGREASED |
3,774 | 2.59 |
|
Datasheet |
CR | Box | Active | Board Level, Vertical | TO-101 | 3 Clips and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 1.969" (50.00mm) | - | - | - | - | 7.60°C/W | Aluminum Alloy | Degreased |
|

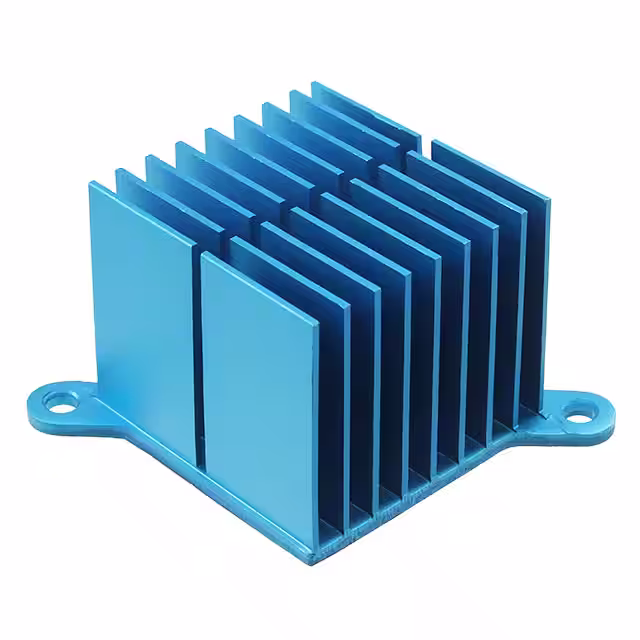

ATS-CPX035035030-151-C1-R0HEATSINK 35X35X30MM L-TAB CP |
100 | 3.93 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 3.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX035035030-179-C1-R0HEATSINK 35X35X30MM R-TAB CP |
3,247 | 3.93 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 3.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045010-197-C2-R0HEATSINK 45X45X10MM XCUT CP |
1,393 | 3.86 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040010-194-C1-R0HEATSINK 40X40X10MM XCUT CP |
1,224 | 2.84 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 13.02°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

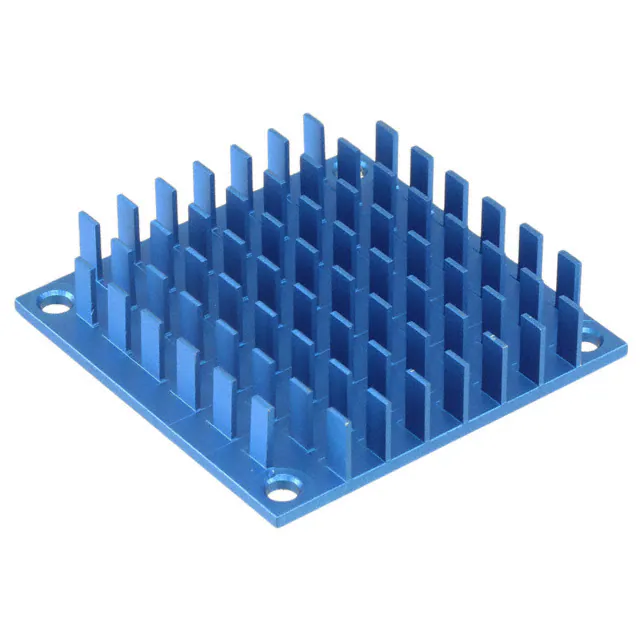

ATS-CPX050050010-200-C2-R0HEATSINK 50X50X10MM XCUT CP |
4,646 | 4.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX025025015-44-C1-R0HEATSINK 25X25X15MM L-TAB FP |
3,744 | 3.05 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 20.28°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045010-197-C1-R0HEATSINK 45X45X10MM XCUT CP |
3,456 | 2.94 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040012-195-C1-R0HEATSINK 40X40X12MM XCUT CP |
2,625 | 2.96 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.472" (12.00mm) | - | 10.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
